Model # ZV750SY Official GE range hood
Here are the diagrams and repair parts for Official GE ZV750SY range hood, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts forZV750SY Range Hood
- #199

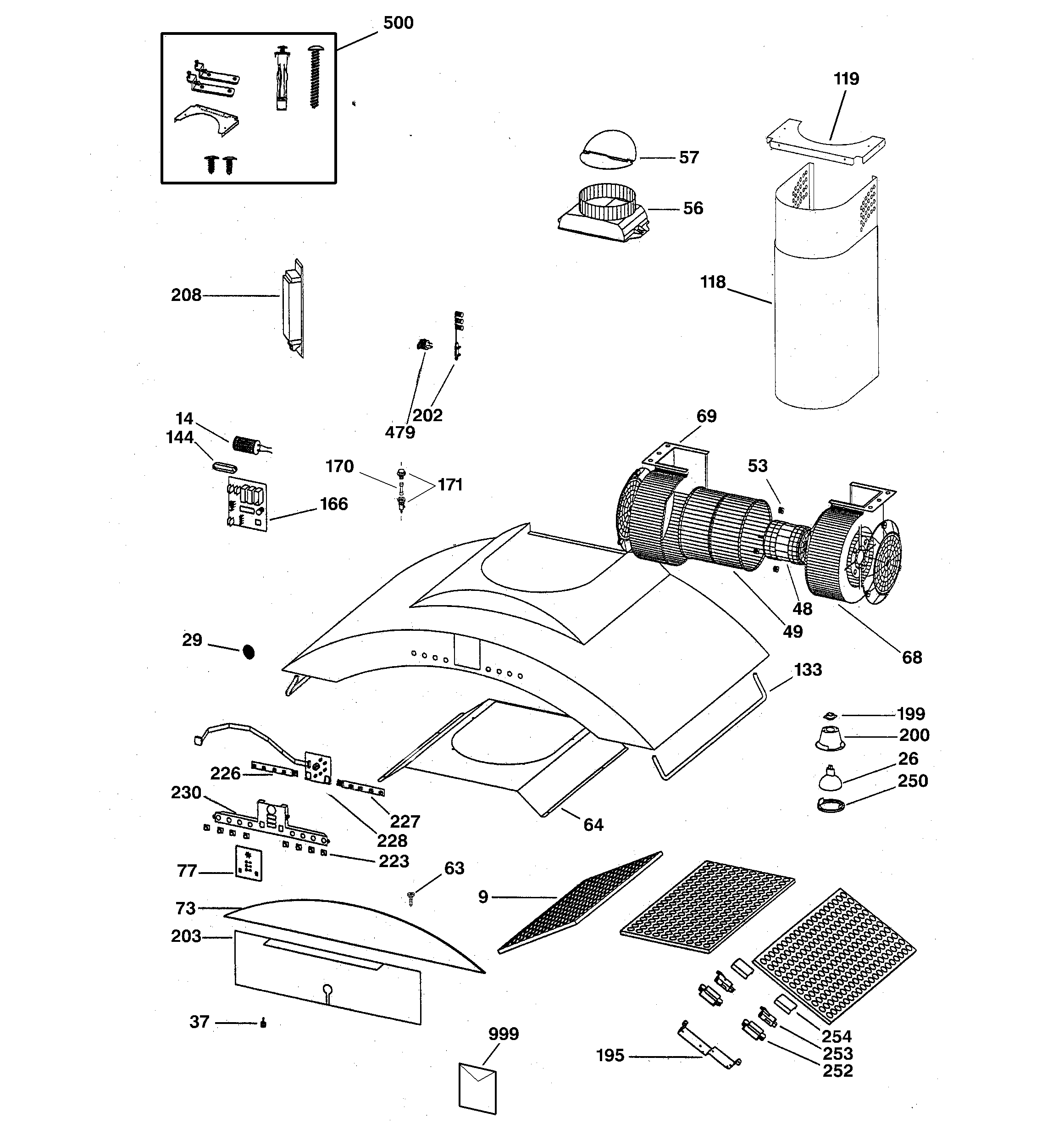

Range hood diagram
Range hood light socket ceramic basePart #WB02X10400
$73.88 |8% OFF Phone Price : $79.88In Stock - #250
Range hood diagram
Range hood light retainer nutPart #WB01X10002
$100.18 |11% OFF Phone Price : $112.18In Stock - #73
Range hood diagram
Range hood canopy visorPart #WB07X10007
$261.45 |$12.00 OFF Phone Price : $273.45In Stock - #171
Range hood diagram
Fuse holderPart #WB02X10647
$89.49In Stock - #29
Range hood diagram
Monogram logoPart #WB02X10364
Replaced by #WR04X24243
?Manufacturer substitutionThis part replaces WB02X10364. Substitute parts can look different from the original.$54.20In Stock - #479
Range hood diagram
Range hood triacPart #WB02X10402
$158.96 |7% OFF Phone Price : $170.96In Stock - #202
Range hood diagram
Reflector stPart #WB02X10401
$30.24In Stock - #37
Range hood diagram
KnobPart #WB03X10002
$27.11In Stock - #254
Range hood diagram
Box cover miPart #WB07X10004
$23.84In Stock - #253
Range hood diagram
Micro-switchPart #WB24X10001
$78.88 |7% OFF Phone Price : $84.88In Stock
