Model # KMLS311HWH10 Official KitchenAid microwave/hood combo
Here are the diagrams and repair parts for Official KitchenAid KMLS311HWH10 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

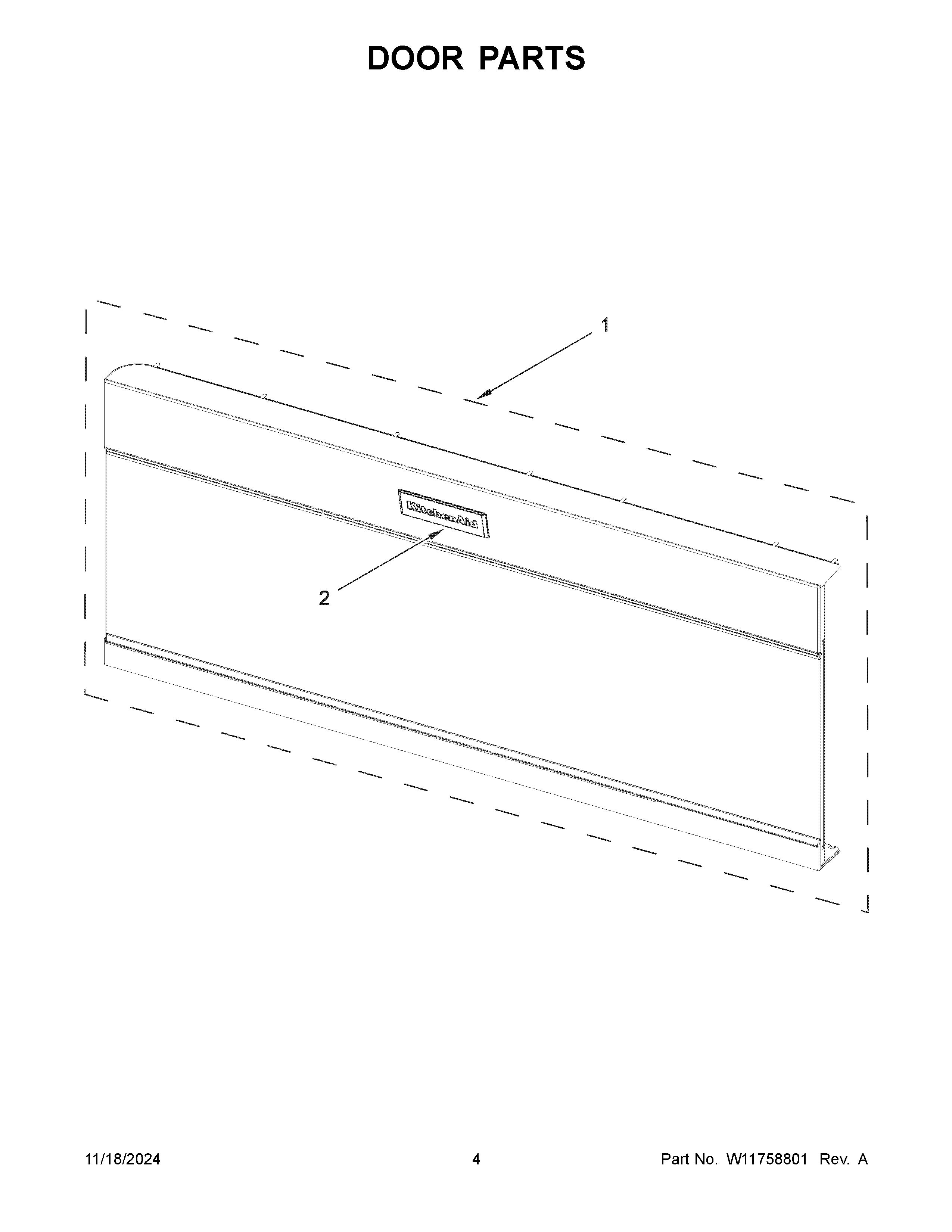

SELECT DIAGRAM
Browse Parts forKMLS311HWH10 Microwave/Hood Combo
- #4

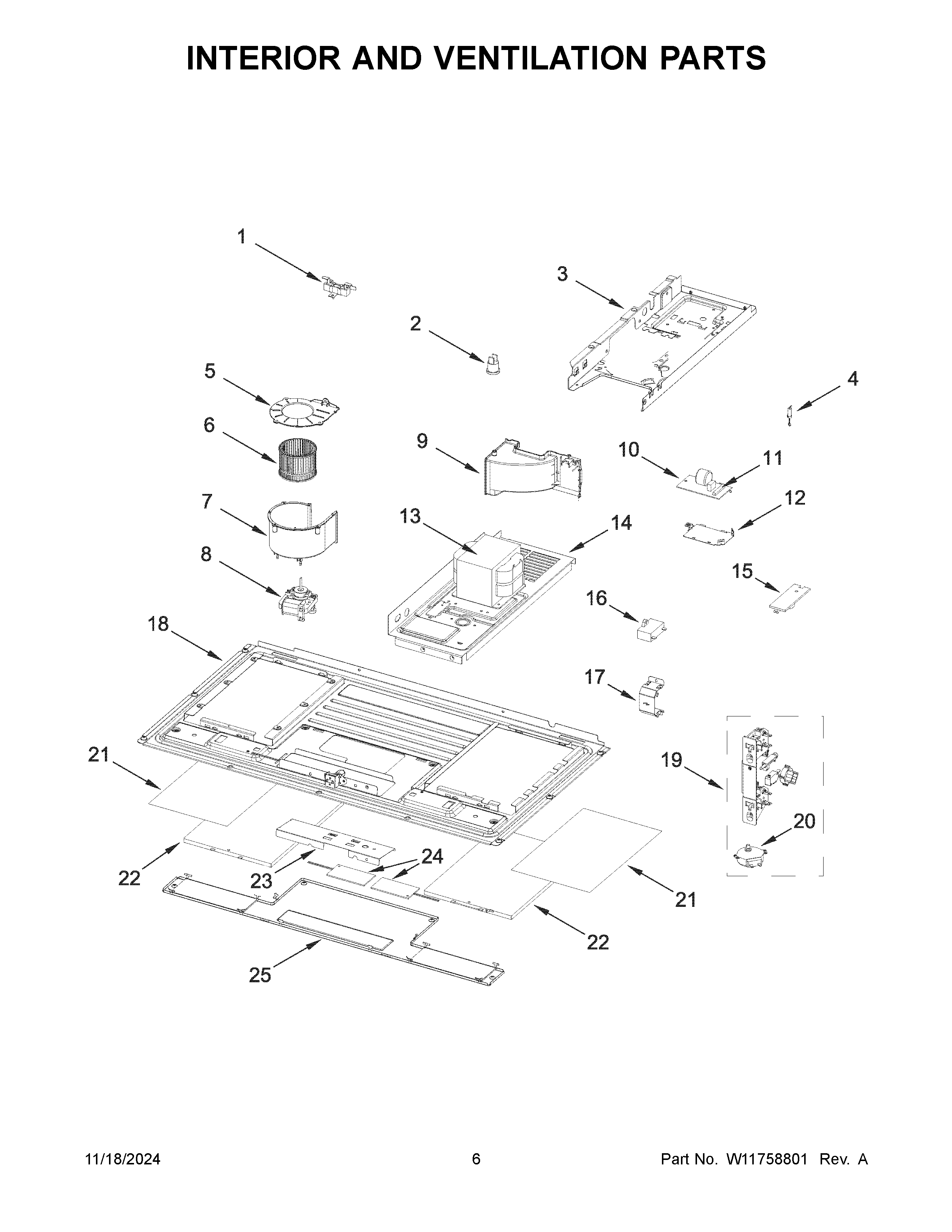

Interior and ventilation parts diagram
Microwave high-voltage diodePart #W10492278
Replaced by #W11256462
?Manufacturer substitutionThis part replaces W10492278. Substitute parts can look different from the original.$23.42 |20% OFF Phone Price : $29.42In Stock - #16
Interior and ventilation parts diagram
CapacitorPart #W10343300
Replaced by #W10850446
?Manufacturer substitutionThis part replaces W10343300. Substitute parts can look different from the original.$94.83 |6% OFF Phone Price : $100.83In Stock - #11
Interior and ventilation parts diagram
Microwave fusePart #W10138793
Replaced by #W11707984
?Manufacturer substitutionThis part replaces W10138793. Substitute parts can look different from the original.$55.83In Stock - #7

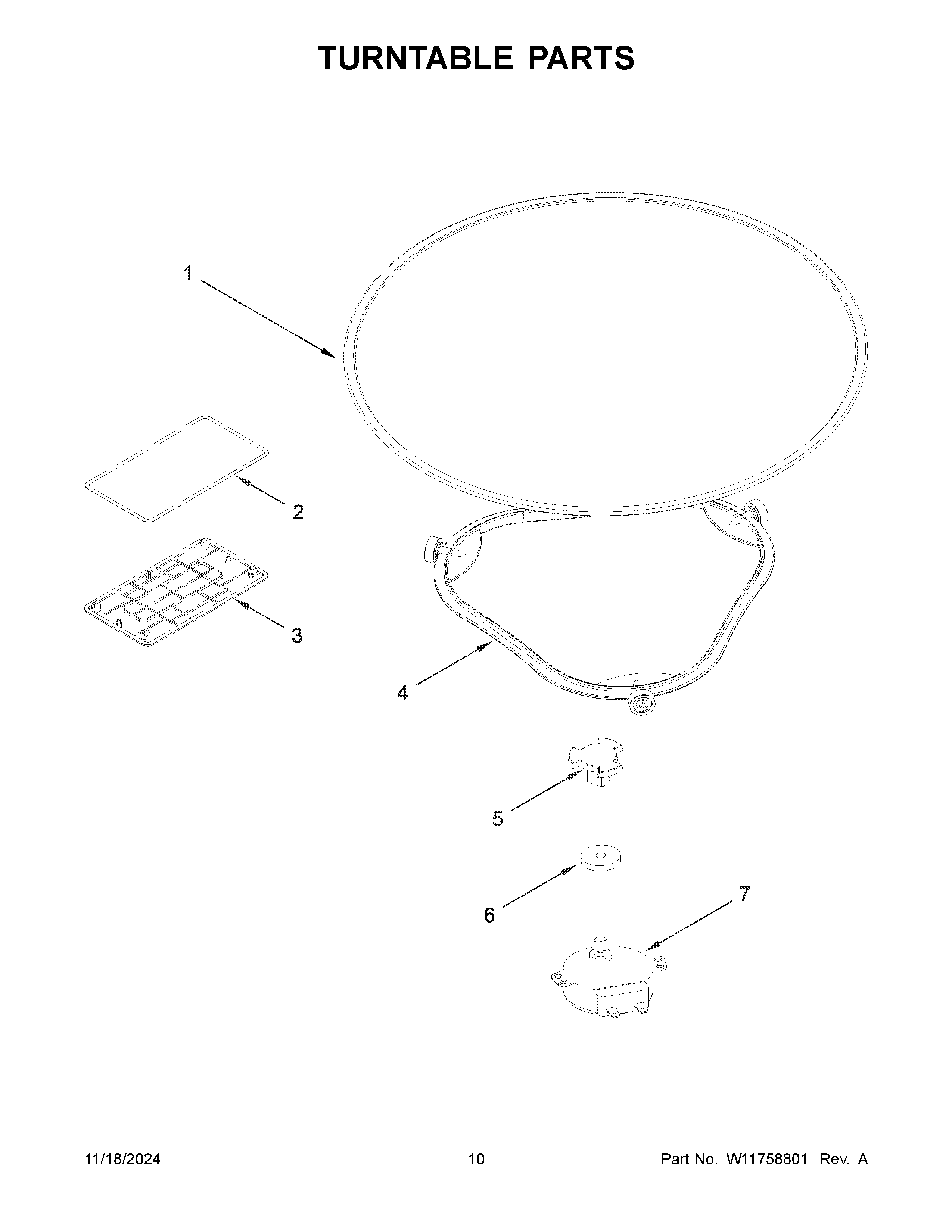

Turntable parts diagram
Turntable motorPart #W10466420
Replaced by #WPW10466420
?Manufacturer substitutionThis part replaces W10466420. Substitute parts can look different from the original.$32.16 |16% OFF Phone Price : $38.16In Stock - #4
Turntable parts diagram
Ring, turntablePart #W11387723
Replaced by #W11443144
?Manufacturer substitutionThis part replaces W11387723. Substitute parts can look different from the original.This item is not returnable$12.89 |13% OFF Phone Price : $14.89In Stock - #3
Turntable parts diagram
Lp-mw inletPart #W11421280
$54.81In Stock - #NI

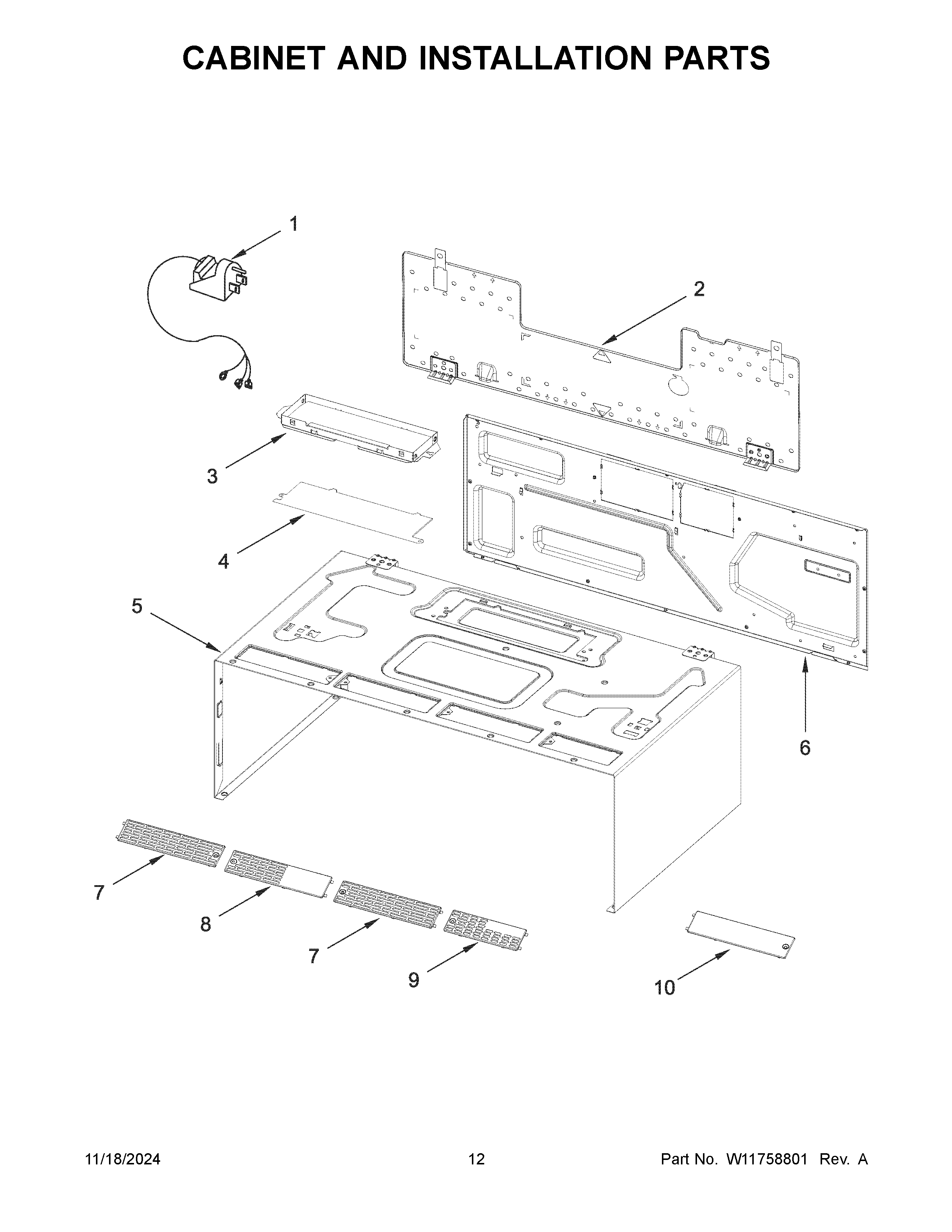

Cabinet and installation parts diagram
Microwave wire harnessPart #W10539840
$31.50In Stock - #6
Turntable parts diagram
Microwave turntable motor spacerPart #W11096347
This item is not returnable$15.95 |11% OFF Phone Price : $17.95In Stock - #2A

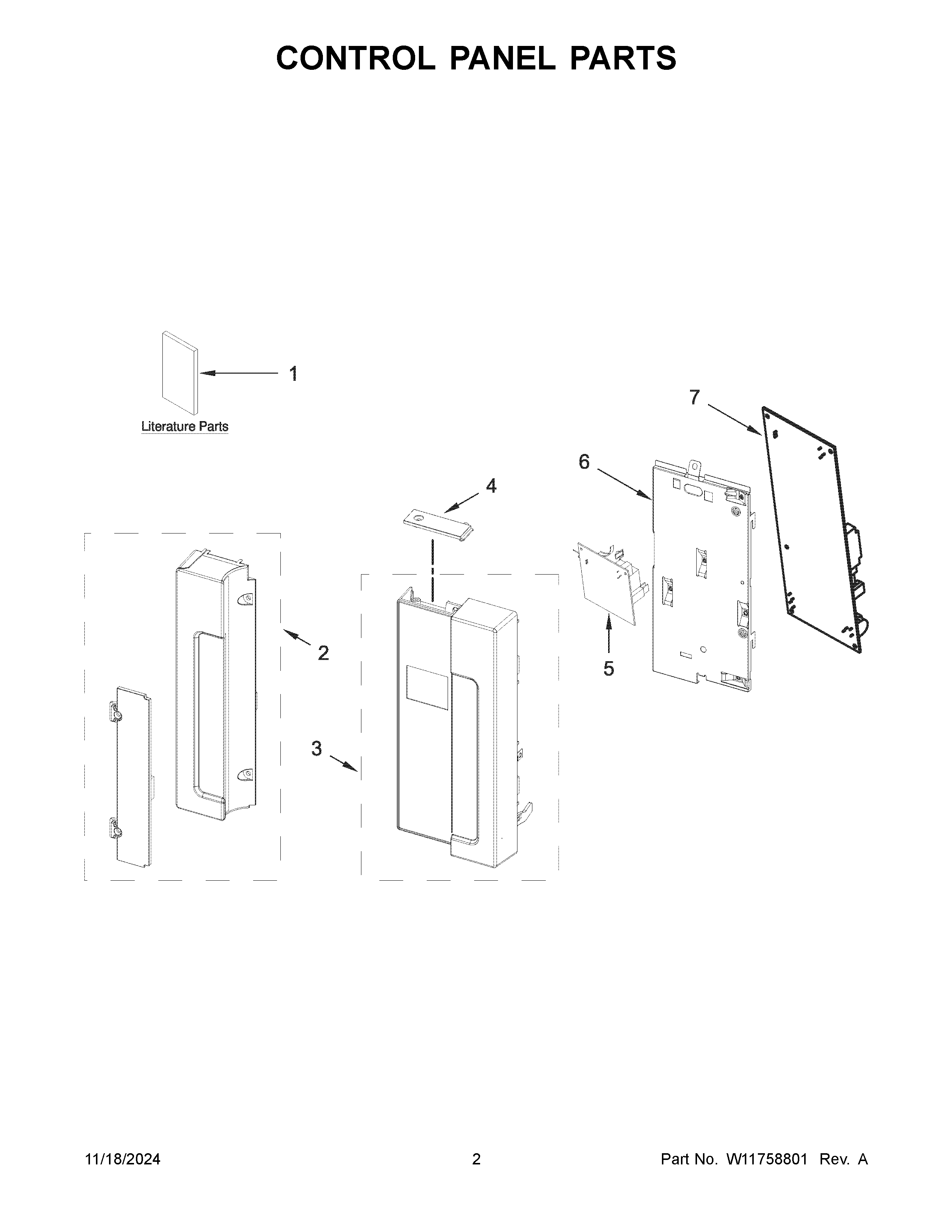

Control panel parts diagram
Control panel, left (stainless)Part #W11227003
$224.28In Stock - #1
Cabinet and installation parts diagram
Power cordPart #W11187358
$122.22In Stock
