Model # 41516139110 Official Kenmore Elite gas grill
Here are the diagrams and repair parts for Official Kenmore Elite 41516139110 gas grill, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for41516139110 Outdoor Grills
- #18

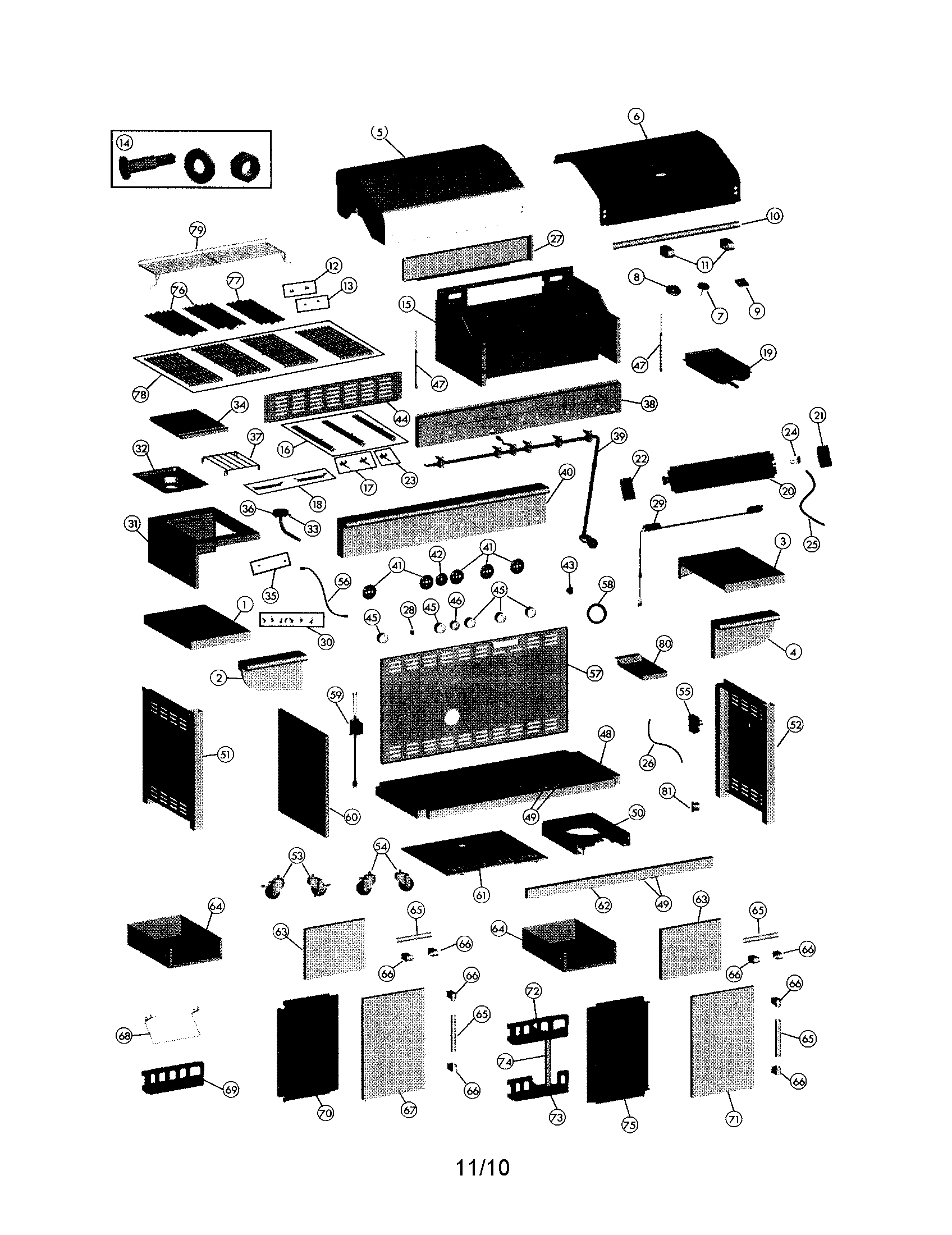

Gas grill diagram
Char-broil gas grill carryover tubePart #G524-0036-W1
$6.64 |13% OFF Phone Price : $7.64In Stock - #55
Gas grill diagram
Gas grill ignition modulePart #G513-0021-W1
$20.07 |23% OFF Phone Price : $26.07In Stock - #7
Gas grill diagram
Gas grill temperature gaugePart #G518-0075-W1
This item is not returnable$15.29 |12% OFF Phone Price : $17.29In Stock - #33
Gas grill diagram
Gas grill side burner electrodePart #G430-2604-W1
This item is not returnable$7.11In Stock - #13
Gas grill diagram
Gas grill side burner lid bumperPart #G501-0066-W1
This item is not returnable$3.14In Stock - #56
Gas grill diagram
Gas grill side burner igniter wirePart #G606-0068-W1
This item is not returnable$7.90In Stock - #14
Gas grill diagram
Kenmore elite hardwarePart #G515-0035-W1
This item is not returnable$3.99In Stock - #9
Gas grill diagram
Char-broil gas grill nameplatePart #G523-0002-W1
This item is not returnable$8.79In Stock - #8
Gas grill diagram
Gas grill burner knob bezelPart #G503-0002-W1
$14.19 |12% OFF Phone Price : $16.19In Stock - Gas grill burner knob bezel
Part #G614-0064-W1
This item is not returnable$8.54In Stock
