Built-In Microwave

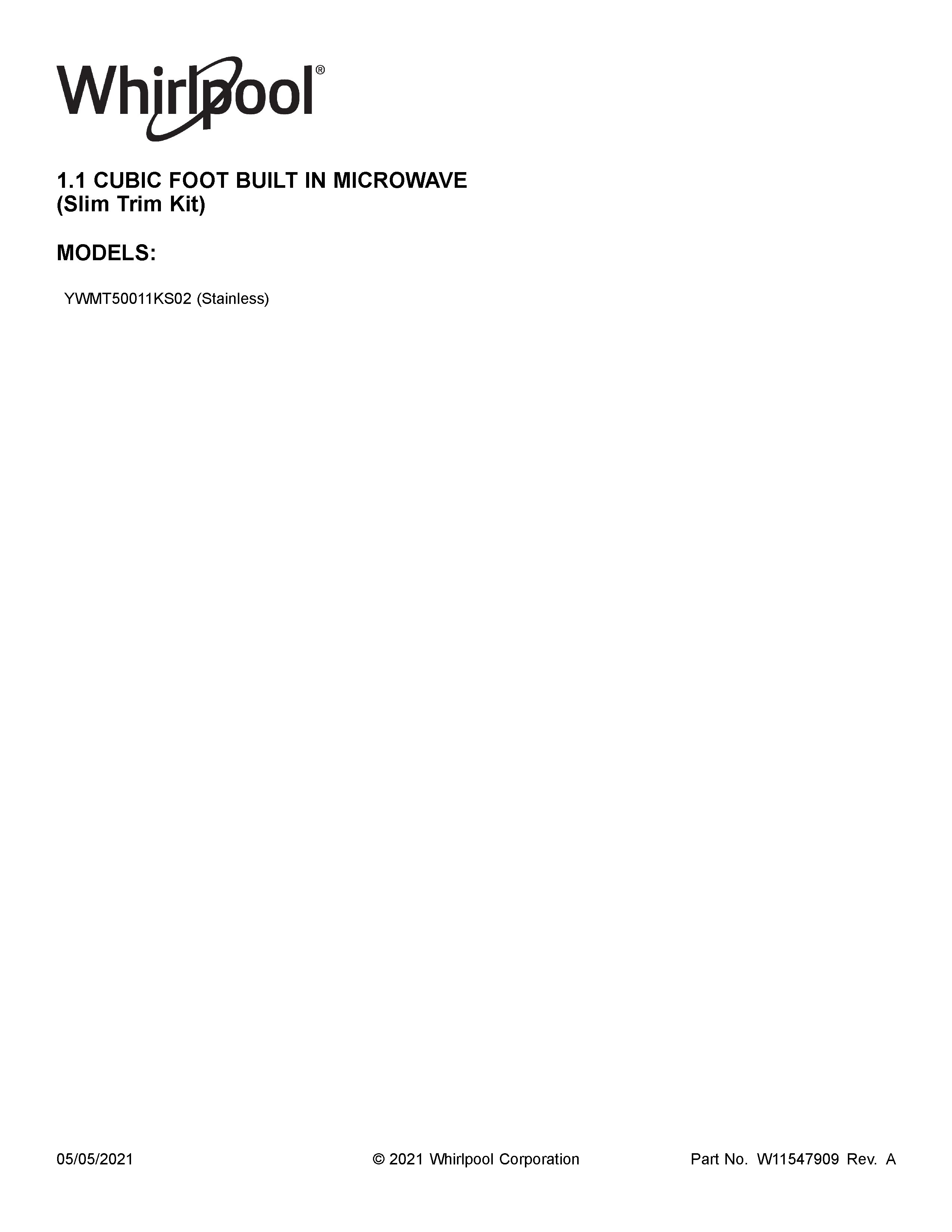

Model # YWMT50011KS02 Official Whirlpool microwave, built-in, 1.1 cubic foot

Here are the diagrams and repair parts for Official Whirlpool YWMT50011KS02 microwave, built-in, 1.1 cubic foot, as well as links to manuals and error code tables, if available.

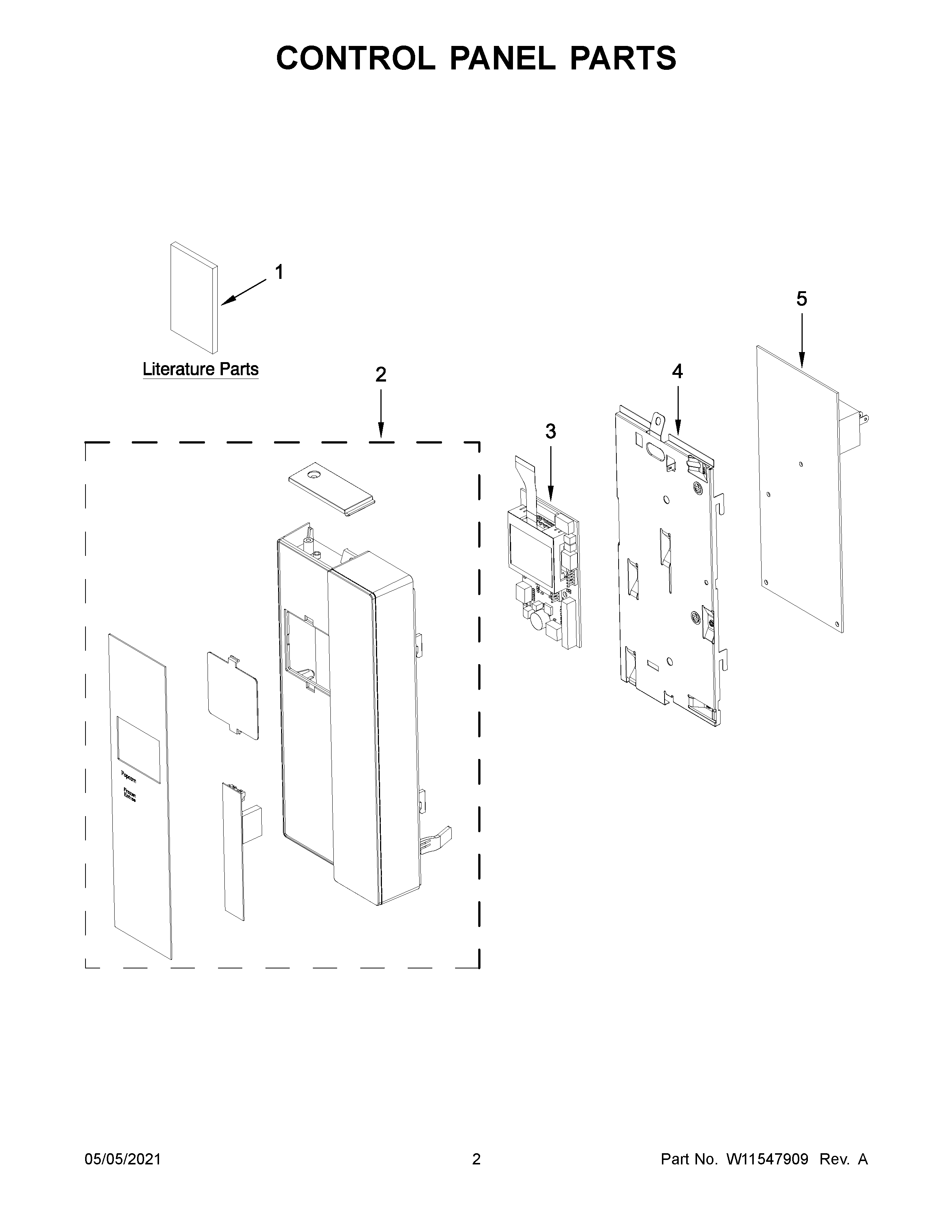

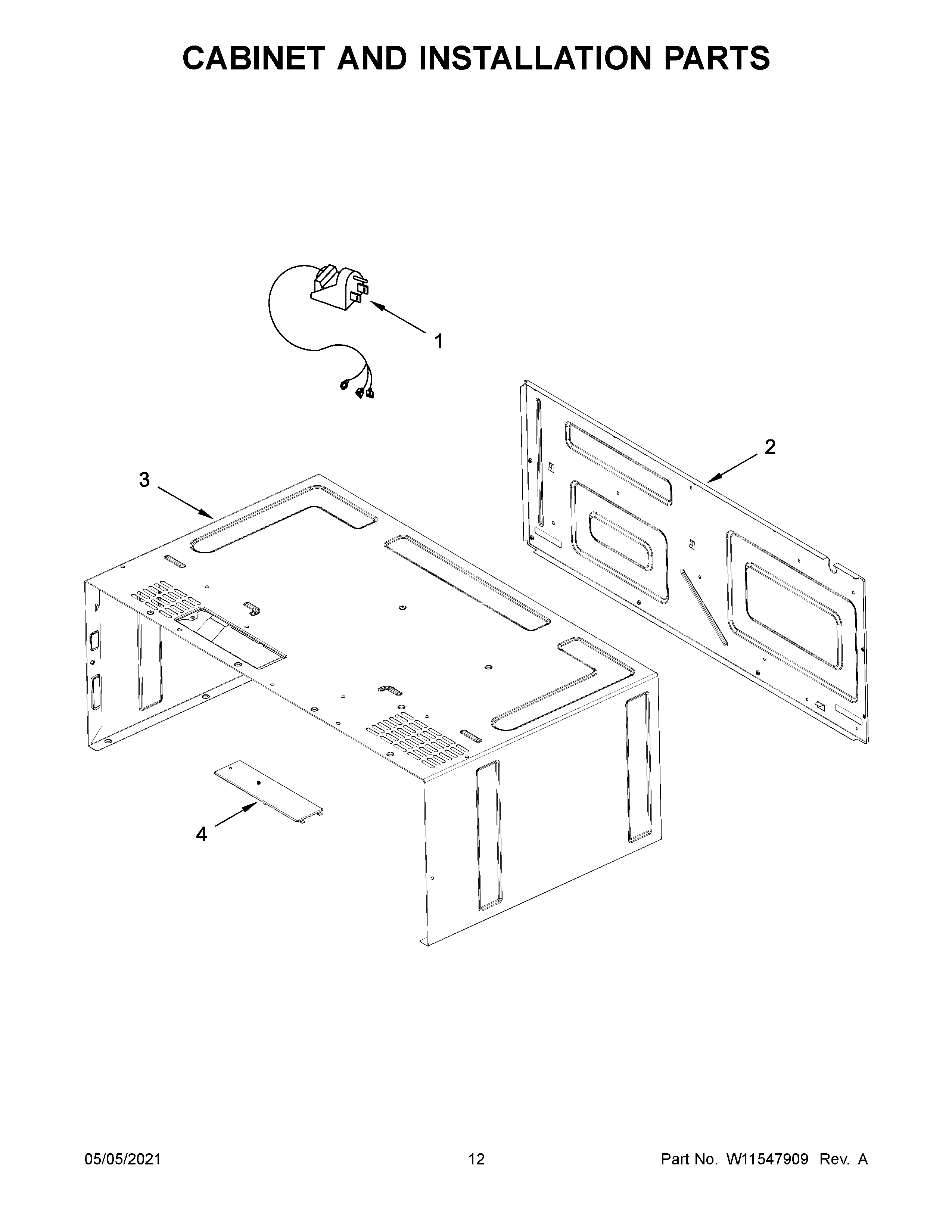

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forYWMT50011KS02 Microwaves

  • Microwave High-voltage Diode W10492278
    #10

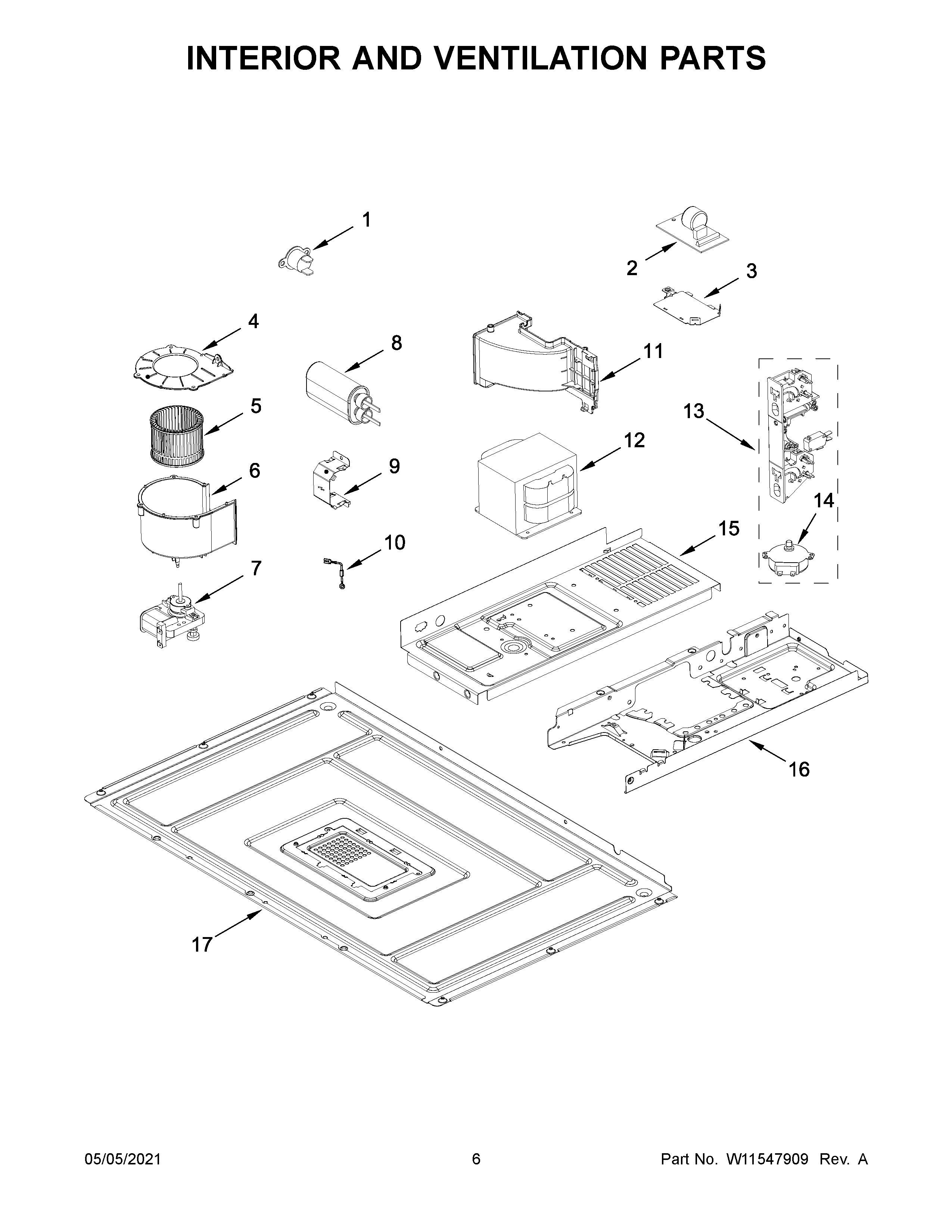

    Interior and ventilation parts diagram

    Microwave high-voltage diode

    Part #W10492278

    Replaced by #W11256462

    ?
    Manufacturer substitution
    This part replaces W10492278. Substitute parts can look different from the original.
    BEST SELLER
    $23.69 |
    20% OFF Phone Price : $29.69
    In Stock
  • Microwave Fuse W10138793
    #14

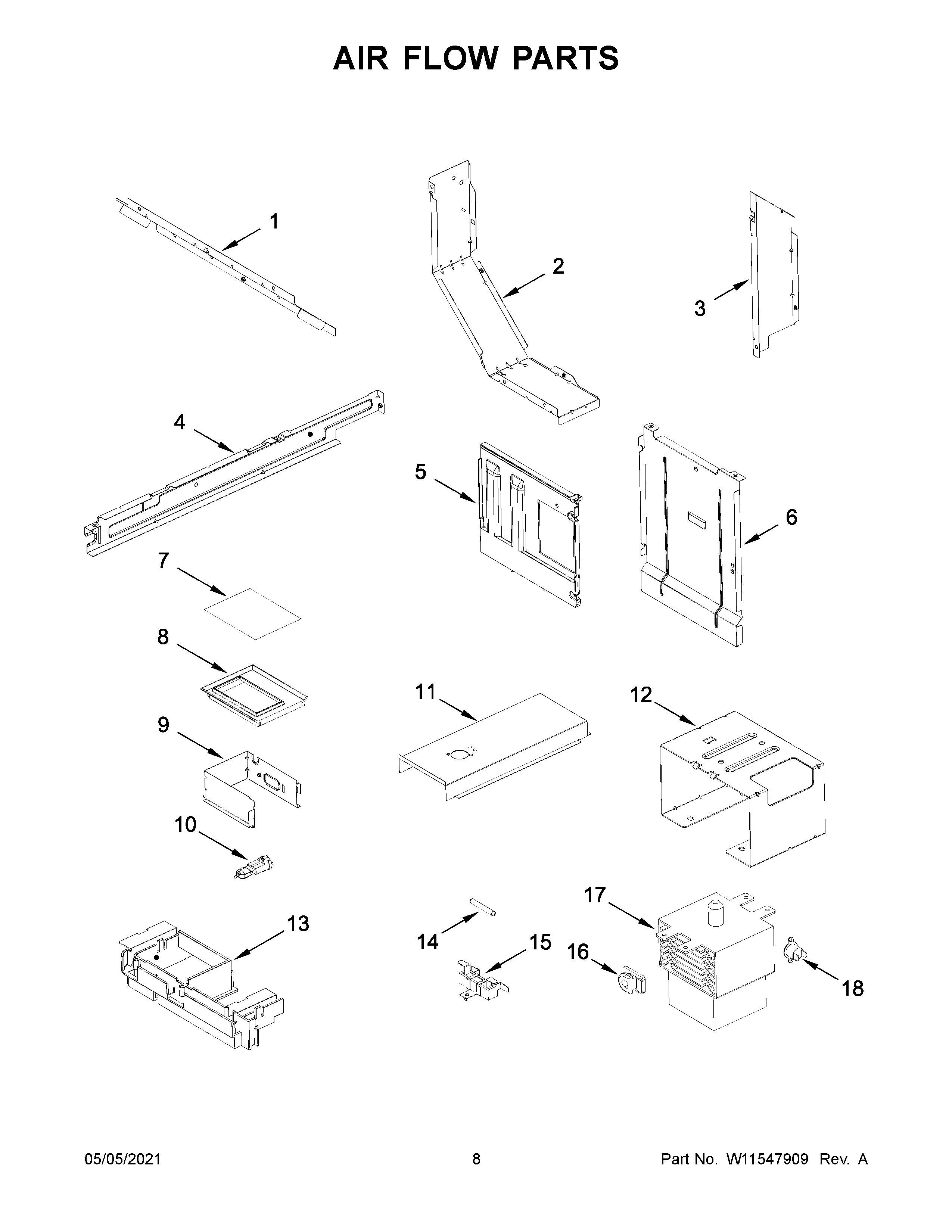

    Air flow parts diagram

    Microwave fuse

    Part #W10138793

    Replaced by #W11707984

    ?
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    BEST SELLER
    $56.17
    In Stock
  • Turntable Motor W10466420
    #7

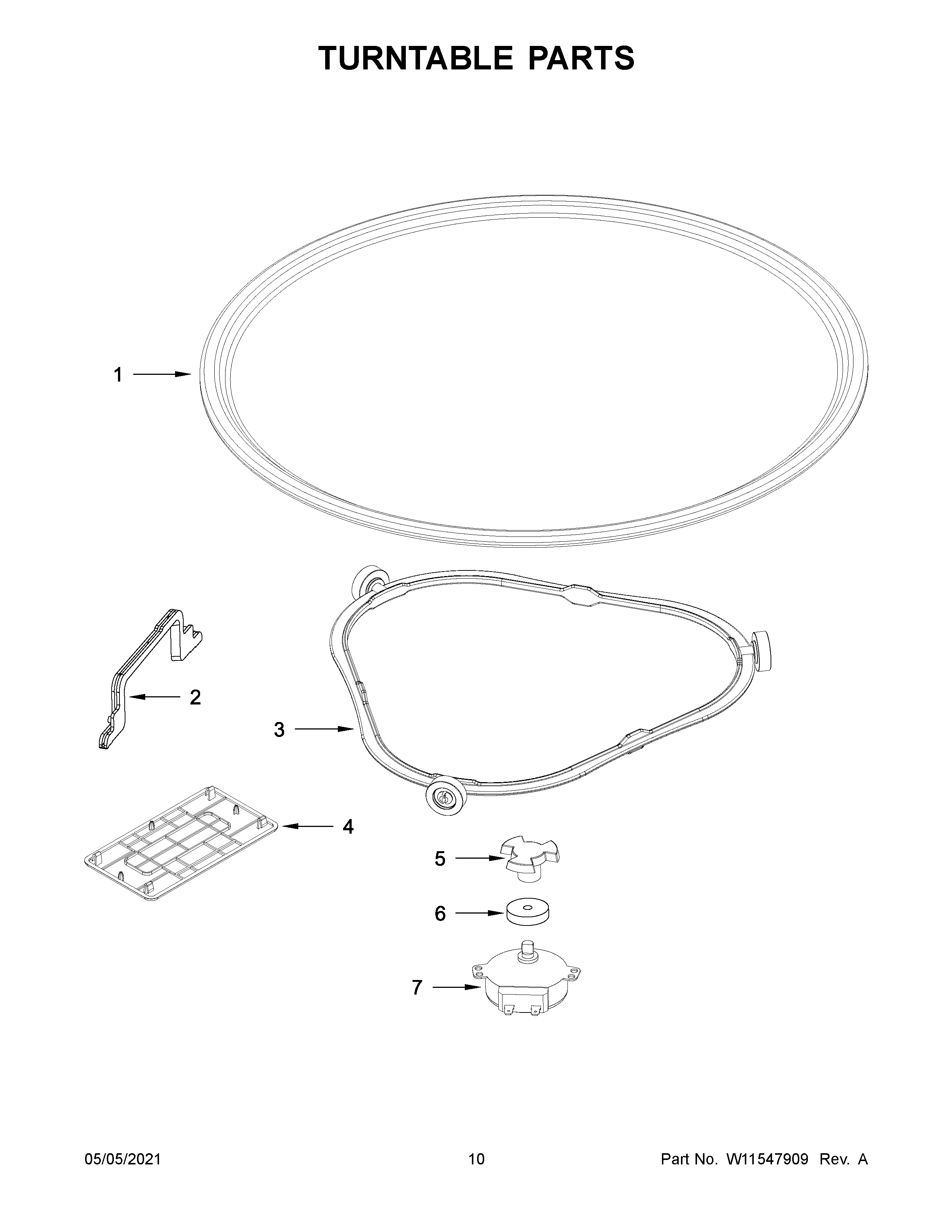

    Turntable parts diagram

    Turntable motor

    Part #W10466420

    Replaced by #WPW10466420

    ?
    Manufacturer substitution
    This part replaces W10466420. Substitute parts can look different from the original.
    BEST SELLER
    $36.50 |
    14% OFF Phone Price : $42.50
    In Stock
  • Ring, Turntable W11387723
    #3

    Turntable parts diagram

    Ring, turntable

    Part #W11387723

    Replaced by #W11443144

    ?
    Manufacturer substitution
    This part replaces W11387723. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $12.89 |
    13% OFF Phone Price : $14.89
    In Stock
  • Microwave High-voltage Capacitor 8206562
    #8

    Interior and ventilation parts diagram

    Microwave high-voltage capacitor

    Part #8206562

    $96.44 |
    11% OFF Phone Price : $108.44
    In Stock
  • Interlock Sw W11479930
    #13

    Interior and ventilation parts diagram

    Interlock sw

    Part #W11479930

    Replaced by #W11493414

    ?
    Manufacturer substitution
    This part replaces W11479930. Substitute parts can look different from the original.
    $50.98 |
    11% OFF Phone Price : $56.98
    In Stock
  • Microwave Turntable Motor Spacer 8184109
    #6

    Turntable parts diagram

    Microwave turntable motor spacer

    Part #8184109

    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Microwave Waveguide Cover Seal W11126541
    #2

    Turntable parts diagram

    Microwave waveguide cover seal

    Part #W11126541

    $18.49 |
    10% OFF Phone Price : $20.49
    In Stock
  • Microwave Fuse Holder W10245194
    #15

    Air flow parts diagram

    Microwave fuse holder

    Part #W10245194

    $94.66
    In Stock
  • Cooling Duct, Slim W11454890
    #4

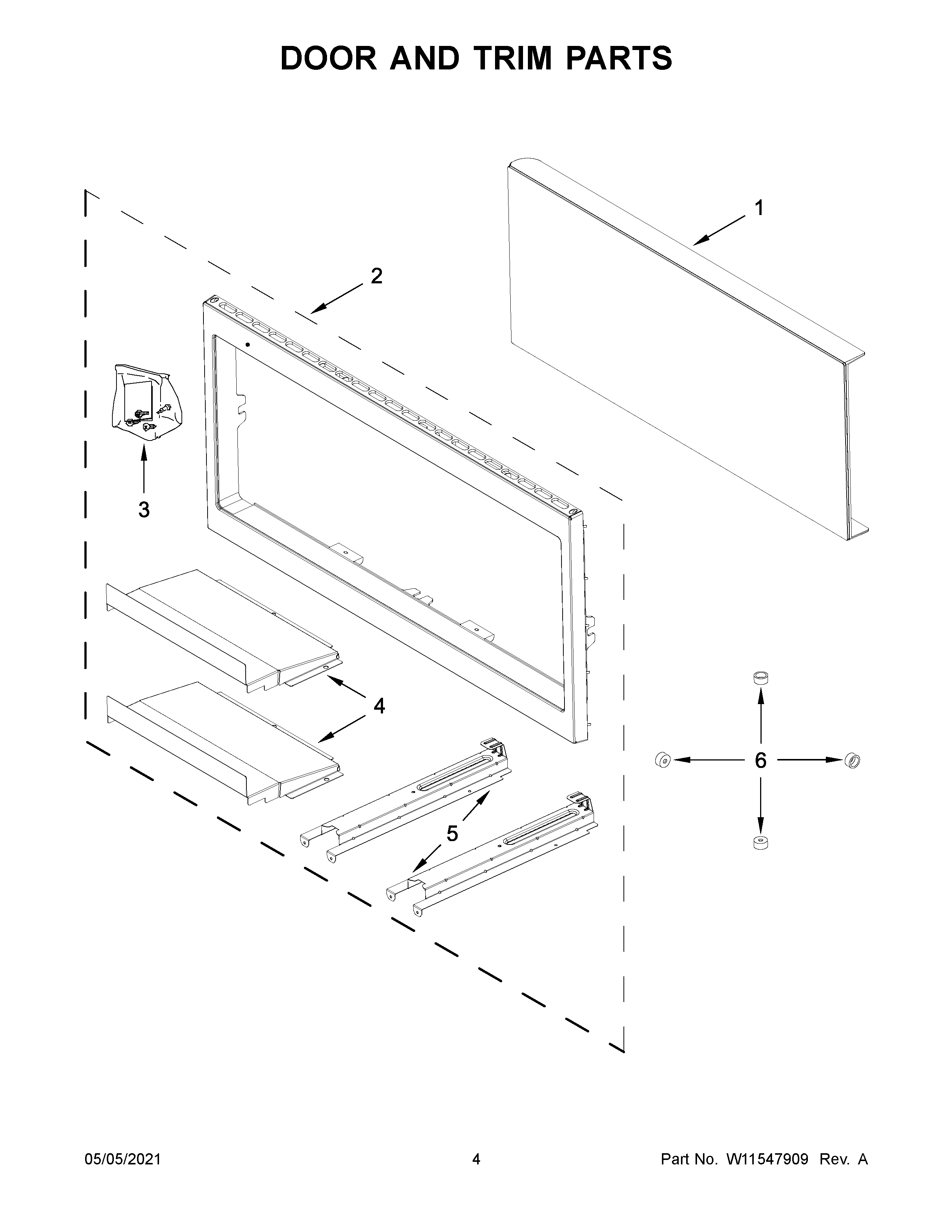

    Door and trim parts diagram

    Cooling duct, slim

    Part #W11454890

    Replaced by #W11494295

    ?
    Manufacturer substitution
    This part replaces W11454890. Substitute parts can look different from the original.
    $64.67
    In Stock
