Dryer

Model # MED7500YW1 Official Maytag electric compact dryer

Here are the diagrams and repair parts for Official Maytag MED7500YW1 electric compact dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forMED7500YW1 Electric Compact Dryer

  • Appliance Spray Paint (white) 350930
    #NI

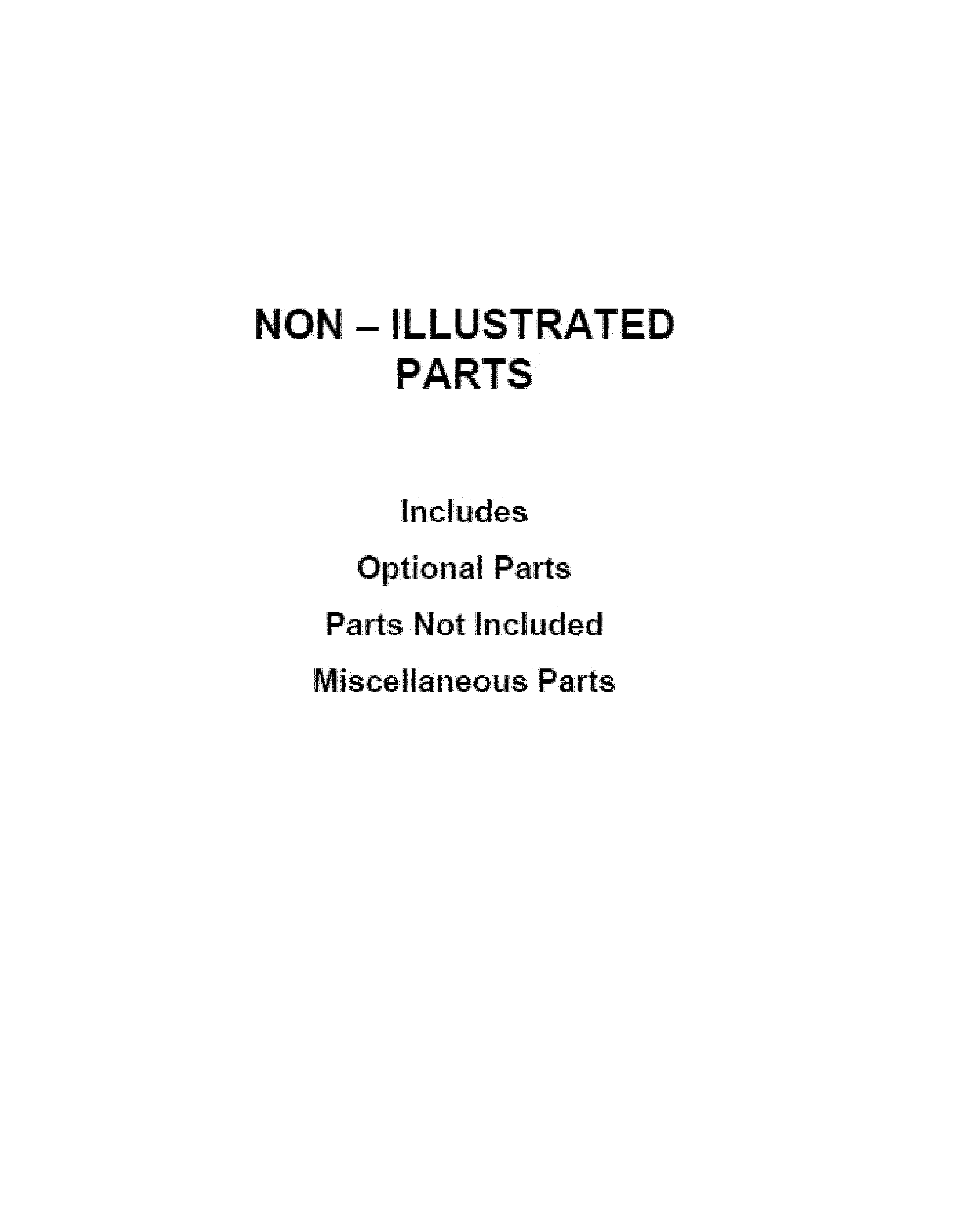

    Optional parts (not included) diagram

    Appliance spray paint (white)

    Part #350930

    BEST SELLER
    This item is not returnable
    $15.69
    11% OFF Phone Price : $17.69
    In Stock
  • Screw 8182338
    Screw

    Part #8182338

    Replaced by #W11233072

    ?
    Manufacturer substitution
    This part replaces 8182338. Substitute parts can look different from the original.
    $15.95
    11% OFF Phone Price : $17.95
    In Stock
  • Dryer Door Switch 8182530
    #27

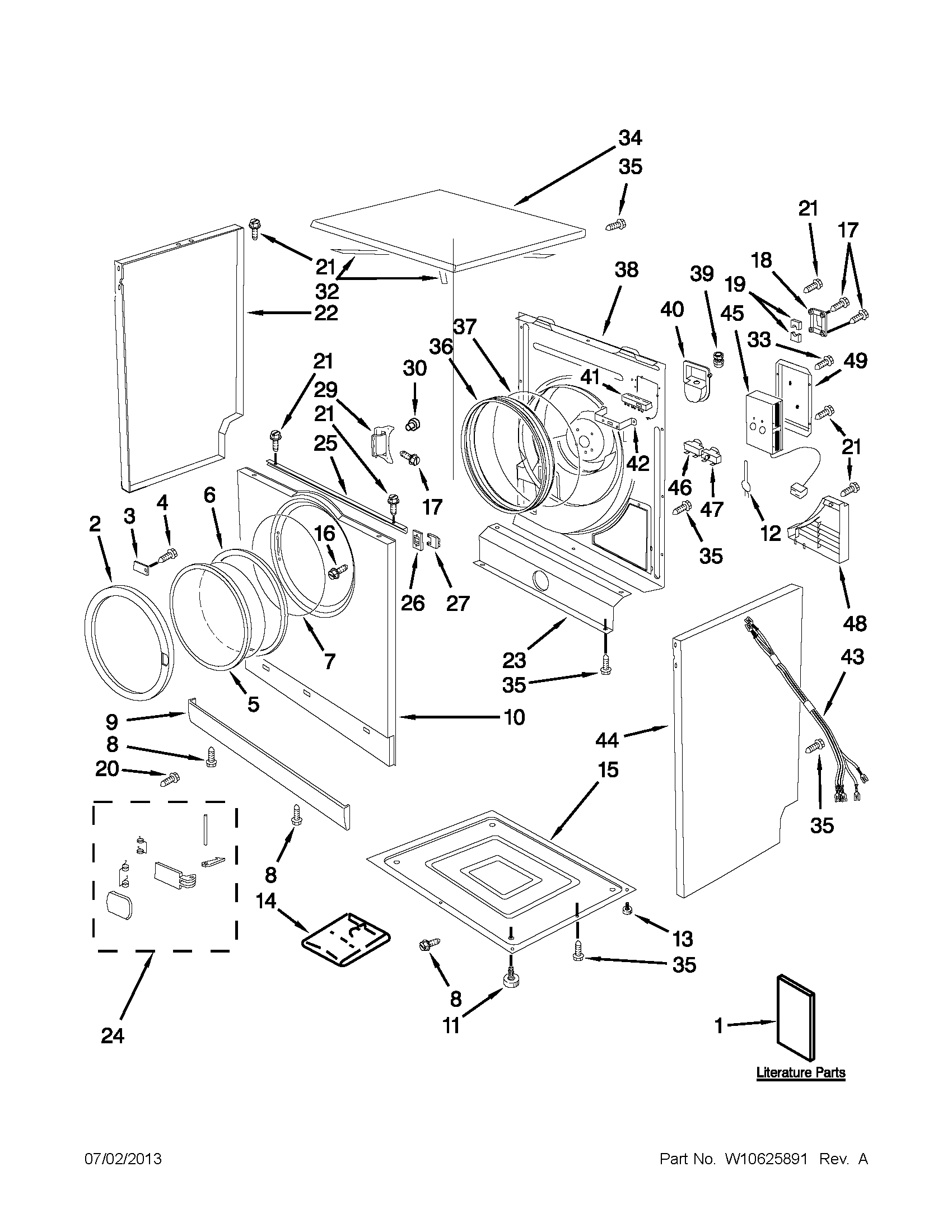

    Cabinet and door parts diagram

    Dryer door switch

    Part #8182530

    Replaced by #WP8182530

    ?
    Manufacturer substitution
    This part replaces 8182530. Substitute parts can look different from the original.
    $94.09
    6% OFF Phone Price : $100.09
    In Stock
  • Appliance Spray Paint (gray Primer) 350938
    #NI

    Optional parts (not included) diagram

    Appliance spray paint (gray primer)

    Part #350938

    $29.63
    17% OFF Phone Price : $35.63
    In Stock
  • Dryer Blower Wheel 8182538
    #19

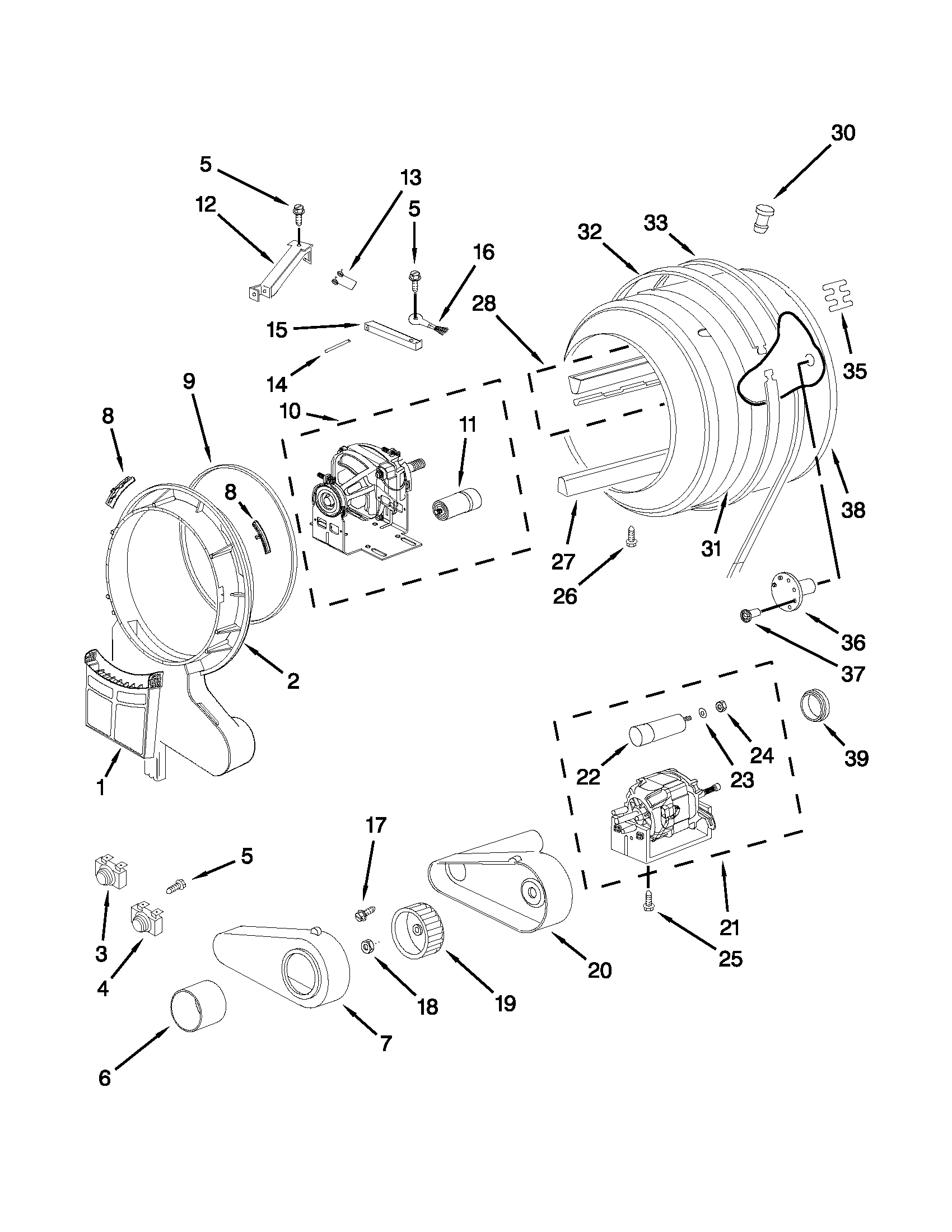

    Drum and motor parts diagram

    Dryer blower wheel

    Part #8182538

    Replaced by #WP8182538

    ?
    Manufacturer substitution
    This part replaces 8182538. Substitute parts can look different from the original.
    $142.30
    8% OFF Phone Price : $154.30
    In Stock
  • Drive Motor 8182472
    #21

    Drum and motor parts diagram

    Drive motor

    Part #8182472

    Replaced by #WP8182472

    ?
    Manufacturer substitution
    This part replaces 8182472. Substitute parts can look different from the original.
    $328.80
    $12.00 OFF Phone Price : $340.80
    In Stock
  • Dryer Heating Element 8182528
    #45

    Cabinet and door parts diagram

    Dryer heating element

    Part #8182528

    Replaced by #WP8182528

    ?
    Manufacturer substitution
    This part replaces 8182528. Substitute parts can look different from the original.
    $175.19
    6% OFF Phone Price : $187.19
    In Stock
  • Knob W10205136
    #10

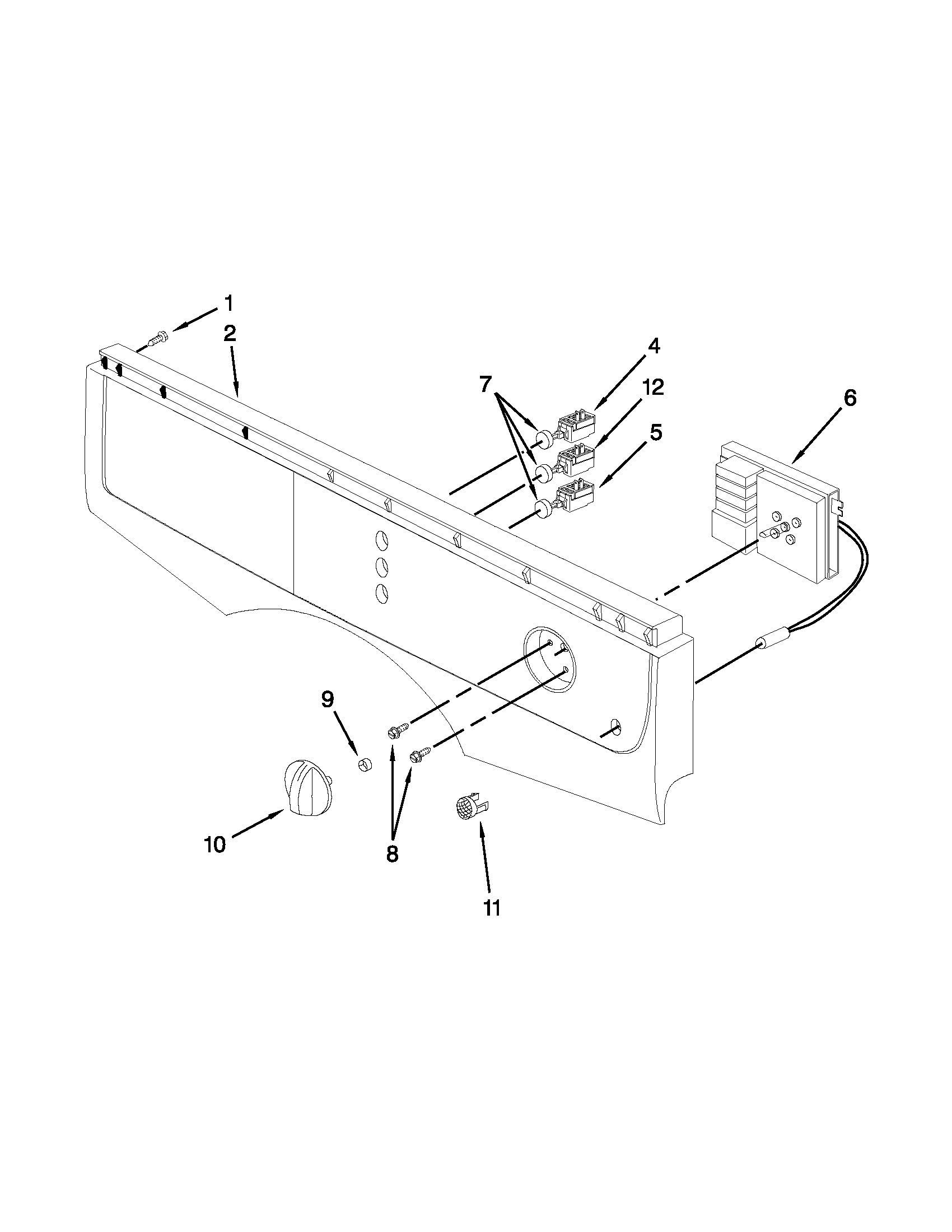

    Control panel parts diagram

    Knob

    Part #W10205136

    Replaced by #W10233963

    ?
    Manufacturer substitution
    This part replaces W10205136. Substitute parts can look different from the original.
    $84.92
    7% OFF Phone Price : $90.92
    In Stock
  • Inglis Bracket 8182513
    #42

    Cabinet and door parts diagram

    Inglis bracket

    Part #8182513

    In Stock
  • Inglis Panel 8182509
    #22

    Cabinet and door parts diagram

    Inglis panel

    Part #8182509

    In Stock
