Model # 79572049313 Official Kenmore Elite refrigerator
Here are the diagrams and repair parts for Official Kenmore Elite 79572049313 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

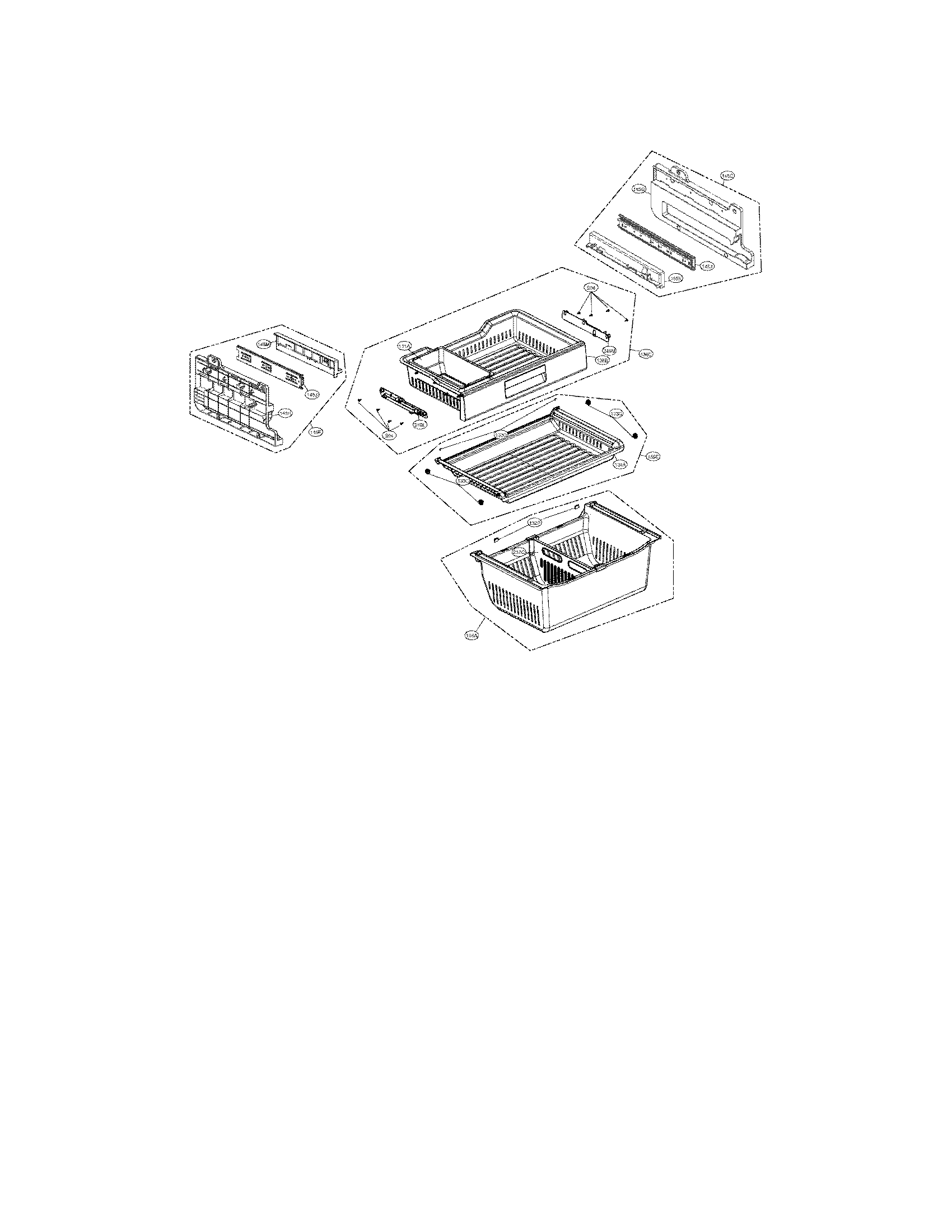

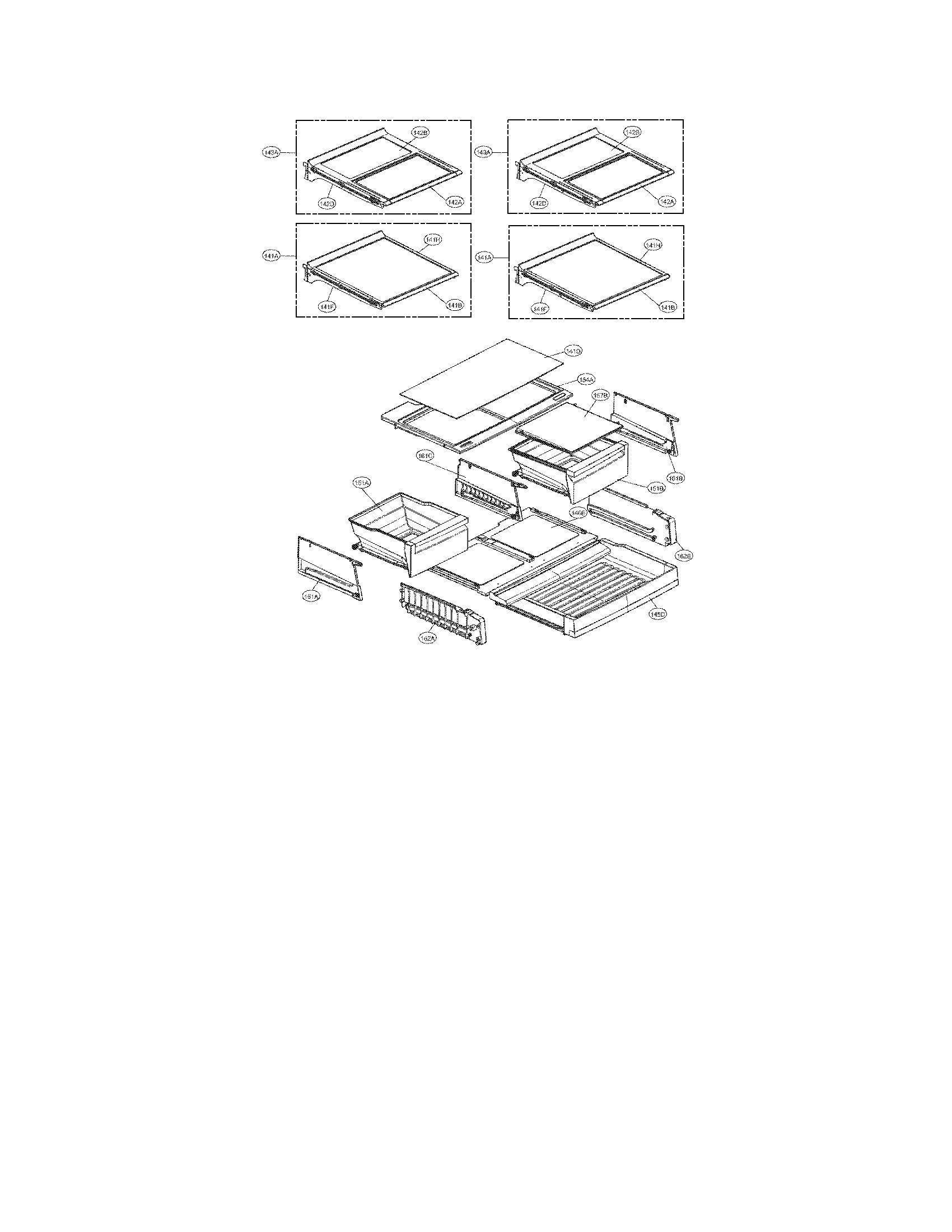

Browse Parts for79572049313 Refrigerators
- #300A

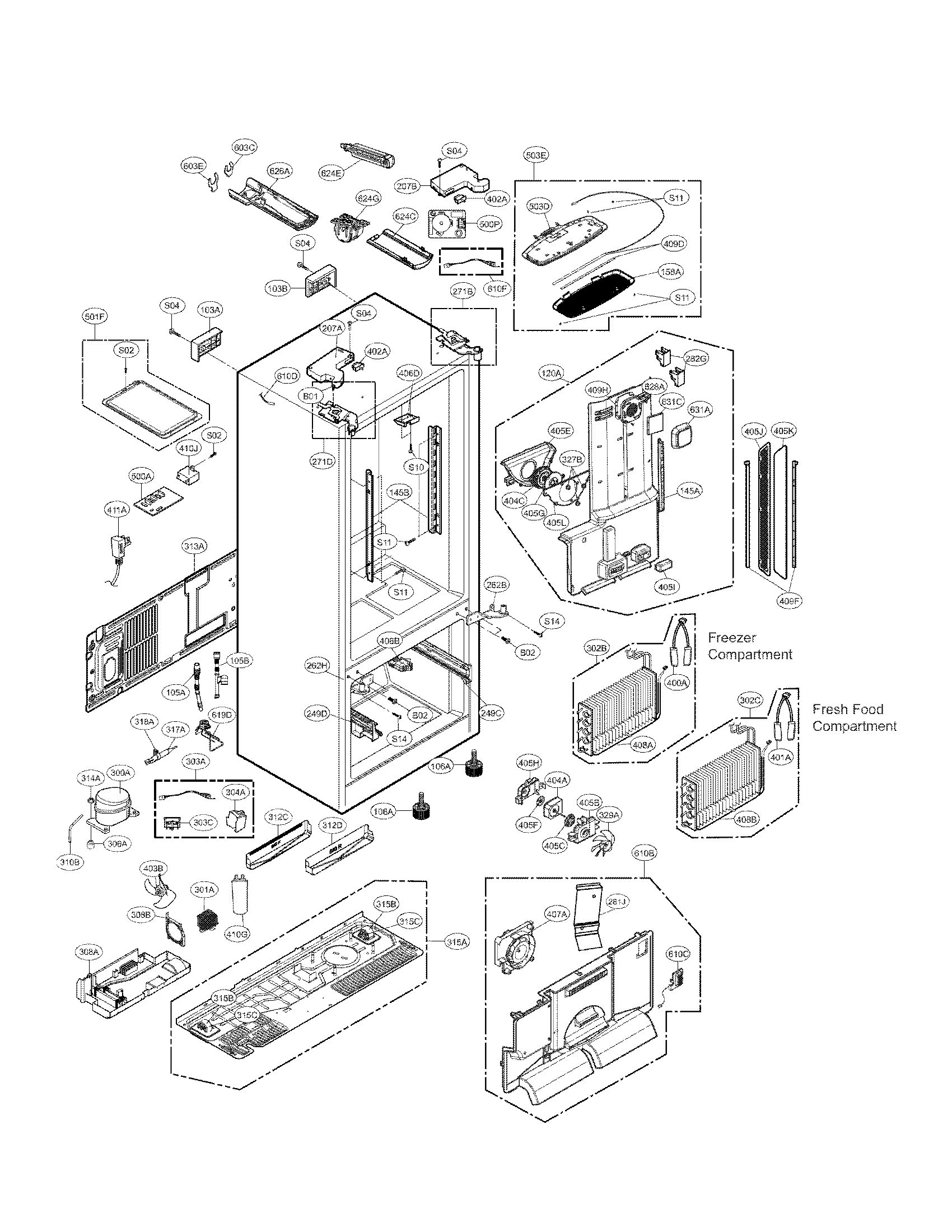

Case parts diagram
Refrigerator compressorPart #TCA35271201
Replaced by #TCA38151706
?Manufacturer substitutionThis part replaces TCA35271201. Substitute parts can look different from the original.$488.08 |$12.00 OFF Phone Price : $500.08In Stock - #631C
Case parts diagram
Lg refrigerator air filterPart #ADQ73214404
Replaced by #ADQ73214408
?Manufacturer substitutionThis part replaces ADQ73214404. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$31.84 |16% OFF Phone Price : $37.84In Stock - #317A
Case parts diagram
Refrigerator filter dryerPart #5851JA2007U
Replaced by #ADH73150210
?Manufacturer substitutionThis part replaces 5851JA2007U. Substitute parts can look different from the original.$89.16 |6% OFF Phone Price : $95.16In Stock - #301A
Case parts diagram
Refrigerator condenser coilPart #ACG72915206
Replaced by #ACG73645004
?Manufacturer substitutionThis part replaces ACG72915206. Substitute parts can look different from the original.$141.89 |8% OFF Phone Price : $153.89In Stock - #241E

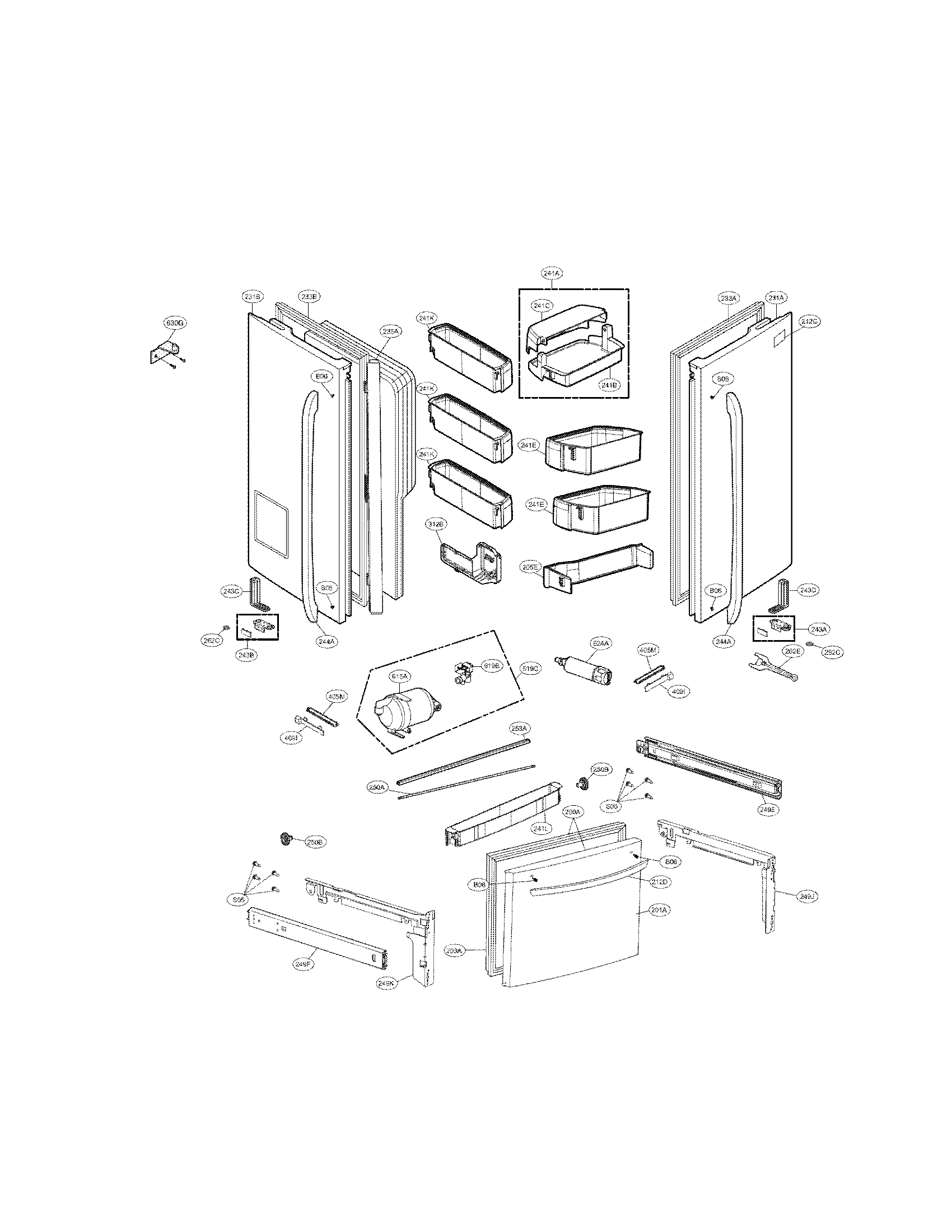

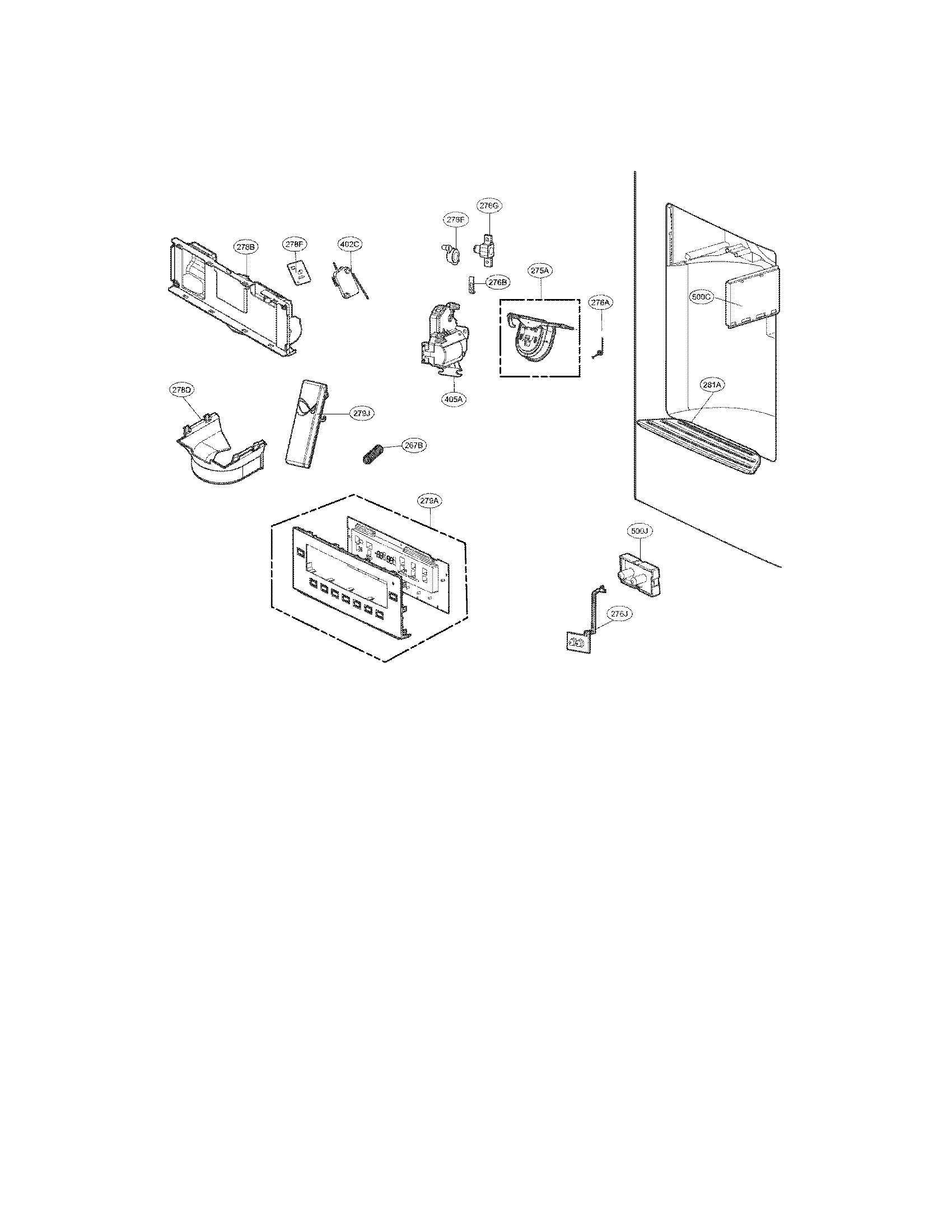

Door parts diagram
Lg kenmore refrigerator door binPart #AAP73252202
$66.08 |8% OFF Phone Price : $72.08In Stock - #302C
Case parts diagram
Refrigerator evaporatorPart #ADL73341402
Replaced by #ADL73341411
?Manufacturer substitutionThis part replaces ADL73341402. Substitute parts can look different from the original.$186.54 |6% OFF Phone Price : $198.54In Stock - #600A

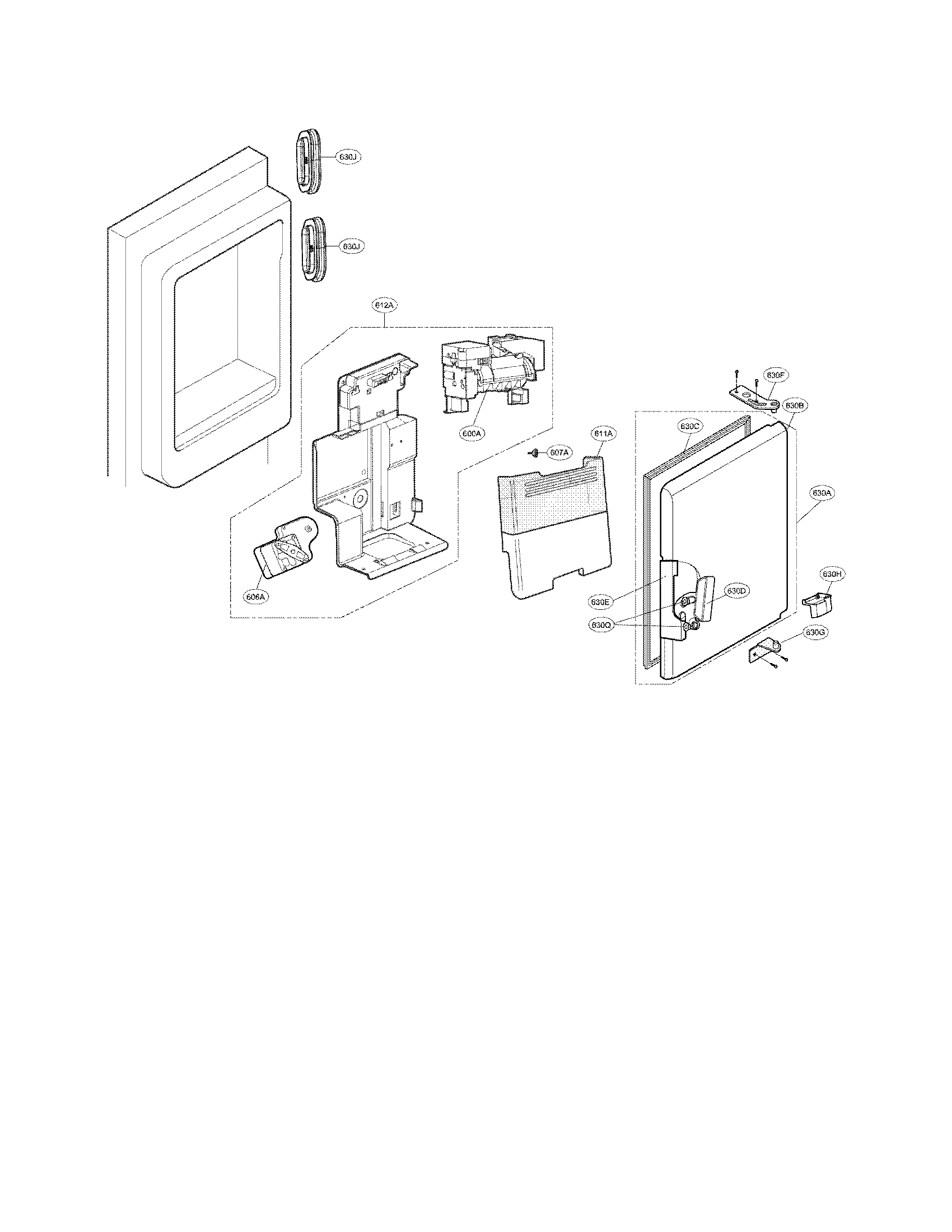

Ice maker and ice bin parts diagram
Refrigerator ice maker assemblyPart #AEQ73110206
Replaced by #AEQ73110203
?Manufacturer substitutionThis part replaces AEQ73110206. Substitute parts can look different from the original.$218.23 |5% OFF Phone Price : $230.23In Stock - #401A
Case parts diagram
Refrigerator defrost sensor assemblyPart #6615JB2005R
$39.76 |13% OFF Phone Price : $45.76In Stock - #619A

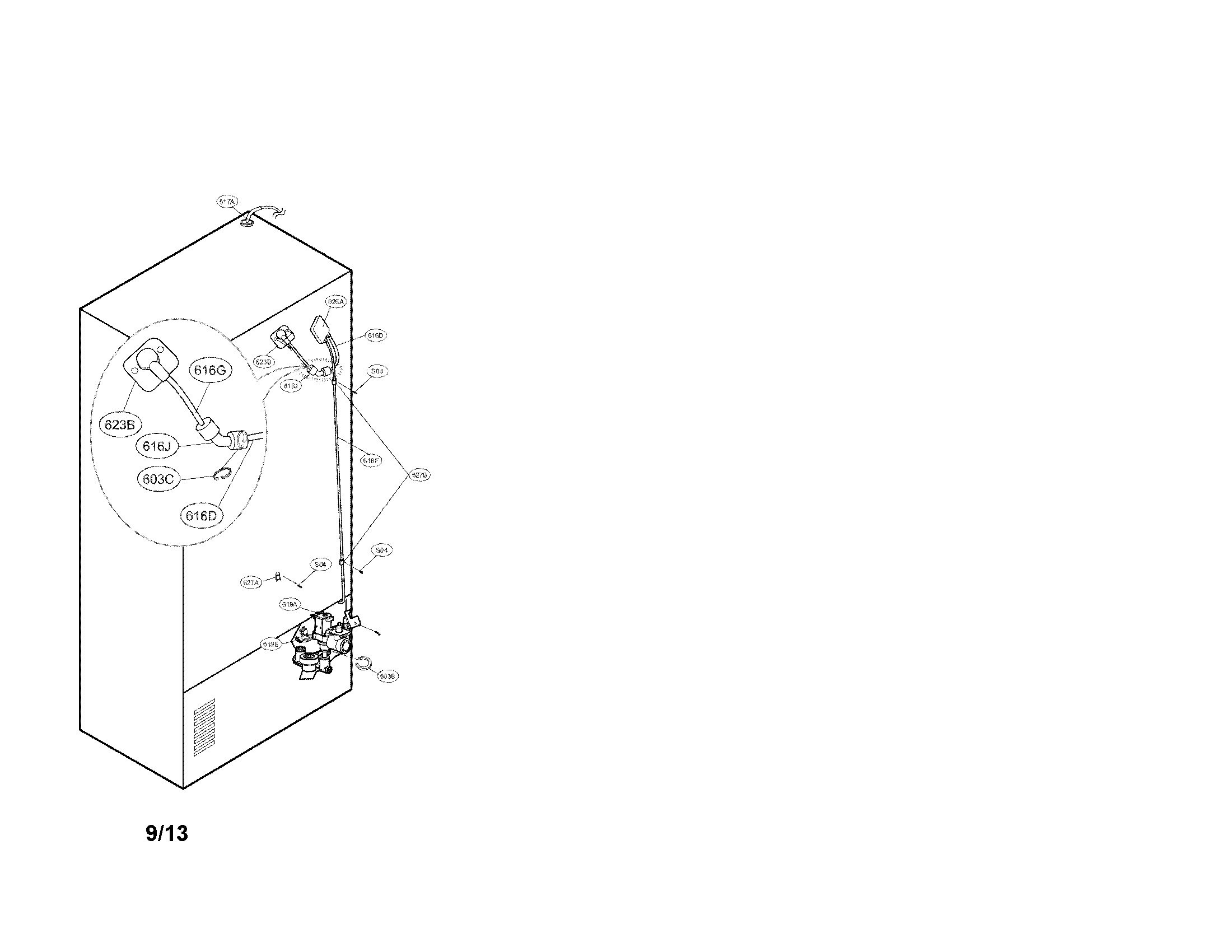

Valve and water tube parts diagram
Refrigerator water inlet valvePart #AJU72992610
Replaced by #AJU72992603
?Manufacturer substitutionThis part replaces AJU72992610. Substitute parts can look different from the original.$110.74 |10% OFF Phone Price : $122.74In Stock - #241K
Door parts diagram
Kenmore refrigerator door binPart #AAP73252302
$56.21 |10% OFF Phone Price : $62.21In Stock
