Model # RF220NCTAWW/AA-02 Official Samsung refrigerator
Here are the diagrams and repair parts for Official Samsung RF220NCTAWW/AA-02 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

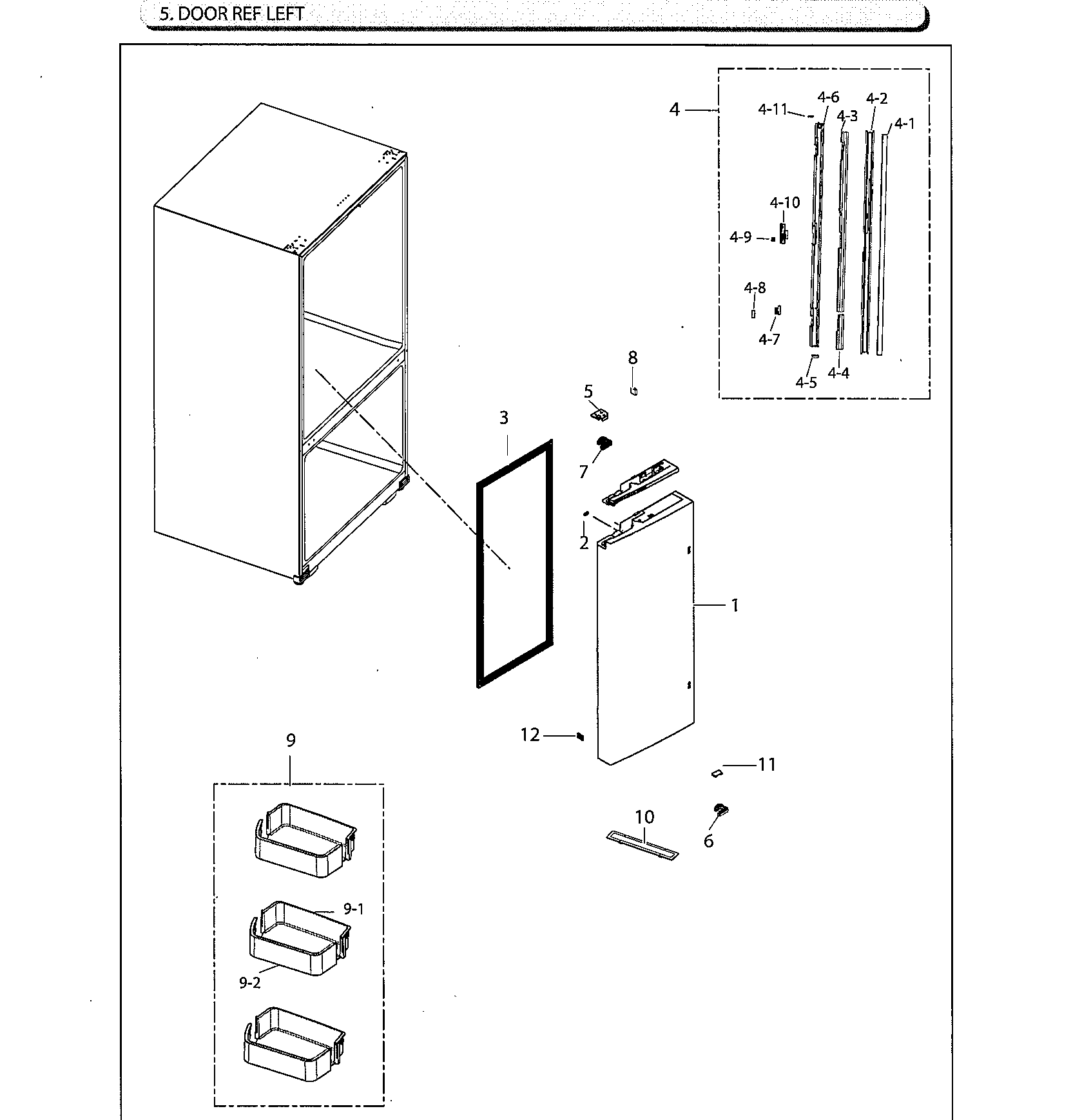

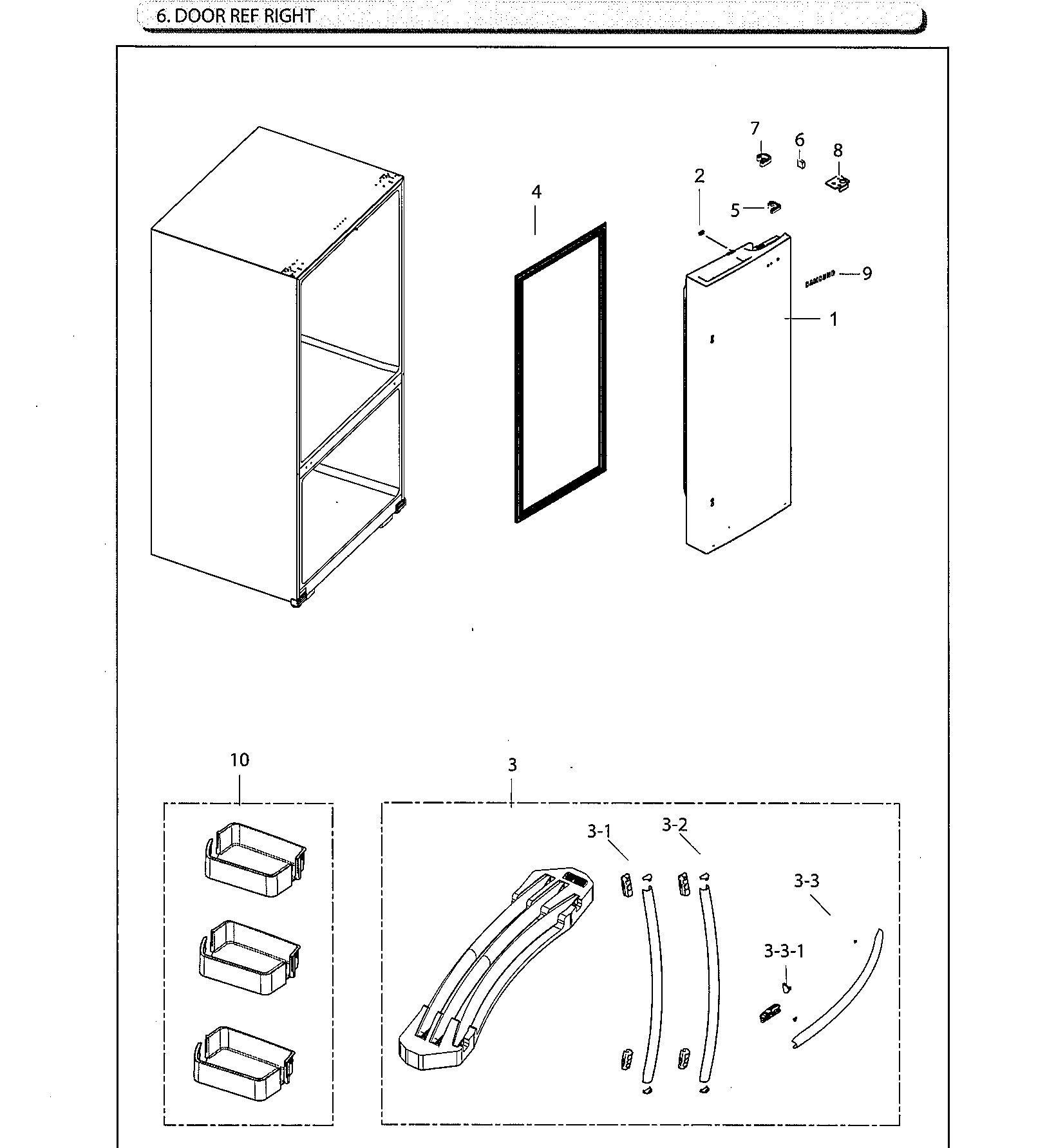

SELECT DIAGRAM
Browse Parts forRF220NCTAWW/AA-02 Refrigerators
- #1-1

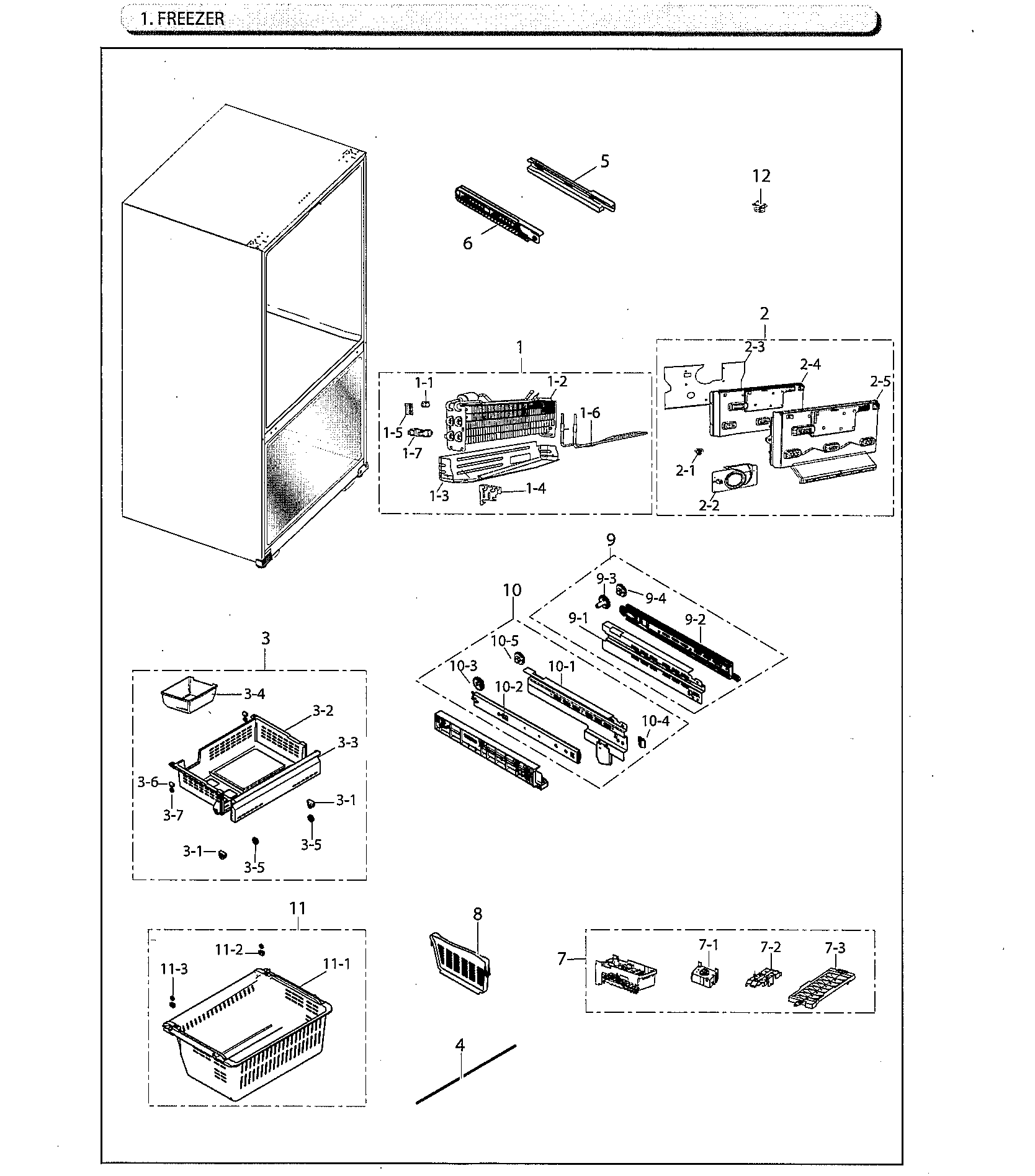

Freezer diagram
Refrigerator temperature sensorPart #DA32-10104N
$30.88 |16% OFF Phone Price : $36.88In Stock - #7
Freezer diagram
Samsung refrigerator ice maker assemblyPart #DA97-07603B
$186.98 |6% OFF Phone Price : $198.98In Stock - #24

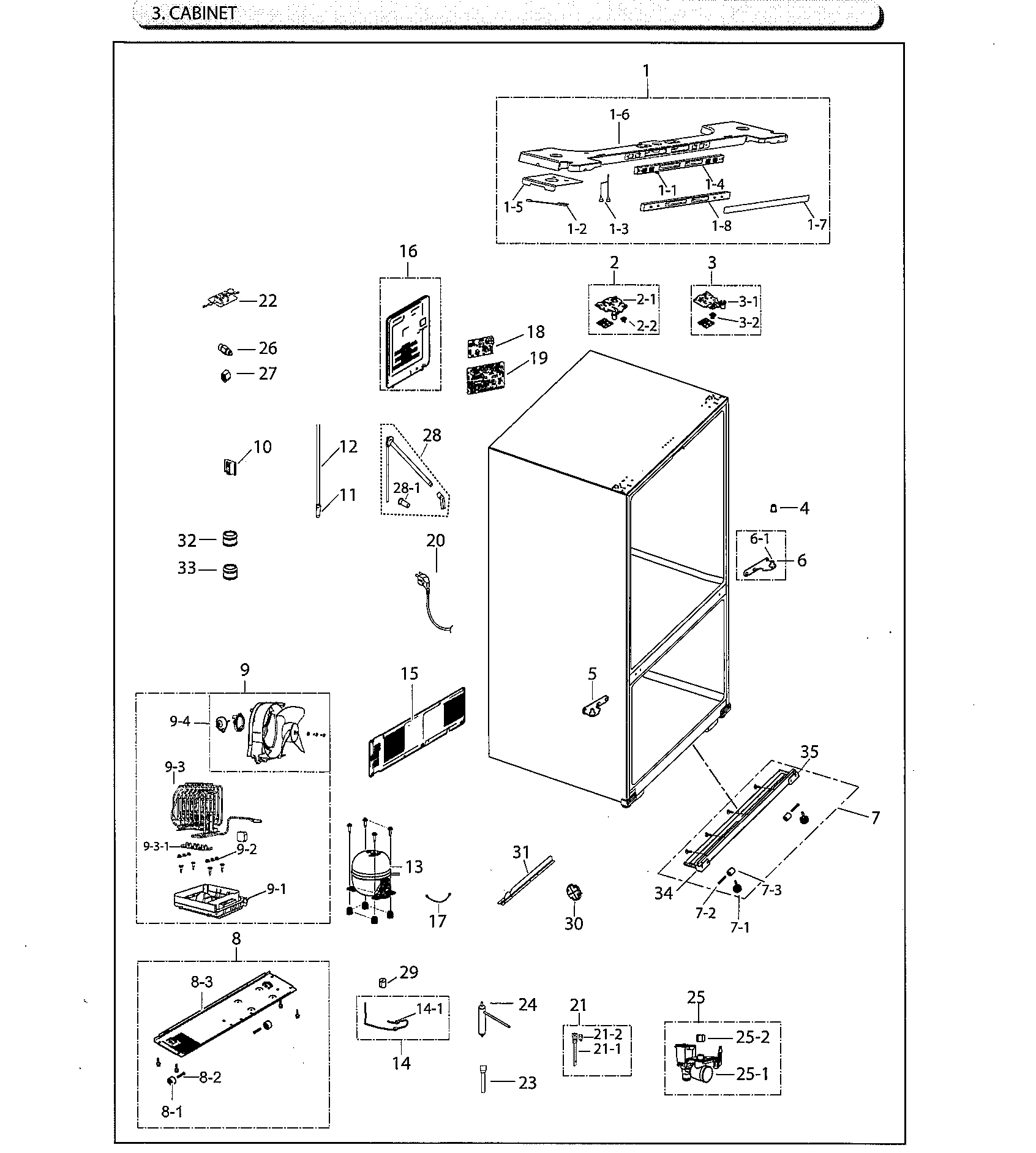

Cabinet diagram
Filtr dryrPart #DA62-04309B
Replaced by #DA81-06006B
?Manufacturer substitutionThis part replaces DA62-04309B. Substitute parts can look different from the original.$88.18 |6% OFF Phone Price : $94.18In Stock - #2-1
Freezer diagram
Refrigerator evaporator fan motorPart #DA31-00287B
Replaced by #DA31-00334C
?Manufacturer substitutionThis part replaces DA31-00287B. Substitute parts can look different from the original.$154.22 |7% OFF Phone Price : $166.22In Stock - #2
Freezer diagram
Refrigerator evaporator coverPart #DA97-13192A
Replaced by #DA97-13192B
?Manufacturer substitutionThis part replaces DA97-13192A. Substitute parts can look different from the original.$197.01 |6% OFF Phone Price : $209.01In Stock - #10

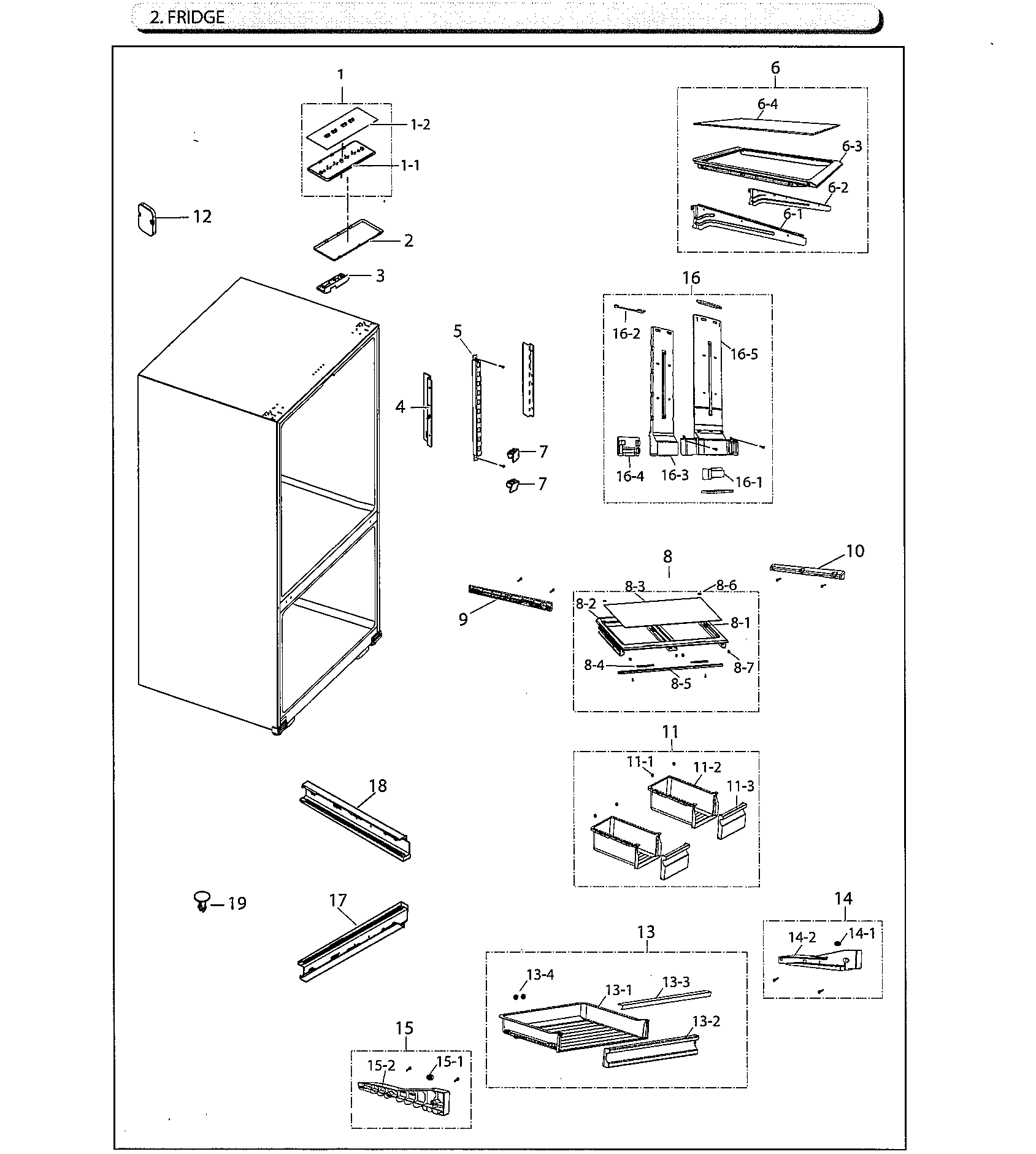

Fridge diagram
Refrigerator shelf support, rightPart #DA61-08786A
This item is not returnable$11.93 |14% OFF Phone Price : $13.93In Stock - #4

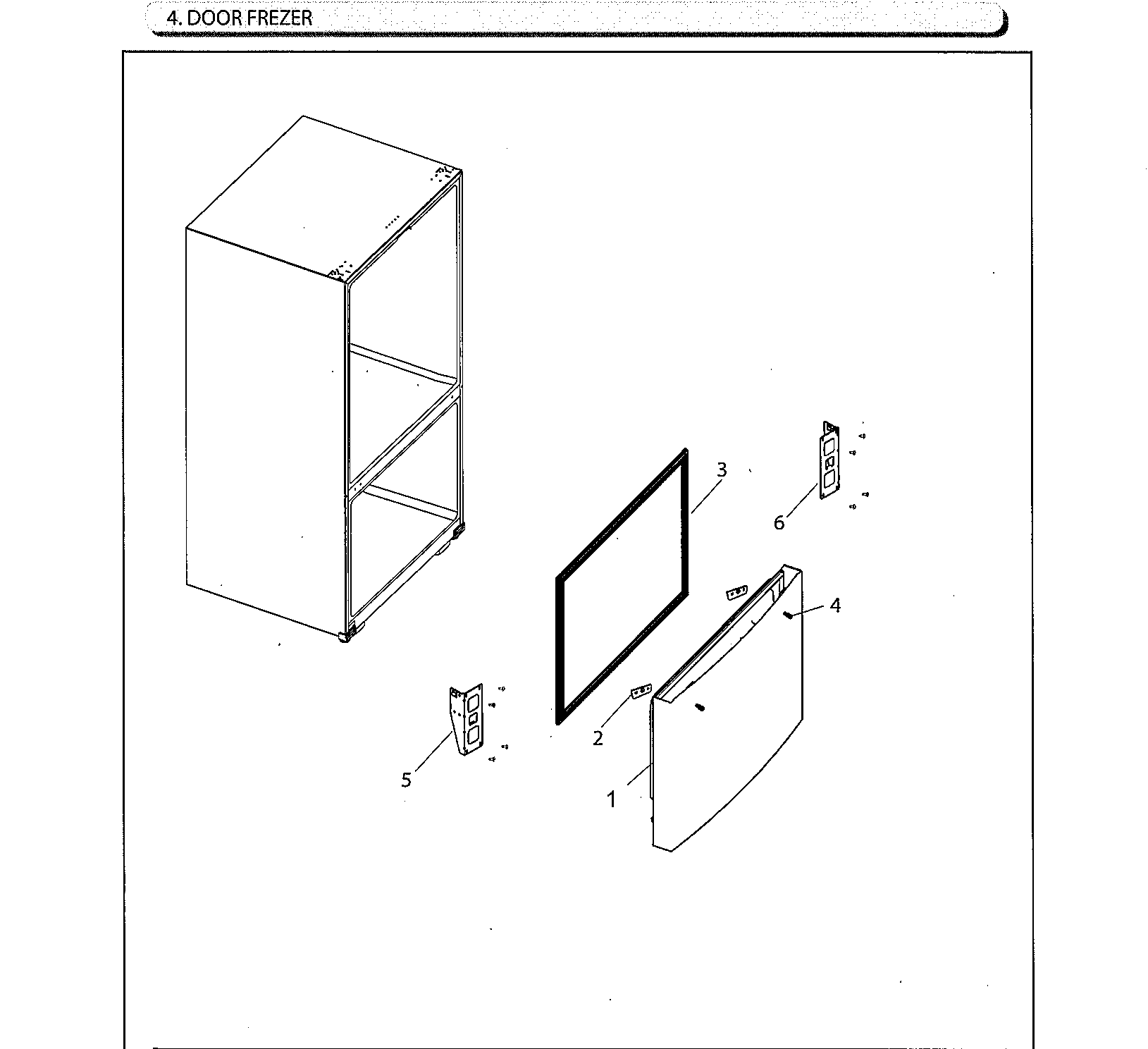

Frezer door diagram
Refrigerator door handle mounting screwPart #DA61-11161A
This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #25-1
Cabinet diagram
Refrigerator water inlet valvePart #DA62-01477A
$84.68 |7% OFF Phone Price : $90.68In Stock - Refrigerator door closer
Part #DA97-13070A
Replaced by #DA97-12625A
?Manufacturer substitutionThis part replaces DA97-13070A. Substitute parts can look different from the original.This item is not returnable$54.82 |10% OFF Phone Price : $60.82In Stock - #7-1
Freezer diagram
Refrigerator ice maker modulePart #DA59-00294B
$231.09 |5% OFF Phone Price : $243.09In Stock
