Model # WTC82100US/05 Official Bosch dryer
Here are the diagrams and repair parts for Official Bosch WTC82100US/05 dryer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

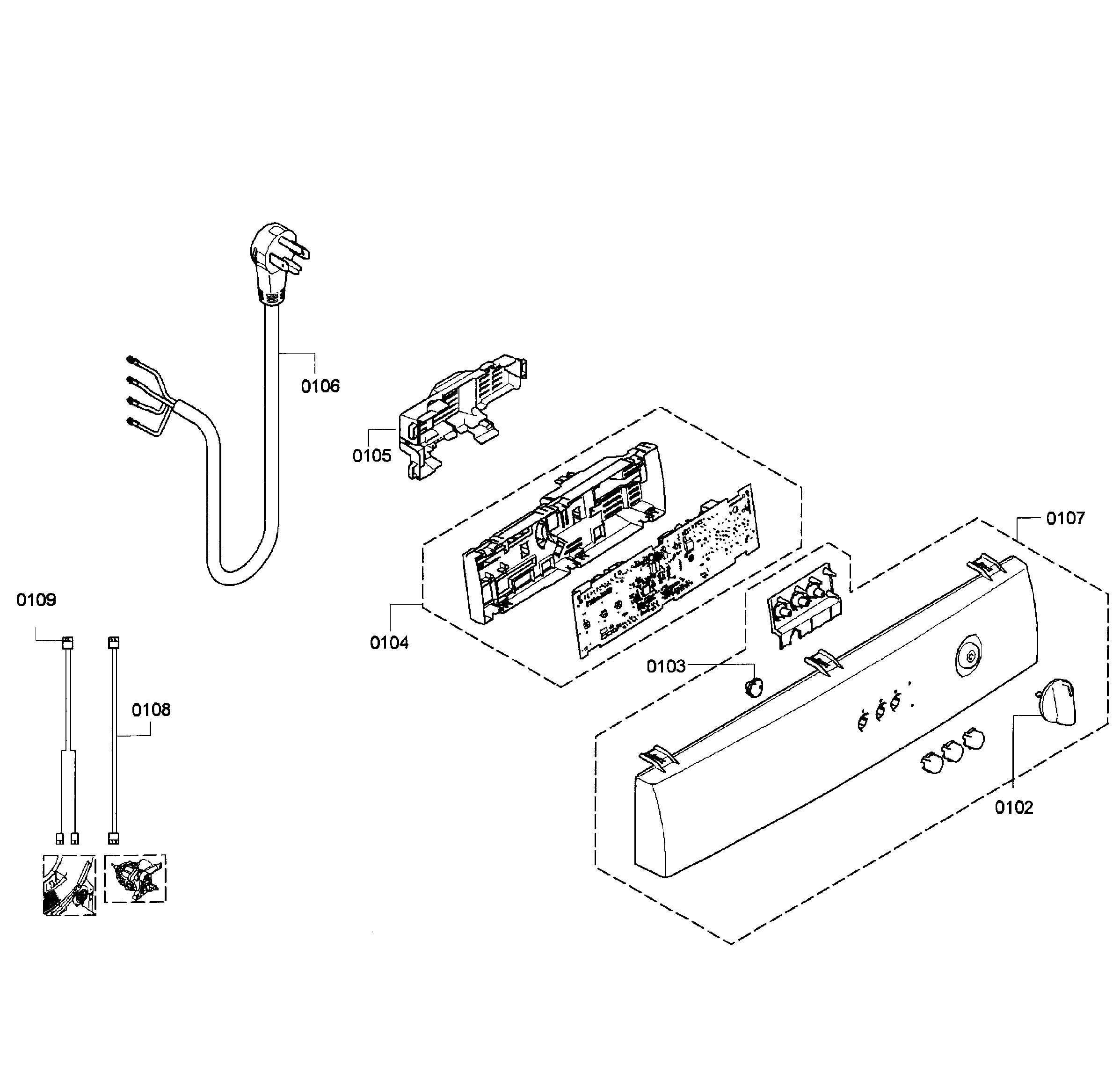

SELECT DIAGRAM
Browse Parts forWTC82100US/05 Dryer
- #505

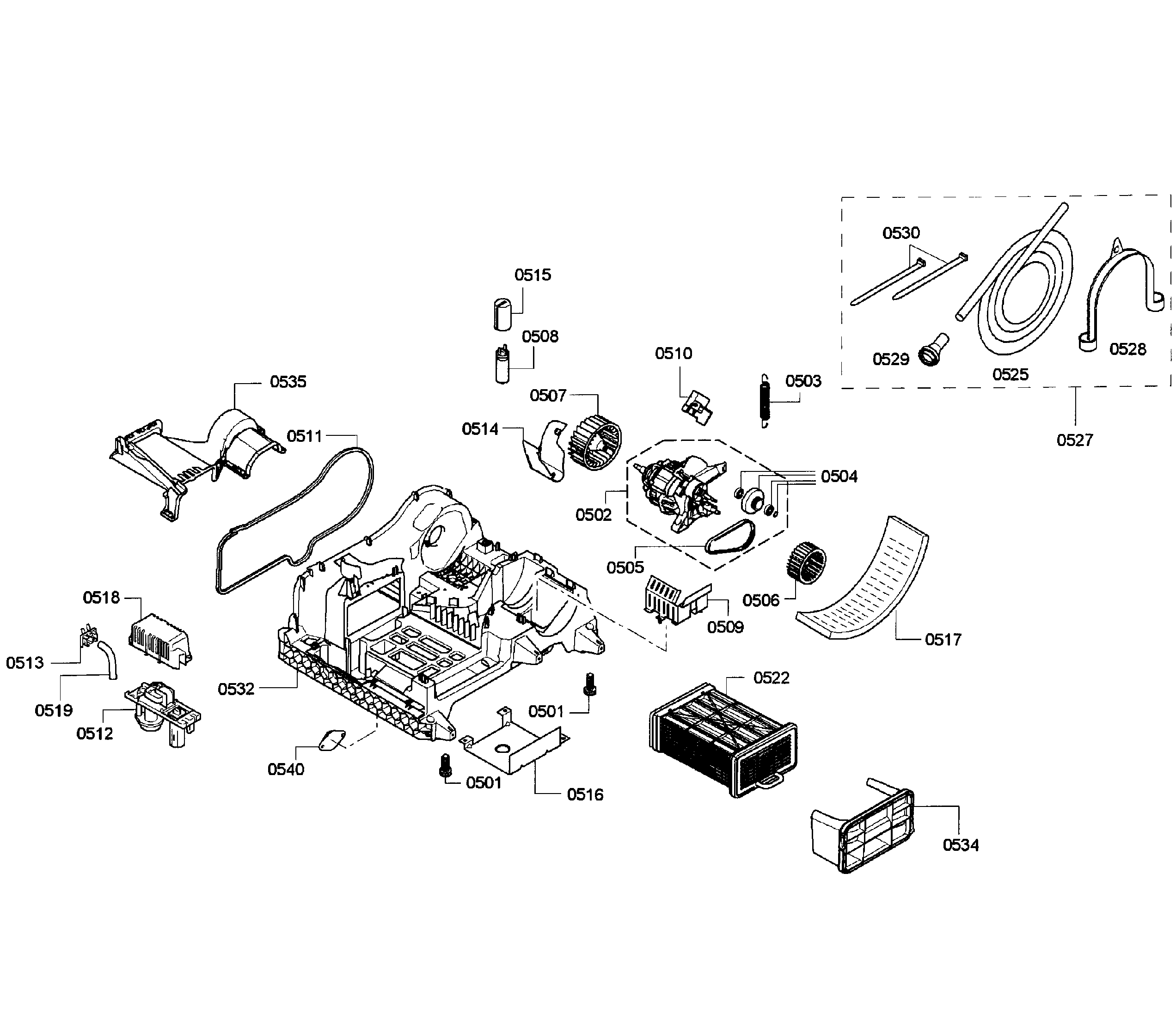

Base assy diagram
BeltPart #604866
Replaced by #00604866
?Manufacturer substitutionThis part replaces 604866. Substitute parts can look different from the original.$55.01In Stock - #407

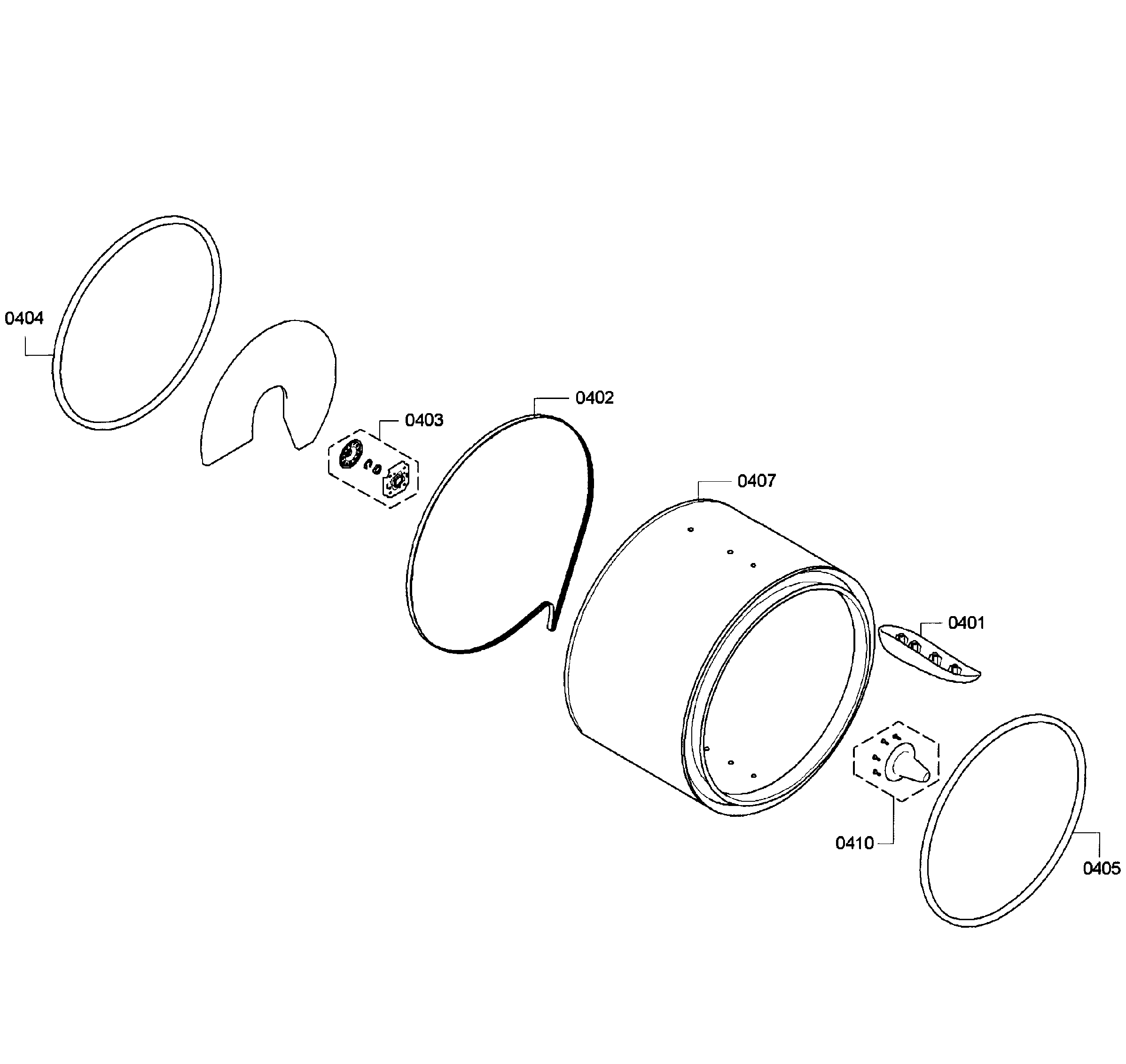

Drum assy diagram
DrumPart #248722
Replaced by #00248722
?Manufacturer substitutionThis part replaces 248722. Substitute parts can look different from the original.$185.75 |6% OFF Phone Price : $197.75In Stock - #527
Base assy diagram
Drain hosePart #445594
Replaced by #12013784
?Manufacturer substitutionThis part replaces 445594. Substitute parts can look different from the original.$34.29 |15% OFF Phone Price : $40.29In Stock - #227

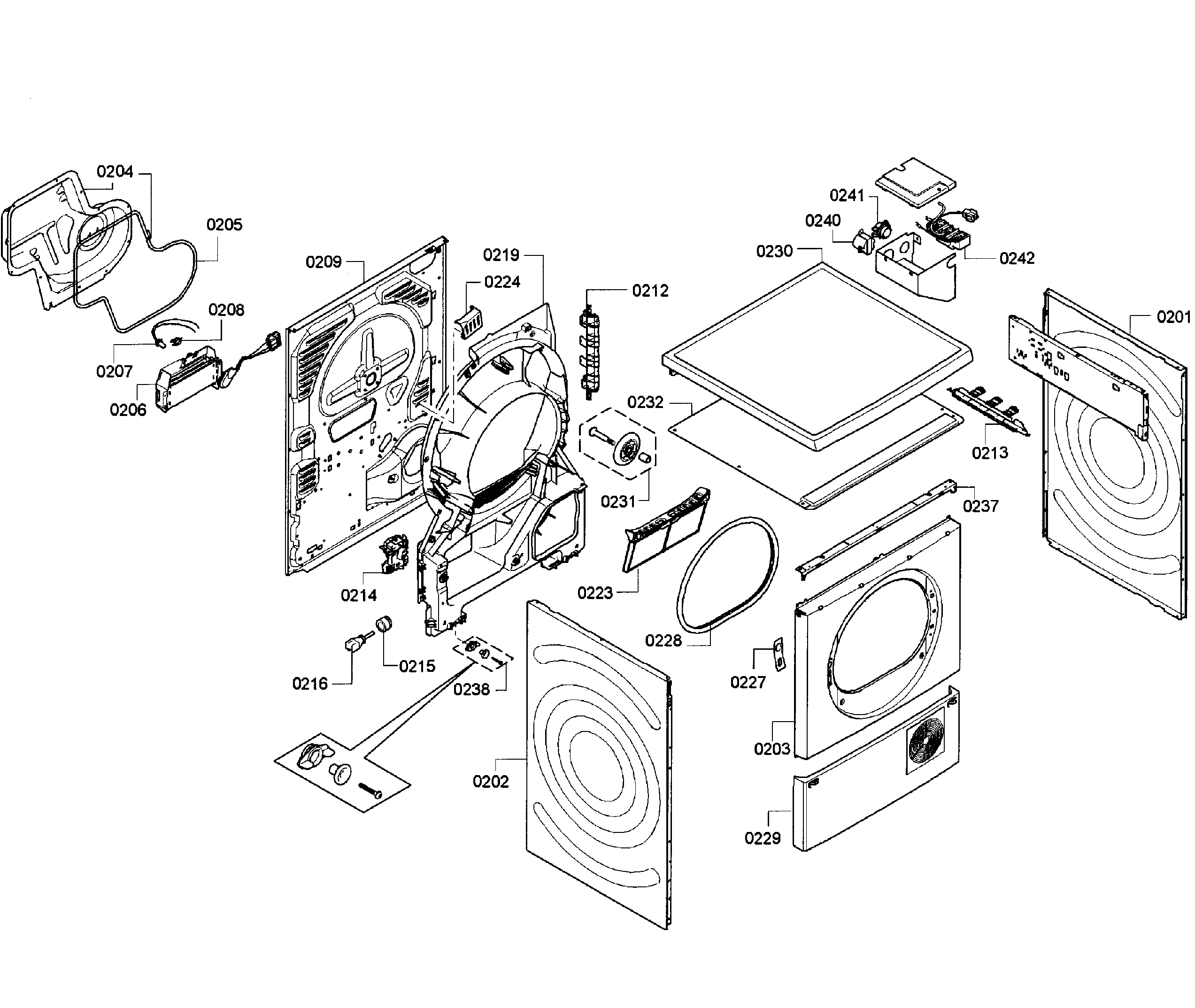

Cabinet diagram
Dryer coverPart #600433
Replaced by #00600433
?Manufacturer substitutionThis part replaces 600433. Substitute parts can look different from the original.$38.54In Stock - #301

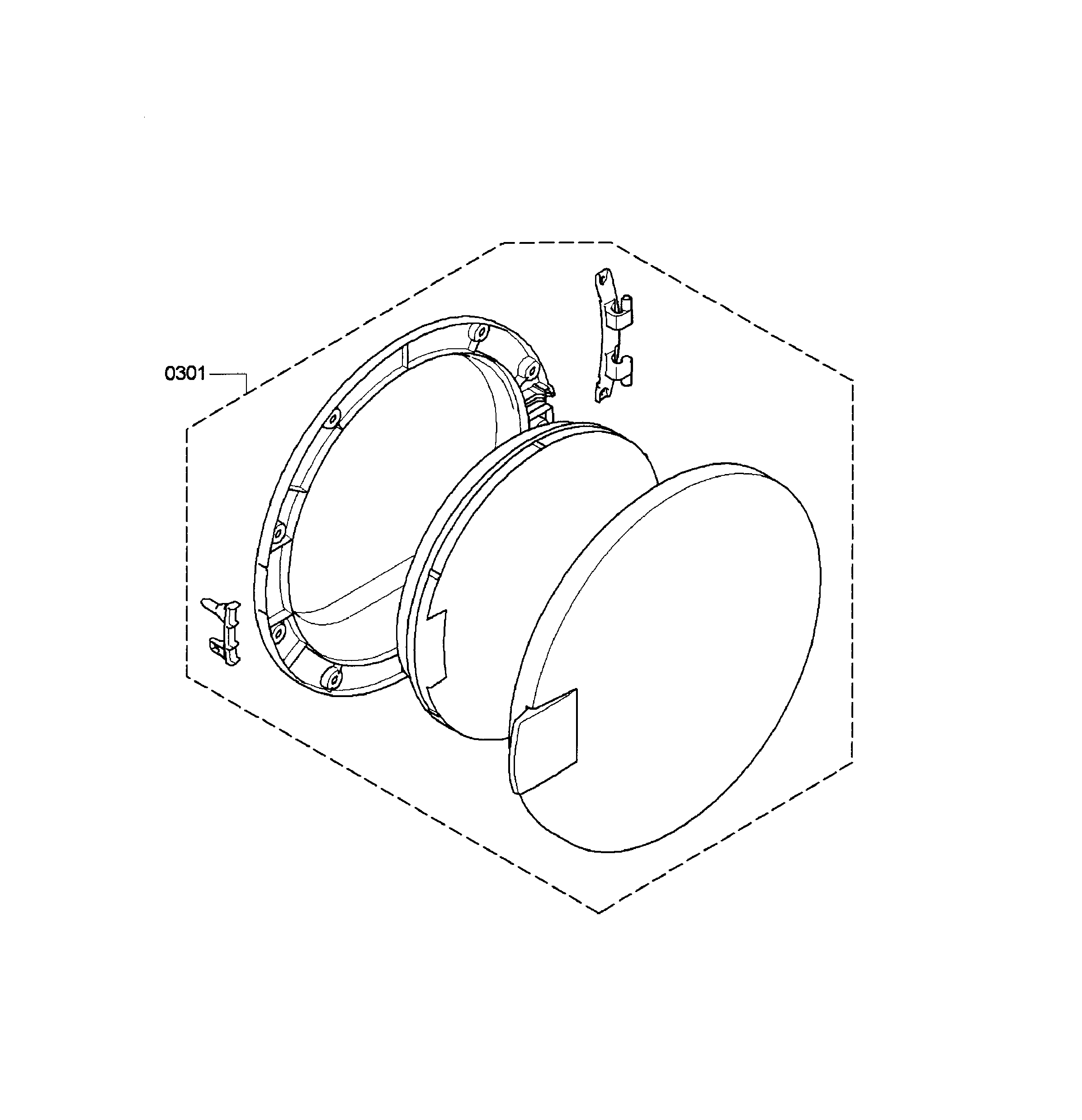

Front door diagram
DoorPart #702438
Replaced by #00702438
?Manufacturer substitutionThis part replaces 702438. Substitute parts can look different from the original.$184.36In Stock - #403
Drum assy diagram
BearingPart #613461
Replaced by #00618931
?Manufacturer substitutionThis part replaces 613461. Substitute parts can look different from the original.This item is not returnable$26.59 |18% OFF Phone Price : $32.59In Stock - #507
Base assy diagram
Fan drumPart #647541
Replaced by #00647541
?Manufacturer substitutionThis part replaces 647541. Substitute parts can look different from the original.$29.73In Stock - #215
Cabinet diagram
Dryer sealPart #613752
Replaced by #00613752
?Manufacturer substitutionThis part replaces 613752. Substitute parts can look different from the original.This item is not returnable$7.34In Stock - #208
Cabinet diagram
LimiterPart #617520
Replaced by #00617520
?Manufacturer substitutionThis part replaces 617520. Substitute parts can look different from the original.$34.42In Stock - #522
Base assy diagram
Cooling syPart #677391
Replaced by #11000416
?Manufacturer substitutionThis part replaces 677391. Substitute parts can look different from the original.$205.69 |6% OFF Phone Price : $217.69In Stock
