Here are the diagrams and repair parts for Official Craftsman 113298843 10" belt drive saw, as well as links to manuals and error code tables, if available.

Owner’s manual

By Schematic

SELECT DIAGRAM

Browse Parts for113298843 Power Tools

#1

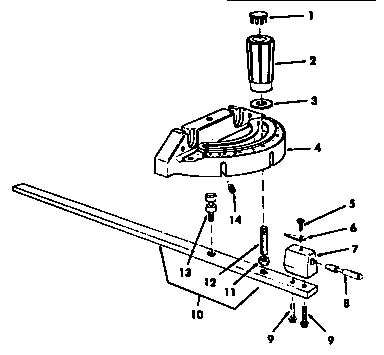

Miter gauge assembly diagram
Table saw knob cap
Part #62693
The manufacturer no longer makes this part, and there's no substitute part
Table saw rip fence guide spacer
Part #62539
The manufacturer no longer makes this part, and there's no substitute part
#26

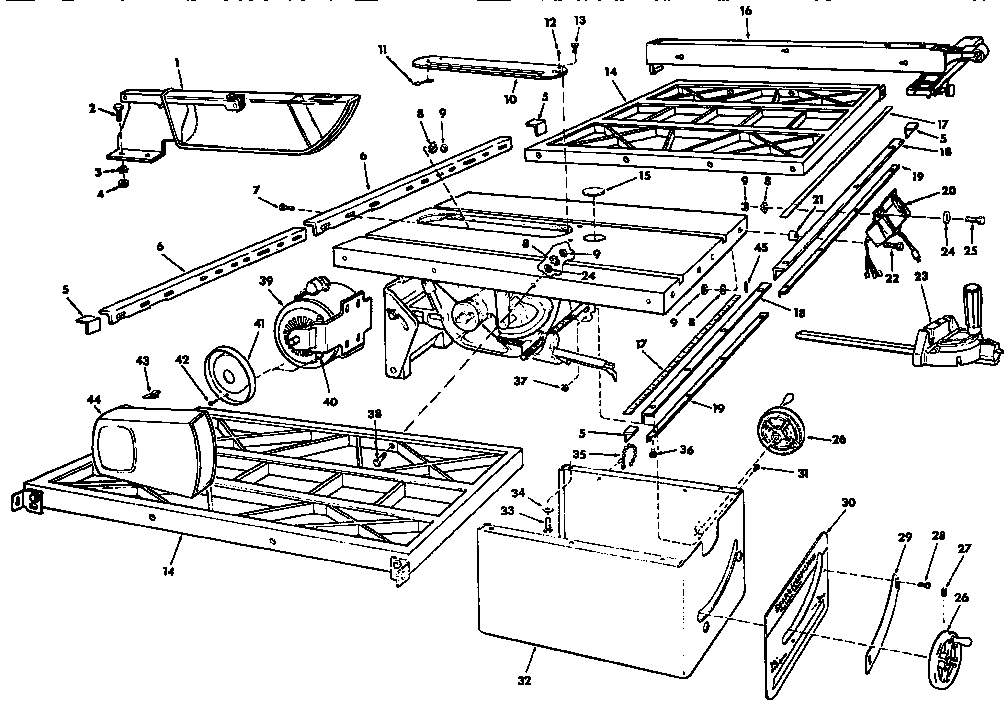

Frame assembly diagram
Table saw hand wheel
Part #818526
The manufacturer no longer makes this part, and there's no substitute part
#41
Motor base assembly diagram
Kenmore power tool washer
Part #30767
The manufacturer no longer makes this part, and there's no substitute part
#4

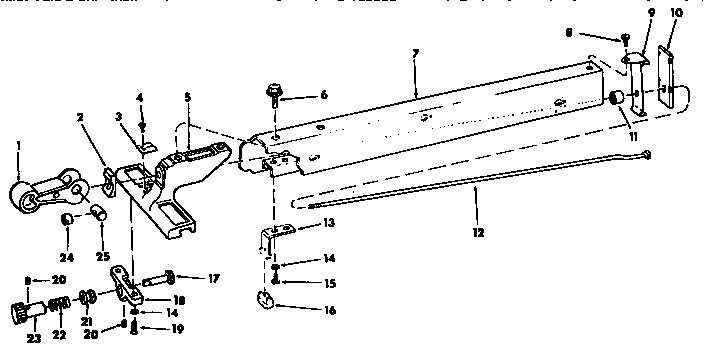

Fence assembly diagram
Table saw screw
Part #9404336
The manufacturer no longer makes this part, and there's no substitute part
#12
Miter gauge assembly diagram
Table saw miter gauge clamp stud
Part #62225
The manufacturer no longer makes this part, and there's no substitute part
#18
Motor base assembly diagram
Radial arm saw arbor collar
Part #62498
The manufacturer no longer makes this part, and there's no substitute part
#33
Motor base assembly diagram
Ryobi table saw washer
Part #37838
The manufacturer no longer makes this part, and there's no substitute part
#22
Motor base assembly diagram
Table saw screw
Part #62698
The manufacturer no longer makes this part, and there's no substitute part
#10

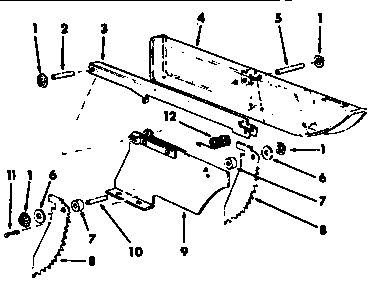

Guard assembly diagram
Ryobi radial saw trigger pin
Part #62410
The manufacturer no longer makes this part, and there's no substitute part
