Model # PFQ83HSPW0RS Official GE stacked laundry center
Here are the diagrams and repair parts for Official GE PFQ83HSPW0RS stacked laundry center, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
PFQ83HSPW0RS Laundry Center
#656

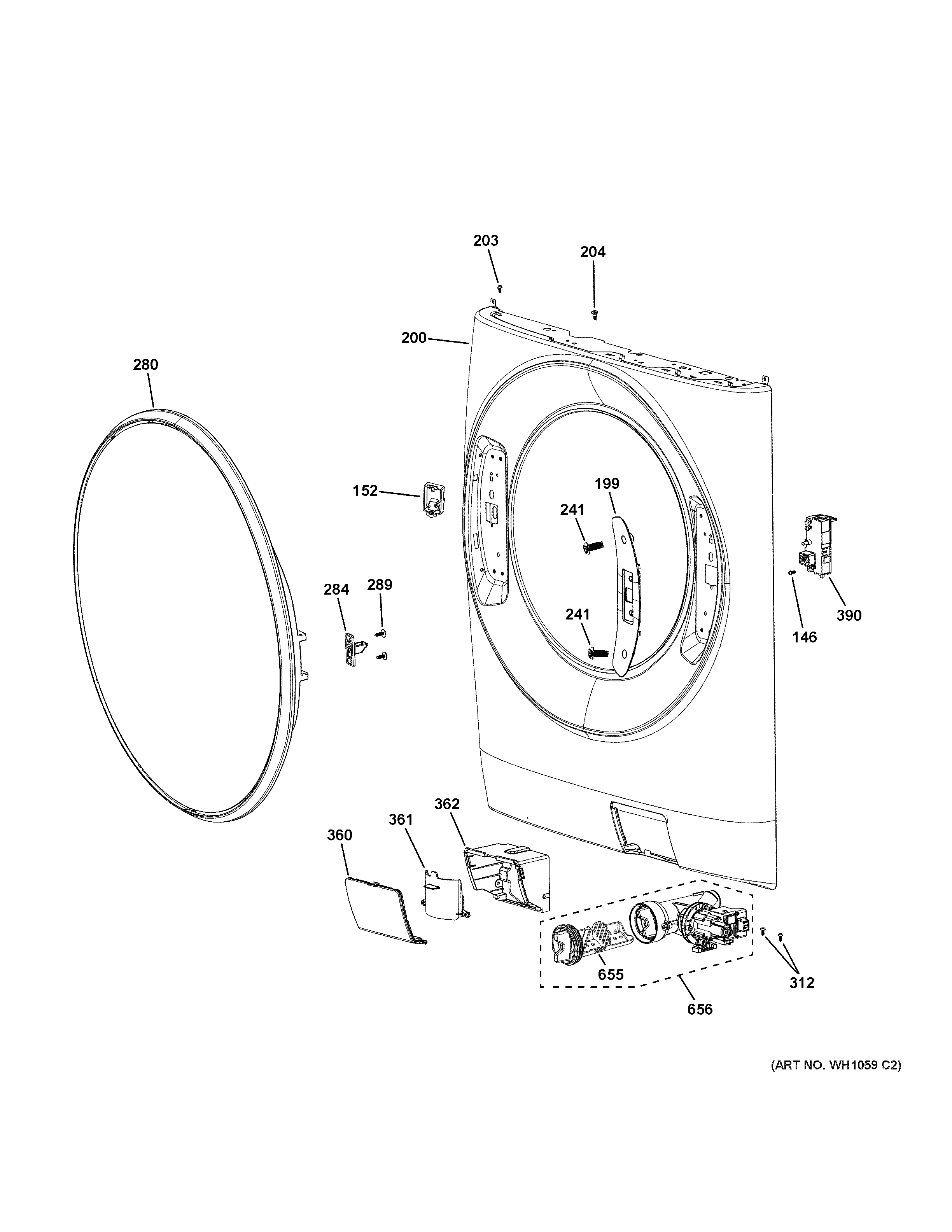

Front panel & door diagram
G.e. washer drain pump assembly
Part #WH11X29539
$66.24 |
8% OFF Phone Price : $72.24
In Stock
#406

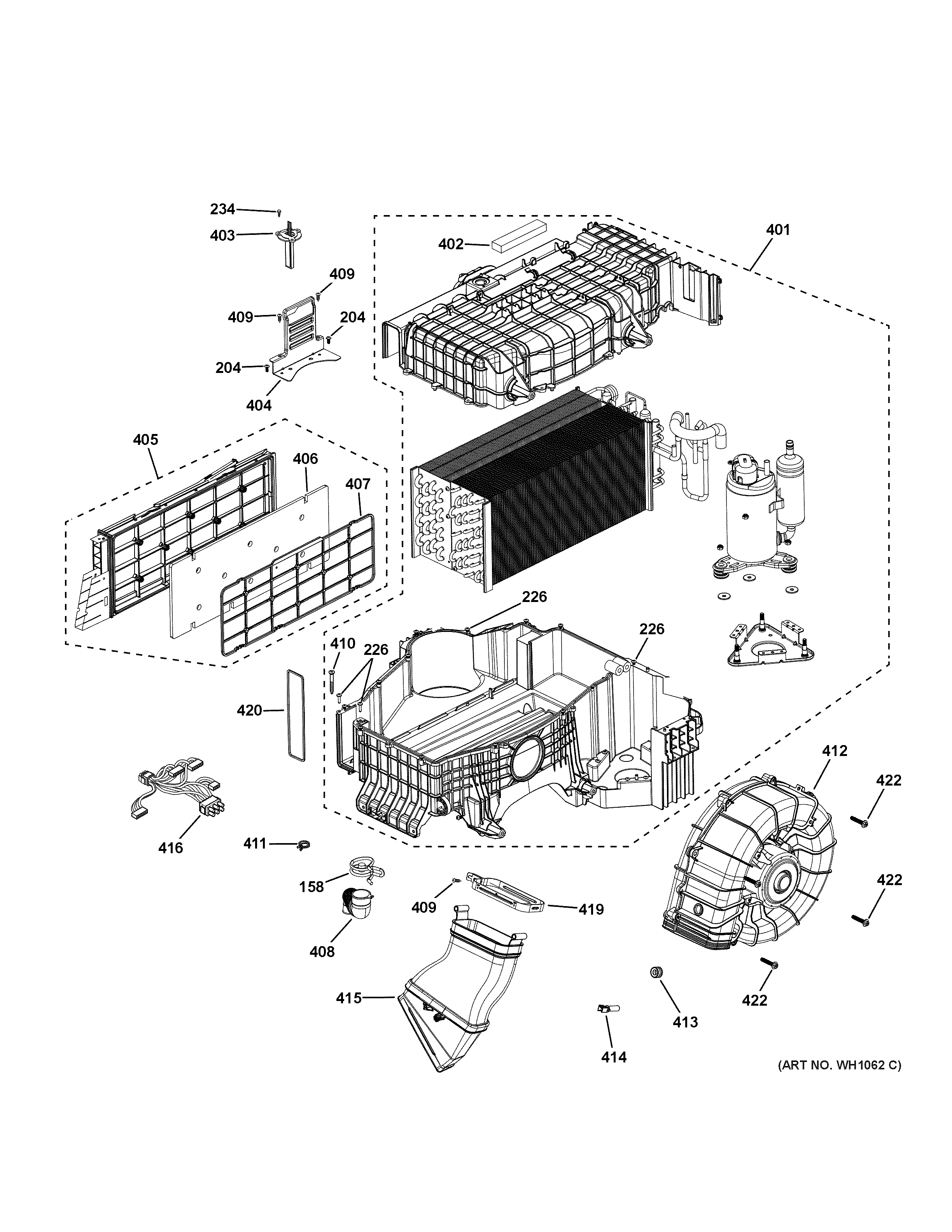

Heat pump & filter assembly diagram
G.e. washer/dryer combo foam filter
Part #WH01X35719
$18.64 |
10% OFF Phone Price : $20.64
In Stock
#390
Front panel & door diagram
G.e. washer door lock
Part #WH01X29528
$45.67 |
12% OFF Phone Price : $51.67
In Stock
#326

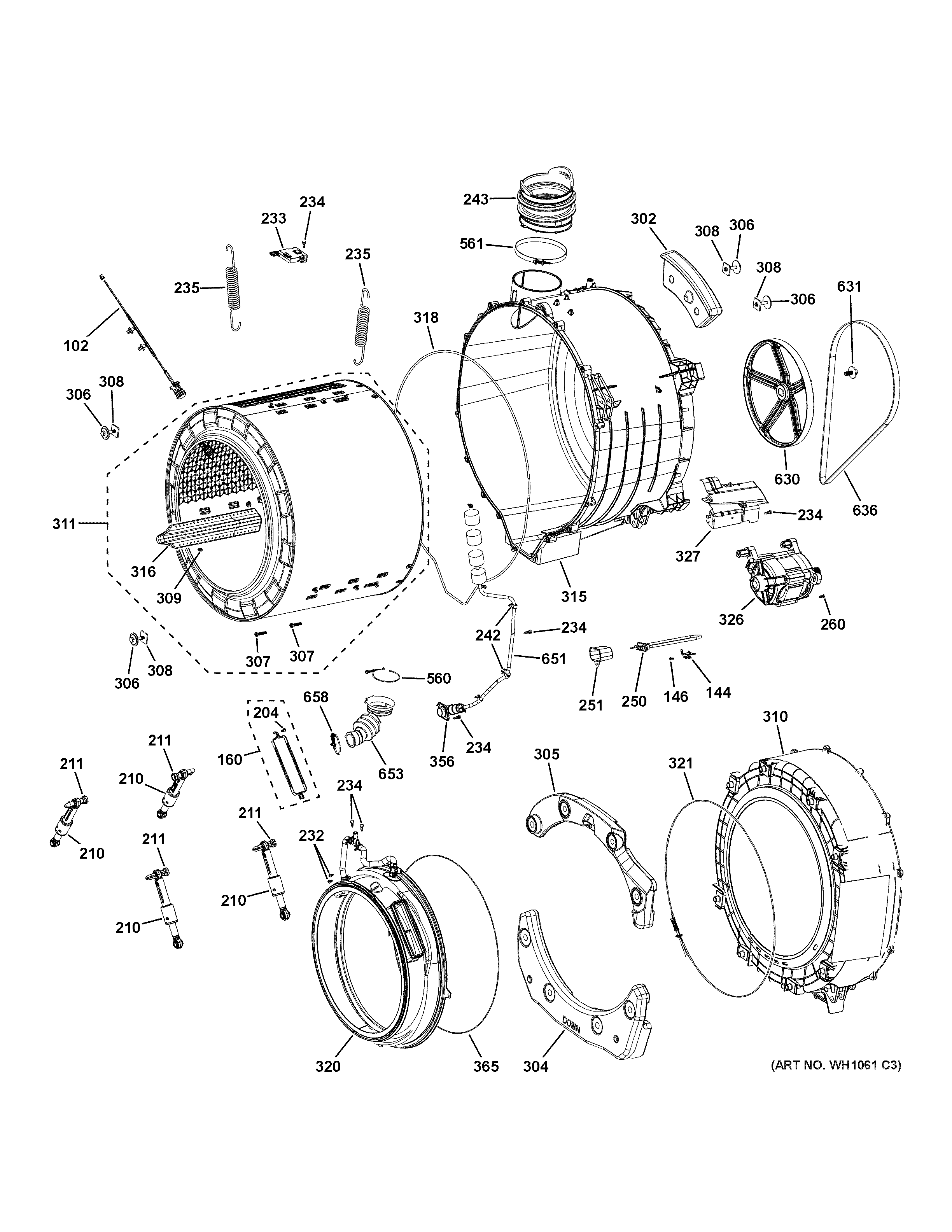

Tub & motor diagram
G.e. washer drive motor
Part #WH03X29524
$204.02 |
6% OFF Phone Price : $216.02
In Stock
#233
Tub & motor diagram
Acceleromete
Part #WH03X35728
Replaced by #WH03X33657
?
Manufacturer substitution
This part replaces WH03X35728. Substitute parts can look different from the original.
$111.35
In Stock
#403
Heat pump & filter assembly diagram
Rh sensor
Part #WE04X35682
$105.07
In Stock
#405
Heat pump & filter assembly diagram
G.e. laundry center dryer lint screen
Part #WH01X35685
$39.23 |
13% OFF Phone Price : $45.23
In Stock
#401
Heat pump & filter assembly diagram
Heat pump module & support assembly
Part #WE03X36780
$1456.58
In Stock
#30

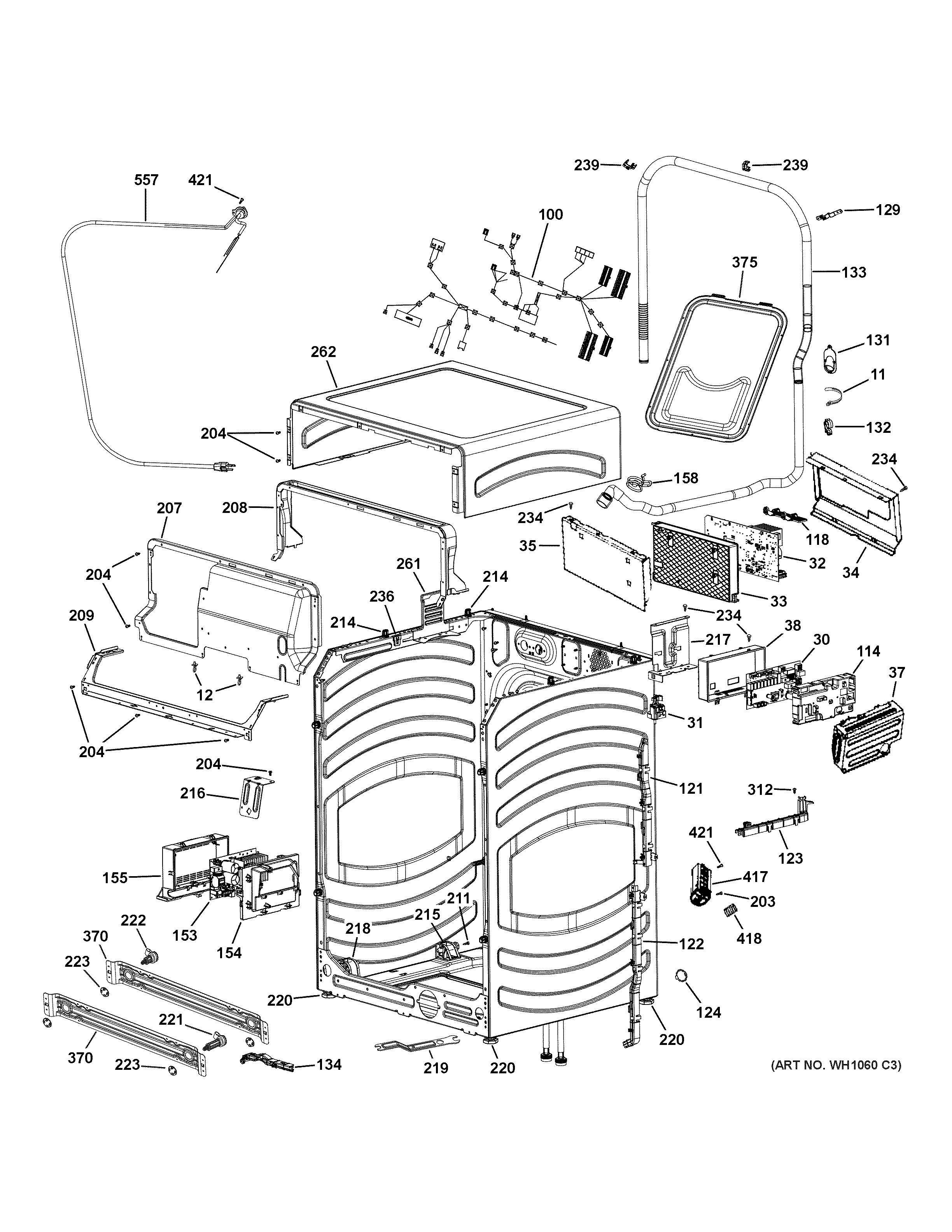

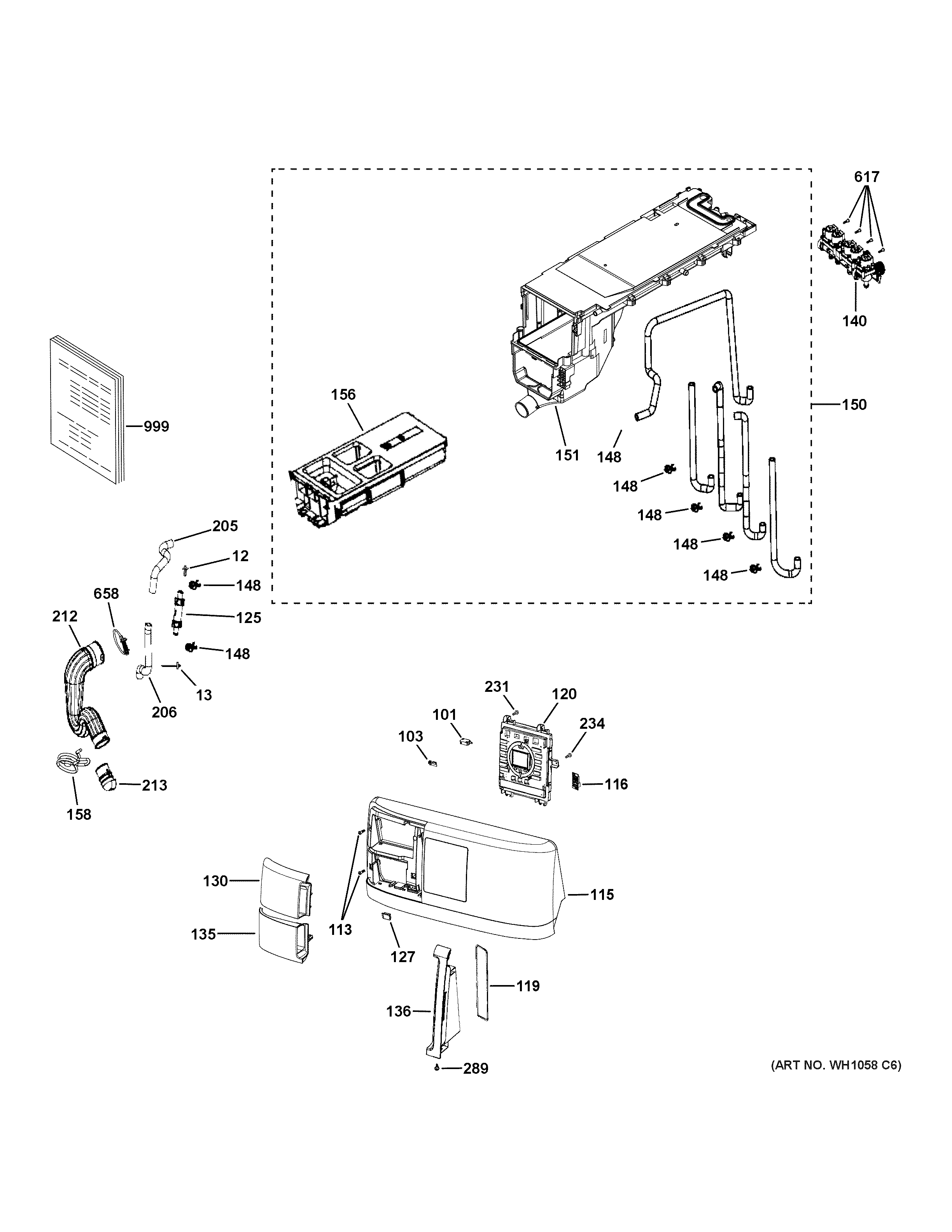

Cabinet & top panel diagram
Mc board
Part #WH22X35701
This item is not returnable
$329.53
In Stock
#32
Cabinet & top panel diagram
Inv board
Part #WH22X35745
$728.71
In Stock
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…
Main causes: clogged drain system, blocked drain hose, bad drain pump…
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…
Main causes: broken dryer drive belt, weak drive motor, binding drum seals…
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…
Most common repair guides to help fix your laundry centers
These step-by-step repair guides will help you safely fix what’s broken on your laundry center.
How to replace a laundry center washer drain pump
If the washer won’t drain because the drain pump failed, follow the steps in this repair guide to replace it.…
Repair difficulty
Time required
15 minutes or less
How to replace a laundry center dryer drive belt
If the dryer motor runs but the drum doesn’t turn, the drive belt is likely broken. Replace it, following the steps in t…
Repair difficulty
Time required
60 minutes or less
How to replace a laundry center washer timer
If the washer doesn't fill, spin or drain, the timer could be the problem. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your laundry centers
Use the advice and tips in these articles and videos to get the most out of your laundry center.
Tired of dull laundry? These 7 expert tips help you get cleaner clothes, brighten whites, and fix common washer mistakes…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
