Model # KMBT5011KSS0 Official KitchenAid built-in microwave
Here are the diagrams and repair parts for Official KitchenAid KMBT5011KSS0 built-in microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

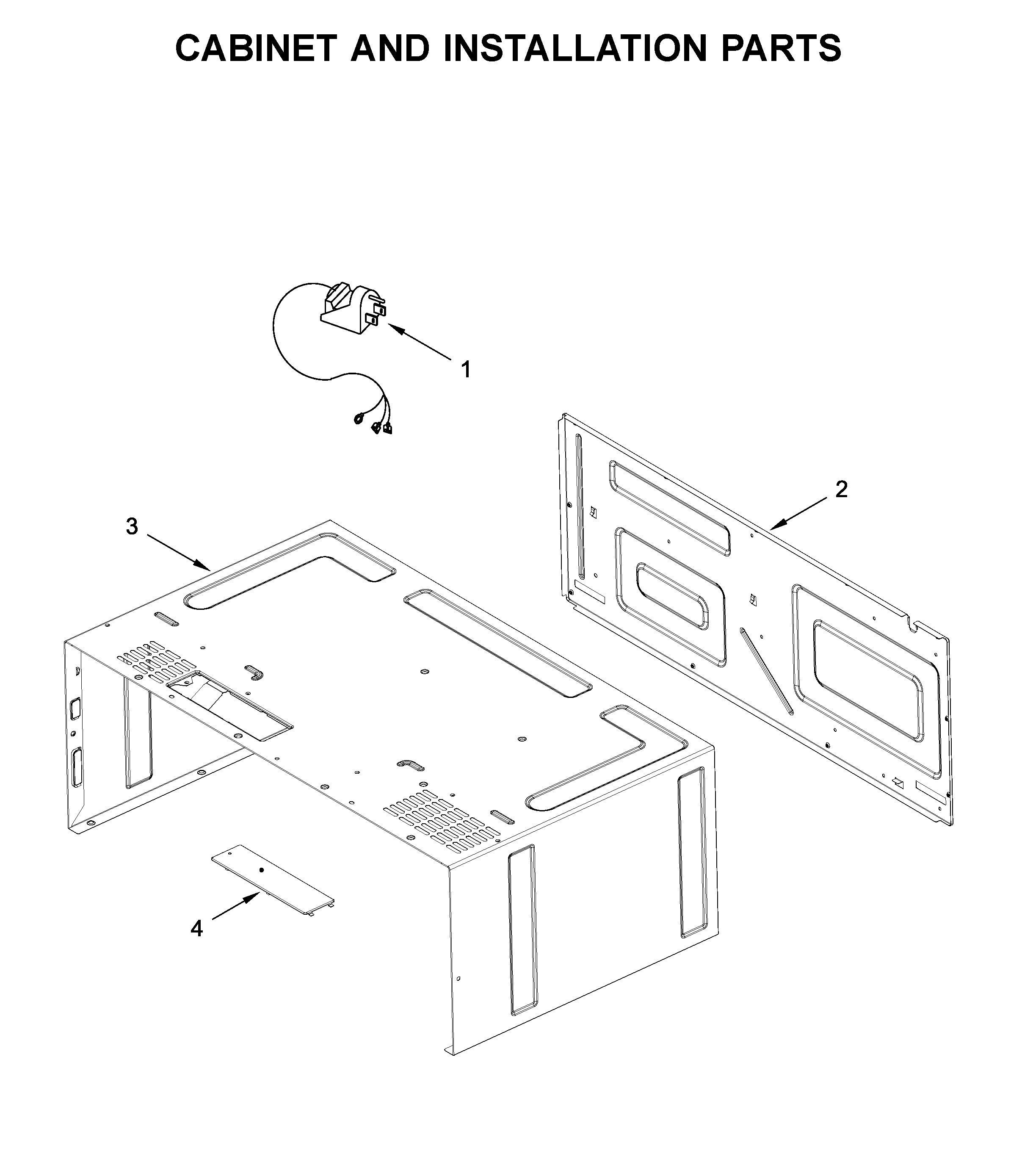

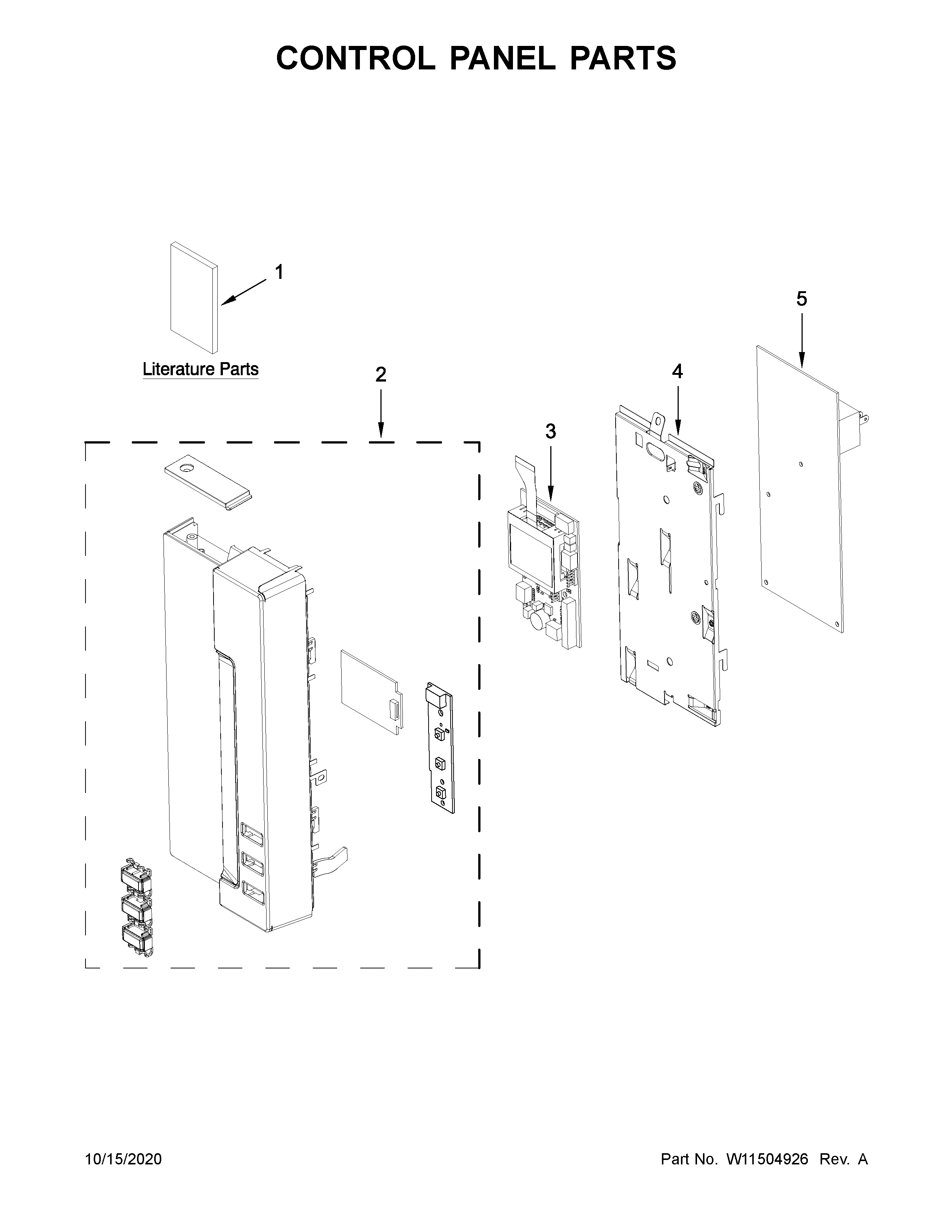

SELECT DIAGRAM
Browse Parts for
KMBT5011KSS0 Microwaves
#16

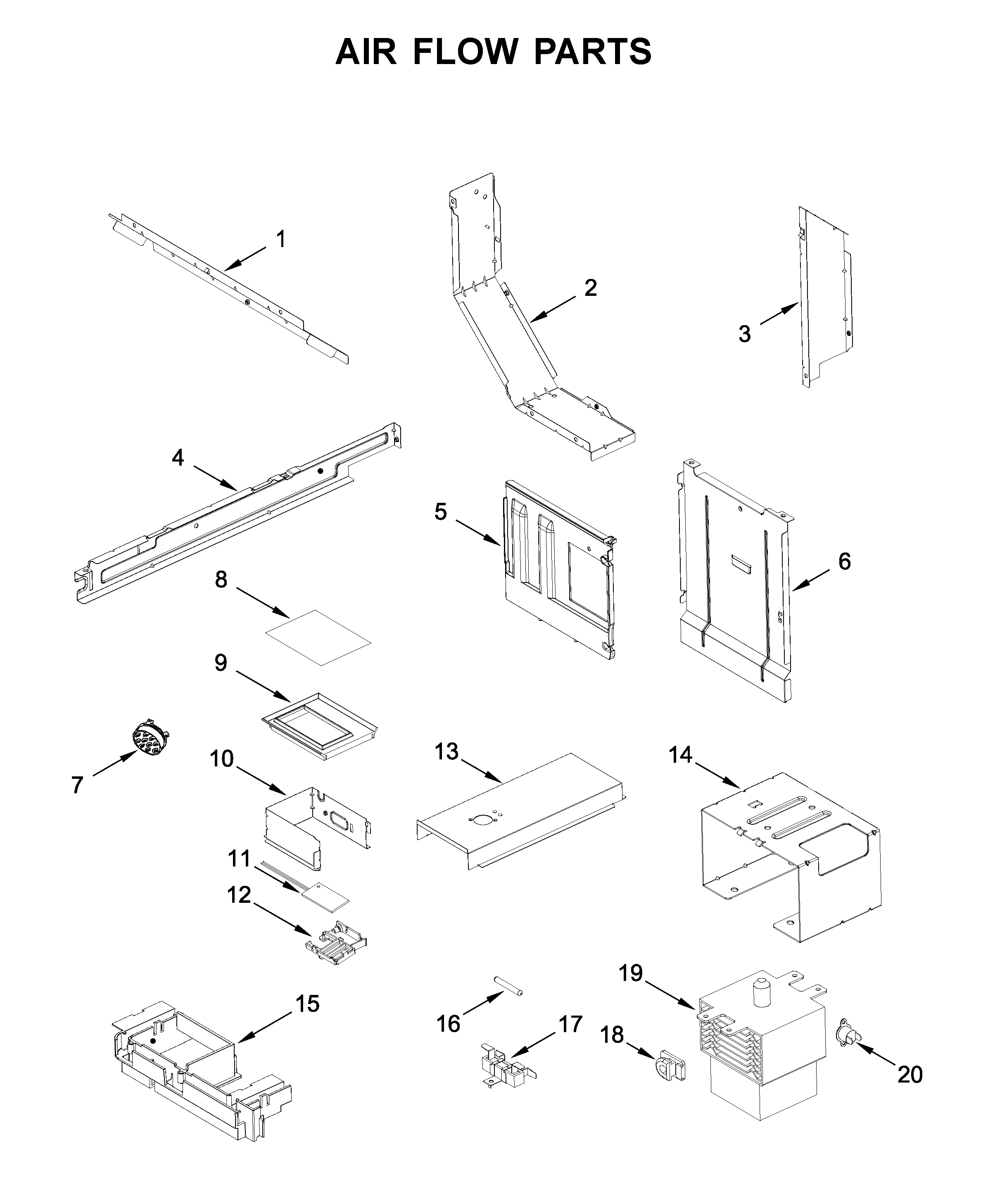

Air flow parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$55.83
In Stock
#7

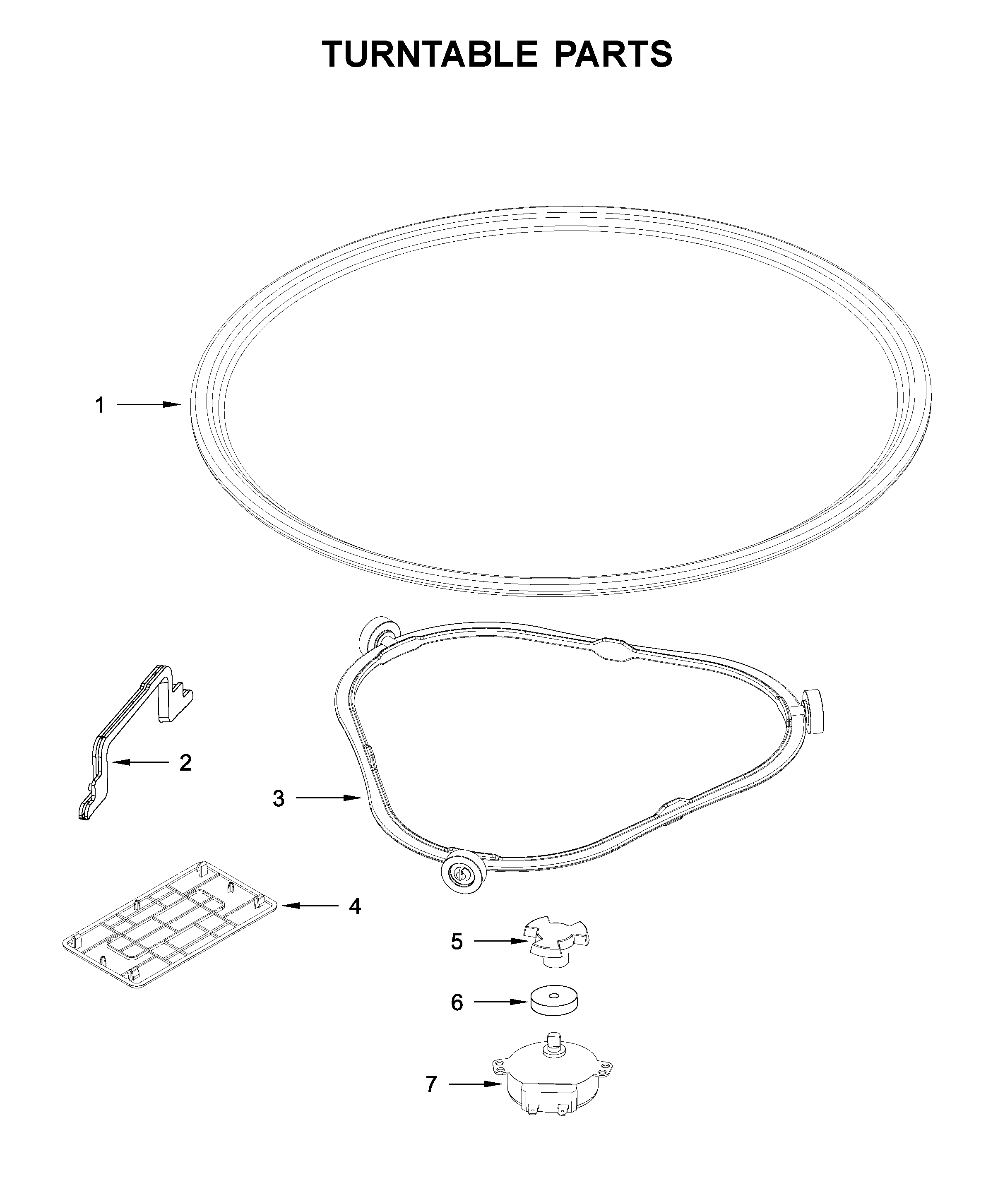

Turntable parts diagram
Turntable motor
Part #W10466420
Replaced by #WPW10466420
?
Manufacturer substitution
This part replaces W10466420. Substitute parts can look different from the original.
$32.16 |
16% OFF Phone Price : $38.16
In Stock
#1
Turntable parts diagram
Turntable
Part #W11401221
Replaced by #W11443145
?
Manufacturer substitution
This part replaces W11401221. Substitute parts can look different from the original.
$37.37 |
14% OFF Phone Price : $43.37
In Stock
#13

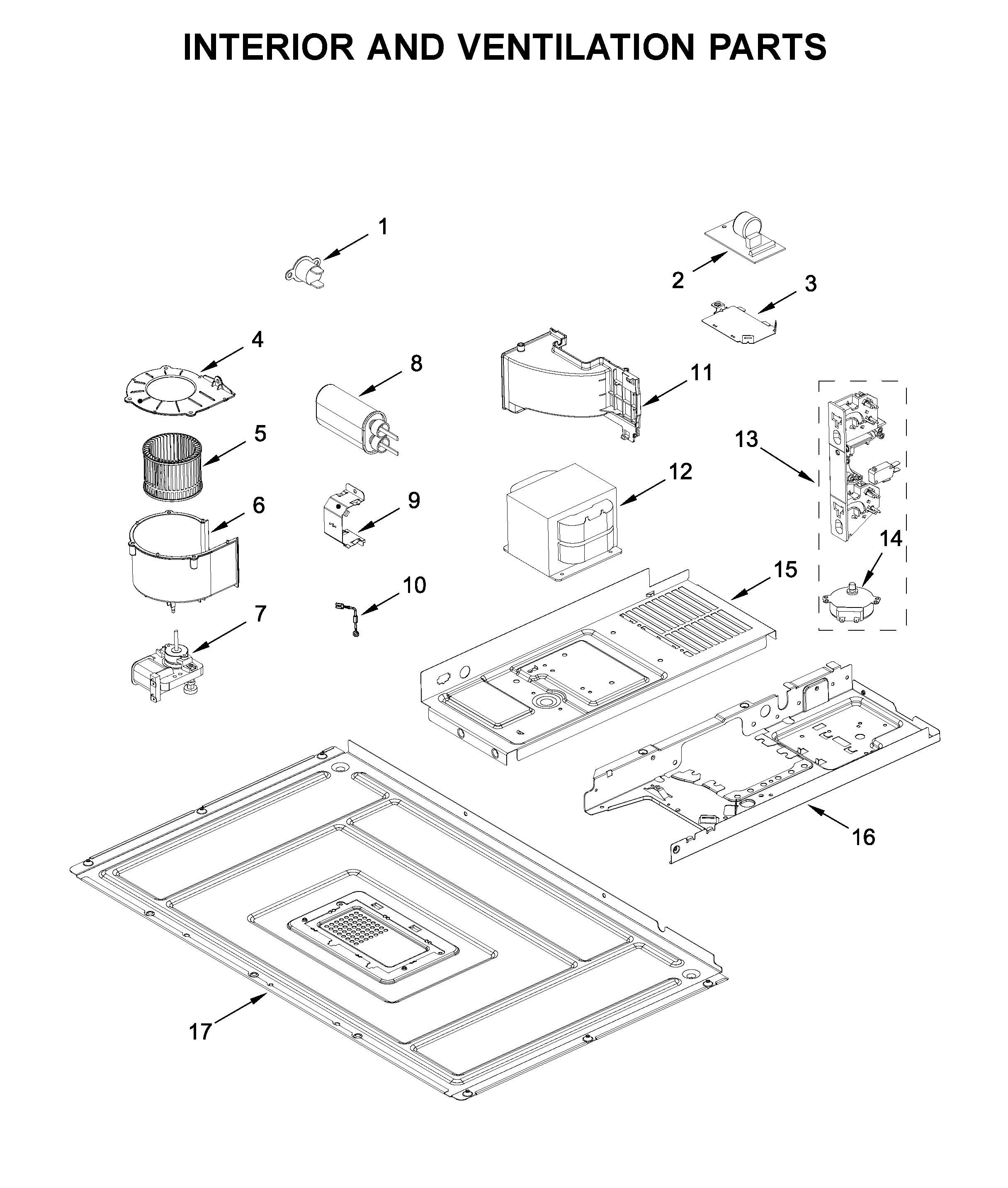

Interior and ventilation parts diagram
Interlock sw
Part #W11479930
Replaced by #W11493414
?
Manufacturer substitution
This part replaces W11479930. Substitute parts can look different from the original.
$34.62 |
15% OFF Phone Price : $40.62
In Stock
#6
Turntable parts diagram
Microwave turntable motor spacer (replaces 4393588, 8206101)
Part #8184109
This item is not returnable
$6.17 |
14% OFF Phone Price : $7.17
In Stock
#4
Turntable parts diagram
Jenn-air microwave waveguide cover
Part #W11193296
$31.81 |
16% OFF Phone Price : $37.81
In Stock
#2

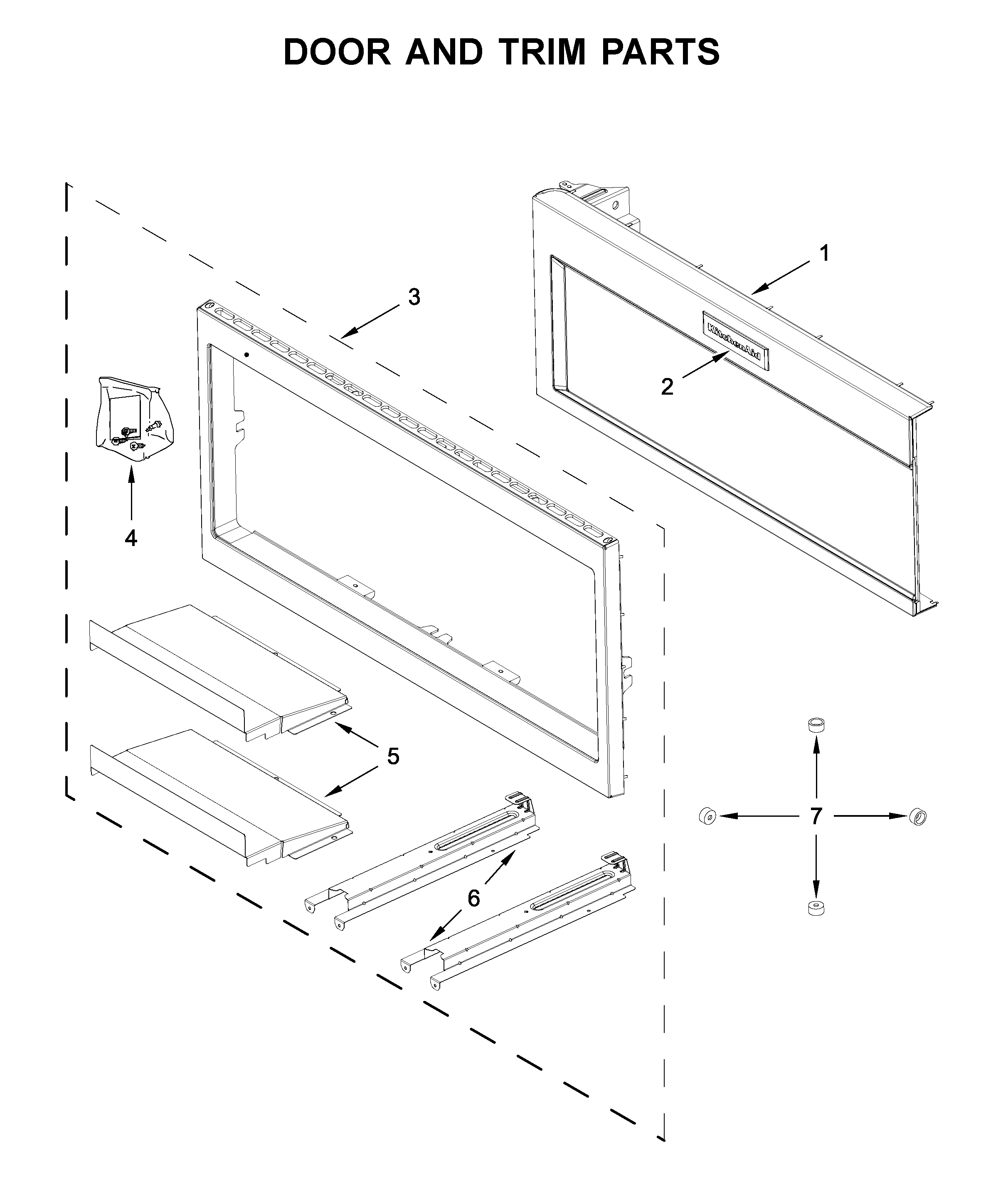

Door and trim parts diagram
Kitchenaid 2
Part #W10754513
Replaced by #W10909682
?
Manufacturer substitution
This part replaces W10754513. Substitute parts can look different from the original.
$53.21 |
10% OFF Phone Price : $59.21
In Stock
#2
Turntable parts diagram
Microwave waveguide cover seal
Part #W11126541
$17.95 |
10% OFF Phone Price : $19.95
In Stock
#17
Air flow parts diagram
Microwave fuse holder
Part #W10245194
$89.22
In Stock
#5
Door and trim parts diagram
Cooling duct, slim
Part #W11454890
Replaced by #W11494295
?
Manufacturer substitution
This part replaces W11454890. Substitute parts can look different from the original.
$59.41
In Stock
