Model # EDD2X60JA1 Official ICP upflow & downflow txv cased coil
Here are the diagrams and repair parts for Official ICP EDD2X60JA1 upflow & downflow txv cased coil, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts forEDD2X60JA1 Upflow & Downflow TXV Cased Coil
- #J

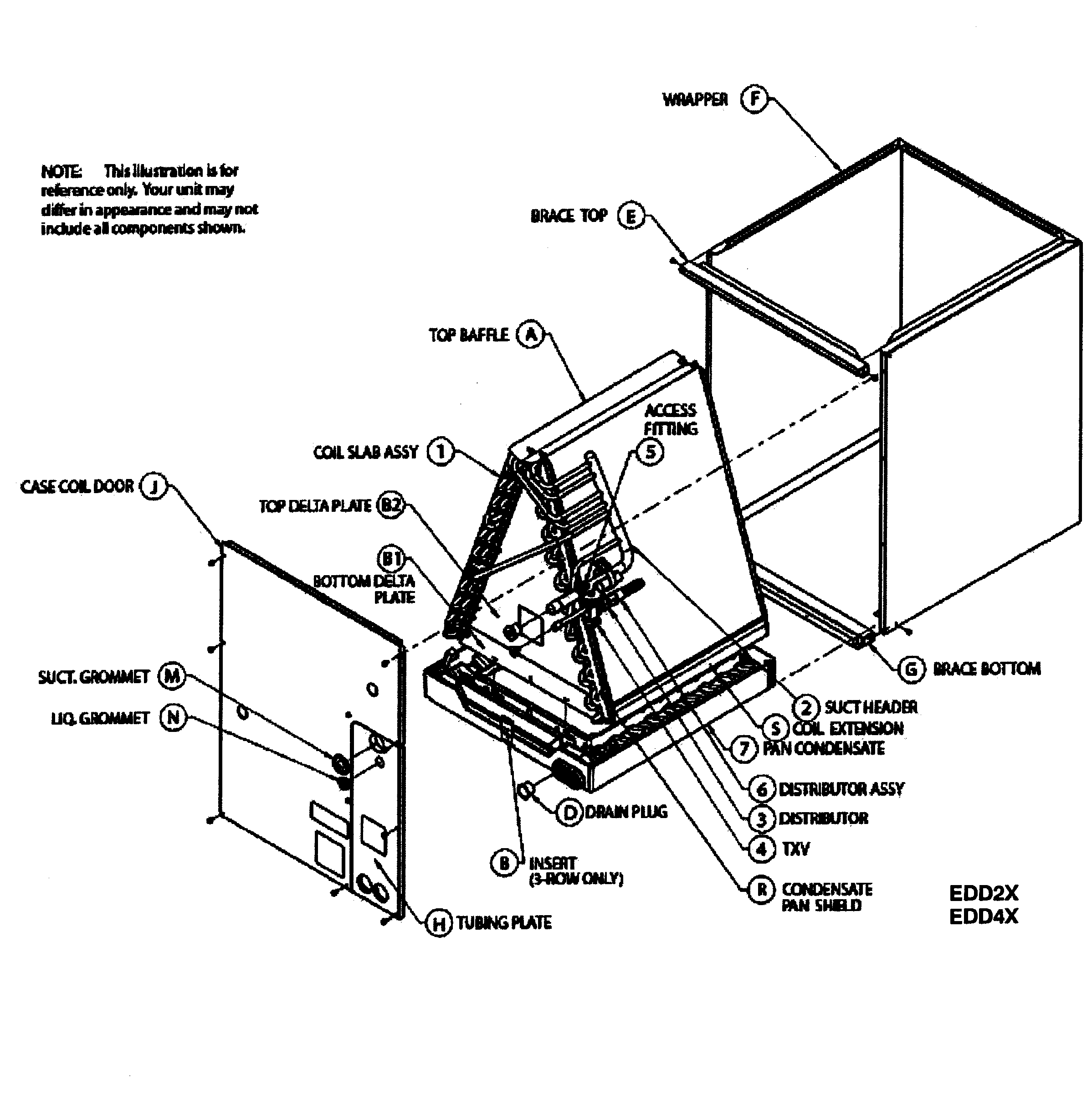

Coil assy diagram
Access doorPart #1173299
$196.80In Stock - #7
Coil assy diagram
Pan condPart #1173098
$330.33In Stock - #NI
Coil assy diagram
StrainerPart #1171739
$45.58In Stock - #N
Coil assy diagram
GrommetPart #1173157
This item is not returnable$2.16In Stock - #5
Coil assy diagram
FittingPart #1171507
This item is not returnable$4.89In Stock - #M
Coil assy diagram
GrommetPart #1173160
This item is not returnable$3.03In Stock - #D
Coil assy diagram
AdapterPart #1085010
$10.20In Stock - #2
Coil assy diagram
Suct hdr asyPart #1173156
The manufacturer no longer makes this part, and there's no substitute part
- #B2
Coil assy diagram
Plate delta topPart #1173127
The manufacturer no longer makes this part, and there's no substitute part
- #S
Coil assy diagram
Extension coilPart #1173286
The manufacturer no longer makes this part, and there's no substitute part
