Model # SEP340XX1 Official Whirlpool 30" electric range with standard clean oven
Here are the diagrams and repair parts for Official Whirlpool SEP340XX1 30" electric range with standard clean oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

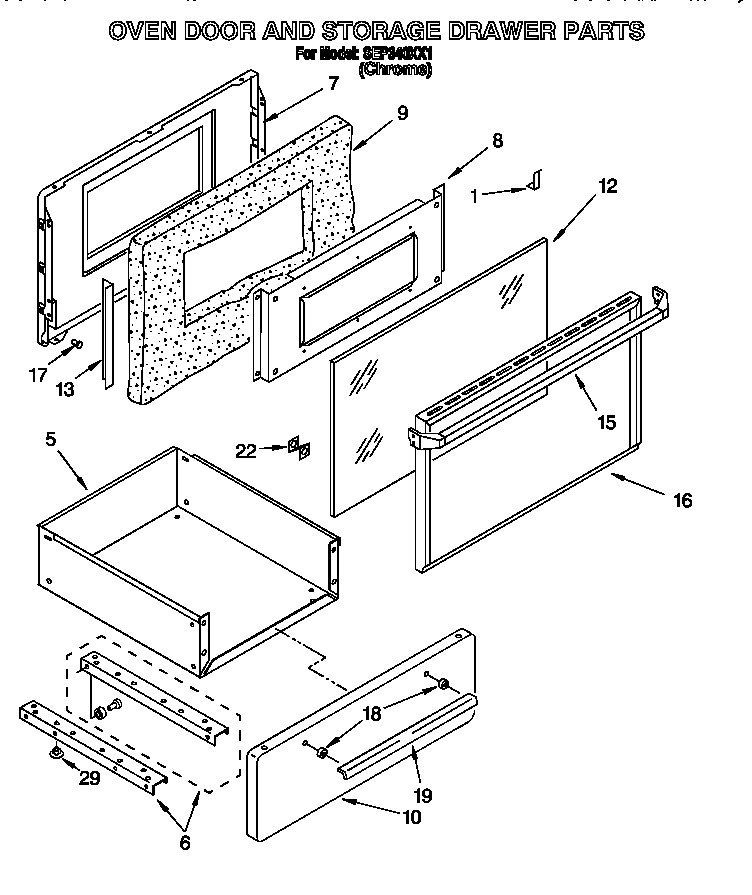

SELECT DIAGRAM
Browse Parts forSEP340XX1 Ranges
- #12A

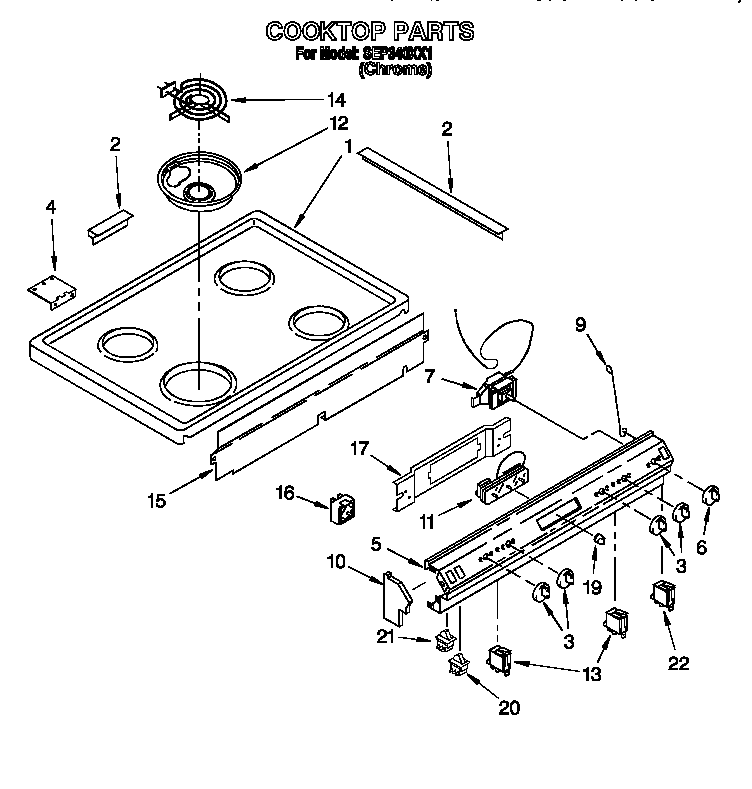

Cooktop diagram
Drip bowlPart #4157960
Replaced by #W10196405RW
?Manufacturer substitutionThis part replaces 4157960. Substitute parts can look different from the original.This item is not returnable$10.52 |16% OFF Phone Price : $12.52In Stock - #20
Cooktop diagram
Light switchPart #4314961
Replaced by #WP4314961
?Manufacturer substitutionThis part replaces 4314961. Substitute parts can look different from the original.$38.29 |14% OFF Phone Price : $44.29In Stock - #21
Cooktop diagram
Light switchPart #4314962
Replaced by #WP4314961
?Manufacturer substitutionThis part replaces 4314962. Substitute parts can look different from the original.$38.29 |14% OFF Phone Price : $44.29In Stock - #25

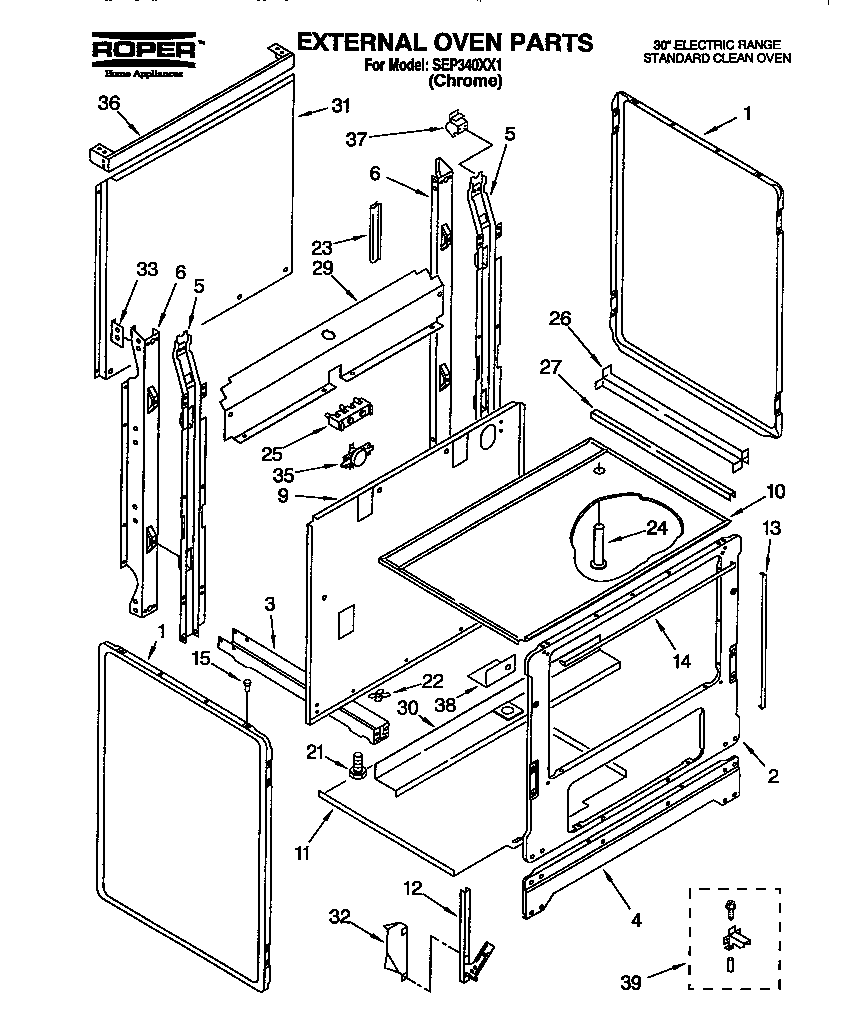

External oven diagram
Terminal blockPart #4157955
Replaced by #WP8203546
?Manufacturer substitutionThis part replaces 4157955. Substitute parts can look different from the original.This item is not returnable$16.75 |11% OFF Phone Price : $18.75In Stock - #14

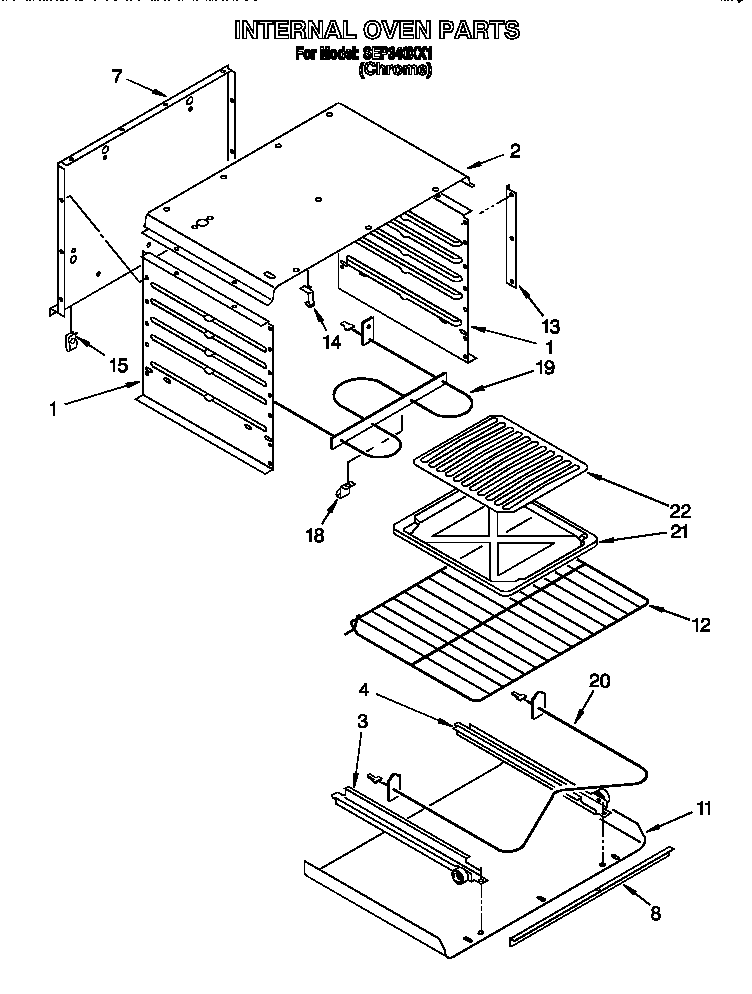

Internal oven diagram
Clip bulbPart #4157329
Replaced by #98005642
?Manufacturer substitutionThis part replaces 4157329. Substitute parts can look different from the original.$67.51In Stock #NI
All parts diagram
InsulationPart #261514
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 261514. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock#NI
All parts diagram
InsulationPart #240132
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 240132. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock- #21
Internal oven diagram
Broiler panPart #4315095
Replaced by #4396923
?Manufacturer substitutionThis part replaces 4315095. Substitute parts can look different from the original.$29.55 |17% OFF Phone Price : $35.55In Stock - #16
Cooktop diagram
Infinite switchPart #4314945
Replaced by #W10900107
?Manufacturer substitutionThis part replaces 4314945. Substitute parts can look different from the original.$37.54 |14% OFF Phone Price : $43.54In Stock - #12B
Cooktop diagram
Drip bowlPart #4157961
Replaced by #W10196406RW
?Manufacturer substitutionThis part replaces 4157961. Substitute parts can look different from the original.$12.95 |13% OFF Phone Price : $14.95In Stock
