Model # 41744052401 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 41744052401 washer, as well as links to manuals and error code tables, if available.
Owner’s manual

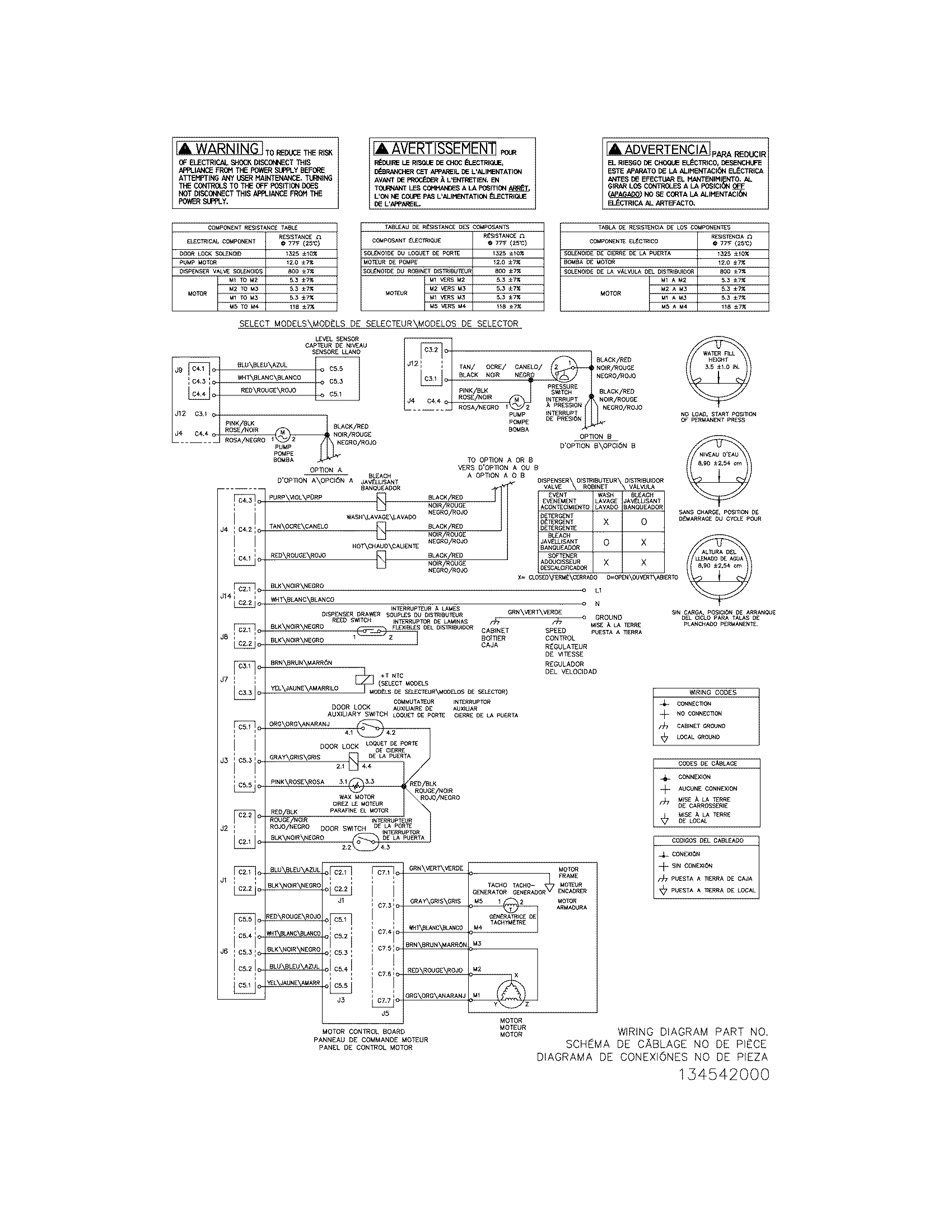

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for41744052401 Washer
- #35

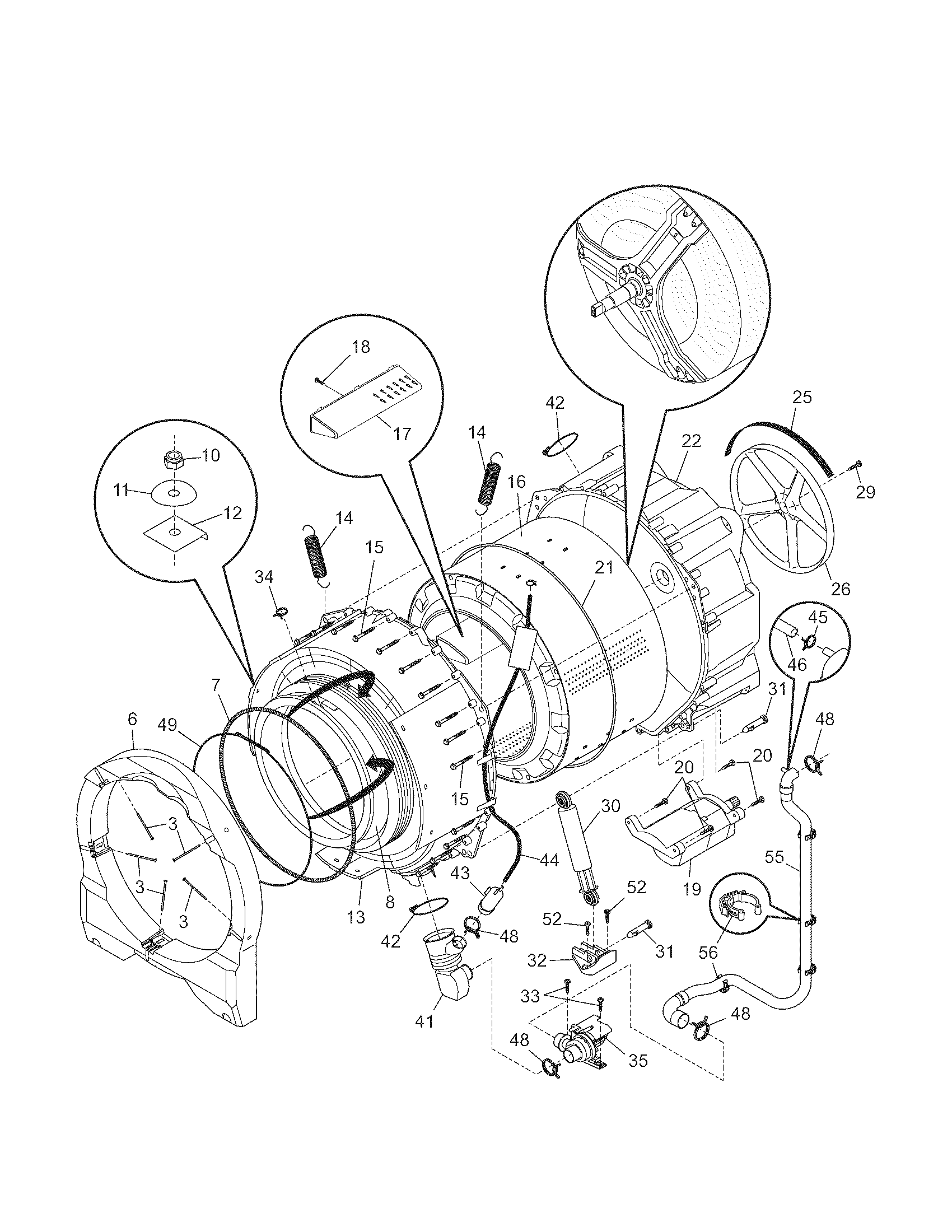

Motor/tub diagram
Washer drain pumpPart #134051200
Replaced by #137221600
?Manufacturer substitutionThis part replaces 134051200. Substitute parts can look different from the original.$133.81 |8% OFF Phone Price : $145.81In Stock - #30
Motor/tub diagram
Shock absorberPart #134560400
Replaced by #5304485917
?Manufacturer substitutionThis part replaces 134560400. Substitute parts can look different from the original.$58.40 |9% OFF Phone Price : $64.40In Stock - Laundry appliance screw, #8-18 x 31/100-in
Part #131168200
$12.76 |14% OFF Phone Price : $14.76In Stock - #4

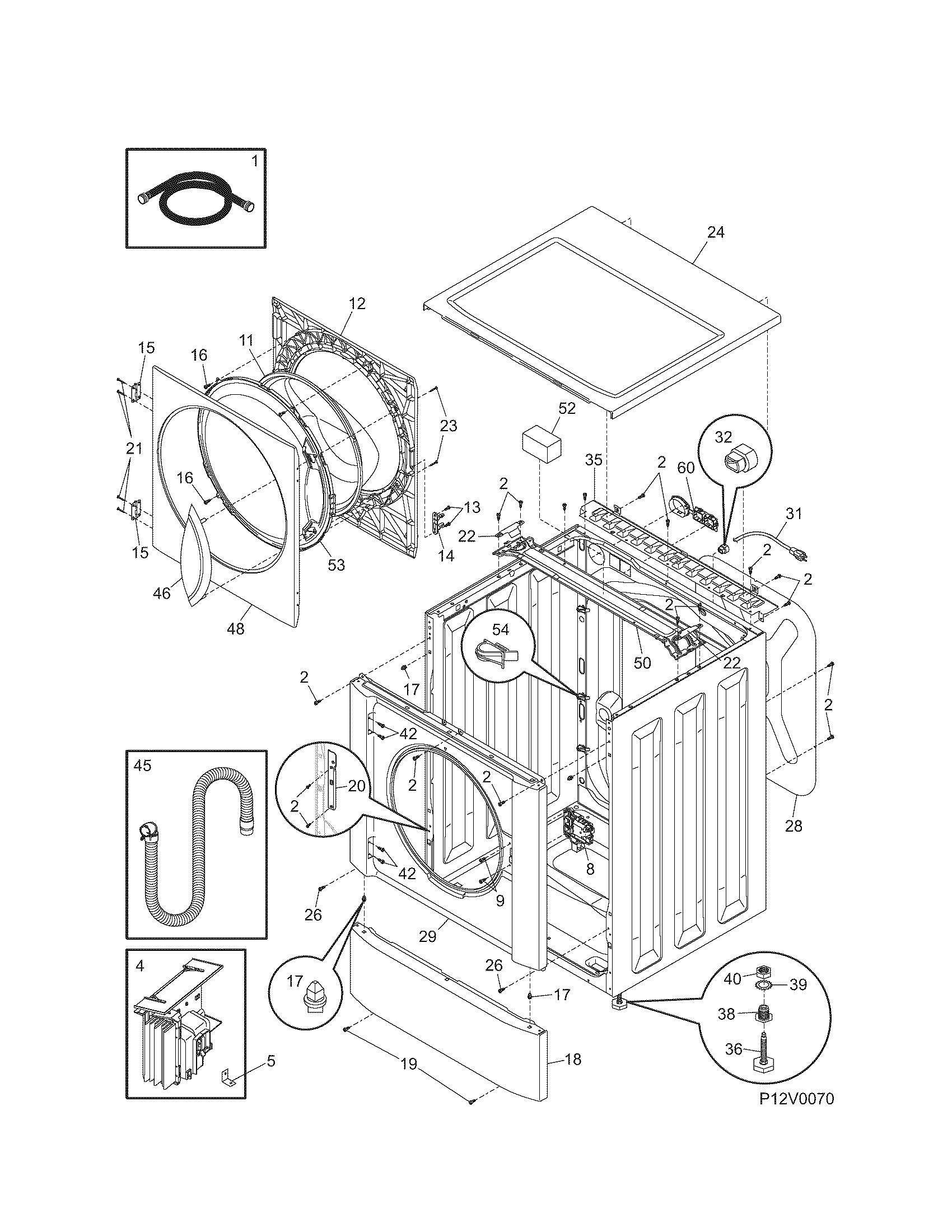

Cabinet/top diagram
Scu assemblyPart #134409902
Replaced by #134743500
?Manufacturer substitutionThis part replaces 134409902. Substitute parts can look different from the original.This item is not returnable$181.30 |6% OFF Phone Price : $193.30In Stock - #36

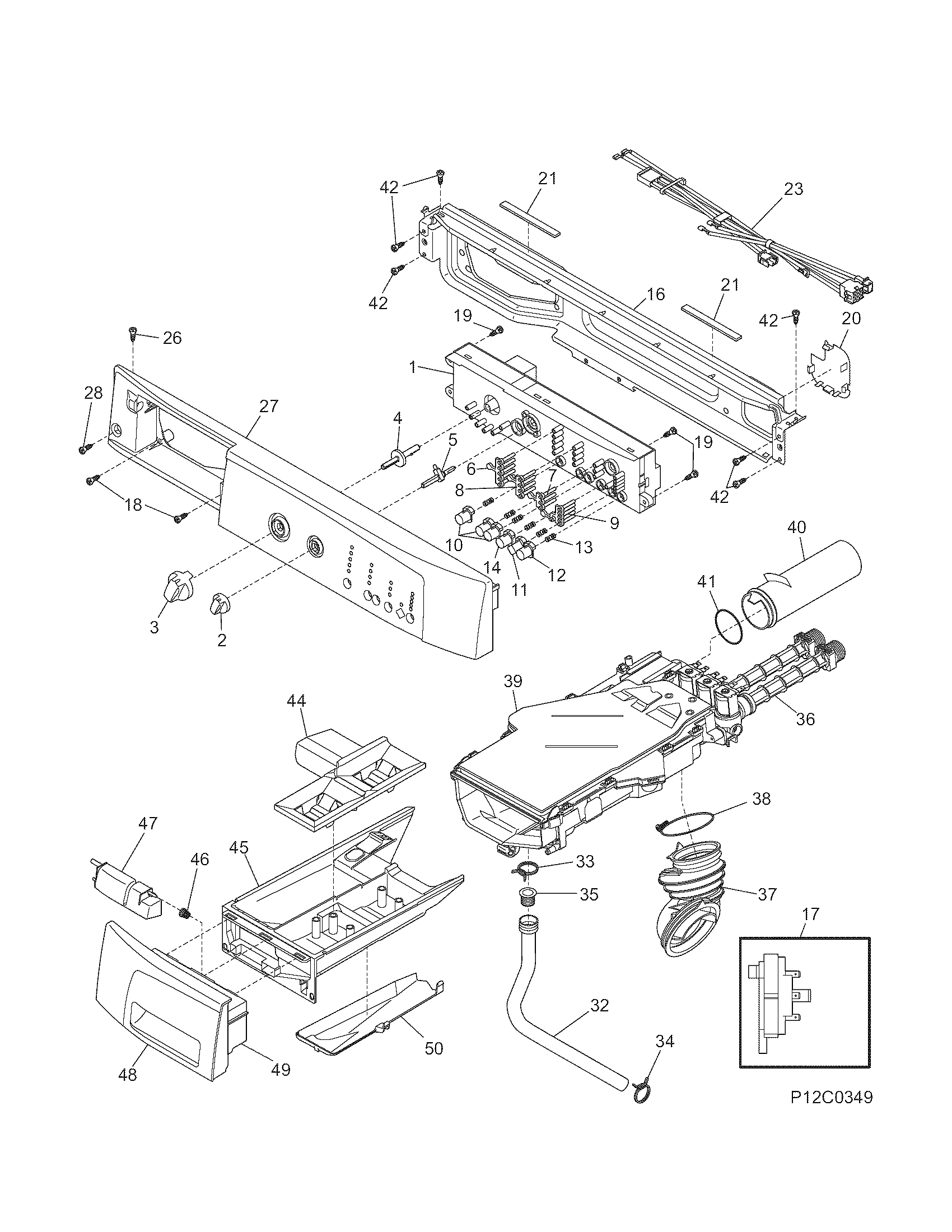

Control panel diagram
Washer water inlet valvePart #134371220
$46.32 |11% OFF Phone Price : $52.32In Stock - #8
Motor/tub diagram
BellowsPart #134365200
Replaced by #134515300
?Manufacturer substitutionThis part replaces 134365200. Substitute parts can look different from the original.$241.61 |5% OFF Phone Price : $253.61In Stock - #49
Motor/tub diagram
Washer door boot spring clampPart #134527100
$33.95 |15% OFF Phone Price : $39.95In Stock - Washer baffle screw
Part #131302800
$13.69 |13% OFF Phone Price : $15.69In Stock - #9
Cabinet/top diagram
Siphon screwPart #131303300
Replaced by #131302800
?Manufacturer substitutionThis part replaces 131303300. Substitute parts can look different from the original.$13.69 |13% OFF Phone Price : $15.69In Stock - #19
Cabinet/top diagram
ScrewPart #131258400
Replaced by #131302800
?Manufacturer substitutionThis part replaces 131258400. Substitute parts can look different from the original.$13.69 |13% OFF Phone Price : $15.69In Stock
