Model # 917275011 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Official Craftsman 917275011 lawn tractor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

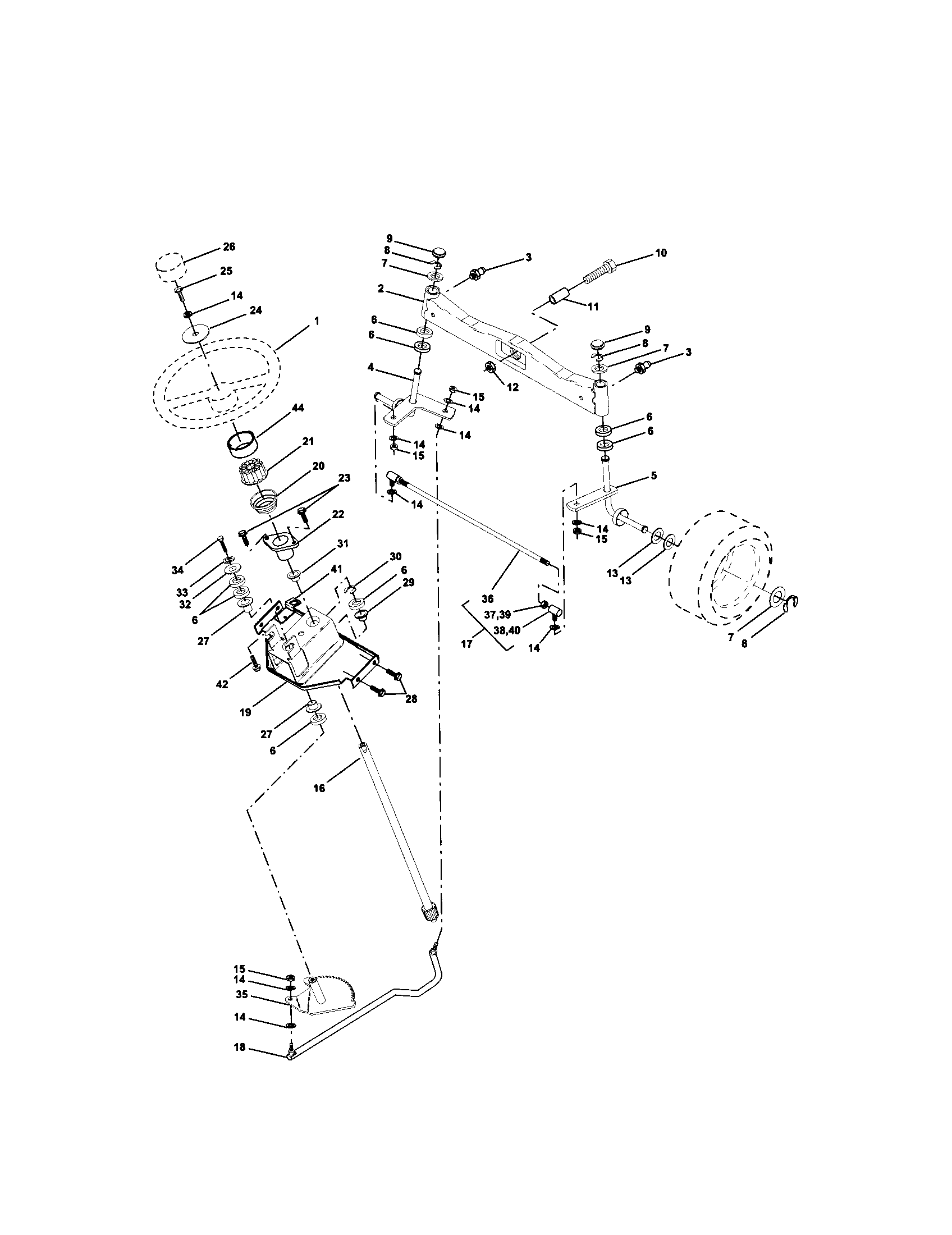

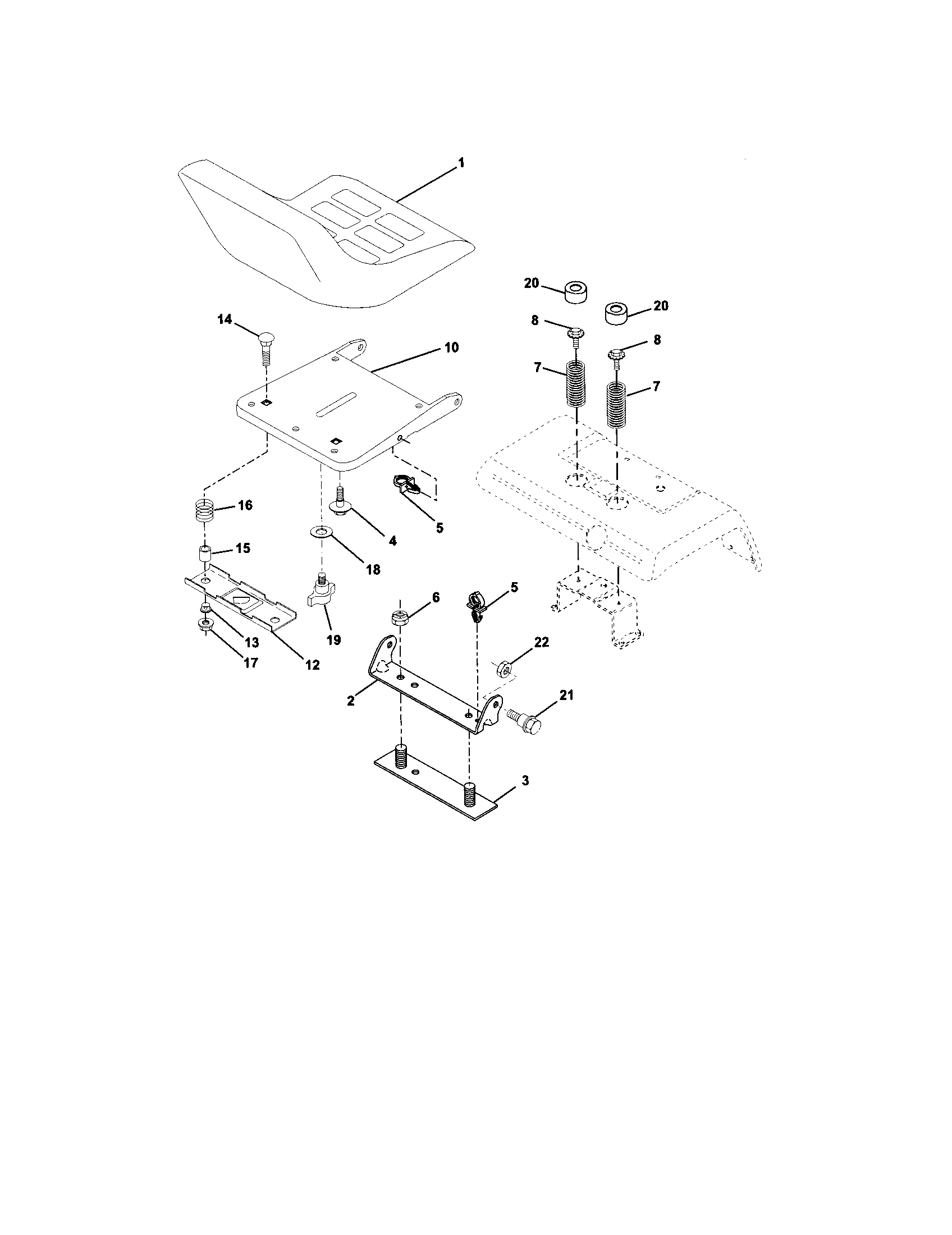

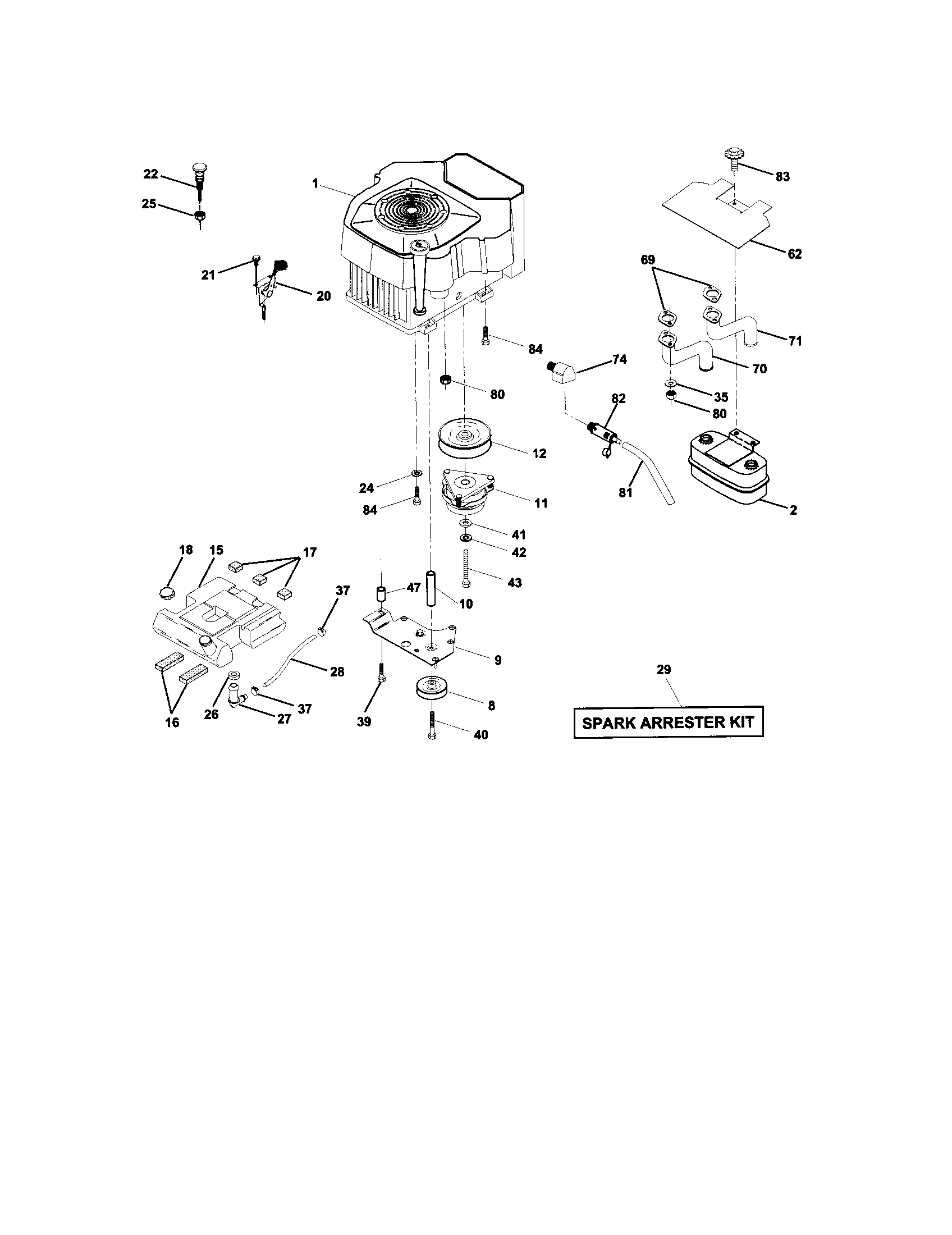

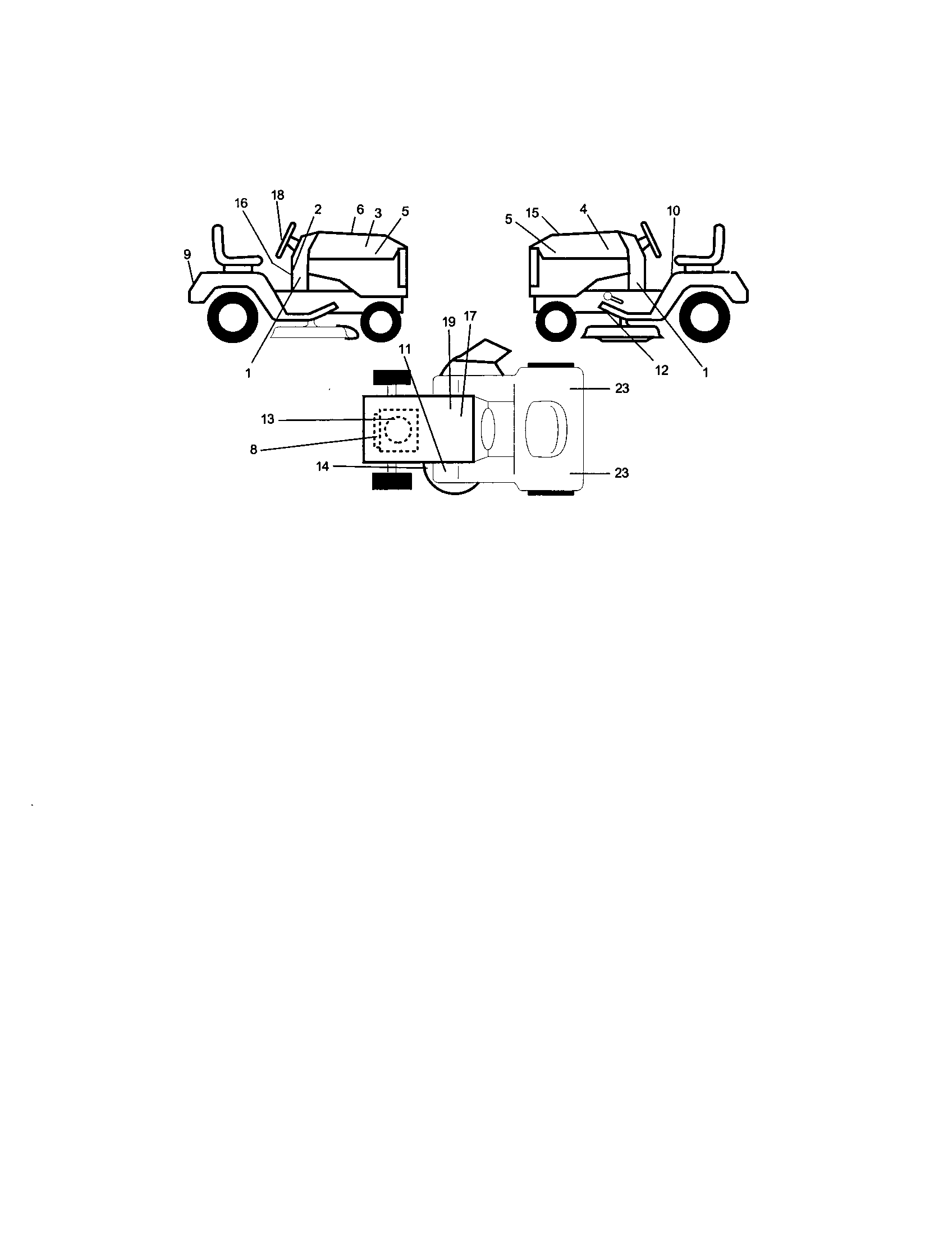

SELECT DIAGRAM
Browse Parts for
917275011 Riding Mowers & Tractors
#8

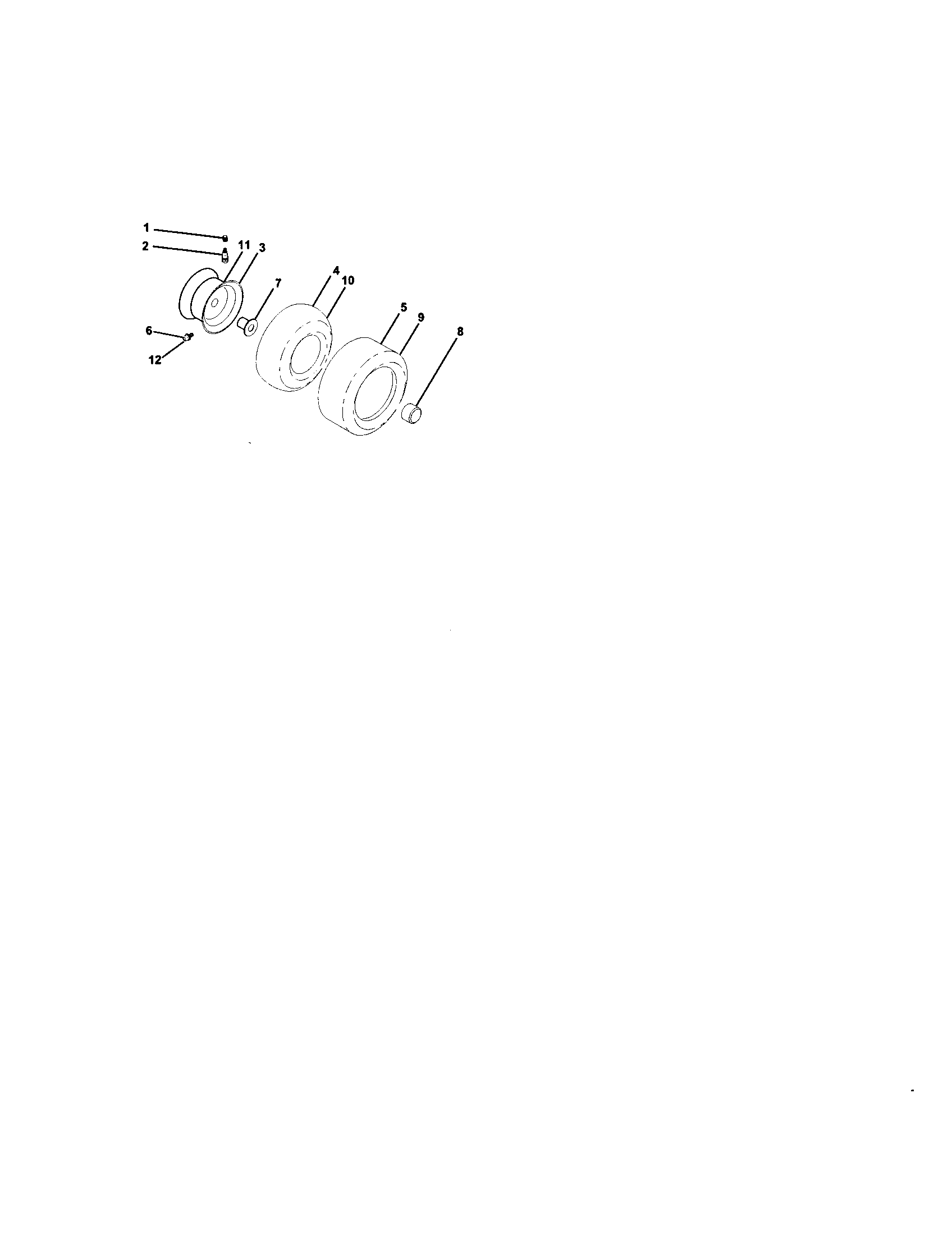

Wheels and tires diagram
Lawn tractor axle cap
Part #104757X428
Replaced by #532104757
?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
#117

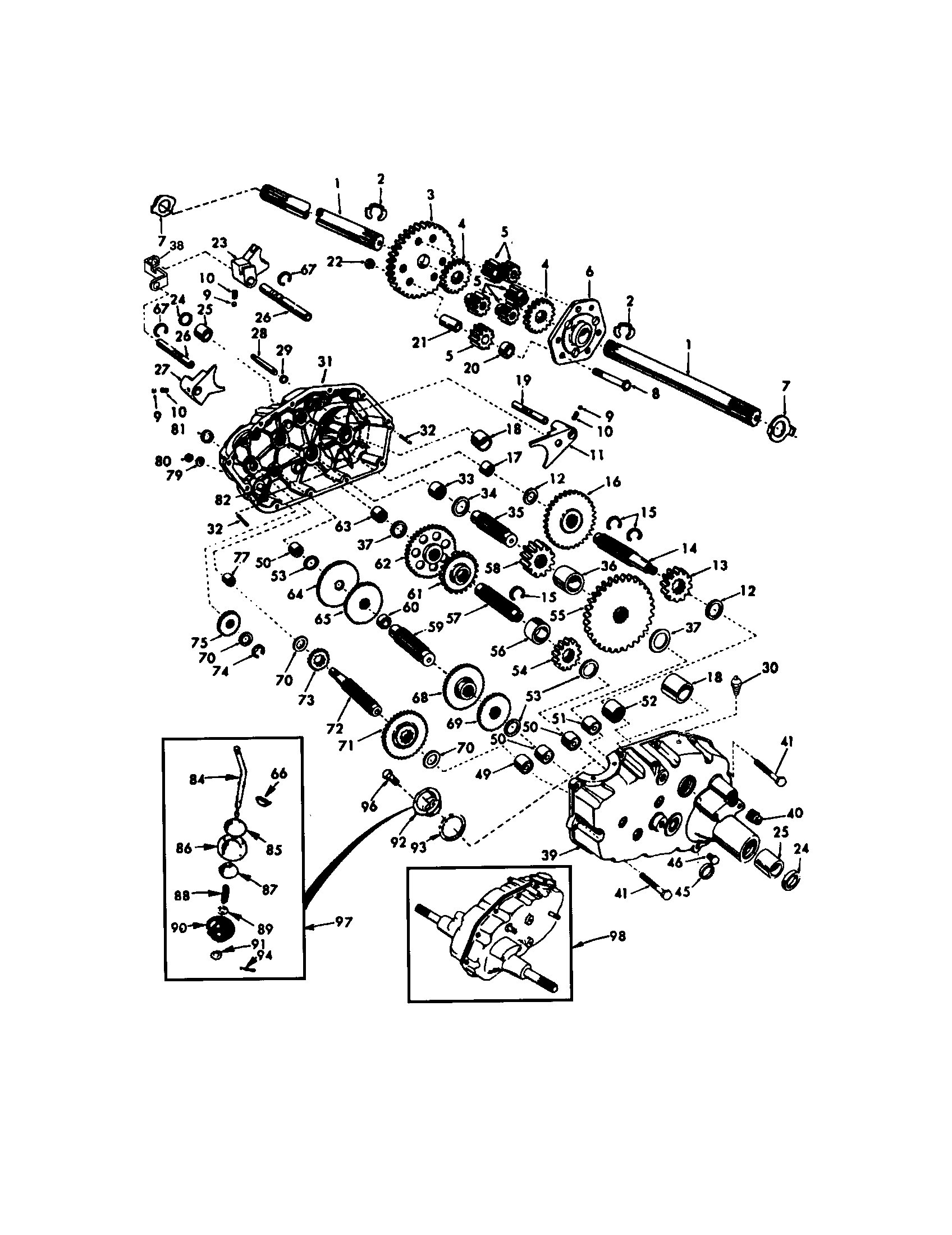

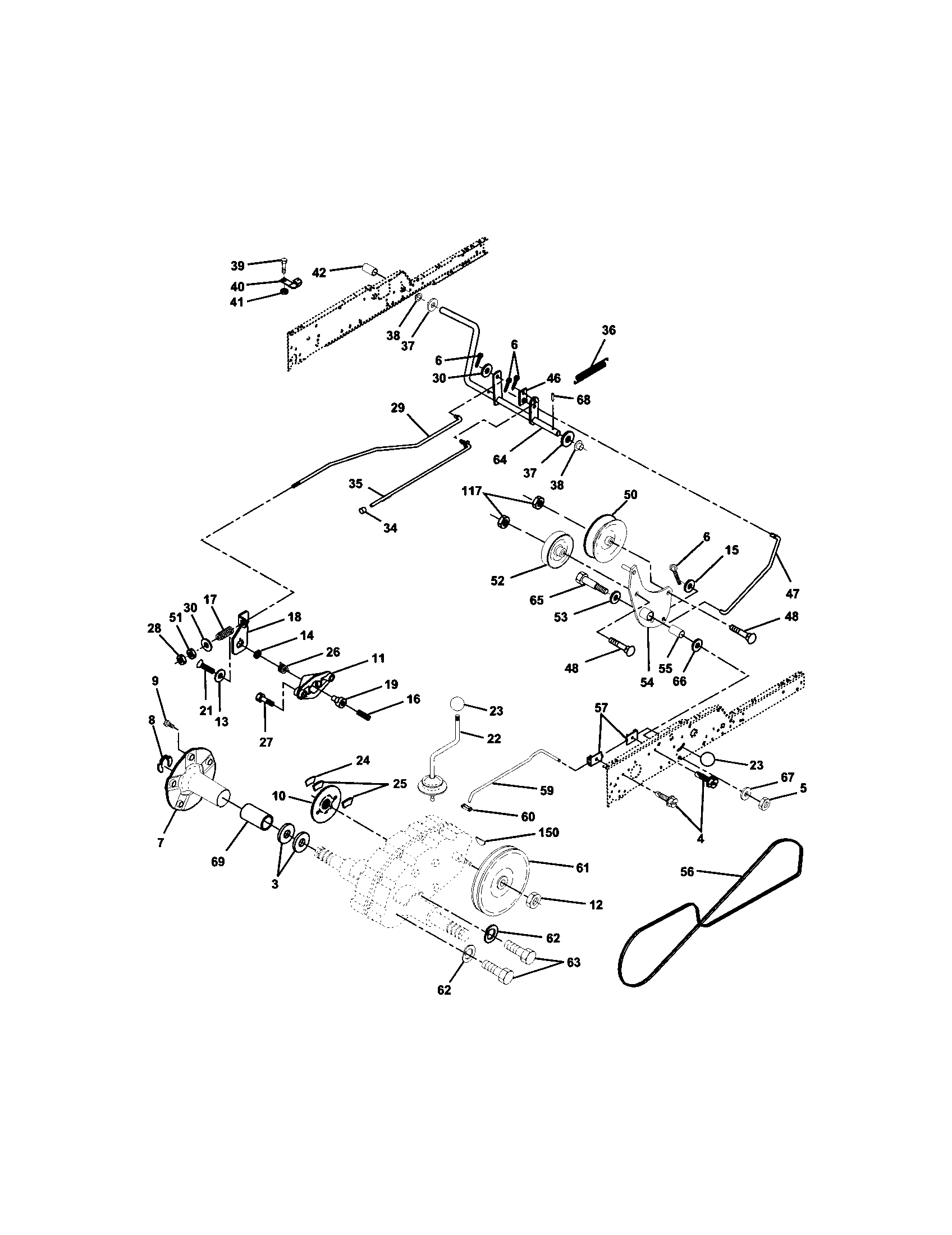

Ground drive diagram
Lock nut
Part #73900600
Replaced by #532409149
?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
This item is not returnable
$6.11 |
14% OFF Phone Price : $7.11
In Stock
#70

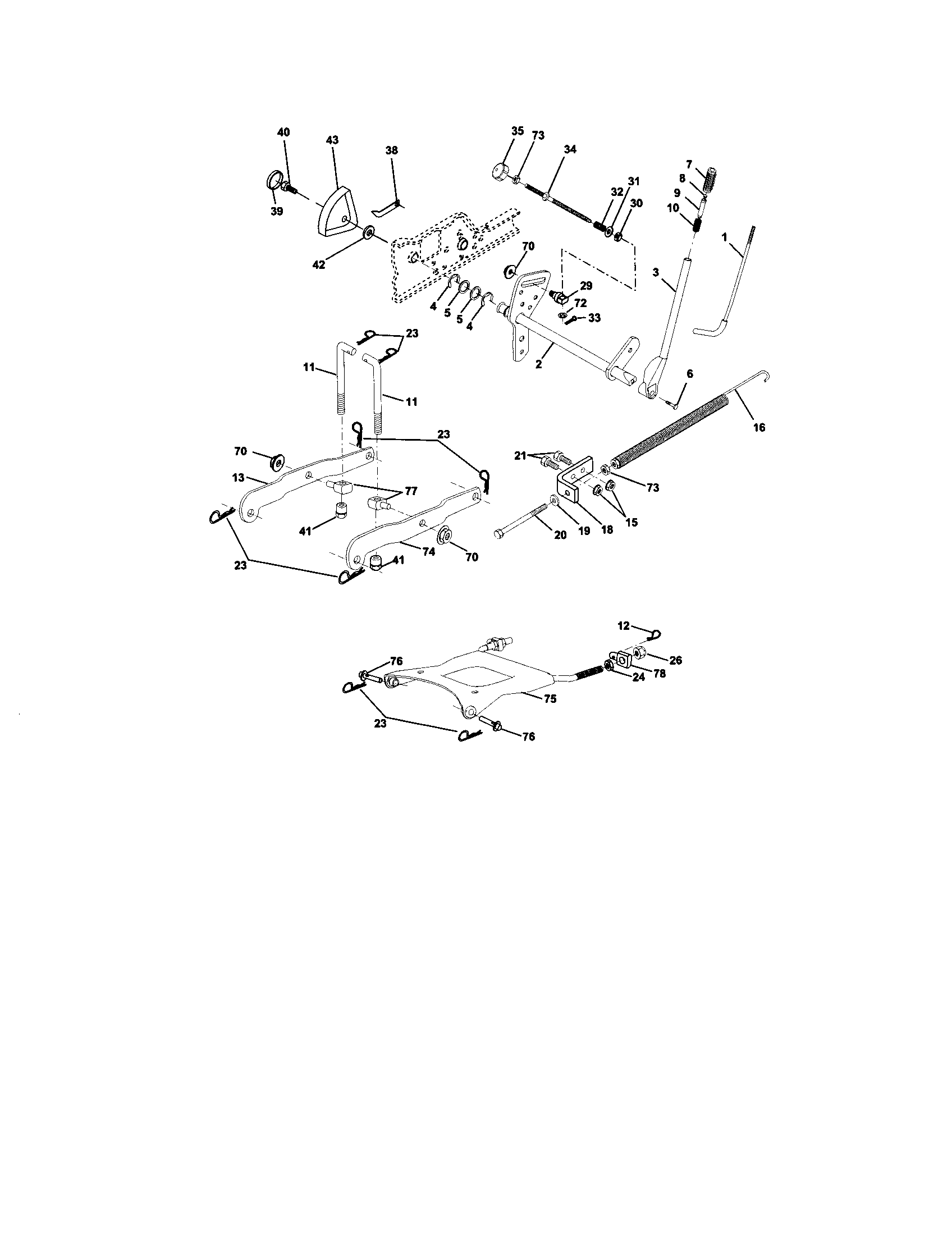

Lift assembly diagram
Hex flange lock nut
Part #145212
Replaced by #532409149
?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
This item is not returnable
$6.11 |
14% OFF Phone Price : $7.11
In Stock
Washer head thread rolling screw
Part #157722
Replaced by #584953901
?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
#106

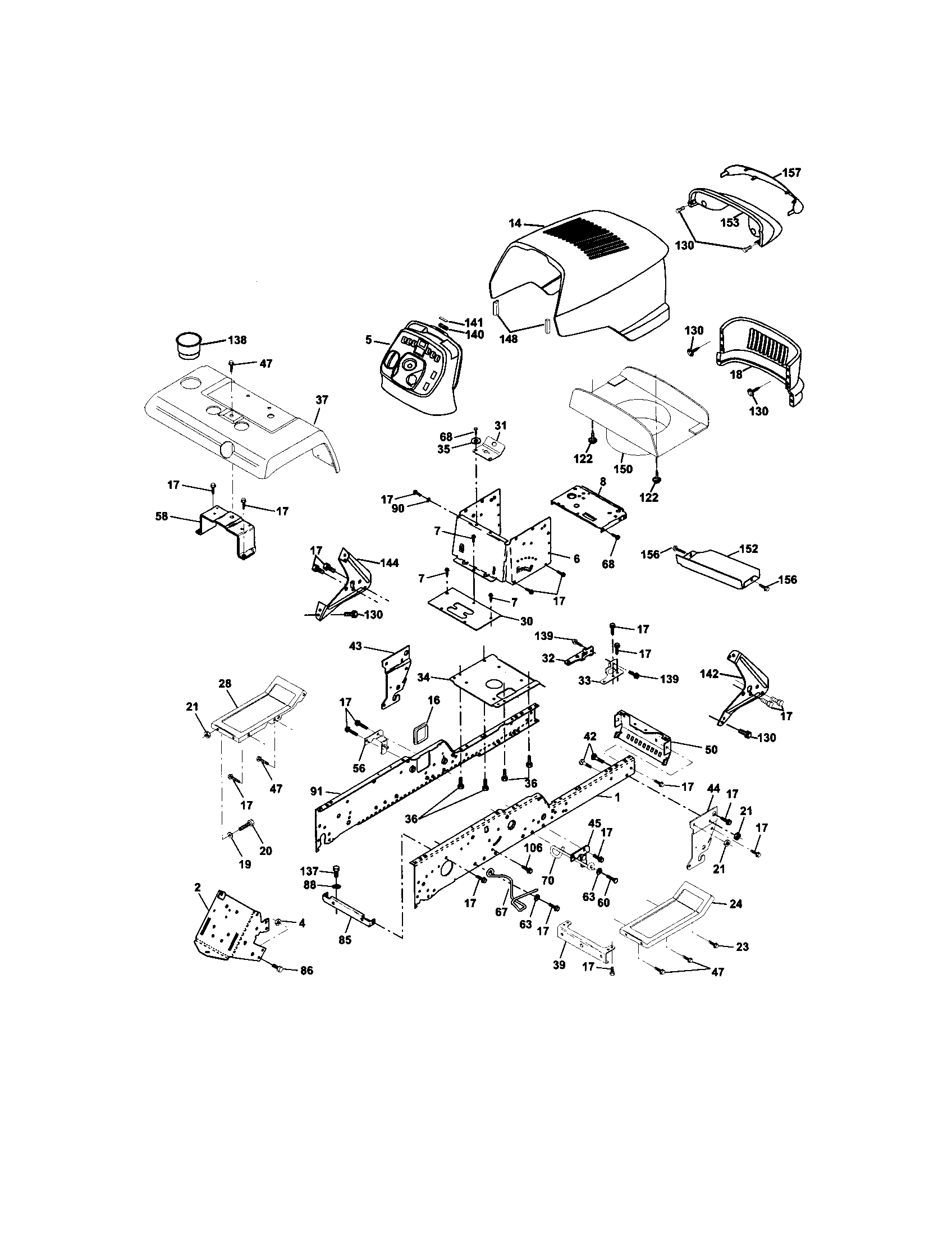

Chassis and enclosures diagram
Screw
Part #138776
Replaced by #584953901
?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
#43

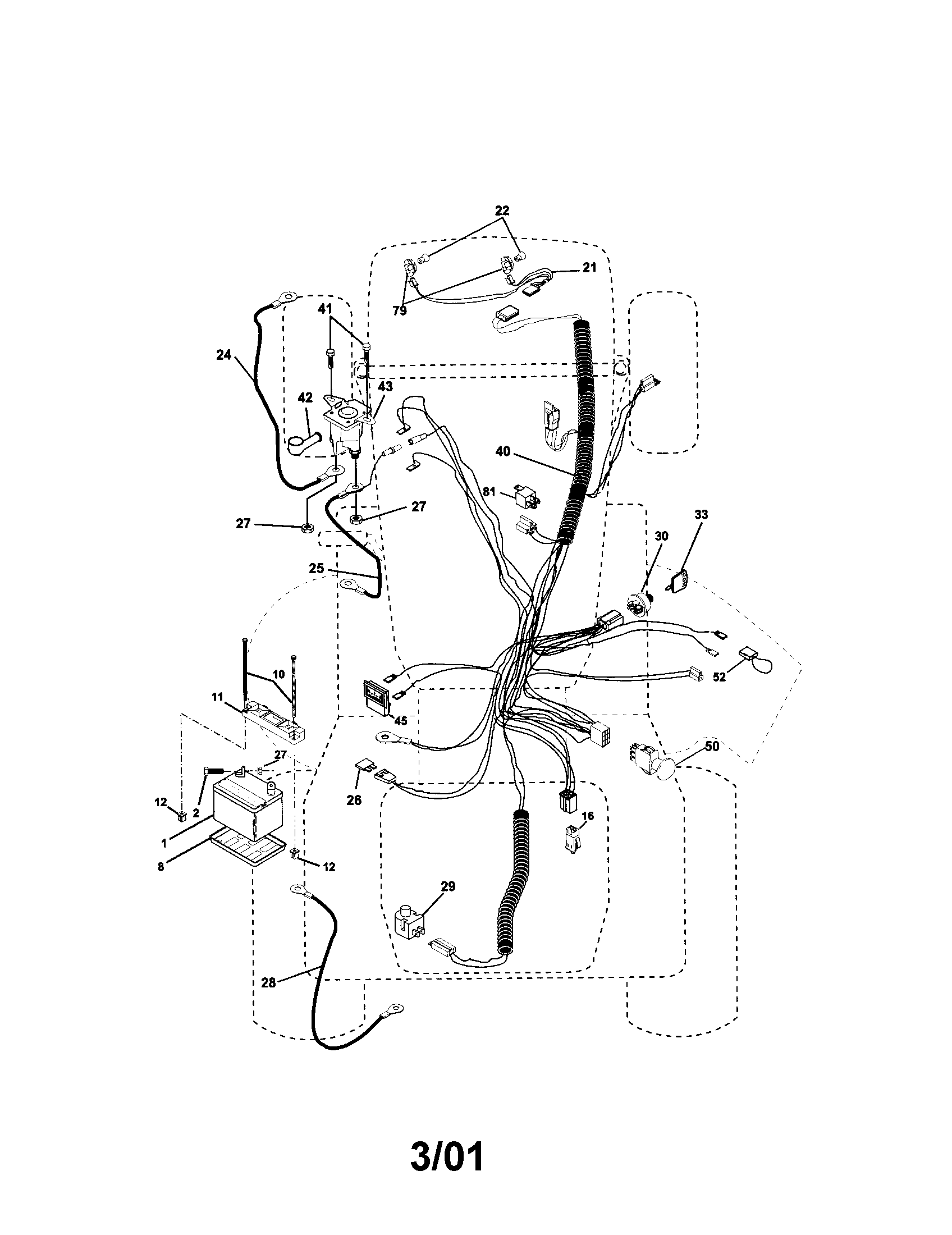

Electrical diagram
Solenoid
Part #175141
Replaced by #532146154
?
Manufacturer substitution
This part replaces 175141. Substitute parts can look different from the original.
$29.99 |
17% OFF Phone Price : $35.99
In Stock
#33
Electrical diagram
Molded ignition key
Part #140403
Replaced by #532140403
?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
$8.64 |
10% OFF Phone Price : $9.64
In Stock
#116

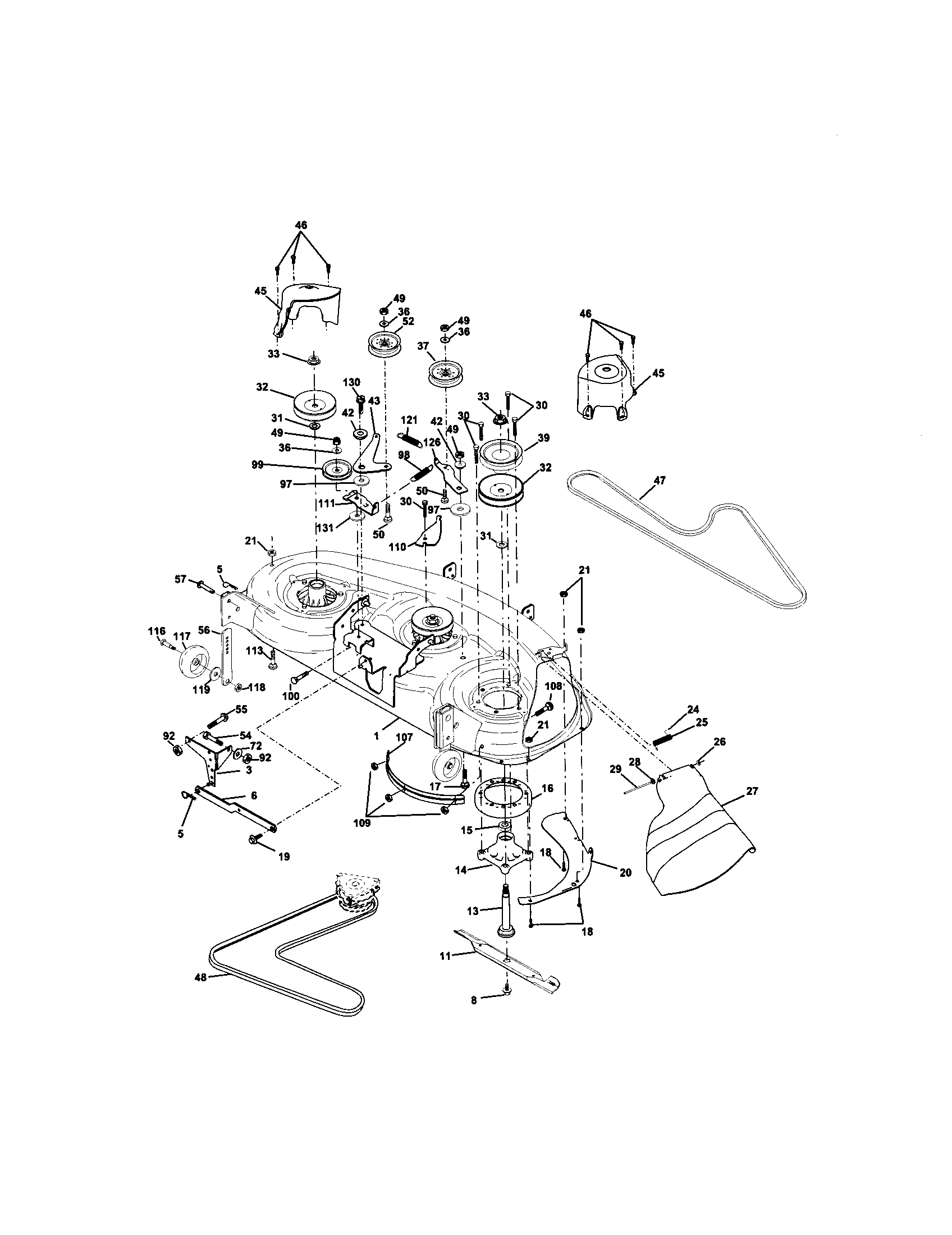

Mower deck diagram
Shoulder bolt
Part #137644
Replaced by #596434404
?
Manufacturer substitution
This part replaces 137644. Substitute parts can look different from the original.
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#29
Mower deck diagram
Lawn tractor deflector shield hinge rod
Part #131491
Replaced by #595297001
?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
$9.73 |
9% OFF Phone Price : $10.73
In Stock
#33
Mower deck diagram
Flanged toplock nut
Part #178342
Replaced by #596134801
?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
