Model # 11026132410 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 11026132410 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

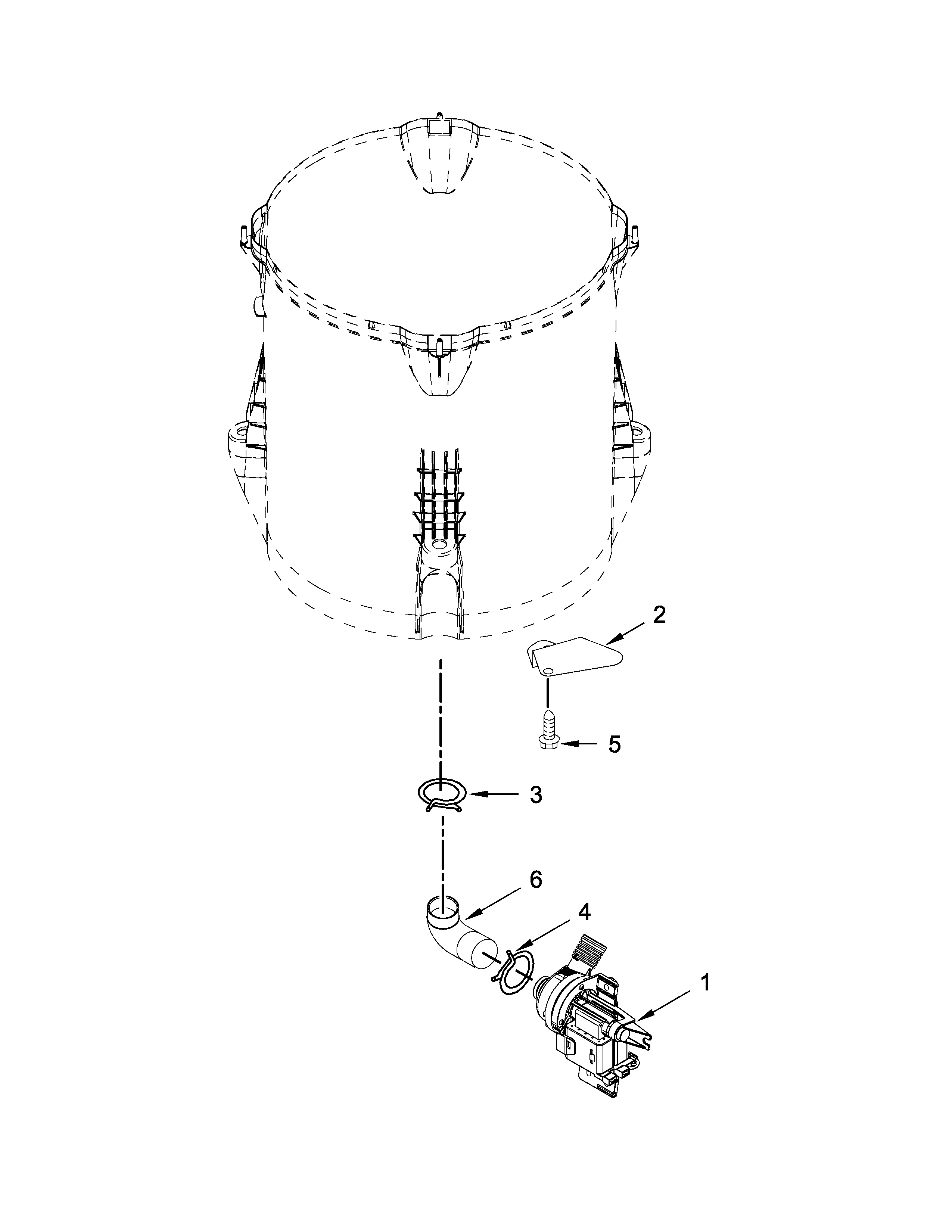

SELECT DIAGRAM
Browse Parts for
11026132410 Washer
#15

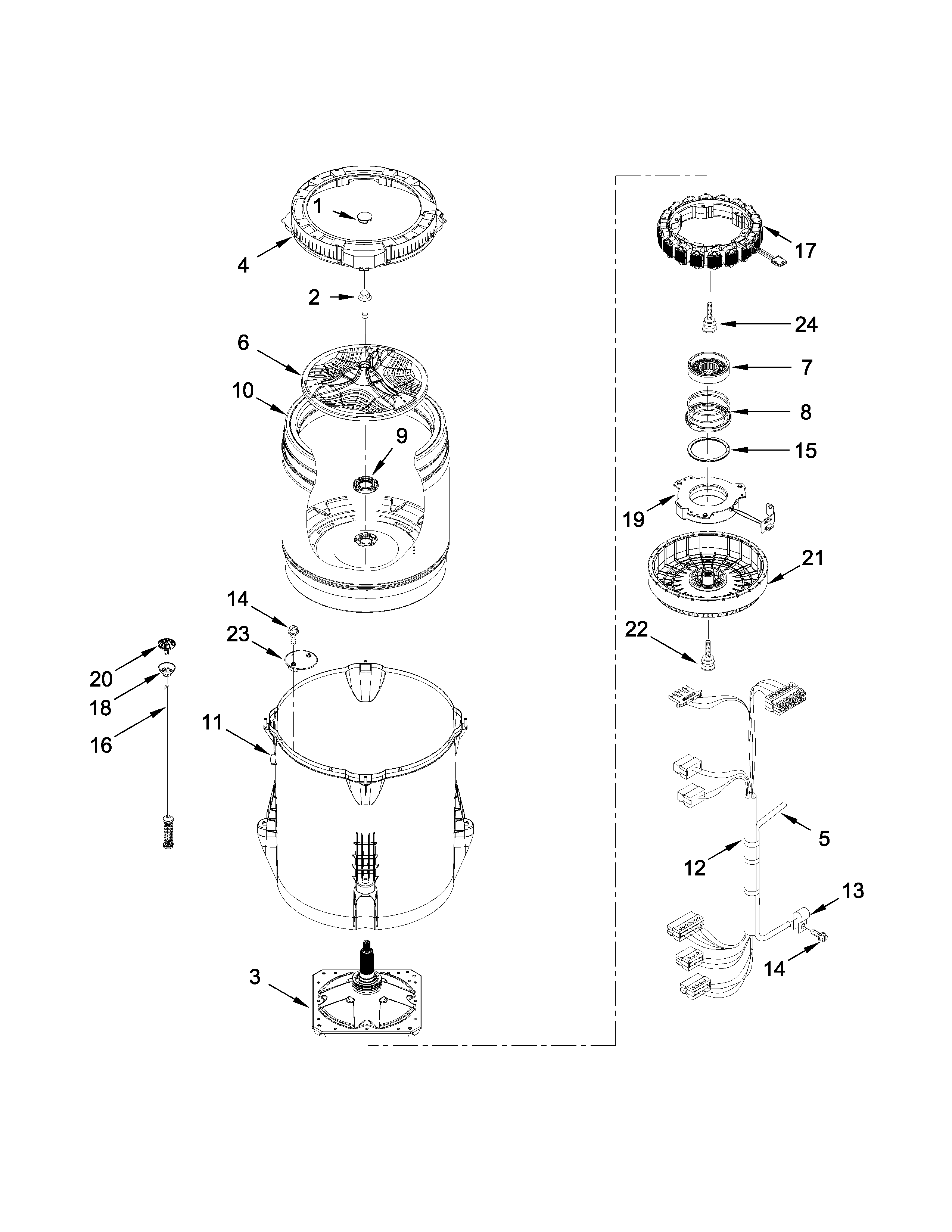

Motor, basket and tub parts diagram
30mm spiral
Part #W10275082
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
$33.94 |
15% OFF Phone Price : $39.94
In Stock
#8
Motor, basket and tub parts diagram
Spring support
Part #W10006494
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
$33.94 |
15% OFF Phone Price : $39.94
In Stock
#7
Motor, basket and tub parts diagram
Slider
Part #W10447975
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10447975. Substitute parts can look different from the original.
$33.94 |
15% OFF Phone Price : $39.94
In Stock
#6
Motor, basket and tub parts diagram
Impeller
Part #W10609478
Replaced by #W10752285
?
Manufacturer substitution
This part replaces W10609478. Substitute parts can look different from the original.
$72.72 |
8% OFF Phone Price : $78.72
In Stock
#19
Motor, basket and tub parts diagram
Clutch coil
Part #W10447973
Replaced by #W10754448
?
Manufacturer substitution
This part replaces W10447973. Substitute parts can look different from the original.
$66.39 |
8% OFF Phone Price : $72.39
In Stock
#3
Motor, basket and tub parts diagram
Drive assembly
Part #W10447976
Replaced by #W11393685
?
Manufacturer substitution
This part replaces W10447976. Substitute parts can look different from the original.
$163.77 |
7% OFF Phone Price : $175.77
In Stock
#14

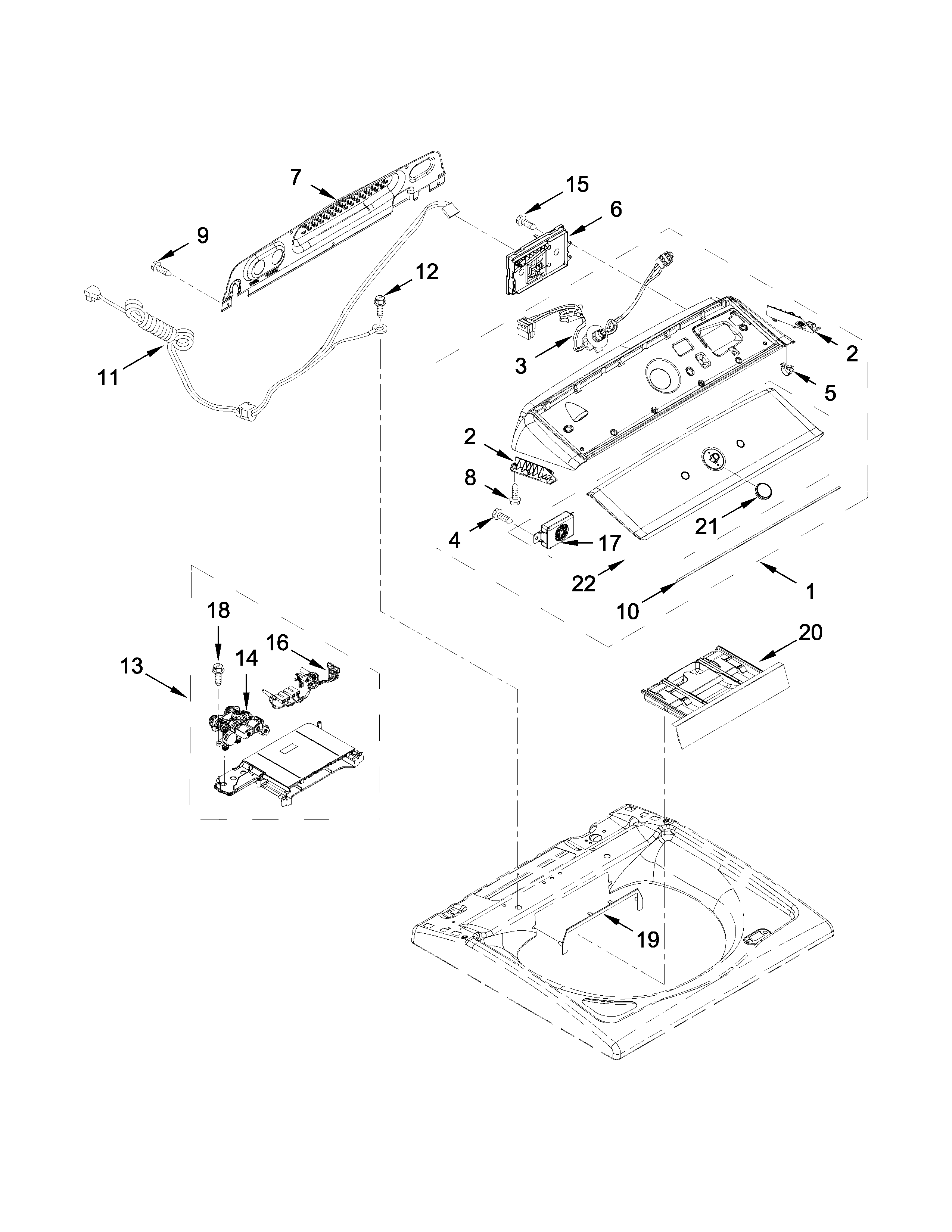

Top and cabinet parts diagram
Washer lid lock assembly
Part #W10787878
Replaced by #W10810403
?
Manufacturer substitution
This part replaces W10787878. Substitute parts can look different from the original.
$75.88 |
7% OFF Phone Price : $81.88
In Stock
#16
Motor, basket and tub parts diagram
Damper assembly
Part #W10594082
Replaced by #W11130359
?
Manufacturer substitution
This part replaces W10594082. Substitute parts can look different from the original.
$68.77 |
8% OFF Phone Price : $74.77
In Stock
#14
Console and dispenser parts diagram
Washer water valve
Part #W10758829
Replaced by #W11220230
?
Manufacturer substitution
This part replaces W10758829. Substitute parts can look different from the original.
$76.49 |
7% OFF Phone Price : $82.49
In Stock
#2
Motor, basket and tub parts diagram
Washer washplate screw
Part #W10625252
Replaced by #W10752187
?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
This item is not returnable
$3.23 |
24% OFF Phone Price : $4.23
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $25.76 |19% OFF Phone Price : $31.76
- $8.29 |11% OFF Phone Price : $9.29
- $29.63 |17% OFF Phone Price : $35.63
- $66.39 |8% OFF Phone Price : $72.39
- $11.56 |15% OFF Phone Price : $13.56
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
Effective articles & videos to help repair your washers
Use the advice and tips in these articles and videos to get the most out of your washer.
We've put together some tips on keeping your washing working well.…
Find tips for using your washing machine efficiently to save energy and help reduce utility bills.…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
