Model # JUW248LBCX01 Official Jenn-Air wine cellar

Here are the diagrams and repair parts for Official Jenn-Air JUW248LBCX01 wine cellar, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJUW248LBCX01 Wine Cellar

  • Condenser Motor 4344781
    Condenser motor

    Part #4344781

    Replaced by #WPW10299090

    ?
    Manufacturer substitution
    This part replaces 4344781. Substitute parts can look different from the original.
    $129.28 |
    8% OFF Phone Price : $141.28
    Back Order
  • Compressor 4344775
    #28

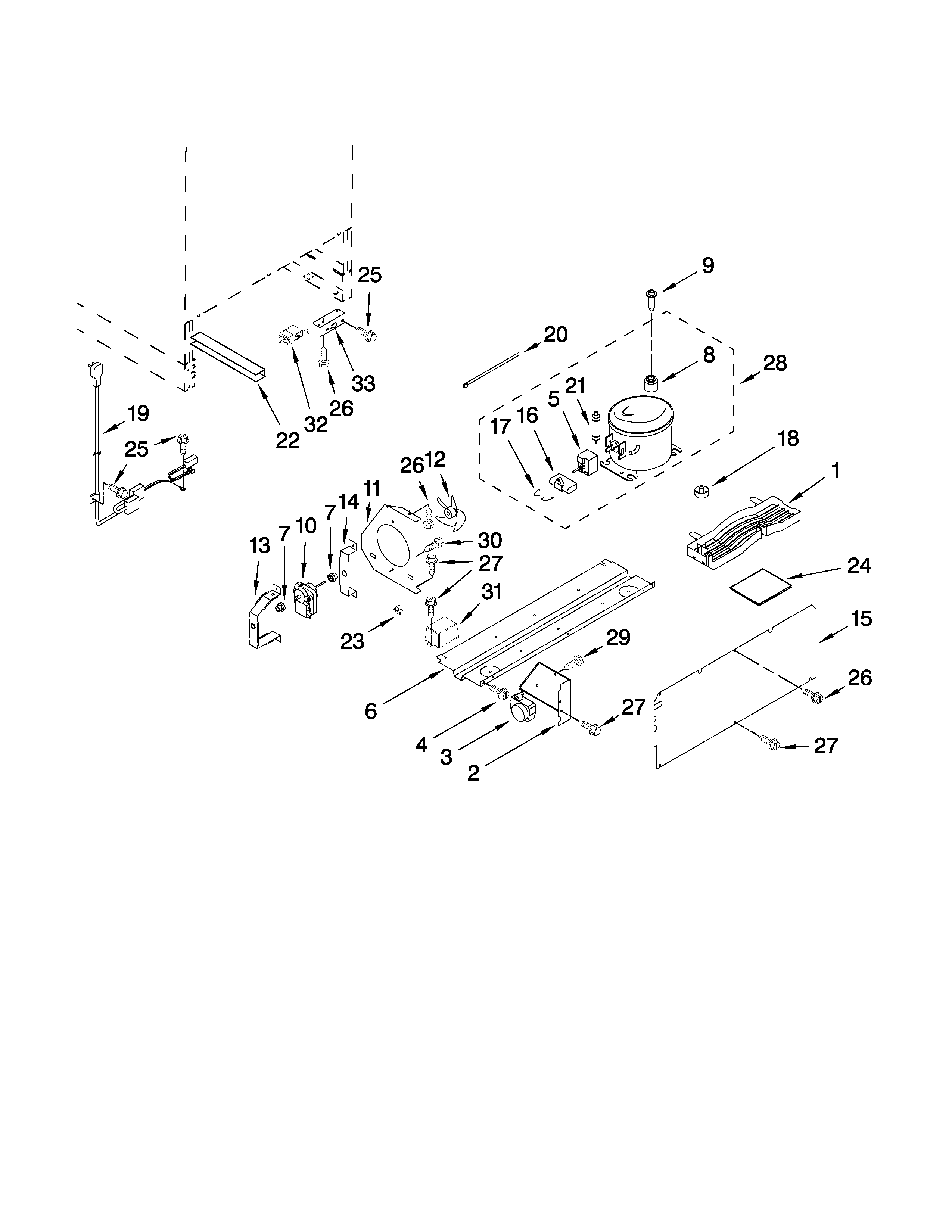

    Unit parts diagram

    Compressor

    Part #4344775

    Replaced by #8201787

    ?
    Manufacturer substitution
    This part replaces 4344775. Substitute parts can look different from the original.
    $405.15 |
    $12.00 OFF Phone Price : $417.15
    In Stock
  • Defrost Timer 4344774
    #3

    Unit parts diagram

    Defrost timer

    Part #4344774

    Replaced by #W11609704

    ?
    Manufacturer substitution
    This part replaces 4344774. Substitute parts can look different from the original.
    $63.99 |
    9% OFF Phone Price : $69.99
    In Stock
  • Heater 4344746
    #5

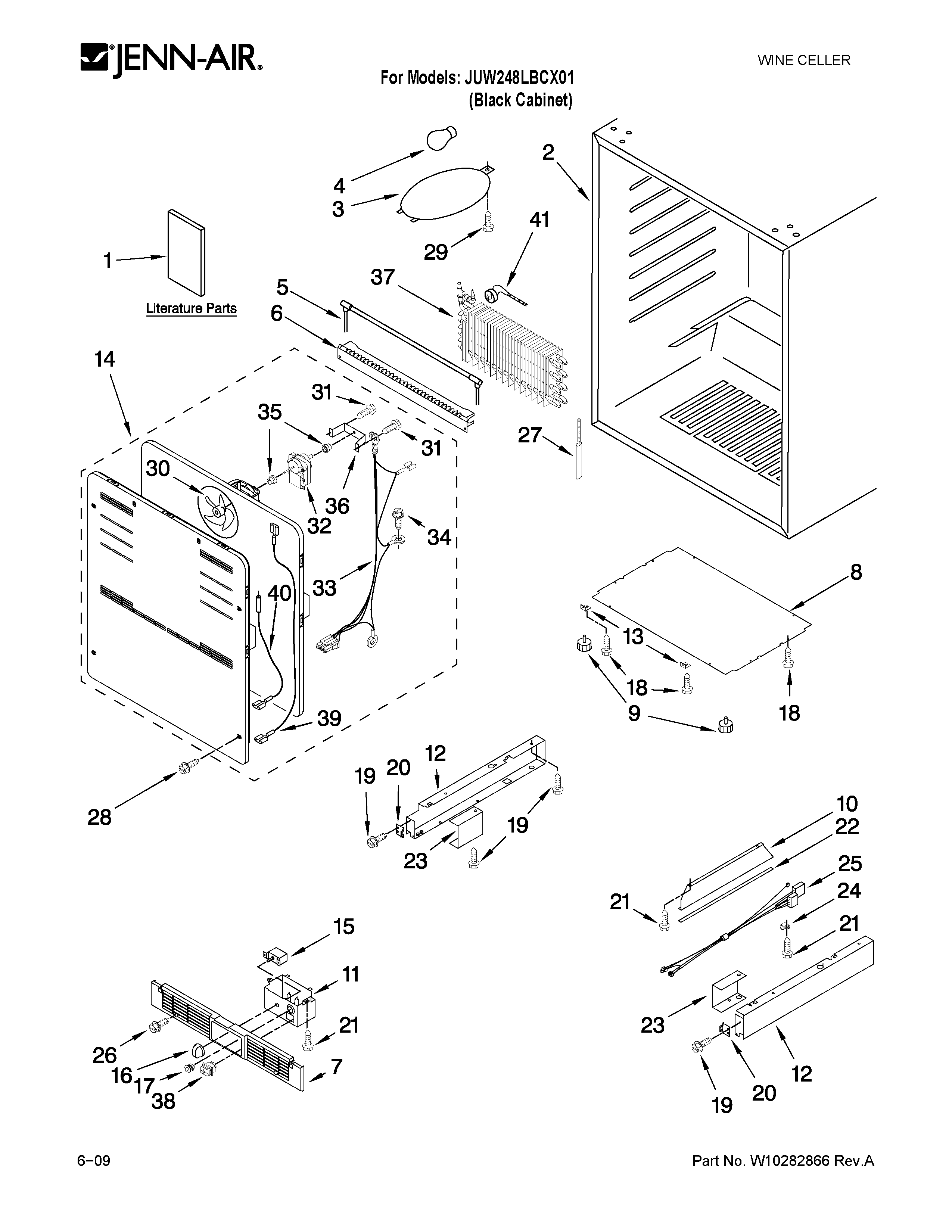

    Cabinet parts diagram

    Heater

    Part #4344746

    Replaced by #W11230119

    ?
    Manufacturer substitution
    This part replaces 4344746. Substitute parts can look different from the original.
    $65.76 |
    8% OFF Phone Price : $71.76
    In Stock
  • Wine Cooler Leveling Leg 4344763
    #9

    Cabinet parts diagram

    Wine cooler leveling leg

    Part #4344763

    Replaced by #W11106296

    ?
    Manufacturer substitution
    This part replaces 4344763. Substitute parts can look different from the original.
    This item is not returnable
    $11.28 |
    15% OFF Phone Price : $13.28
    In Stock
  • Screw 4344832
    Screw

    Part #4344832

    Replaced by #W11380570

    ?
    Manufacturer substitution
    This part replaces 4344832. Substitute parts can look different from the original.
    This item is not returnable
    $18.19 |
    10% OFF Phone Price : $20.19
    In Stock
  • Bracket 4344784
    #13

    Unit parts diagram

    Bracket

    Part #4344784

    $109.36
    In Stock
  • Sensor W10238026
    #22

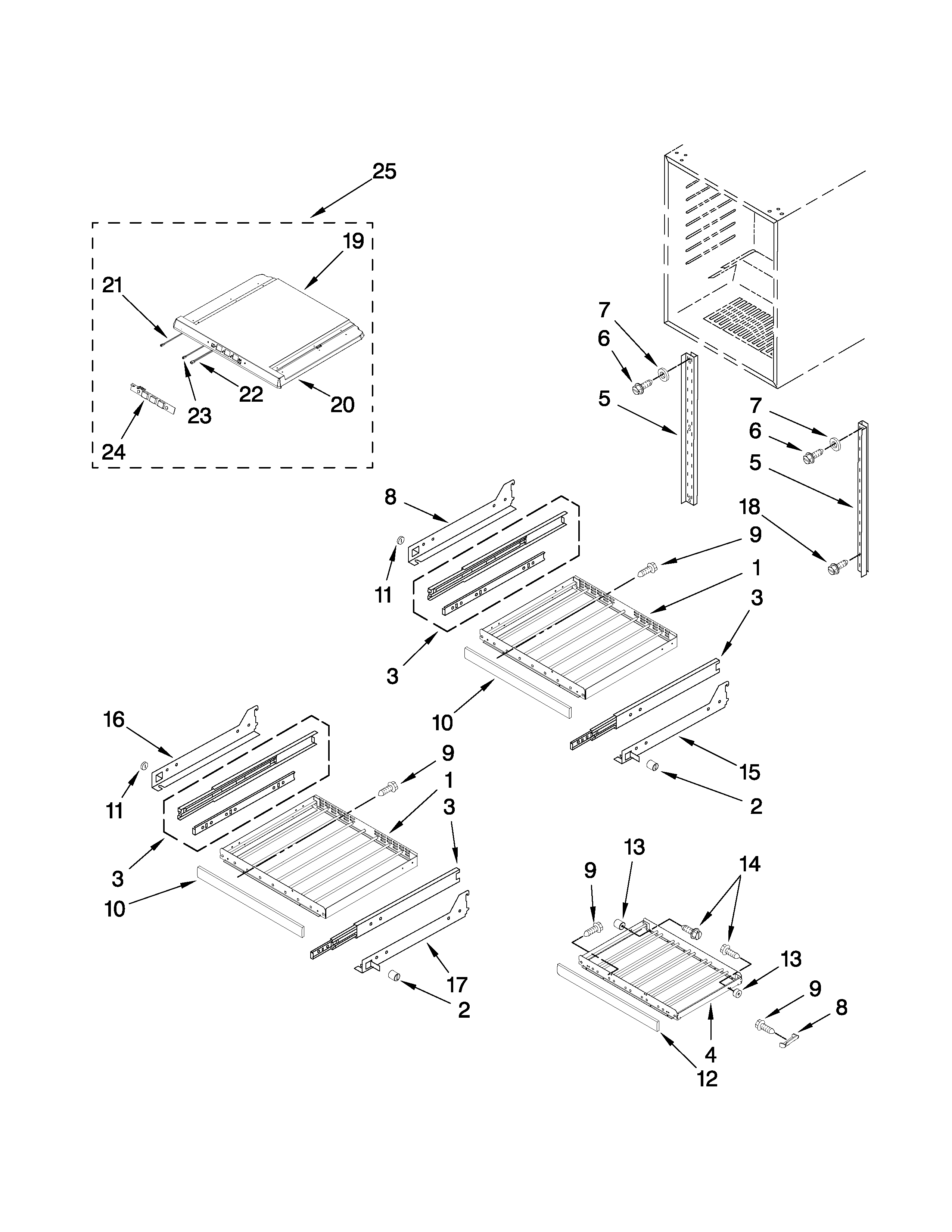

    Shelf parts diagram

    Sensor

    Part #W10238026

    $62.46 |
    9% OFF Phone Price : $68.46
    In Stock
  • Bracket 4344757
    #8

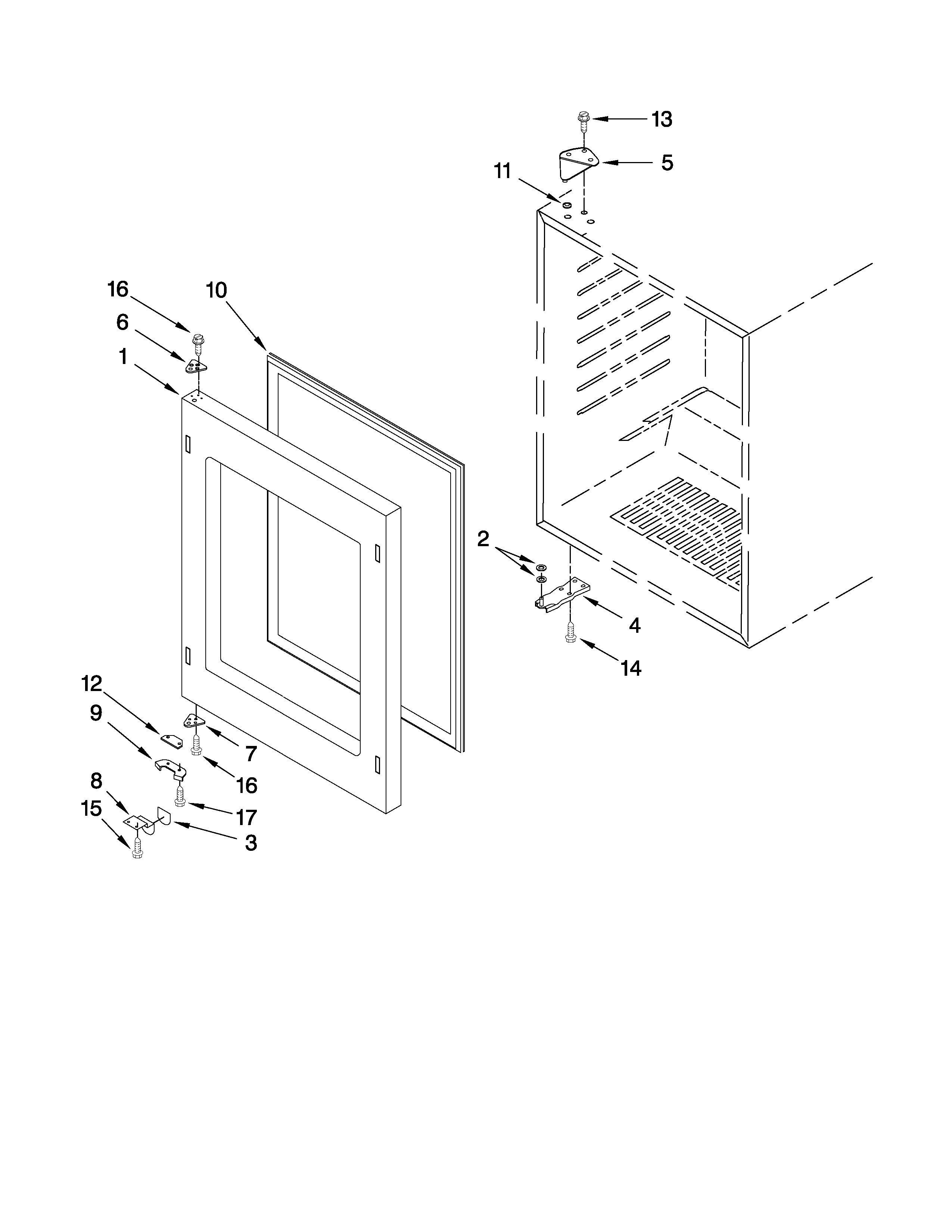

    Door parts diagram

    Bracket

    Part #4344757

    $74.18
    In Stock
  • Whirlpool Defrost Bi-metal W10244414
    #41

    Cabinet parts diagram

    Whirlpool defrost bi-metal

    Part #W10244414

    $71.29 |
    8% OFF Phone Price : $77.29
    In Stock
