Model # KCDS250X1 Official KitchenAid garbage disposal
Here are the diagrams and repair parts for Official KitchenAid KCDS250X1 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts forKCDS250X1 Garbage Disposal
- #32

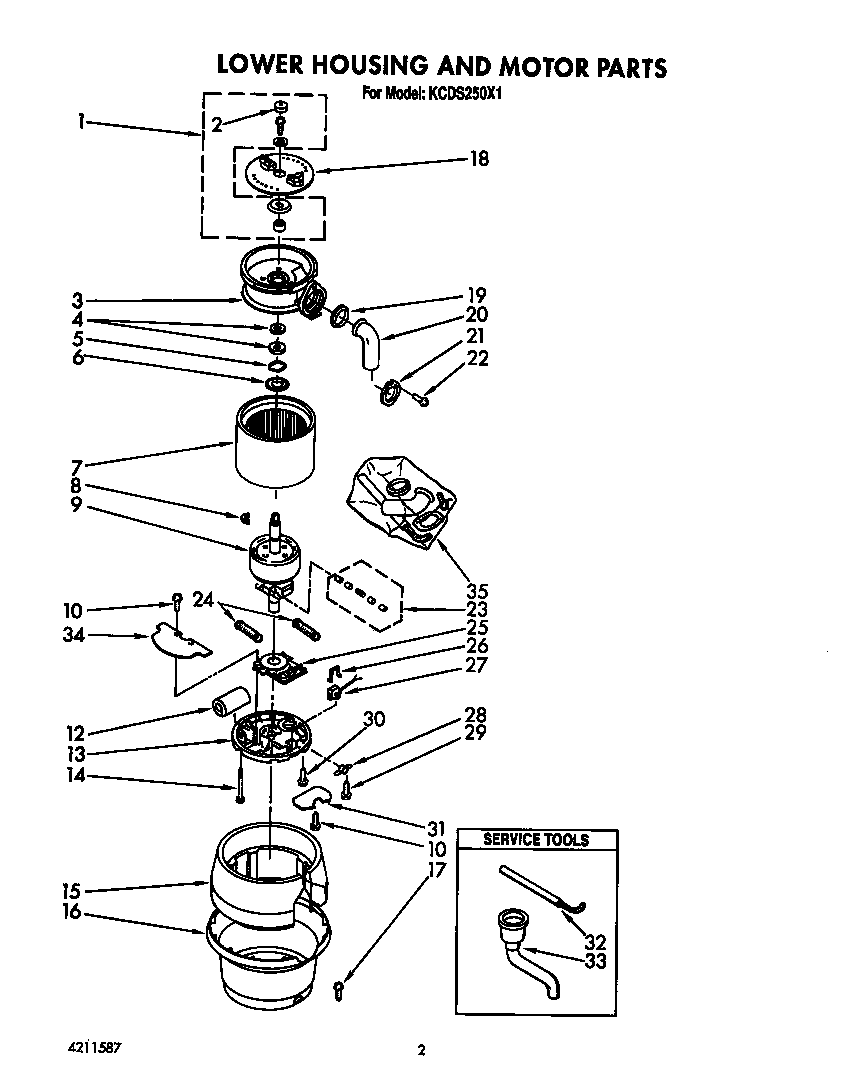

Lower housing and motor diagram
WrenchPart #4211435
Replaced by #WP8174310
?Manufacturer substitutionThis part replaces 4211435. Substitute parts can look different from the original.This item is not returnable$16.71 |11% OFF Phone Price : $18.71In Stock - #1
Lower housing and motor diagram
Whirlpool sleevePart #4211578
$97.68In Stock - #33
Lower housing and motor diagram
Whirlpool adapterPart #4211396
$195.95In Stock - #11

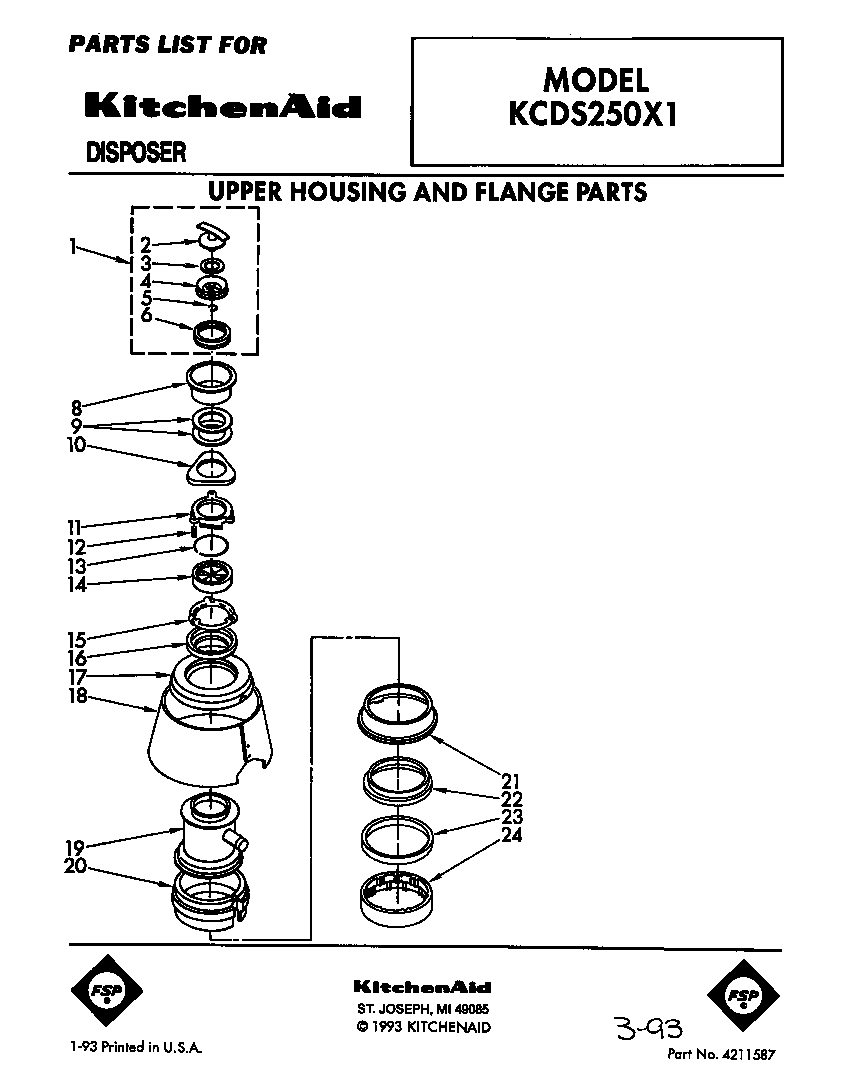

Upper housing and flange diagram
Whirlpool garbage disposal mounting flangePart #4211304
$68.82In Stock - #10
Upper housing and flange diagram
Whirlpool flangePart #4211303
$63.56In Stock - #13
Upper housing and flange diagram
Whirlpool ringPart #4211306
$10.46In Stock - #3
Upper housing and flange diagram
GasketPart #4211355
$24.95In Stock - #12
Upper housing and flange diagram
Whirlpool garbage disposal mounting flange screwPart #4211305
$16.21 |11% OFF Phone Price : $18.21In Stock - #9
Upper housing and flange diagram
SealPart #4211302
Replaced by #WP4211302
?Manufacturer substitutionThis part replaces 4211302. Substitute parts can look different from the original.This item is not returnable$4.02 |20% OFF Phone Price : $5.02In Stock - #20
Lower housing and motor diagram
TailpipePart #4211370
Replaced by #4211317
?Manufacturer substitutionThis part replaces 4211370. Substitute parts can look different from the original.$60.49In Stock
