Model # 536886150 Official Craftsman snow thrower
Here are the diagrams and repair parts for Official Craftsman 536886150 snow thrower, as well as links to manuals and error code tables, if available.
Owner’s manual
View engineBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for536886150 Snowblowers
- #57

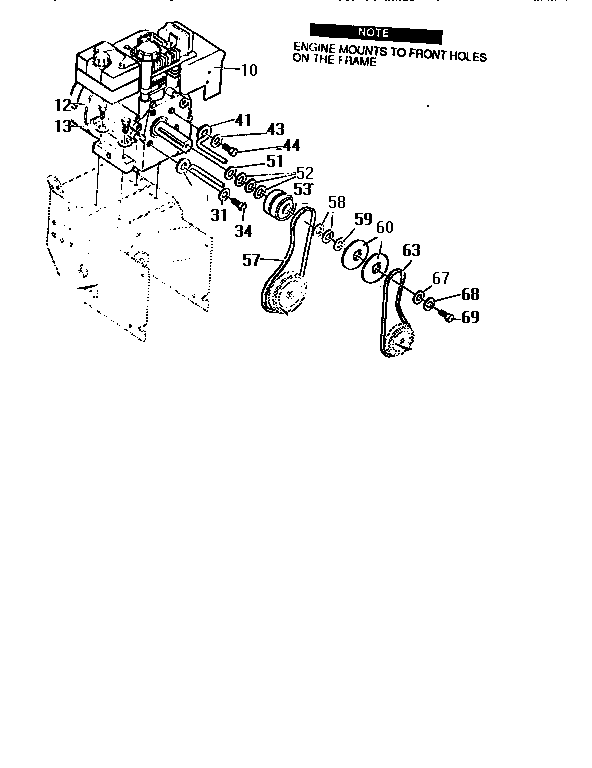

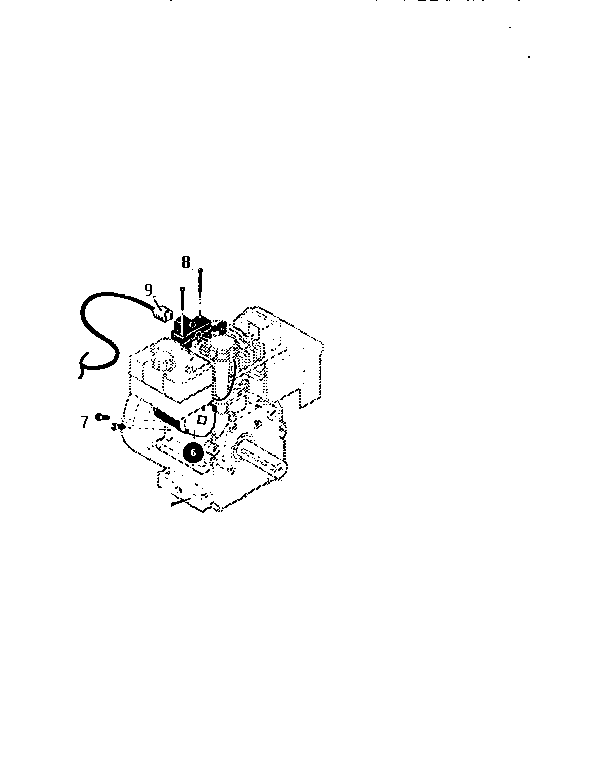

Engine assembly diagram
Snowblower drive beltPart #579932
Replaced by #1733324SM
?Manufacturer substitutionThis part replaces 579932. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$26.49 |18% OFF Phone Price : $32.49In Stock - #63

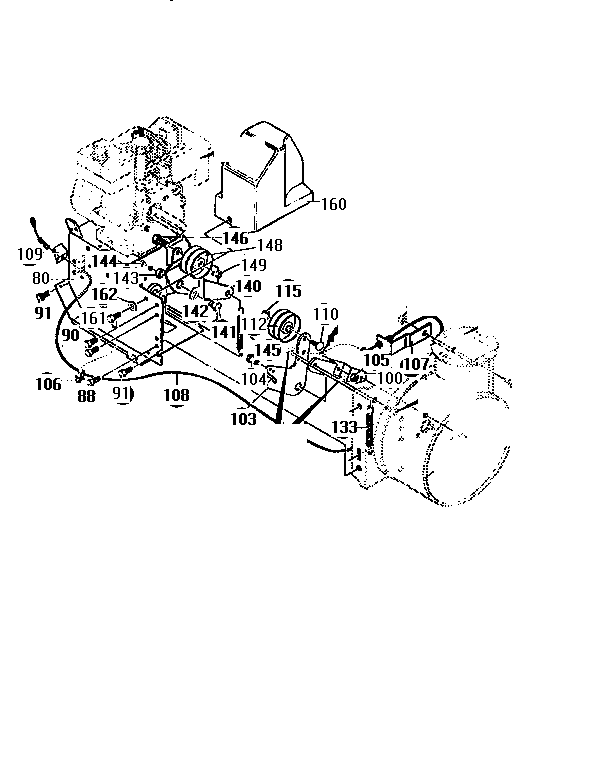

Engine assembly diagram
Auger beltPart #581264
Replaced by #37X120MA
?Manufacturer substitutionThis part replaces 581264. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$26.67 |18% OFF Phone Price : $32.67In Stock - #246

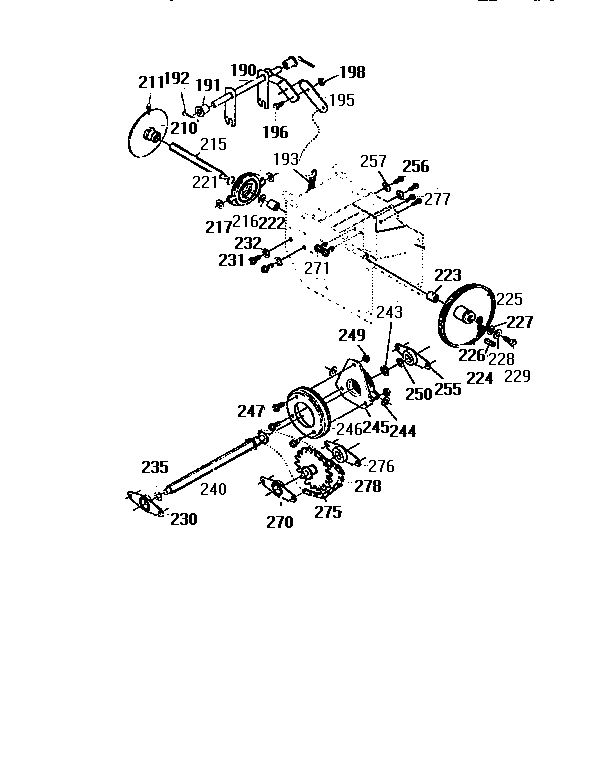

Drive components assembly diagram
Frction discPart #313883
Replaced by #1501435MA
?Manufacturer substitutionThis part replaces 313883. Substitute parts can look different from the original.$28.64 |17% OFF Phone Price : $34.64In Stock - #522

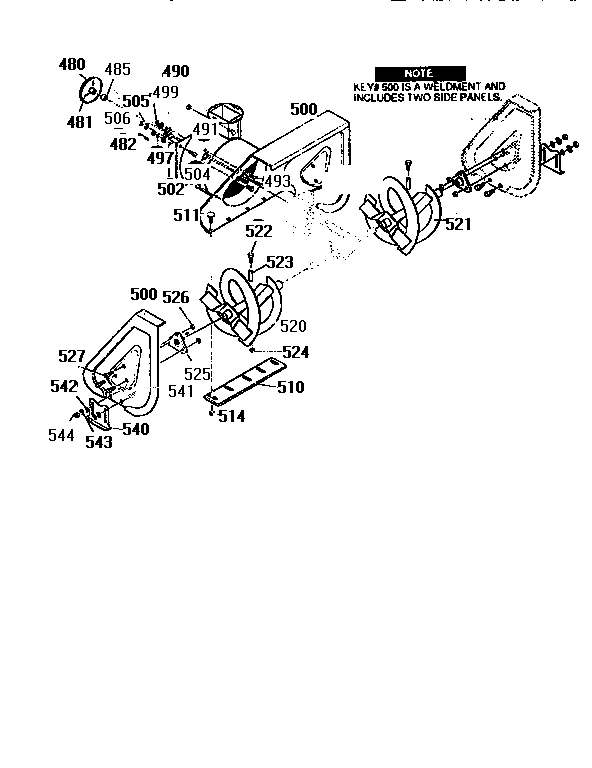

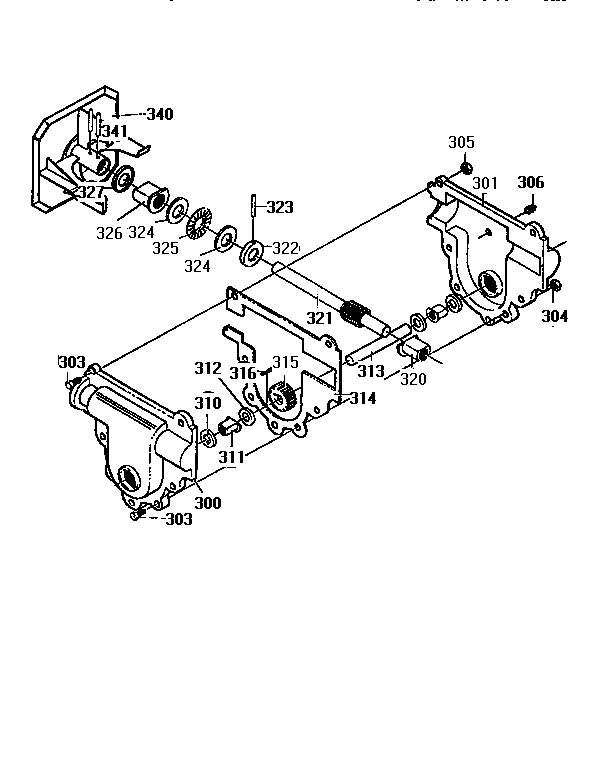

Auger housing assembly diagram
Snowblower shear boltPart #9524
Replaced by #703057
?Manufacturer substitutionThis part replaces 9524. Substitute parts can look different from the original.$8.39 |11% OFF Phone Price : $9.39In Stock - #744

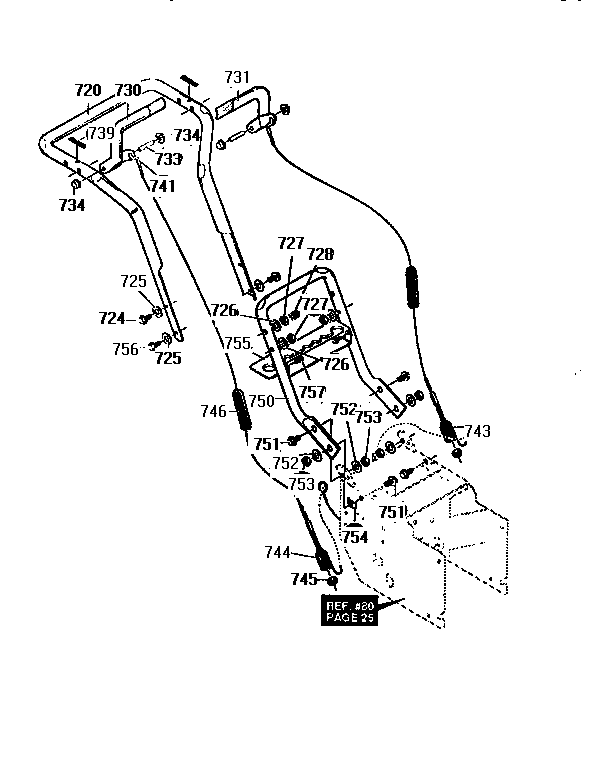

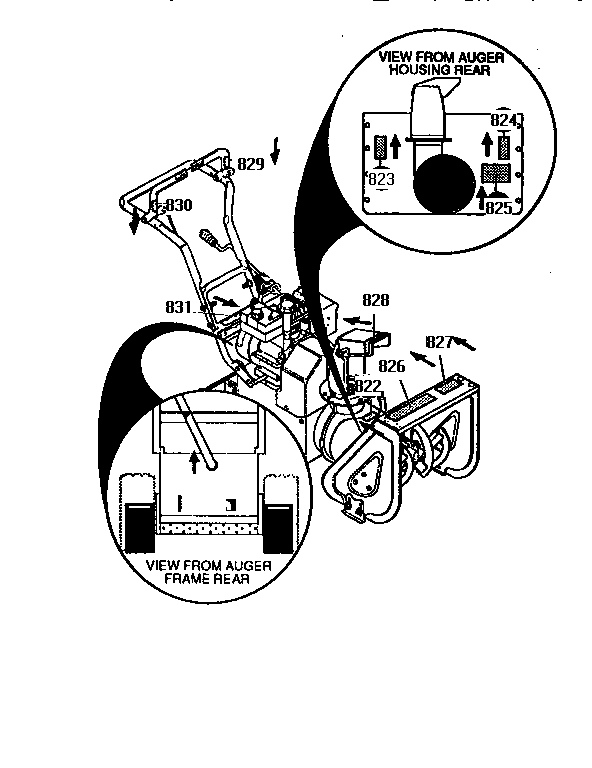

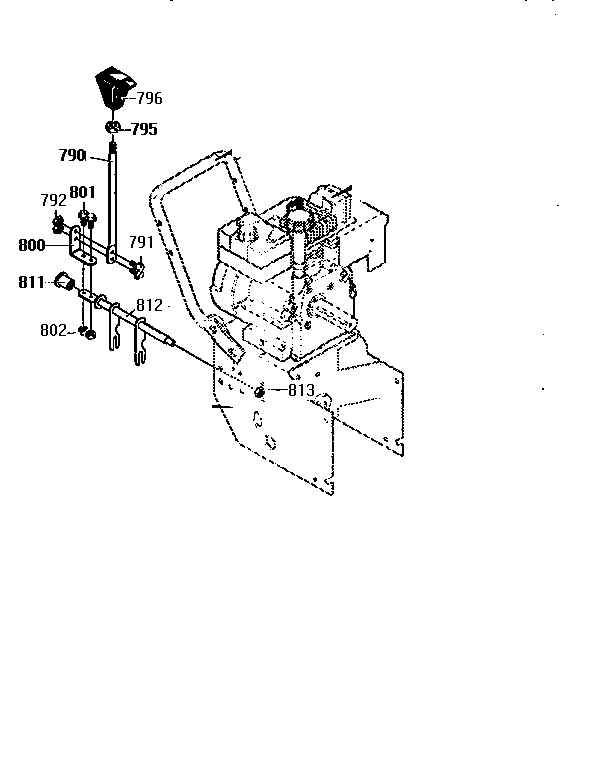

Handle assembly diagram
Auger clutch spacerPart #1673
Replaced by #1673MA
?Manufacturer substitutionThis part replaces 1673. Substitute parts can look different from the original.$12.67 |14% OFF Phone Price : $14.67In Stock - #525
Auger housing assembly diagram
Flat bearingPart #9517
Replaced by #9517MA
?Manufacturer substitutionThis part replaces 9517. Substitute parts can look different from the original.$8.76 |10% OFF Phone Price : $9.76In Stock - #597

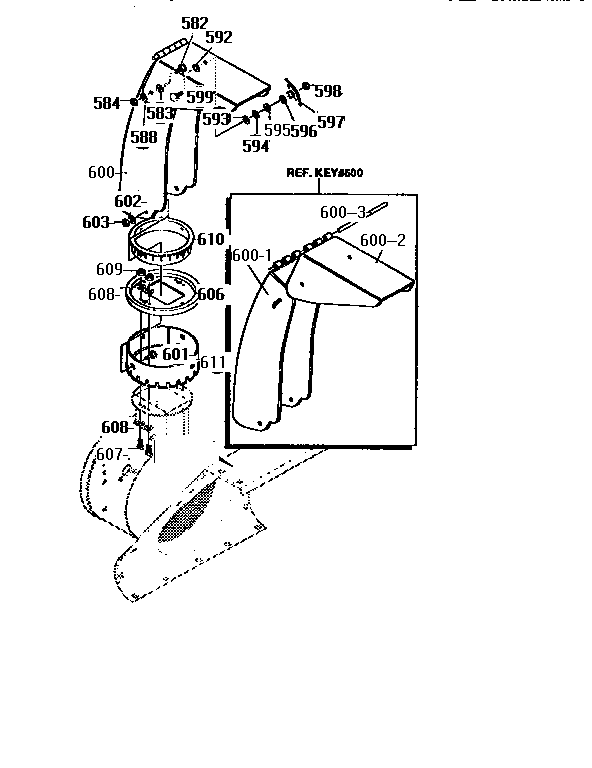

Chute assembly diagram
Knob kitPart #13527
Replaced by #1501260MA
?Manufacturer substitutionThis part replaces 13527. Substitute parts can look different from the original.$10.93 |15% OFF Phone Price : $12.93In Stock - #877

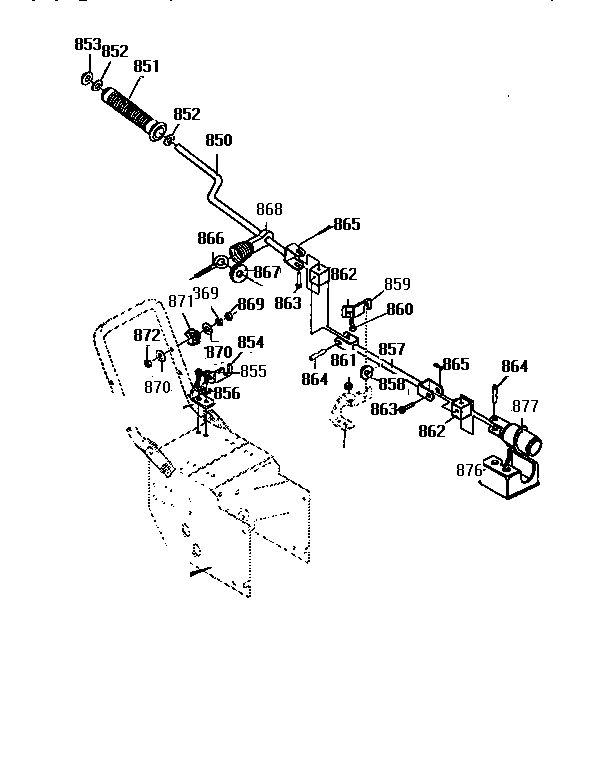

Chute control rod assembly diagram
WormPart #585196
Replaced by #585196MA
?Manufacturer substitutionThis part replaces 585196. Substitute parts can look different from the original.$20.23 |23% OFF Phone Price : $26.23In Stock - #678

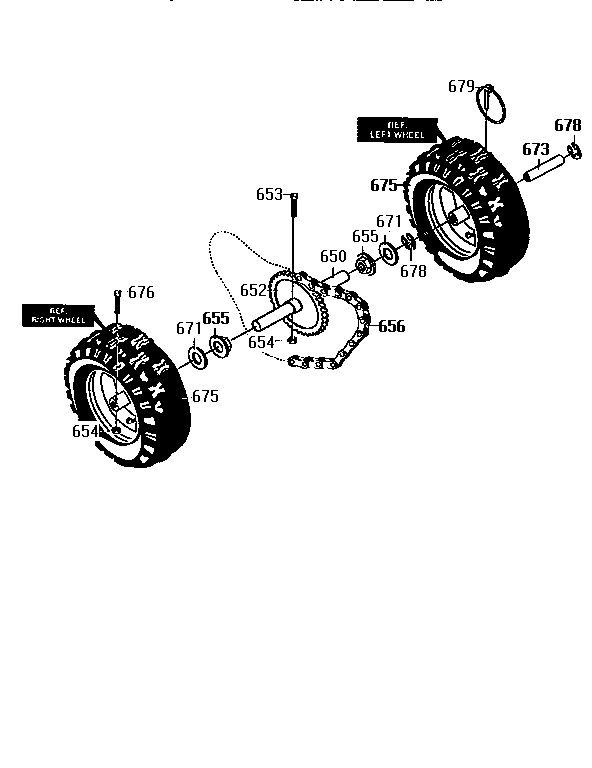

Wheel assembly diagram
Retaining ringPart #239
Replaced by #1657528SM
?Manufacturer substitutionThis part replaces 239. Substitute parts can look different from the original.This item is not returnable$6.89 |13% OFF Phone Price : $7.89In Stock - Nut
Part #71038
Replaced by #703902
?Manufacturer substitutionThis part replaces 71038. Substitute parts can look different from the original.This item is not returnable$5.71 |15% OFF Phone Price : $6.71In Stock
