Upright Freezer

Model # 25328262801 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25328262801 freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for25328262801 Freestanding Freezers

  • Filter Drier 216987500
    #4

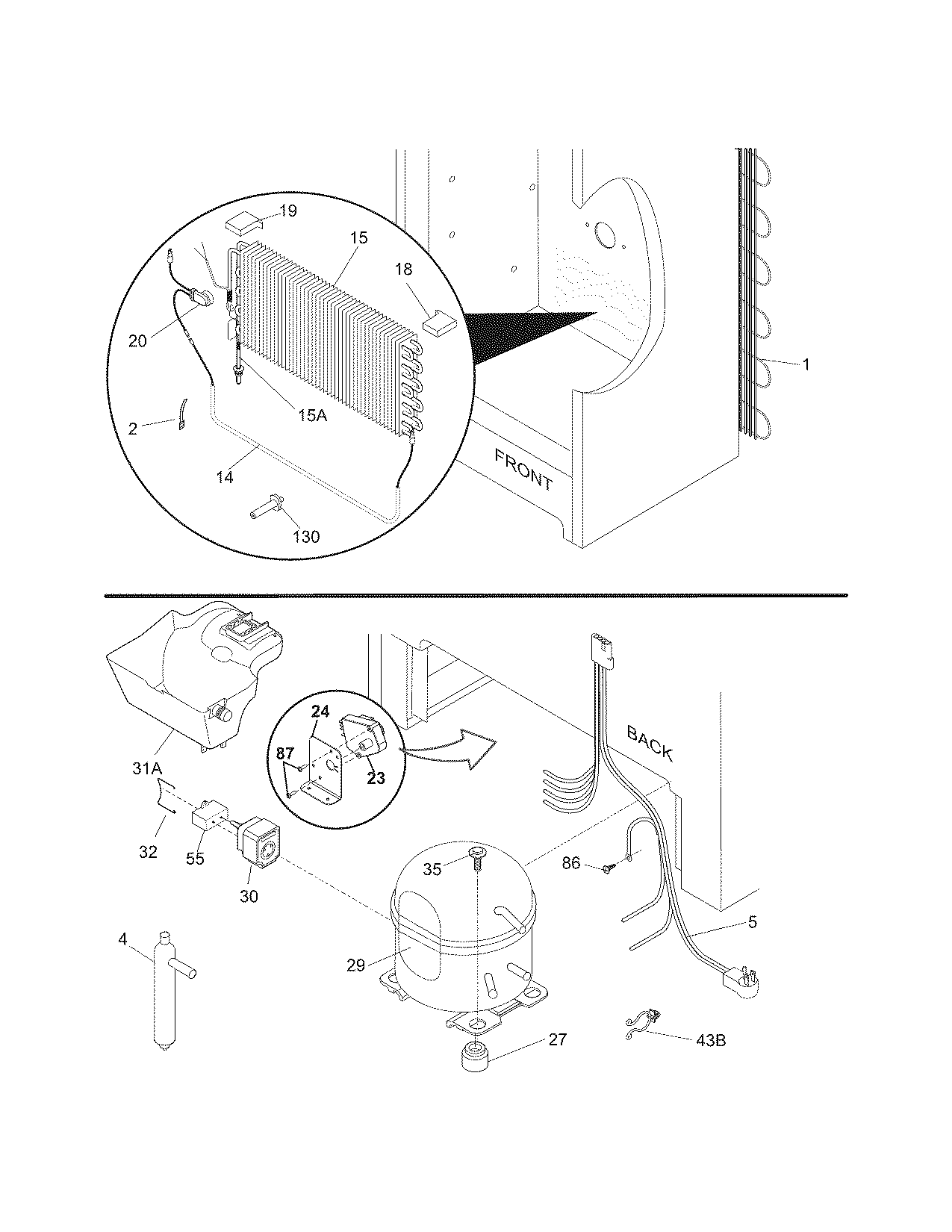

    System diagram

    Filter drier

    Part #216987500

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 216987500. Substitute parts can look different from the original.
    BEST SELLER
    $20.18 |
    23% OFF Phone Price : $26.18
    In Stock
  • Blade 216325600
    #5

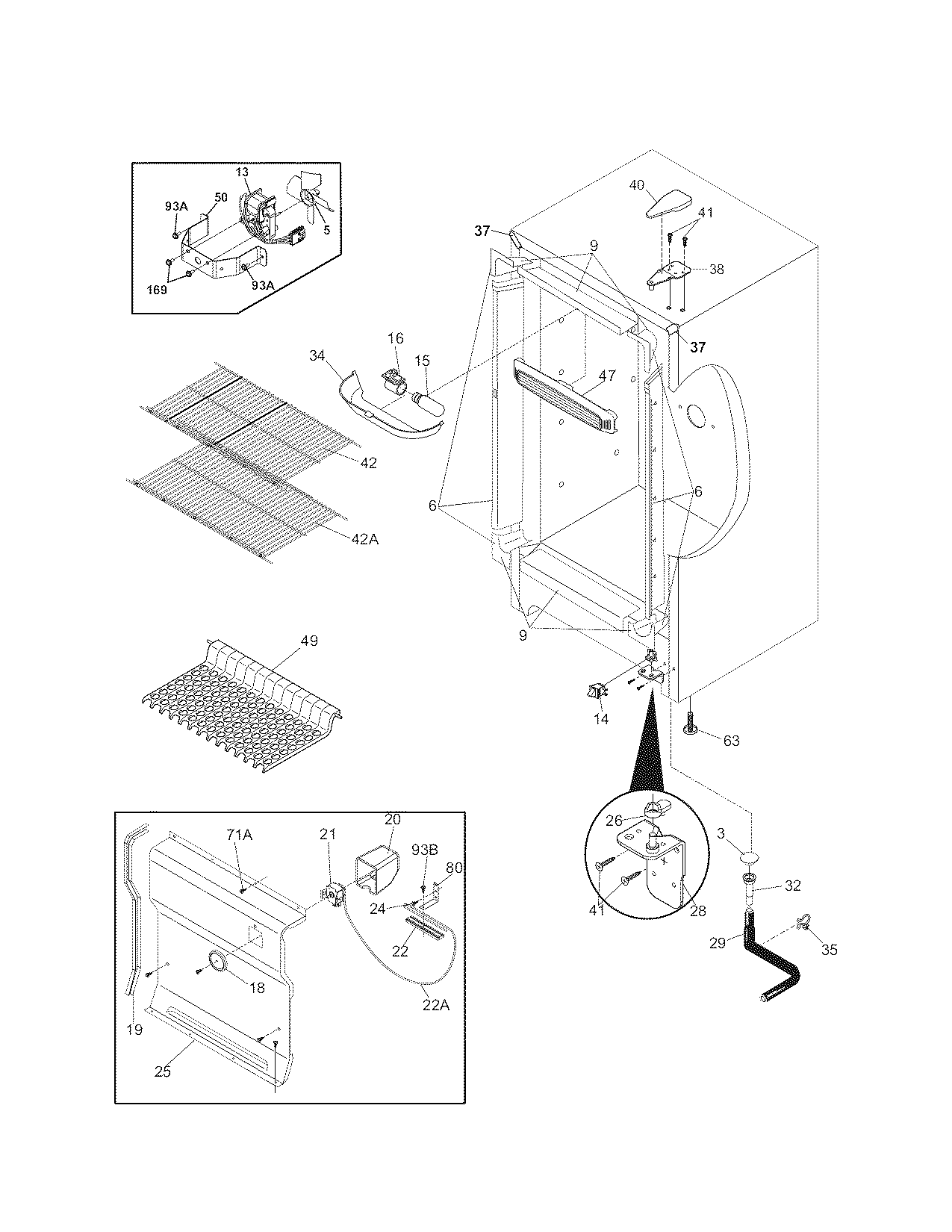

    Cabinet diagram

    Blade

    Part #216325600

    Replaced by #5308000010

    ?
    Manufacturer substitution
    This part replaces 216325600. Substitute parts can look different from the original.
    BEST SELLER
    $42.00 |
    13% OFF Phone Price : $48.00
    In Stock
  • Freezer Door Gasket 216522306
    #1

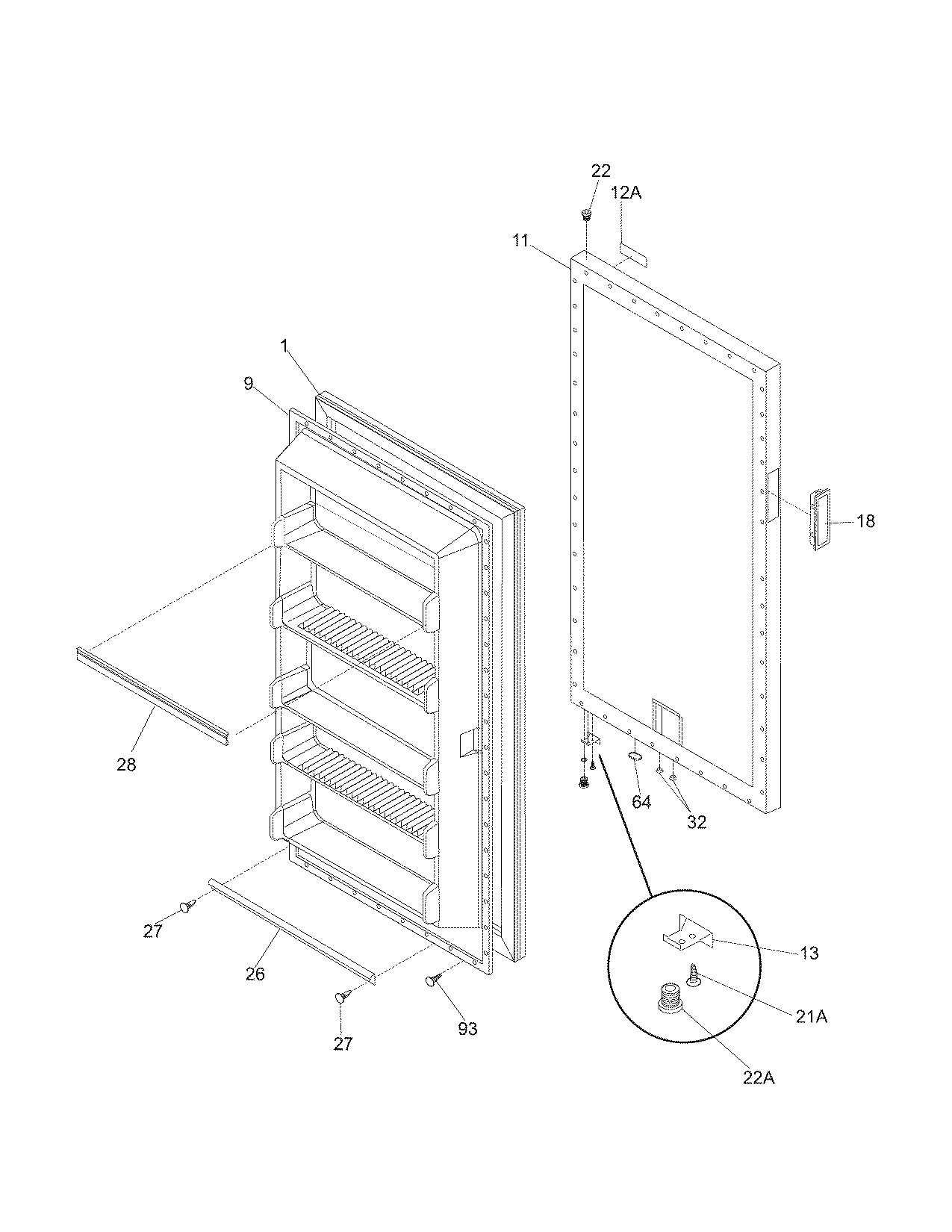

    Door diagram

    Freezer door gasket

    Part #216522306

    Replaced by #5304507201

    ?
    Manufacturer substitution
    This part replaces 216522306. Substitute parts can look different from the original.
    BEST SELLER
    $136.36 |
    8% OFF Phone Price : $148.36
    In Stock
  • Upright Freezer Compressor 297223600
    #29

    System diagram

    Upright freezer compressor

    Part #297223600

    Replaced by #5304507765

    ?
    Manufacturer substitution
    This part replaces 297223600. Substitute parts can look different from the original.
    BEST SELLER
    $420.99 |
    5% OFF Was : $443.15
    In Stock
  • Motor 216934100
    #13

    Cabinet diagram

    Motor

    Part #216934100

    Replaced by #297309000

    ?
    Manufacturer substitution
    This part replaces 216934100. Substitute parts can look different from the original.
    BEST SELLER
    $43.48 |
    12% OFF Phone Price : $49.48
    In Stock
  • Chest Freezer Defrost Thermostat 216872200
    #20

    System diagram

    Chest freezer defrost thermostat

    Part #216872200

    Replaced by #297216600

    ?
    Manufacturer substitution
    This part replaces 216872200. Substitute parts can look different from the original.
    BEST SELLER
    $19.72 |
    9% OFF Phone Price : $21.72
    In Stock
  • Frigidaire Freezer Gasket And Liner Fastener Kit 5304406520
    #NI

    Door diagram

    Frigidaire freezer gasket and liner fastener kit

    Part #5304406520

    BEST SELLER
    $104.10 |
    10% OFF Phone Price : $116.10
    In Stock
  • Chest Freezer Run Capacitor 218909913
    #55

    System diagram

    Chest freezer run capacitor

    Part #218909913

    Replaced by #5304464438

    ?
    Manufacturer substitution
    This part replaces 218909913. Substitute parts can look different from the original.
    BEST SELLER
    $30.42 |
    16% OFF Phone Price : $36.42
    In Stock
  • Switch 216998000
    #14

    Cabinet diagram

    Switch

    Part #216998000

    Replaced by #216822900

    ?
    Manufacturer substitution
    This part replaces 216998000. Substitute parts can look different from the original.
    BEST SELLER
    $54.19 |
    10% OFF Phone Price : $60.19
    In Stock
  • Refrigerator Strap 5308000110
    #2

    System diagram

    Refrigerator strap

    Part #5308000110

    BEST SELLER
    $48.97 |
    11% OFF Phone Price : $54.97
    In Stock
