Model # SHE55M15UC/59 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHE55M15UC/59 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forSHE55M15UC/59 Dishwasher
- #410

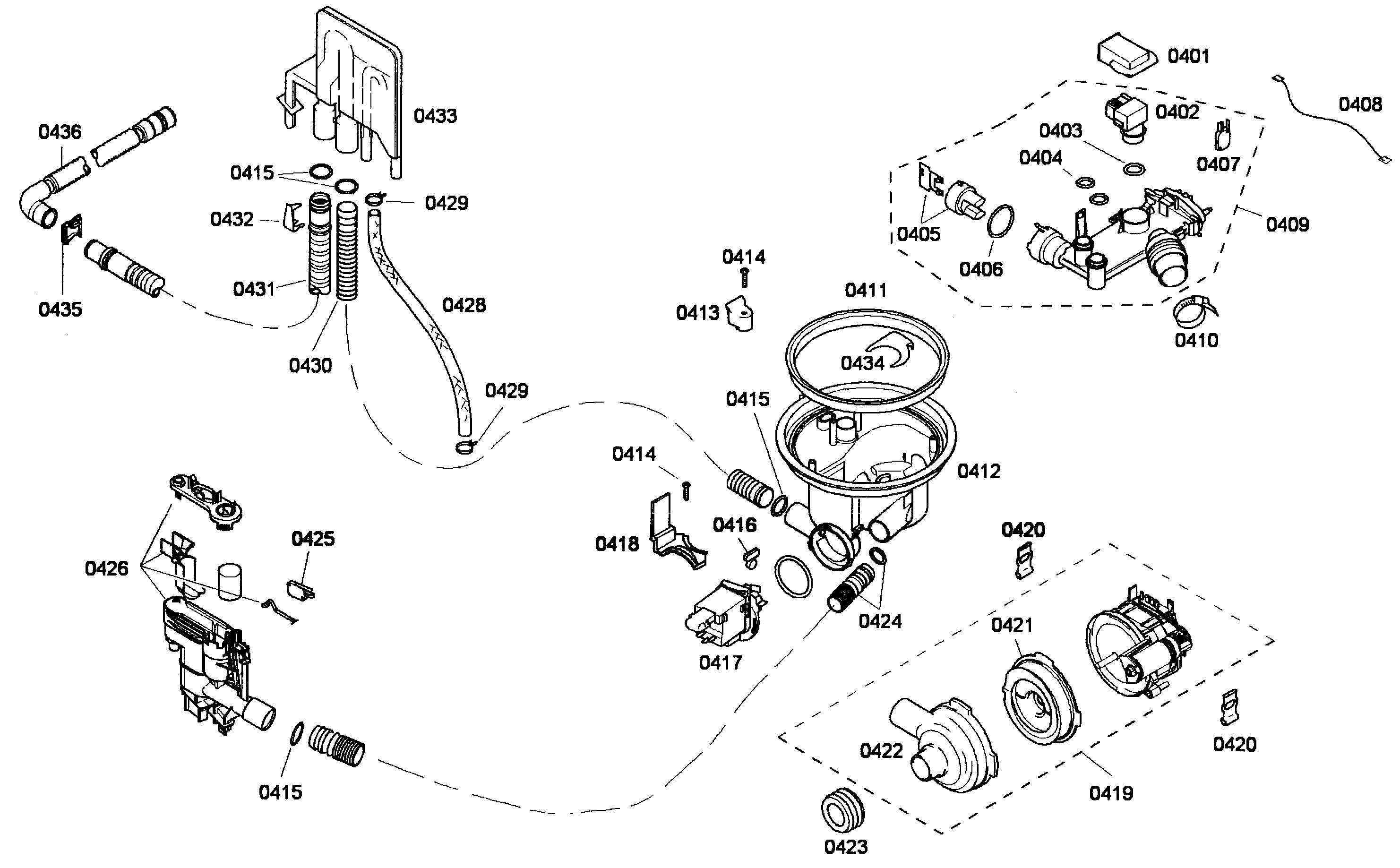

Pump assy diagram
Hose clampPart #172272
Replaced by #00172272
?Manufacturer substitutionThis part replaces 172272. Substitute parts can look different from the original.$28.11 |18% OFF Phone Price : $34.11In Stock - #409
Pump assy diagram
HeaterPart #480317
Replaced by #00480317
?Manufacturer substitutionThis part replaces 480317. Substitute parts can look different from the original.$260.67 |$12.00 OFF Phone Price : $272.67In Stock - #203

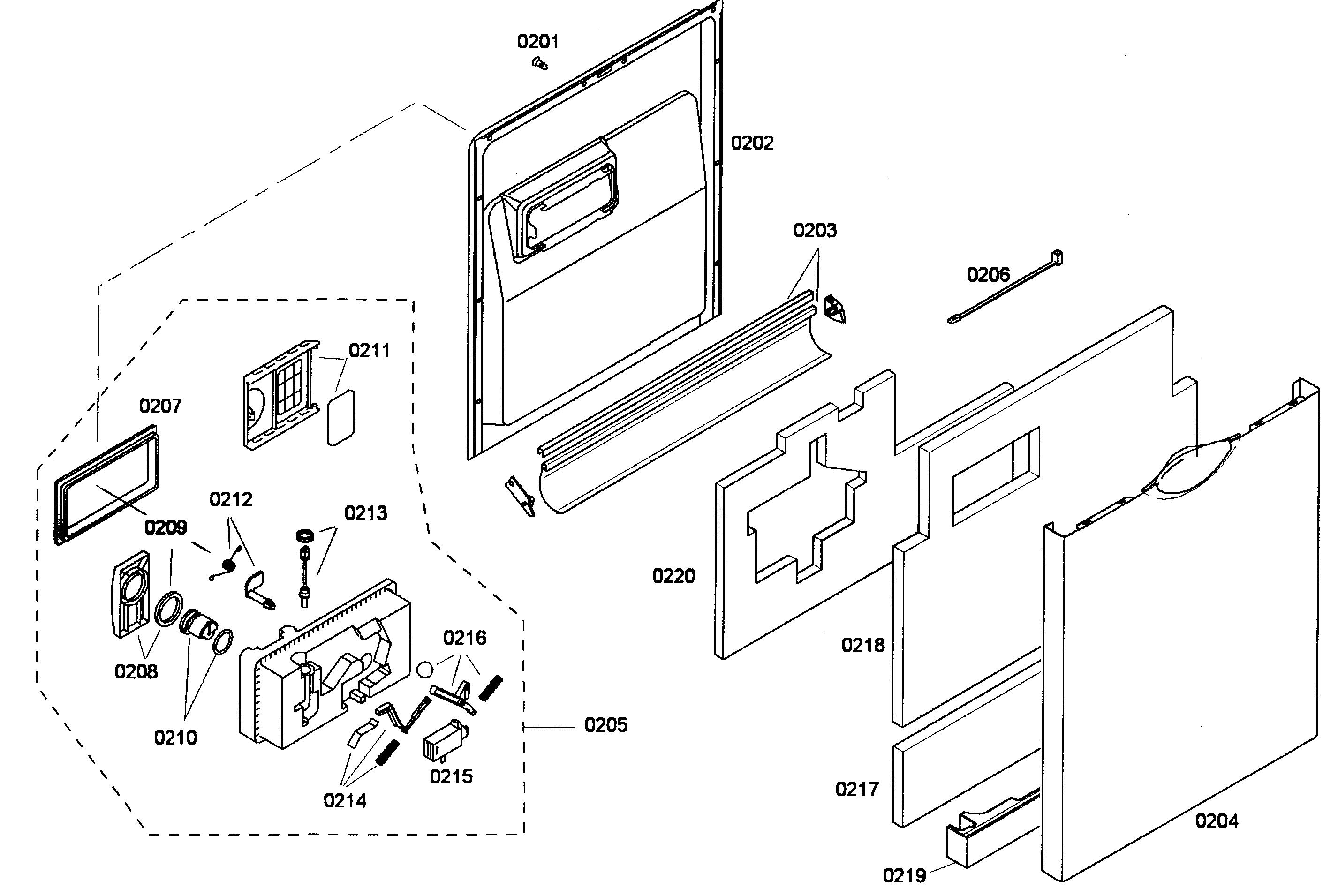

Door assy diagram
Door sealPart #432490
Replaced by #00432490
?Manufacturer substitutionThis part replaces 432490. Substitute parts can look different from the original.$34.83 |15% OFF Phone Price : $40.83In Stock - #520

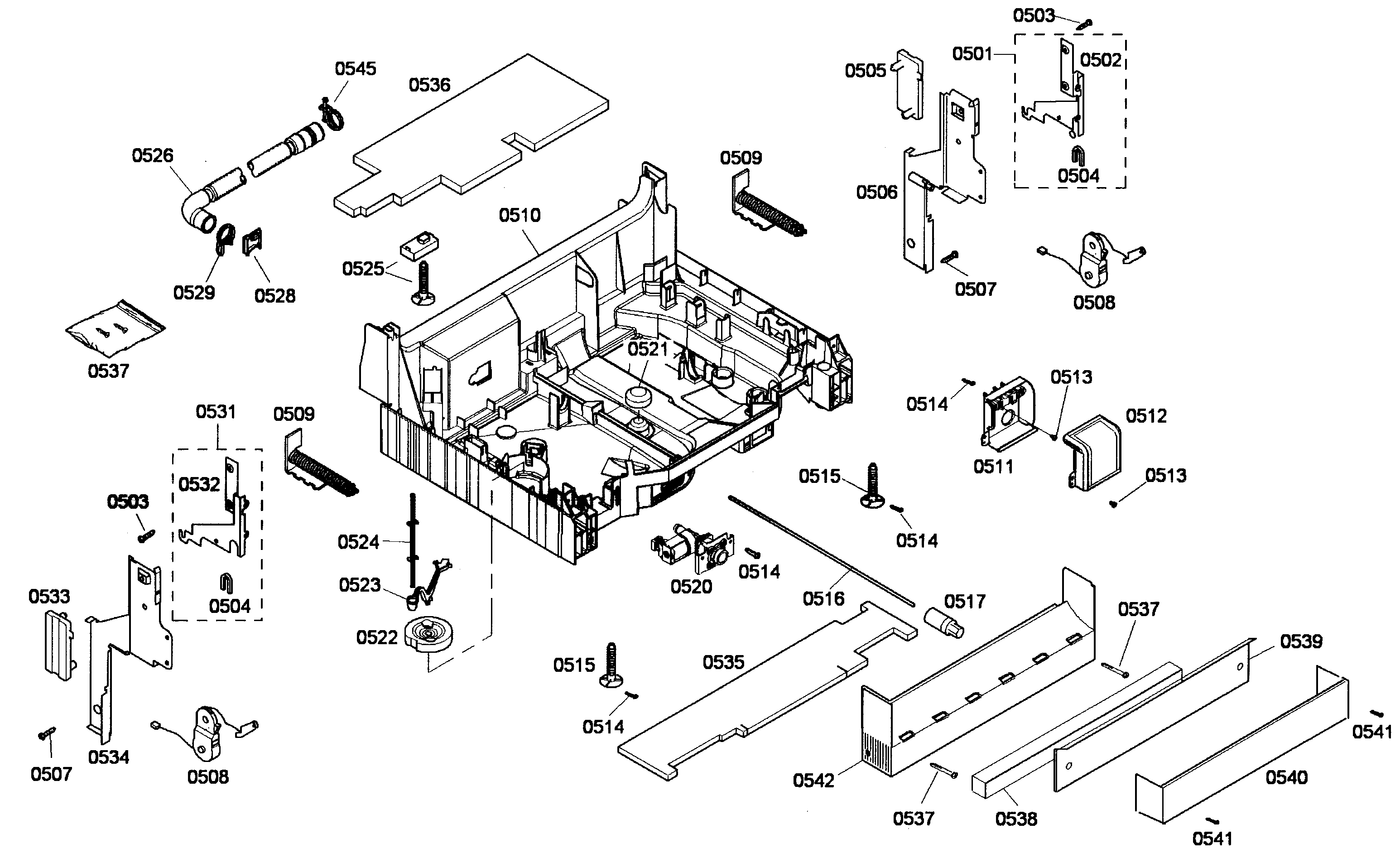

Base assy diagram
Dishwasher water inlet valvePart #607335
Replaced by #00607335
?Manufacturer substitutionThis part replaces 607335. Substitute parts can look different from the original.$54.62 |10% OFF Phone Price : $60.62In Stock - #423
Pump assy diagram
Dishwasher wash pump gasketPart #171598
Replaced by #00171598
?Manufacturer substitutionThis part replaces 171598. Substitute parts can look different from the original.$28.09 |18% OFF Phone Price : $34.09In Stock - #620

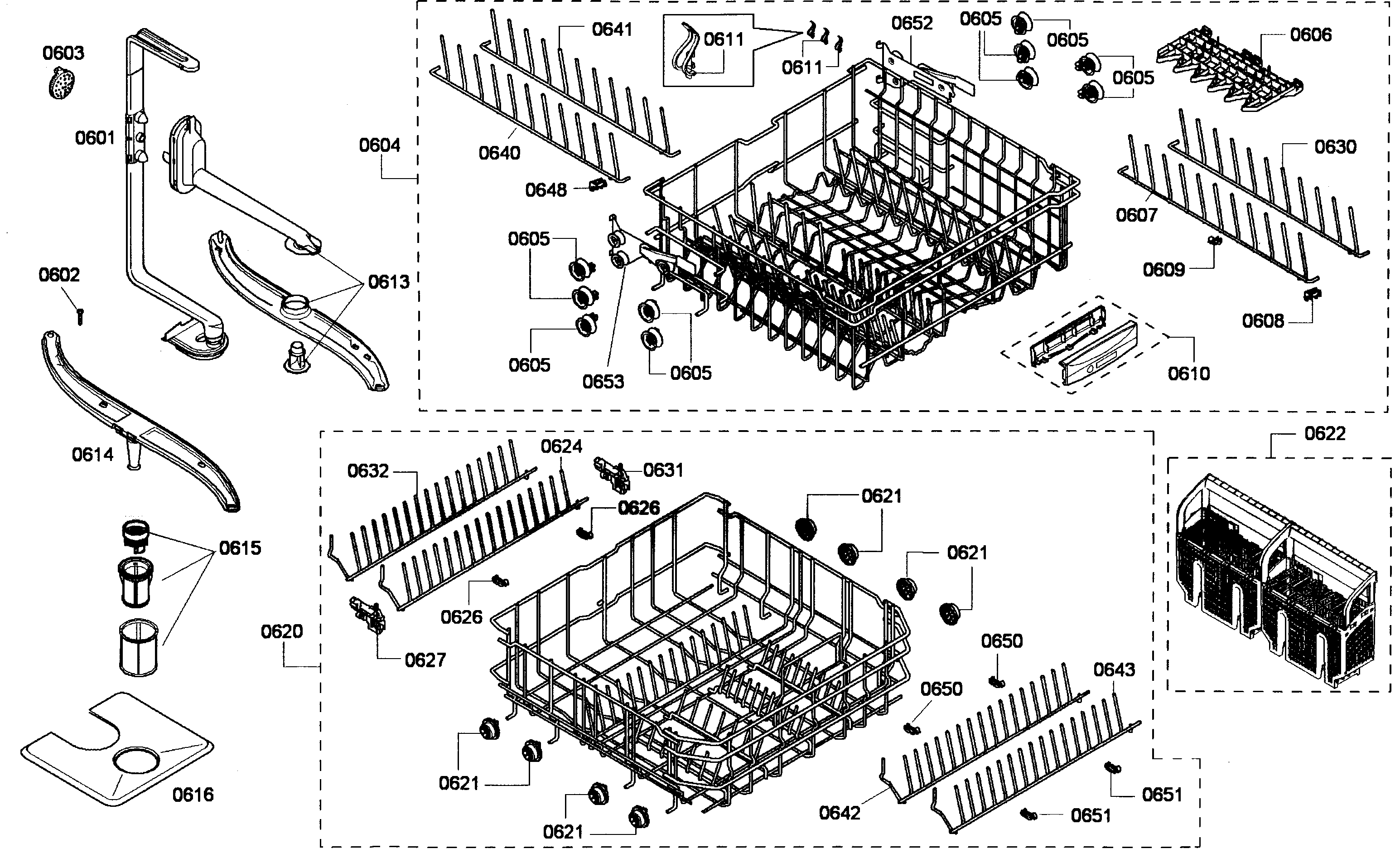

Racks assy diagram
BasketPart #248822
Replaced by #00249276
?Manufacturer substitutionThis part replaces 248822. Substitute parts can look different from the original.$276.28 |$12.00 OFF Phone Price : $288.28In Stock - #608
Racks assy diagram
HolderPart #616990
The manufacturer no longer makes this part, and there's no substitute part
- #433
Pump assy diagram
Dishwasher water inlet valvePart #263833
Replaced by #00263833
?Manufacturer substitutionThis part replaces 263833. Substitute parts can look different from the original.$150.10 |7% OFF Phone Price : $162.10In Stock - #614
Racks assy diagram
Dishwasher spray armPart #448806
Replaced by #00448806
?Manufacturer substitutionThis part replaces 448806. Substitute parts can look different from the original.This item is not returnable$26.69 |18% OFF Phone Price : $32.69In Stock - #615
Racks assy diagram
Diswasher mesh filterPart #615079
Replaced by #00615079
?Manufacturer substitutionThis part replaces 615079. Substitute parts can look different from the original.$48.75 |11% OFF Phone Price : $54.75In Stock
