Model # CGEB30S9FB2 Official Frigidaire electric oven
Here are the diagrams and repair parts for Official Frigidaire CGEB30S9FB2 electric oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

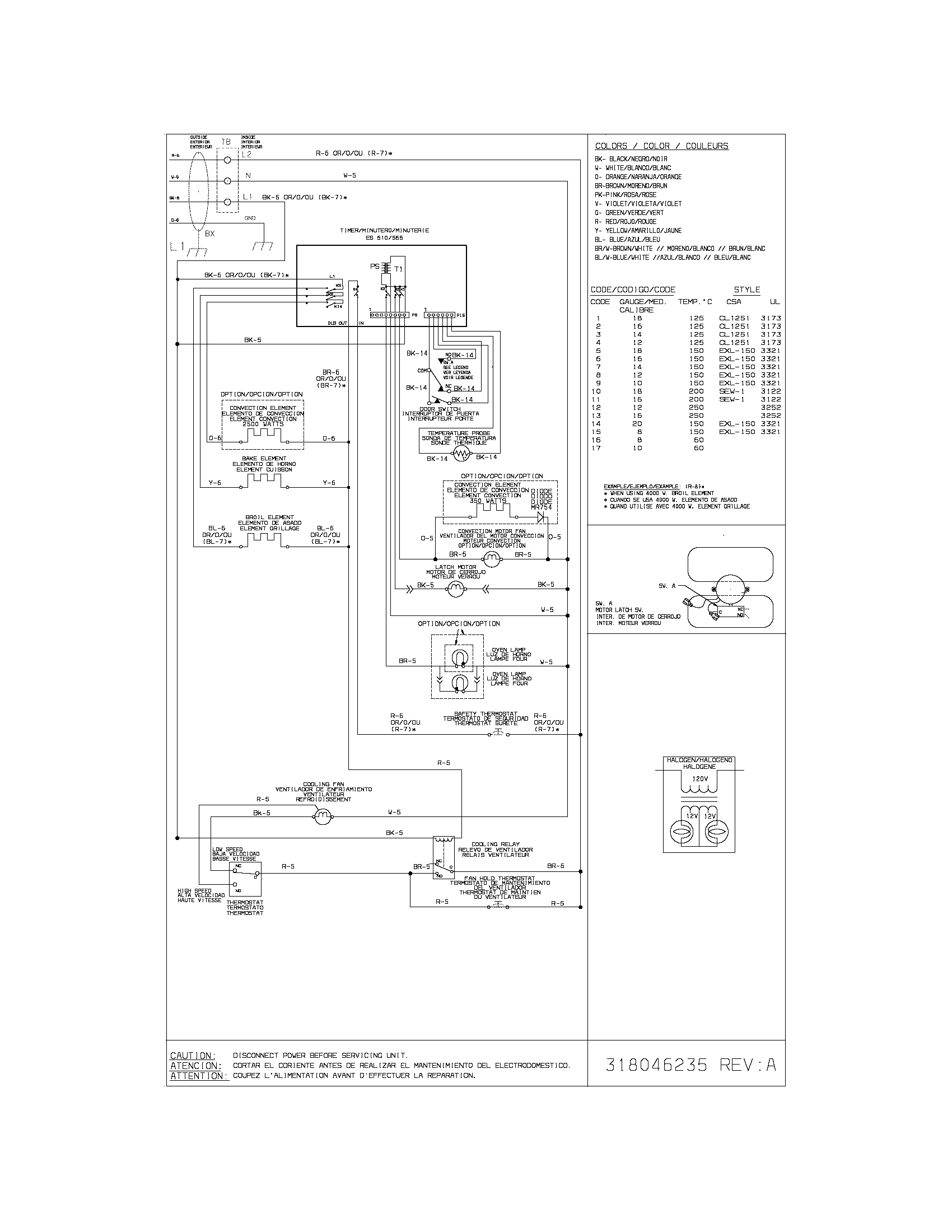

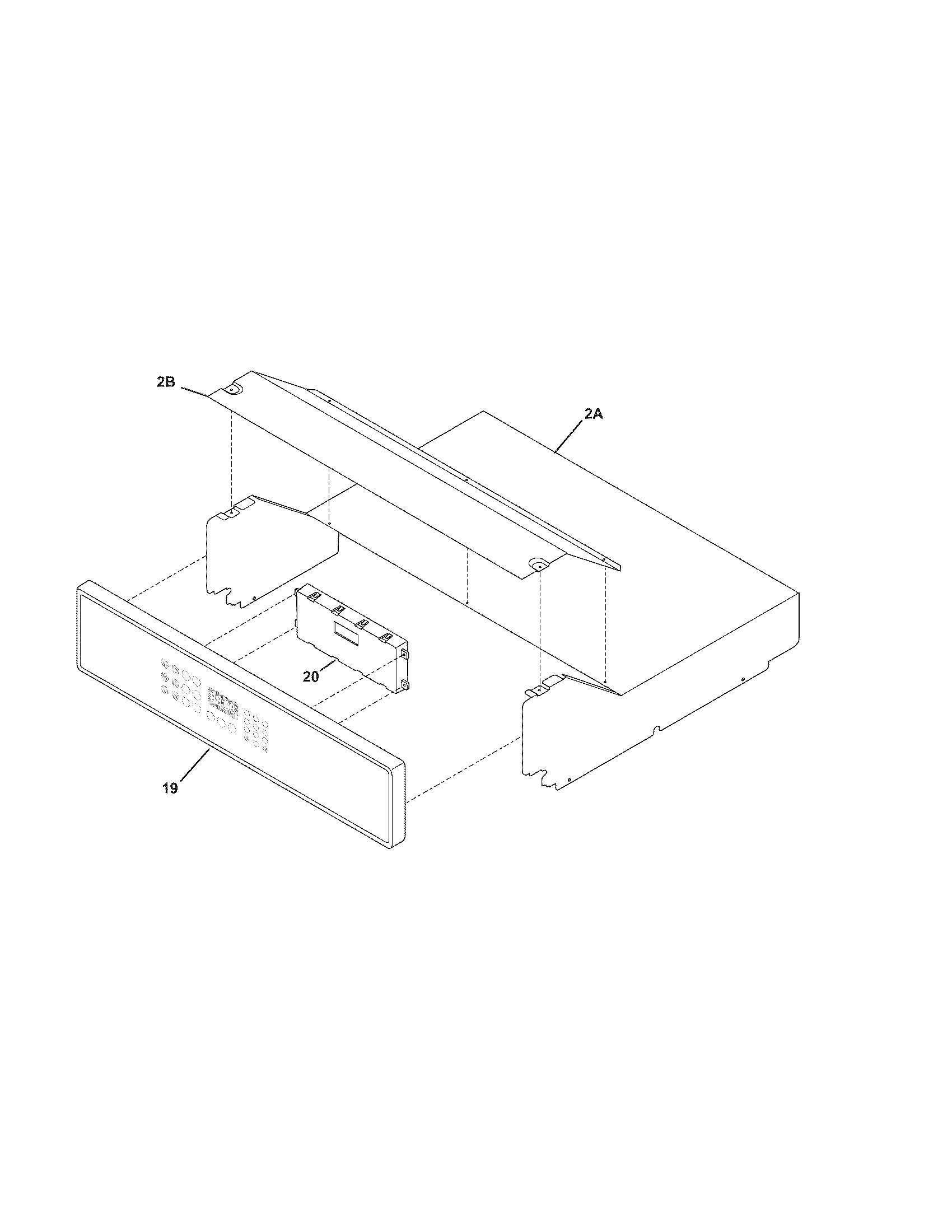

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forCGEB30S9FB2 Wall Ovens
- #37

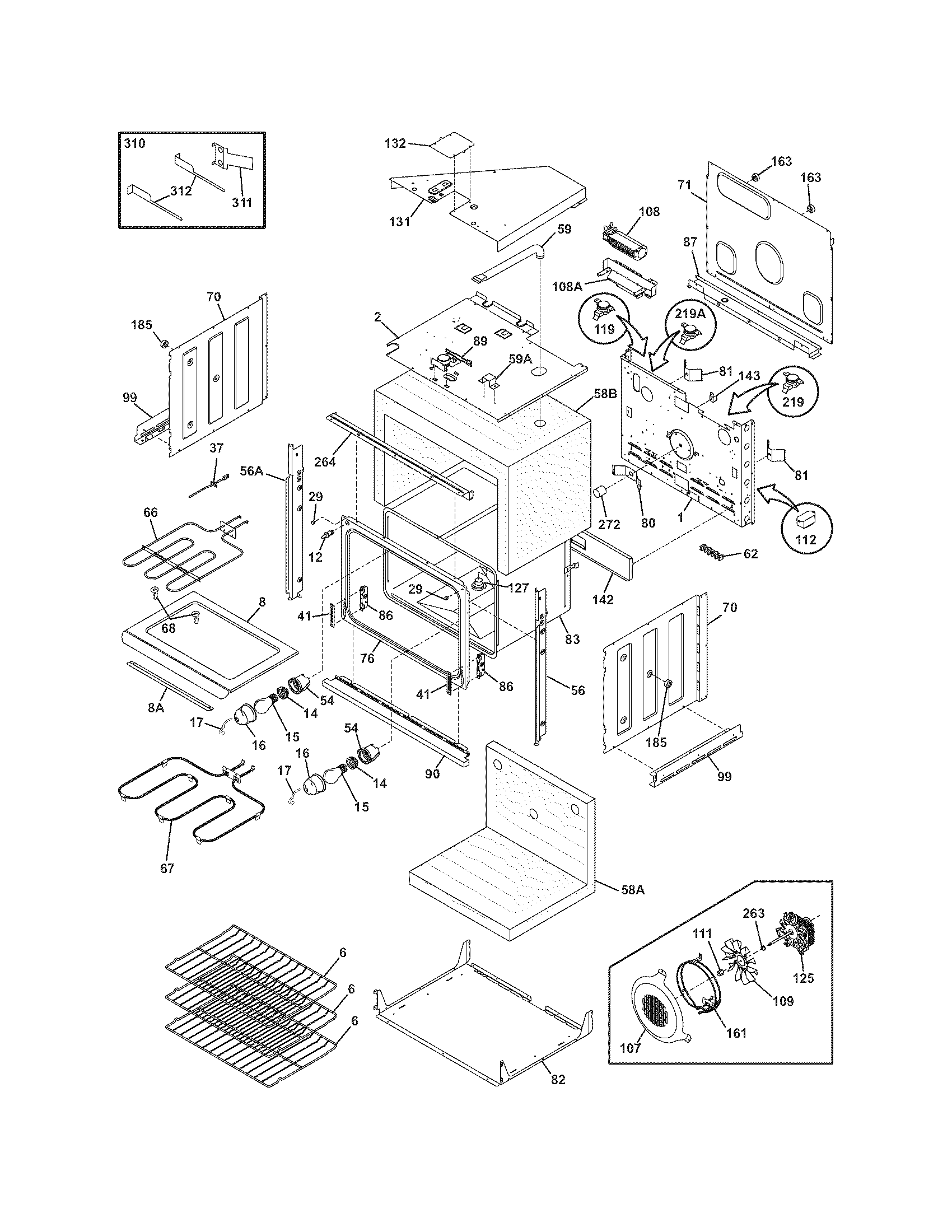

Body diagram
Frigidaire range oven temperature sensorPart #316217002
$48.77 |11% OFF Phone Price : $54.77In Stock - #8

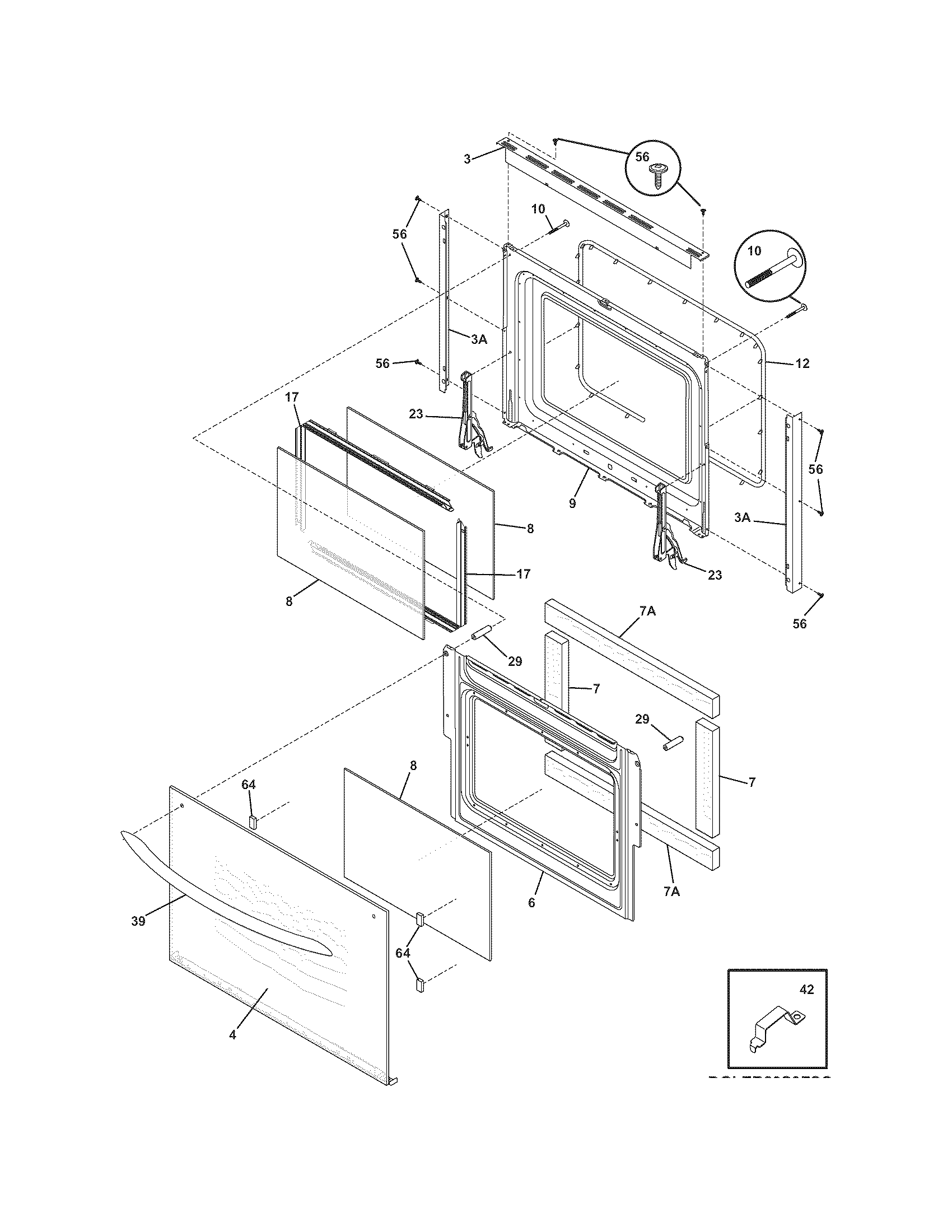

Door diagram
Range oven door inner glassPart #316117500
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.$72.95 |8% OFF Phone Price : $78.95In Stock - #62
Body diagram
Terminal blockPart #316056000
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 316056000. Substitute parts can look different from the original.$9.33 |10% OFF Phone Price : $10.33In Stock - #119
Body diagram
Wall oven thermal fusePart #318004900
$60.01 |9% OFF Phone Price : $66.01In Stock - #66
Body diagram
Range broil elementPart #318255600
Replaced by #318255605
?Manufacturer substitutionThis part replaces 318255600. Substitute parts can look different from the original.$115.26 |9% OFF Phone Price : $127.26In Stock - #109
Body diagram
Range convection fan bladePart #316136400
The manufacturer no longer makes this part, and there's no substitute part
- #263
Body diagram
WasherPart #316136500
Replaced by #316008401
?Manufacturer substitutionThis part replaces 316136500. Substitute parts can look different from the original.$13.71 |13% OFF Phone Price : $15.71In Stock - #312
Body diagram
Wall oven removal tool, rightPart #318246702
This item is not returnable$10.20 |16% OFF Phone Price : $12.20In Stock - #12
Body diagram
Range oven door switchPart #316445501
$59.43 |9% OFF Phone Price : $65.43In Stock - #89
Body diagram
MotorPart #318261205
Replaced by #318261230
?Manufacturer substitutionThis part replaces 318261205. Substitute parts can look different from the original.$90.65 |6% OFF Phone Price : $96.65In Stock
