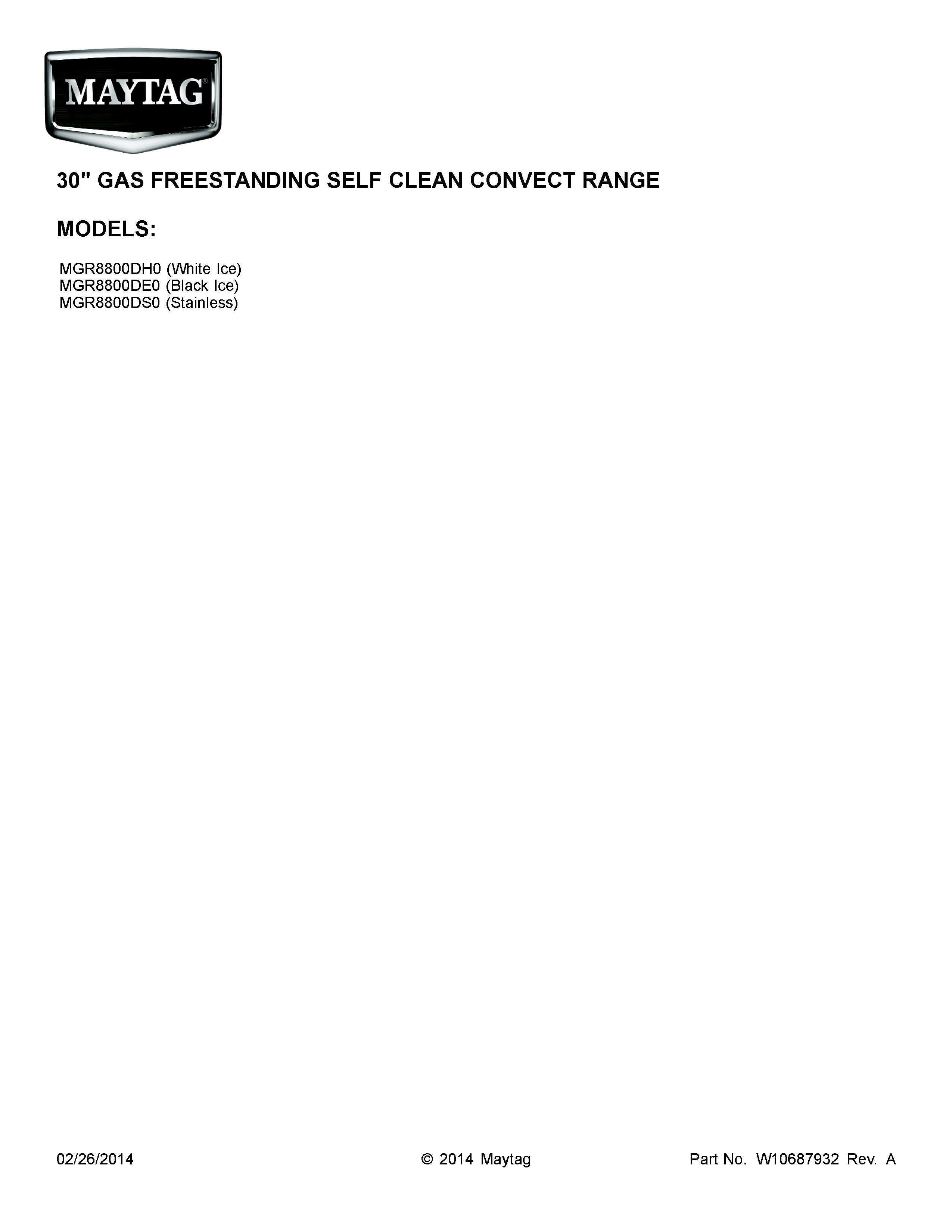

Model # MGR8800DE0 Official Maytag gas range
Here are the diagrams and repair parts for Official Maytag MGR8800DE0 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forMGR8800DE0 Ranges
- #12

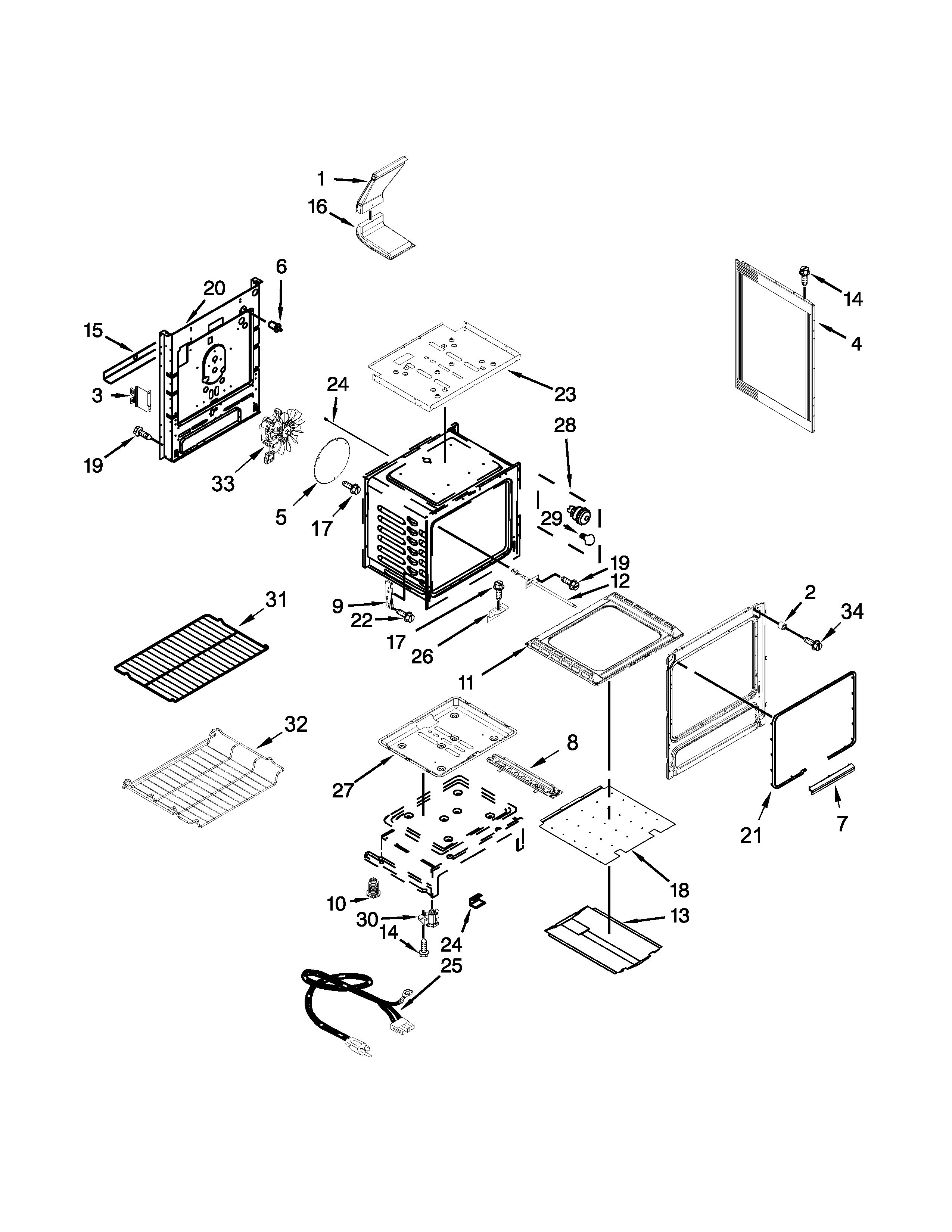

Chassis parts diagram
Range oven temperature sensorPart #W10181986
Replaced by #WPW10181986
?Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.$56.95 |10% OFF Phone Price : $62.95In Stock - #9

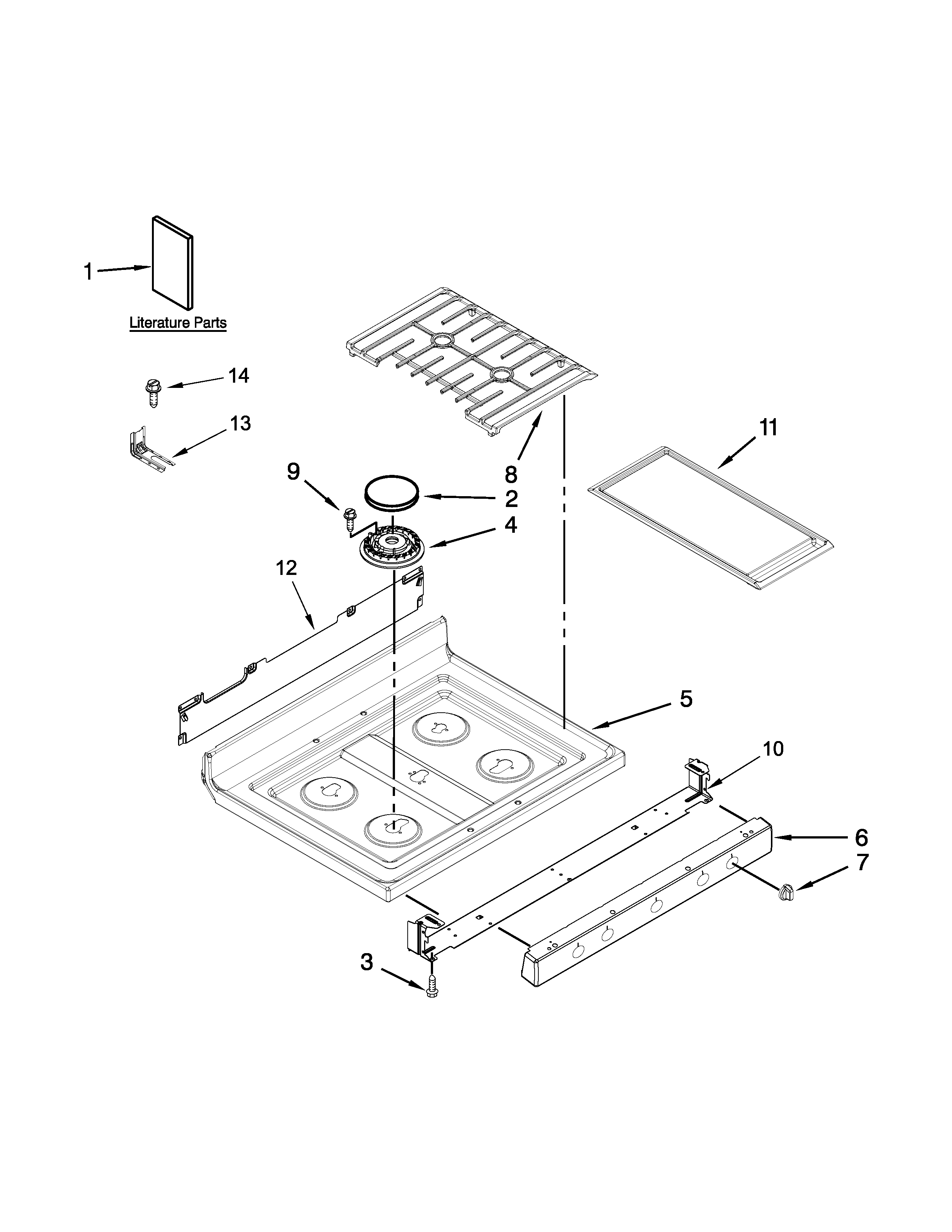

Cooktop parts diagram
ScrewPart #3400701
Replaced by #WP3368921
?Manufacturer substitutionThis part replaces 3400701. Substitute parts can look different from the original.This item is not returnable$2.83 |44% OFF Was : $5.05In Stock - #NI

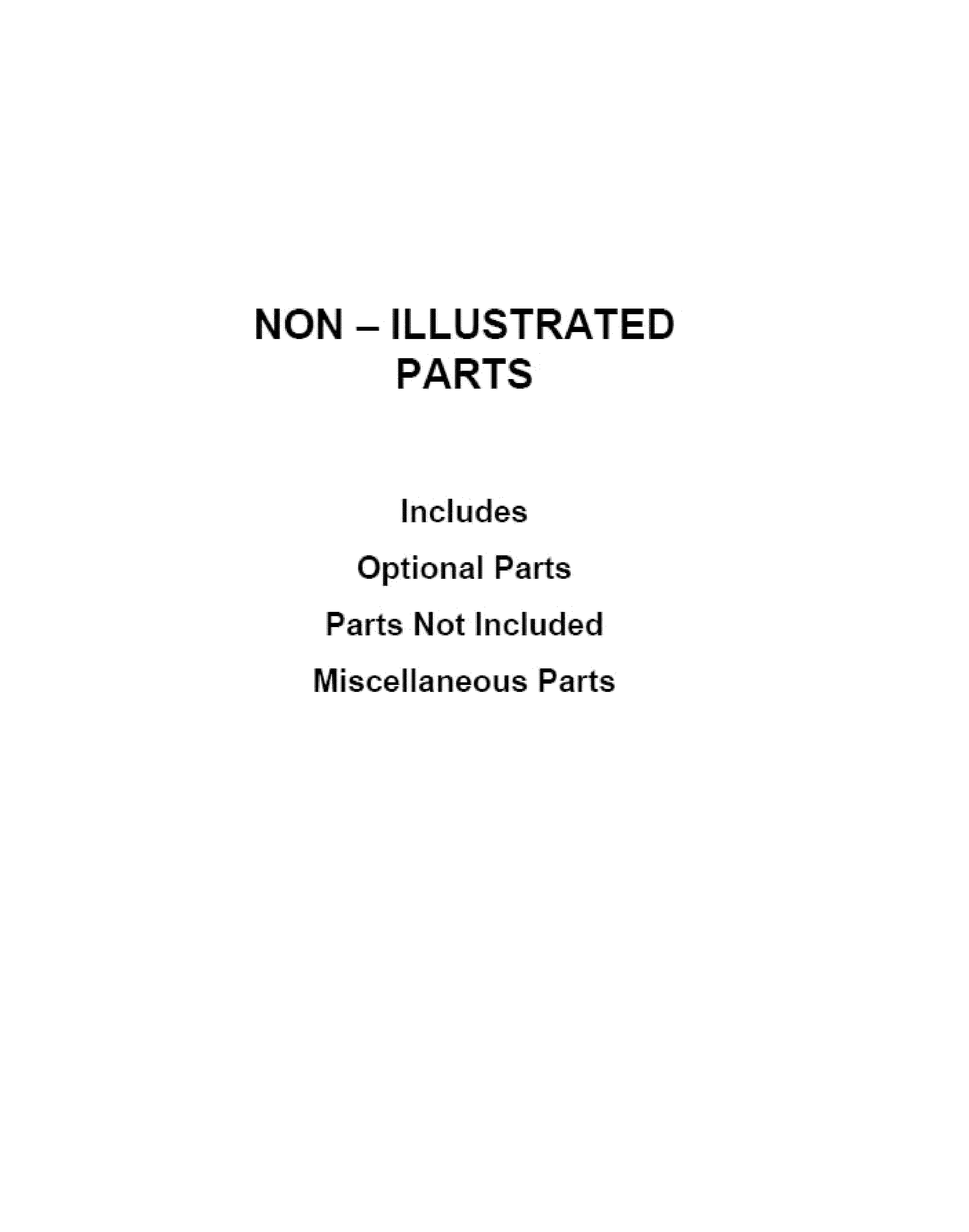

Optional parts (not included) diagram
Spray wPart #350930
Replaced by #350930
?Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnable$16.44 |11% OFF Phone Price : $18.44In Stock - #16

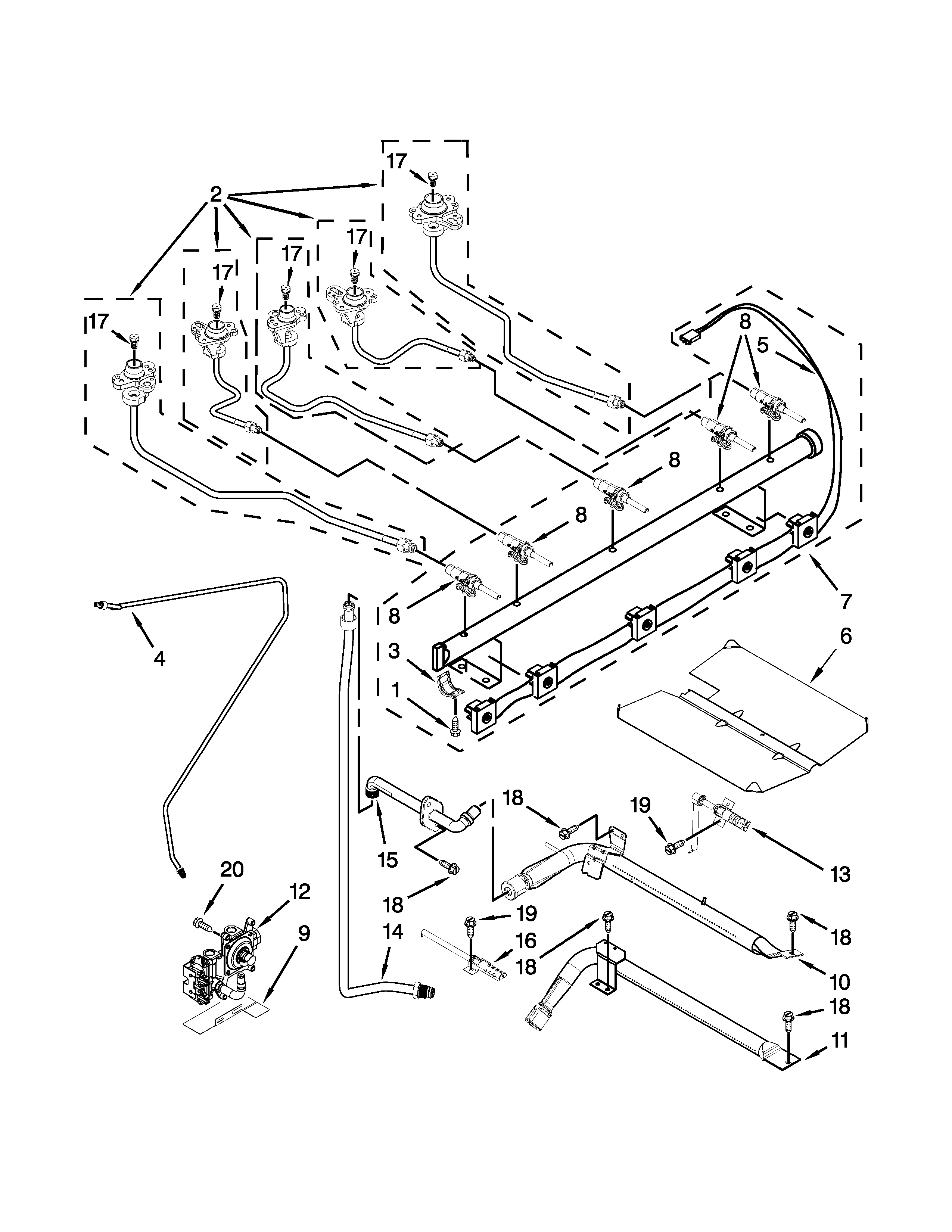

Manifold parts diagram
Range oven burner igniterPart #W10333842
Replaced by #WPW10333842
?Manufacturer substitutionThis part replaces W10333842. Substitute parts can look different from the original.$72.33 |8% OFF Phone Price : $78.33In Stock - #12

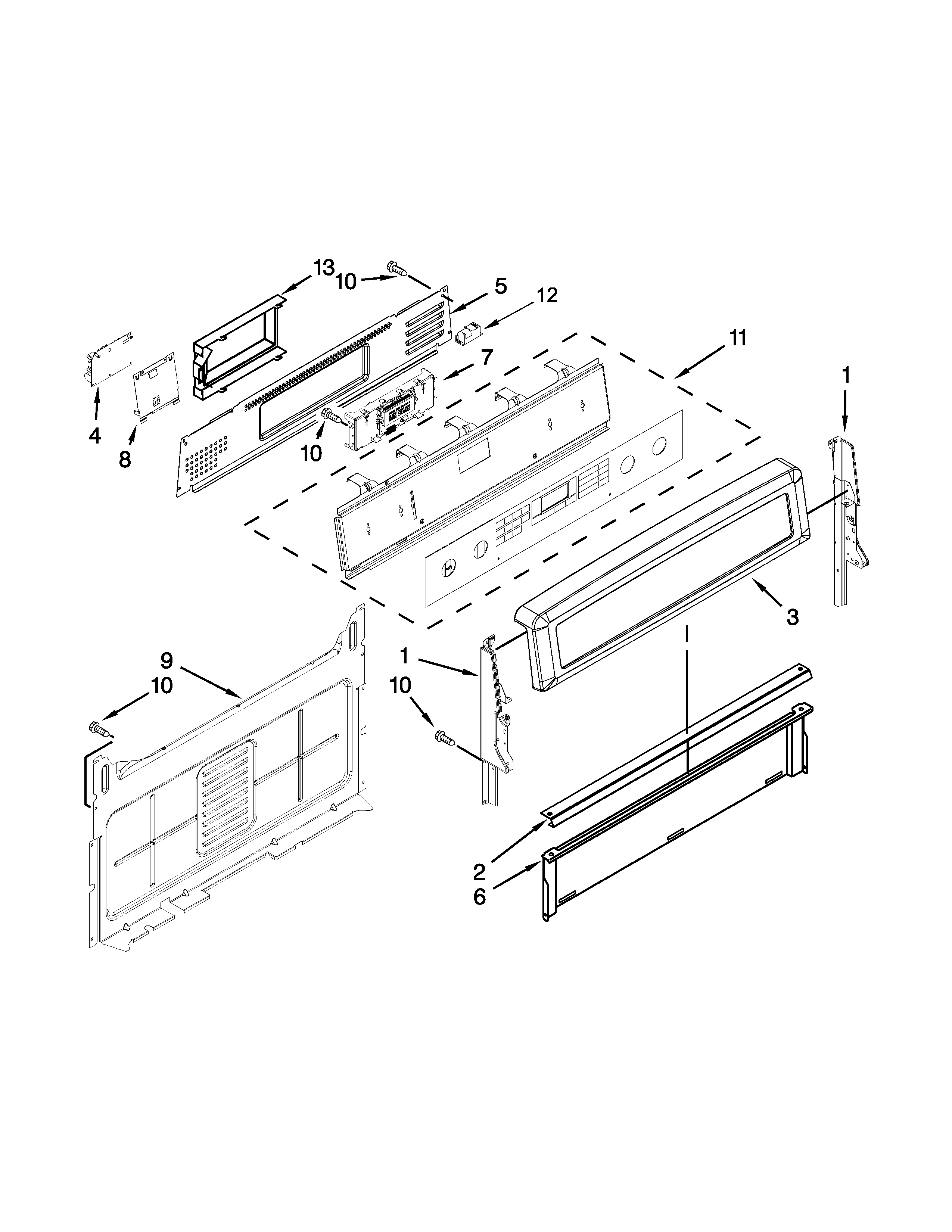

Control panel parts diagram
Spark module (red)Part #W10475149
Replaced by #WPW10475149
?Manufacturer substitutionThis part replaces W10475149. Substitute parts can look different from the original.$122.05 |9% OFF Phone Price : $134.05In Stock - Screw
Part #3196178
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196178. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #17
Chassis parts diagram
ScrewPart #W10362924
Replaced by #W11233072
?Manufacturer substitutionThis part replaces W10362924. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #NI
Optional parts (not included) diagram
Touch-up paint (black)Part #72032
Replaced by #72032
?Manufacturer substitutionThis part replaces 72032. Substitute parts can look different from the original.This item is not returnable$9.02 |10% OFF Phone Price : $10.02In Stock - #21

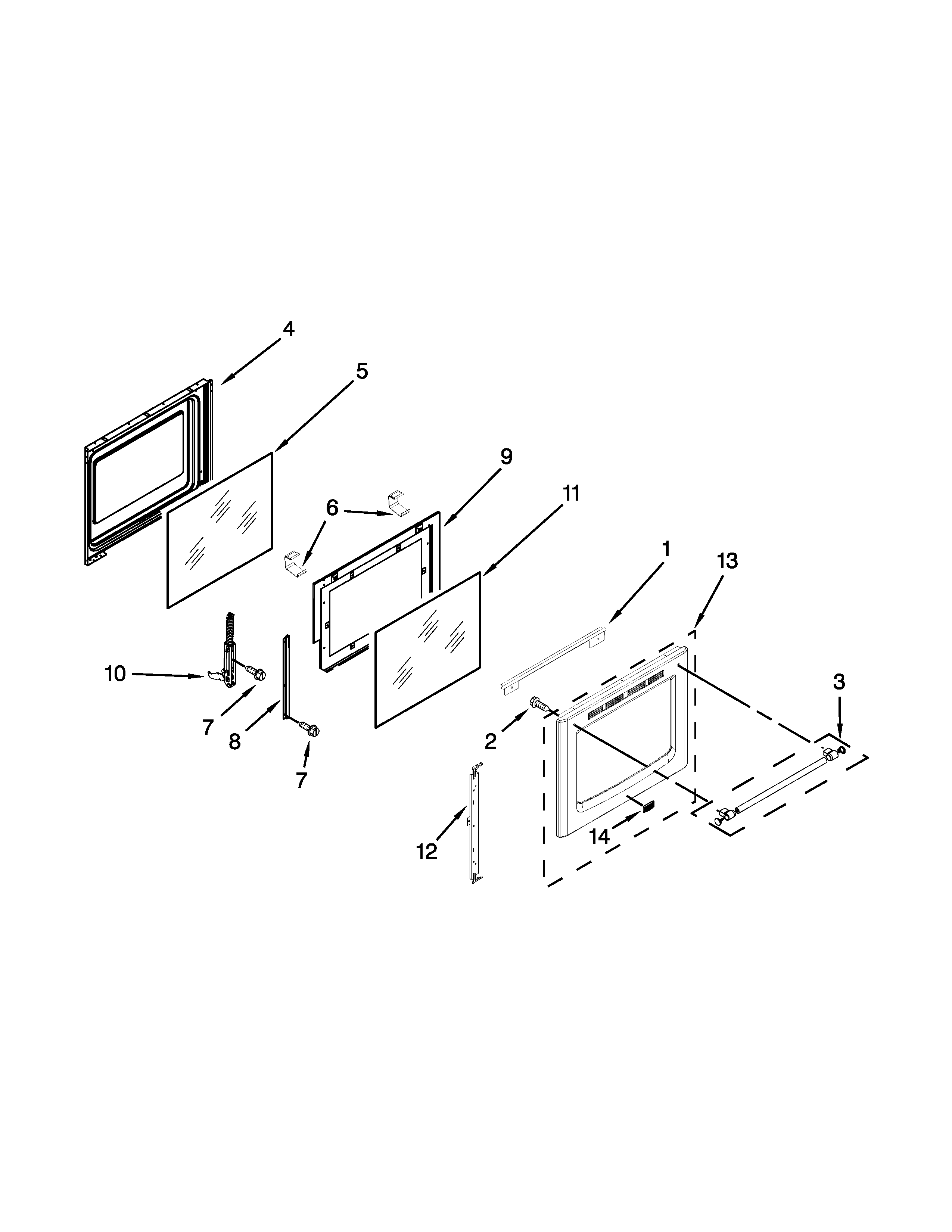

Chassis parts diagram
Range oven door gasketPart #W10162385
Replaced by #W11562931
?Manufacturer substitutionThis part replaces W10162385. Substitute parts can look different from the original.$114.48In Stock - #28
Chassis parts diagram
Range light socketPart #W10454648
Replaced by #W11594027
?Manufacturer substitutionThis part replaces W10454648. Substitute parts can look different from the original.$62.81 |9% OFF Phone Price : $68.81In Stock
