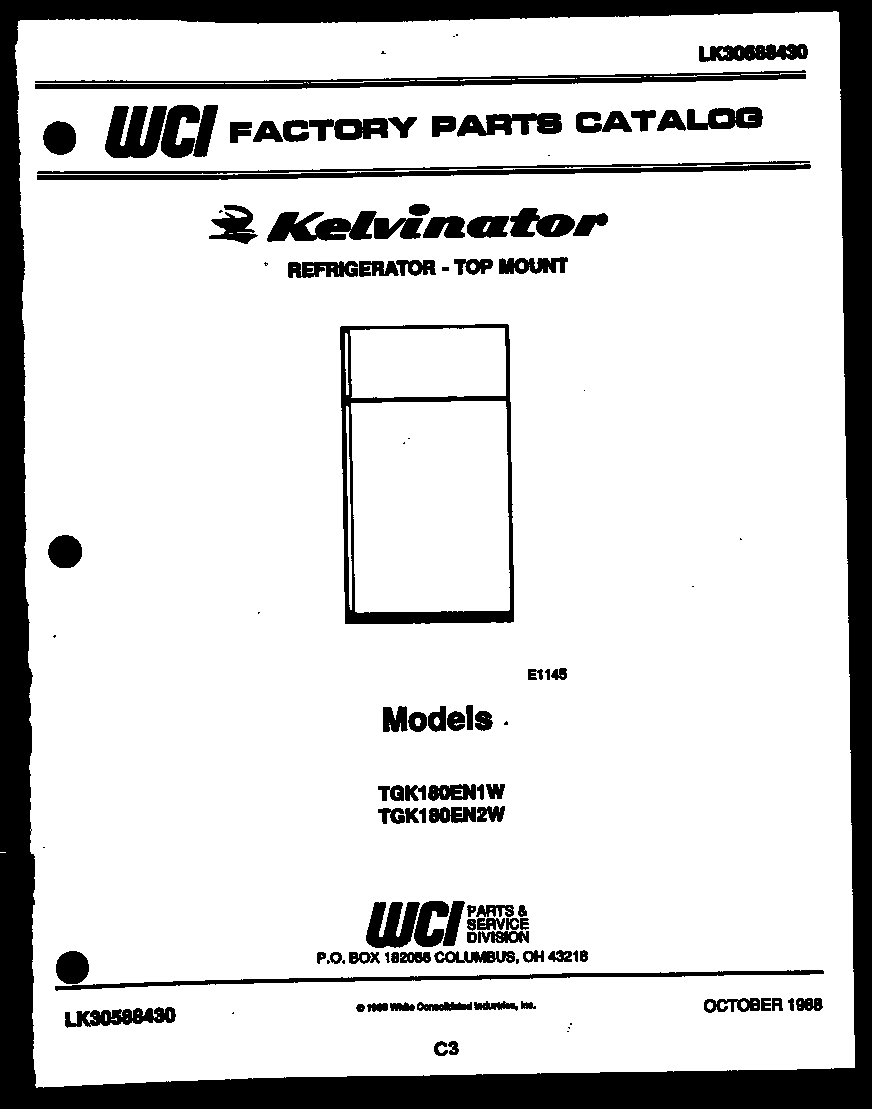

Model # TGK180EN1W Official Kelvinator top-mount refrigerator - lk30588430
Here are the diagrams and repair parts for Official Kelvinator TGK180EN1W top-mount refrigerator - lk30588430, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forTGK180EN1W Refrigerators
- #4

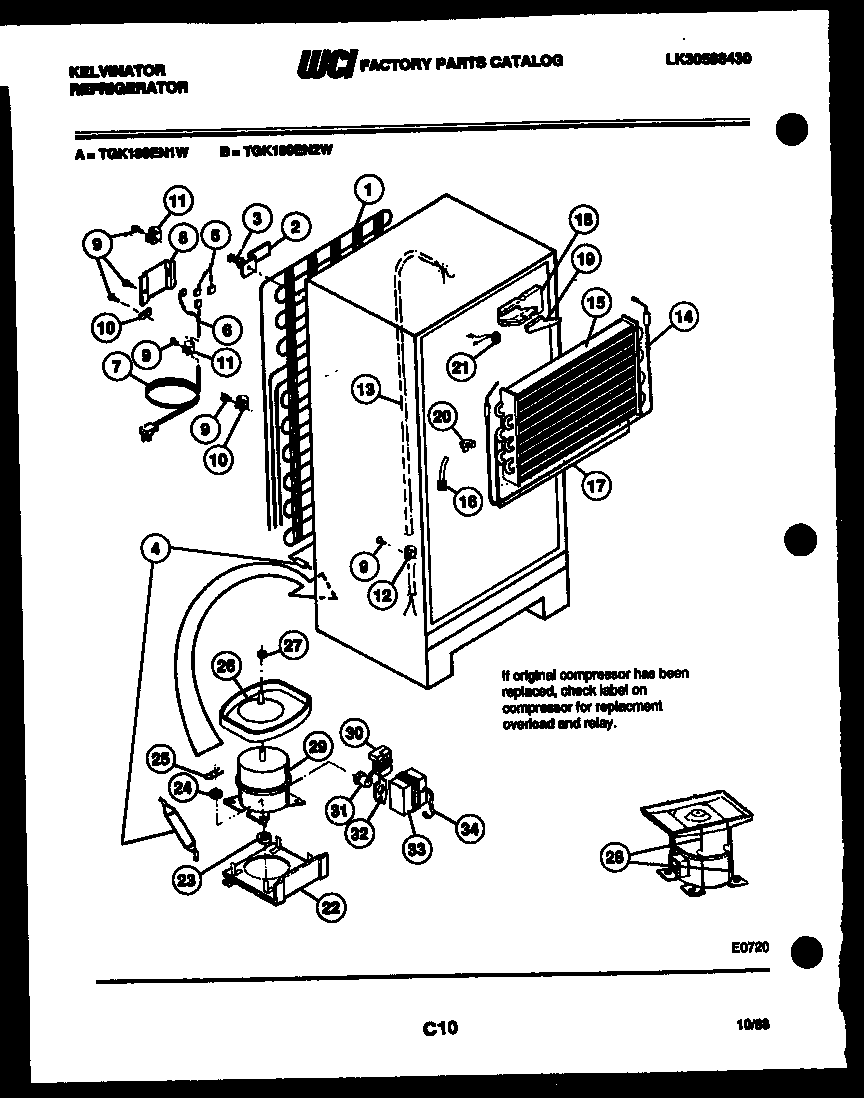

System and automatic defrost parts diagram
Filter drierPart #G186717
Replaced by #5303305677
?Manufacturer substitutionThis part replaces G186717. Substitute parts can look different from the original.$20.18 |23% OFF Phone Price : $26.18In Stock - #18

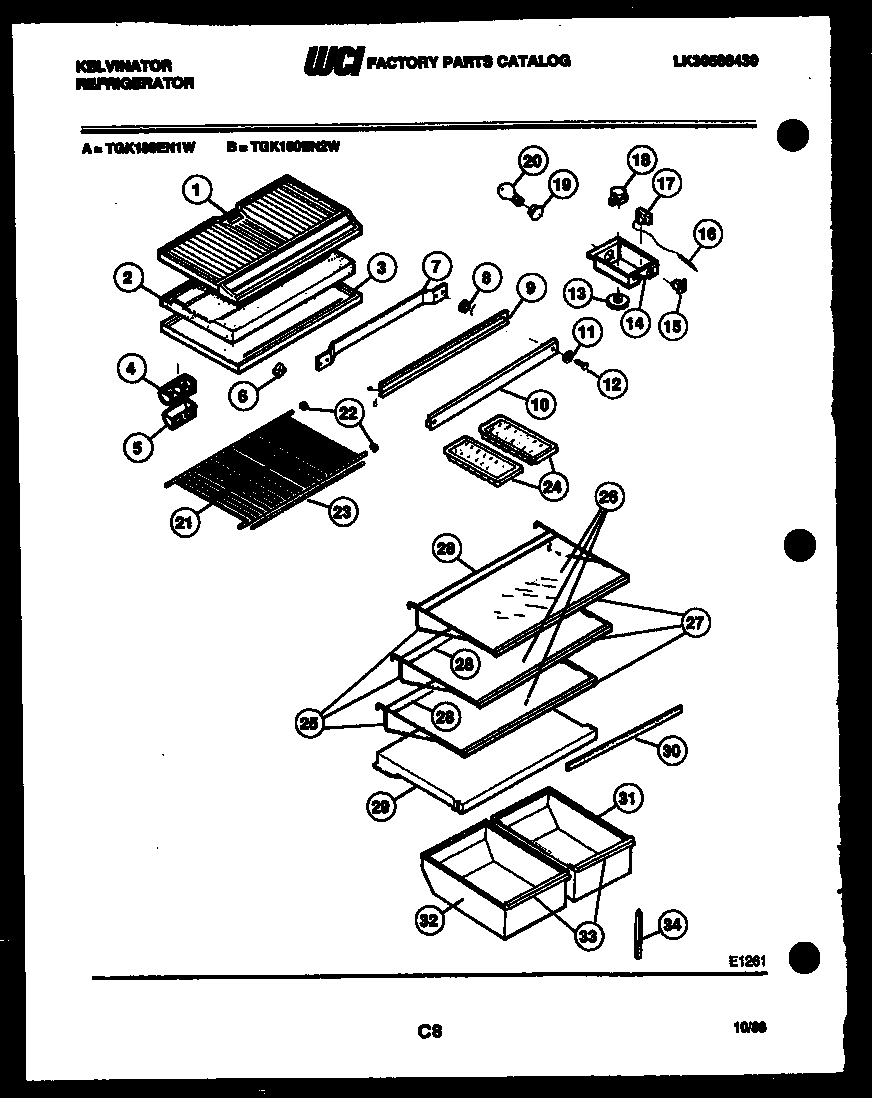

Shelves and supports diagram
Defrost timerPart #G187484
Replaced by #215846602
?Manufacturer substitutionThis part replaces G187484. Substitute parts can look different from the original.$25.11 |19% OFF Phone Price : $31.11In Stock - #16
System and automatic defrost parts diagram
Strap-evap/hPart #G165546
Replaced by #5308000110
?Manufacturer substitutionThis part replaces G165546. Substitute parts can look different from the original.$48.97 |11% OFF Phone Price : $54.97In Stock - #24
Shelves and supports diagram
Refrigerator ice trayPart #G156376-18
Replaced by #215667501
?Manufacturer substitutionThis part replaces G156376-18. Substitute parts can look different from the original.This item is not returnable$4.84 |17% OFF Phone Price : $5.84In Stock - #26A

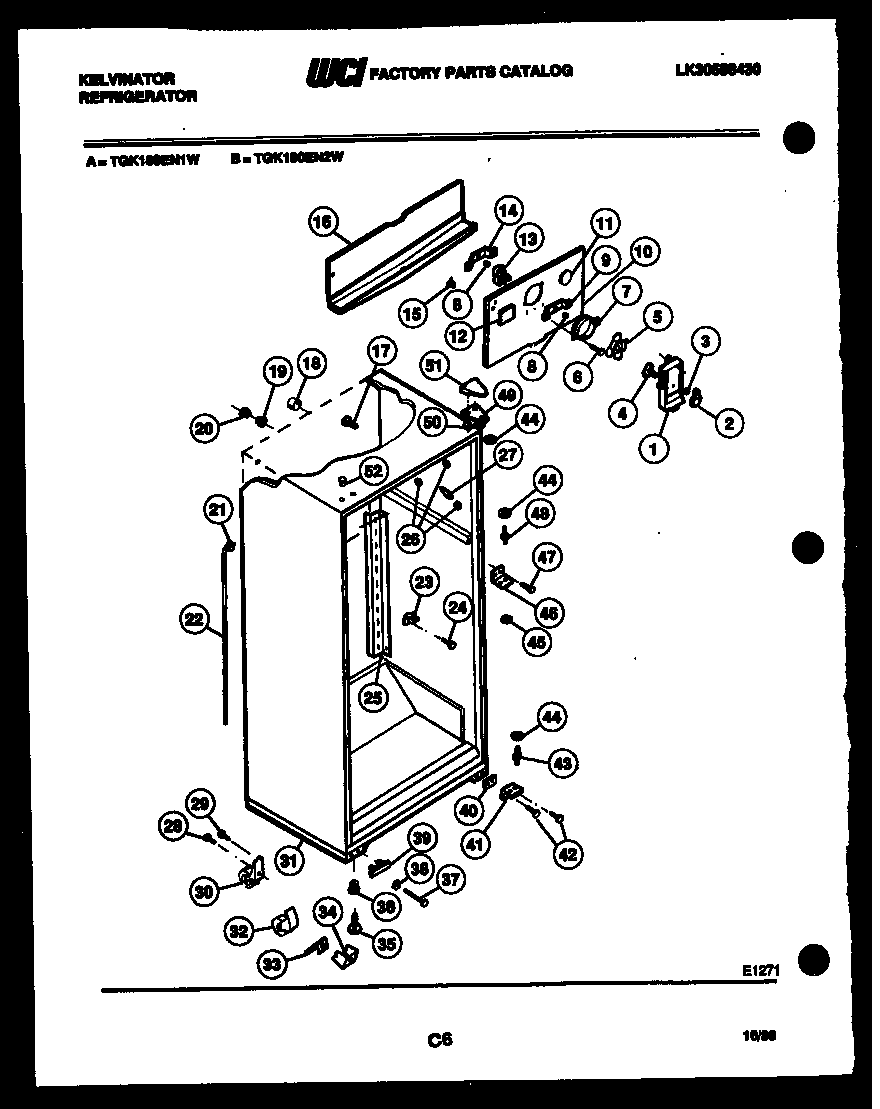

Cabinet parts diagram
Refrigerator grommetPart #G176993
Replaced by #5304500407
?Manufacturer substitutionThis part replaces G176993. Substitute parts can look different from the original.This item is not returnable$6.81 |13% OFF Phone Price : $7.81In Stock - #26A
System and automatic defrost parts diagram
Dampening soundPart #G169873
Replaced by #5303307583
?Manufacturer substitutionThis part replaces G169873. Substitute parts can look different from the original.$55.88 |10% OFF Phone Price : $61.88In Stock - Refrigerator screw
Part #G187009
Replaced by #5304455651
?Manufacturer substitutionThis part replaces G187009. Substitute parts can look different from the original.$39.96In Stock - Screw
Part #G162585
Replaced by #5304455651
?Manufacturer substitutionThis part replaces G162585. Substitute parts can look different from the original.$39.96In Stock - #5

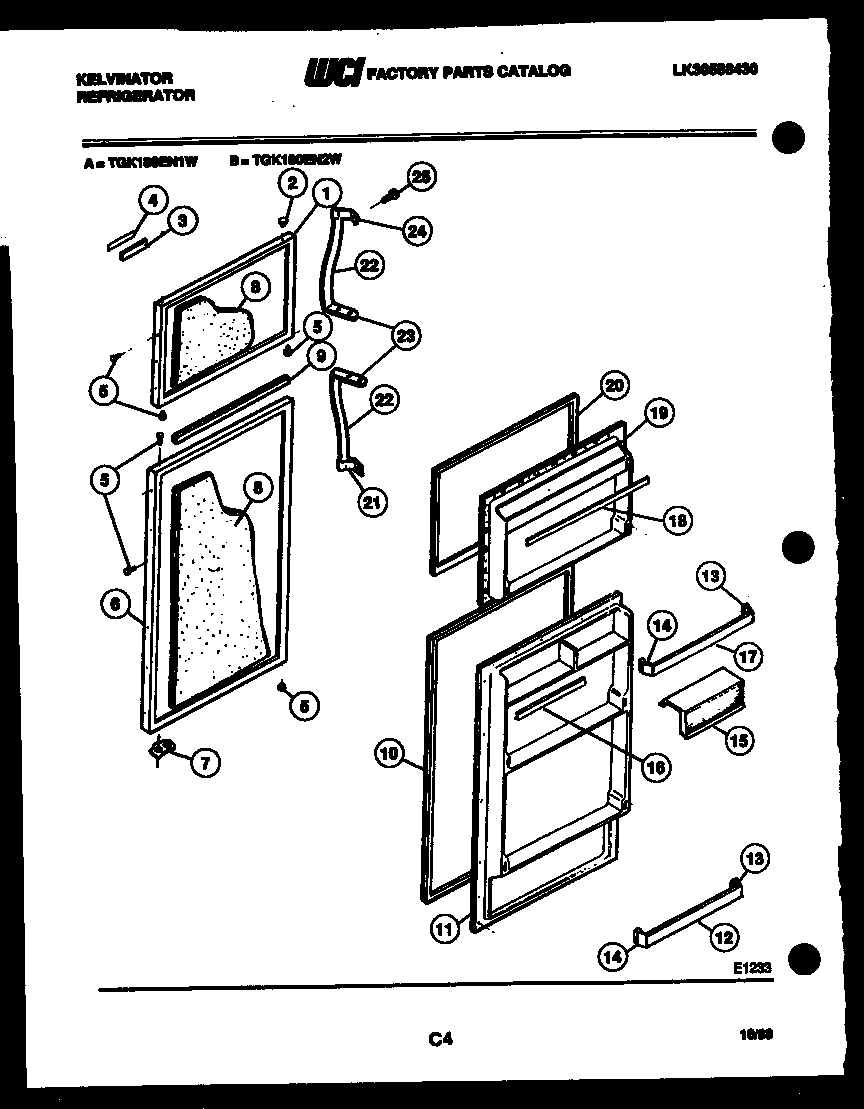

Door parts diagram
Refrigerator button plugPart #G162977-01
Replaced by #240494001
?Manufacturer substitutionThis part replaces G162977-01. Substitute parts can look different from the original.This item is not returnable$19.76 |9% OFF Phone Price : $21.76In Stock - #6
Shelves and supports diagram
Light switchPart #G187200
Replaced by #5309918806
?Manufacturer substitutionThis part replaces G187200. Substitute parts can look different from the original.This item is not returnable$22.87 |21% OFF Phone Price : $28.87In Stock
