Model # LB2/3A Official Amana horizontal vertical blower coil assembly
Here are the diagrams and repair parts for Official Amana LB2/3A horizontal vertical blower coil assembly, as well as links to manuals and error code tables, if available.
By Schematic
By Part

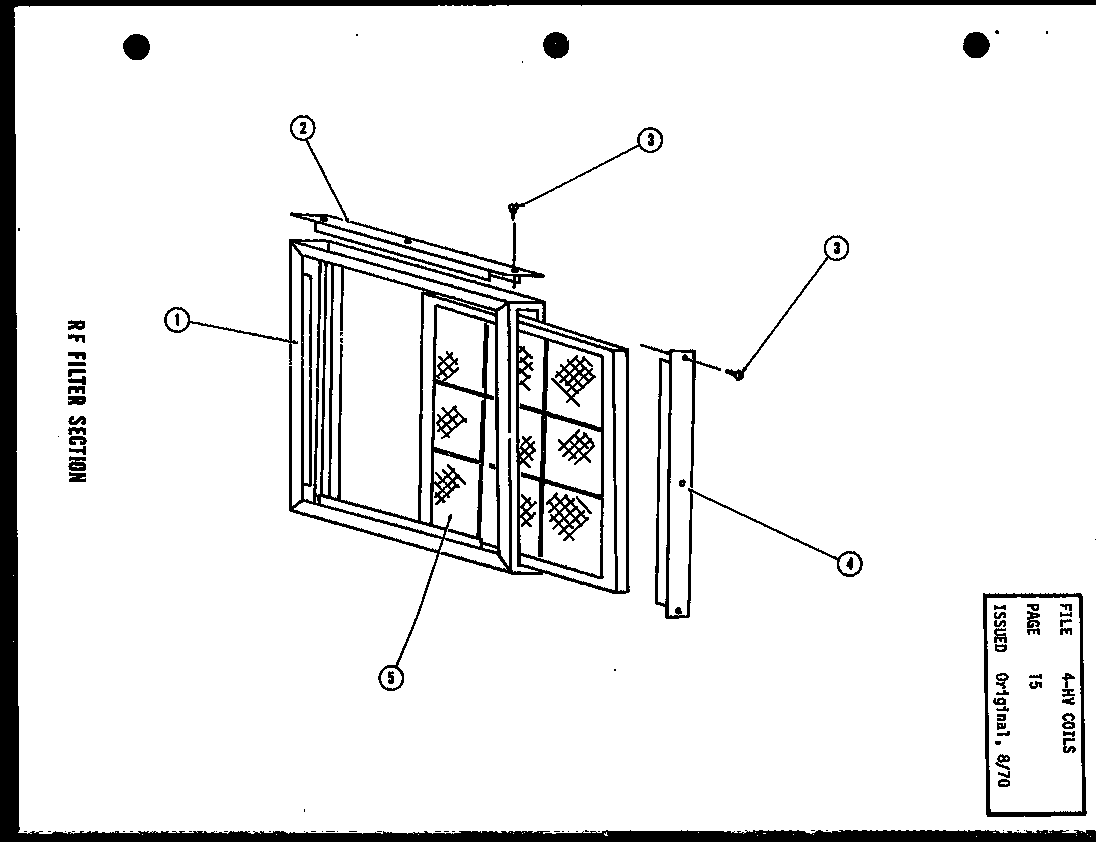

SELECT DIAGRAM
Browse Parts forLB2/3A Horizontal Vertical Blower Coil Assembly
- #19B

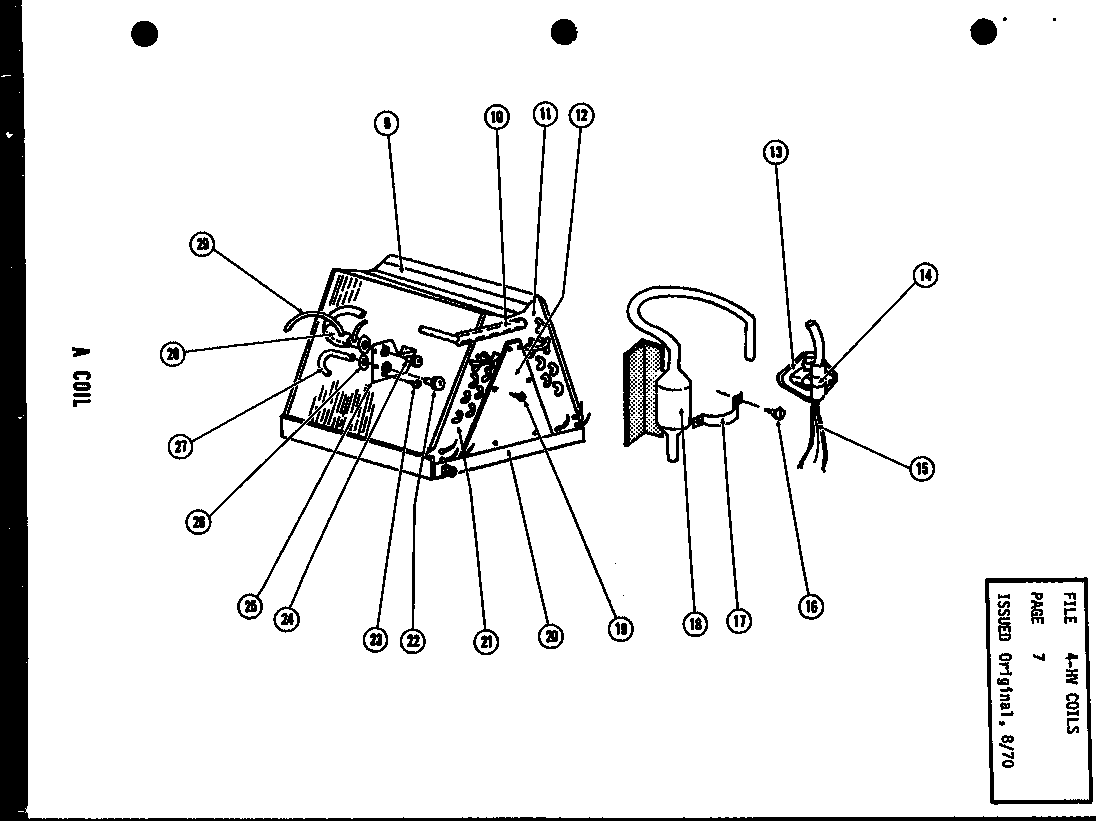

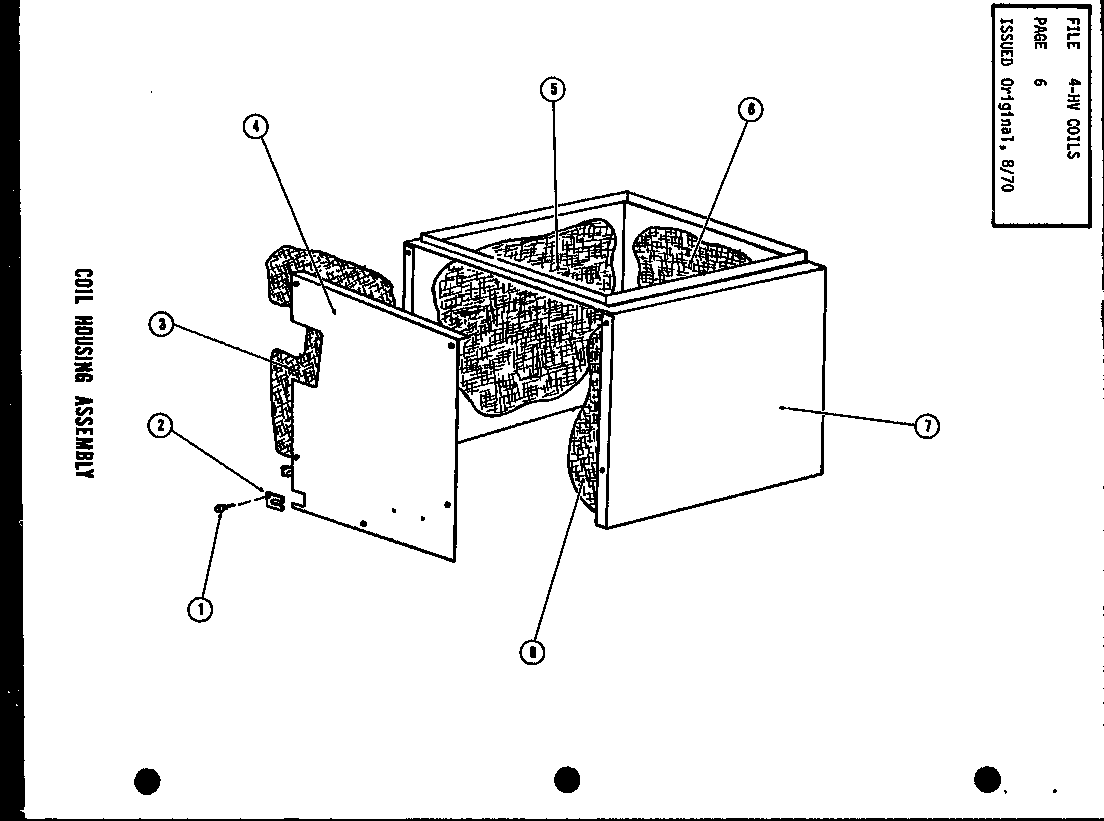

A coil (la2) (la2a) (la3) (la3a) (la4) (la4a) (la5) (lah5a) (lh2/3a) (lh4/5a) (lh4.5a) diagram
ScrewPart #M0216544
Replaced by #WPY014874
?Manufacturer substitutionThis part replaces M0216544. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock #NI
All parts diagram
ScrewPart #M0211217
Replaced by #WP489464
?Manufacturer substitutionThis part replaces M0211217. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock- Screw
Part #M0211317
Replaced by #WP489464
?Manufacturer substitutionThis part replaces M0211317. Substitute parts can look different from the original.This item is not returnable$6.60 |13% OFF Phone Price : $7.60In Stock #NI
All parts diagram
ScrewPart #M0216529
Replaced by #WP90767
?Manufacturer substitutionThis part replaces M0216529. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock- Screw
Part #M0211016
Replaced by #WP90767
?Manufacturer substitutionThis part replaces M0211016. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock #NI
All parts diagram
Strainer assembly, inlet expansion valvePart #C5270510
The manufacturer no longer makes this part, and there's no substitute part
- #20C
A coil (la2) (la2a) (la3) (la3a) (la4) (la4a) (la5) (lah5a) (lh2/3a) (lh4/5a) (lh4.5a) diagram
Pan, base drainPart #C5285201
The manufacturer no longer makes this part, and there's no substitute part
- #20A
A coil (la2) (la2a) (la3) (la3a) (la4) (la4a) (la5) (lah5a) (lh2/3a) (lh4/5a) (lh4.5a) diagram
Pan basePart #D5311401
The manufacturer no longer makes this part, and there's no substitute part
- #5C

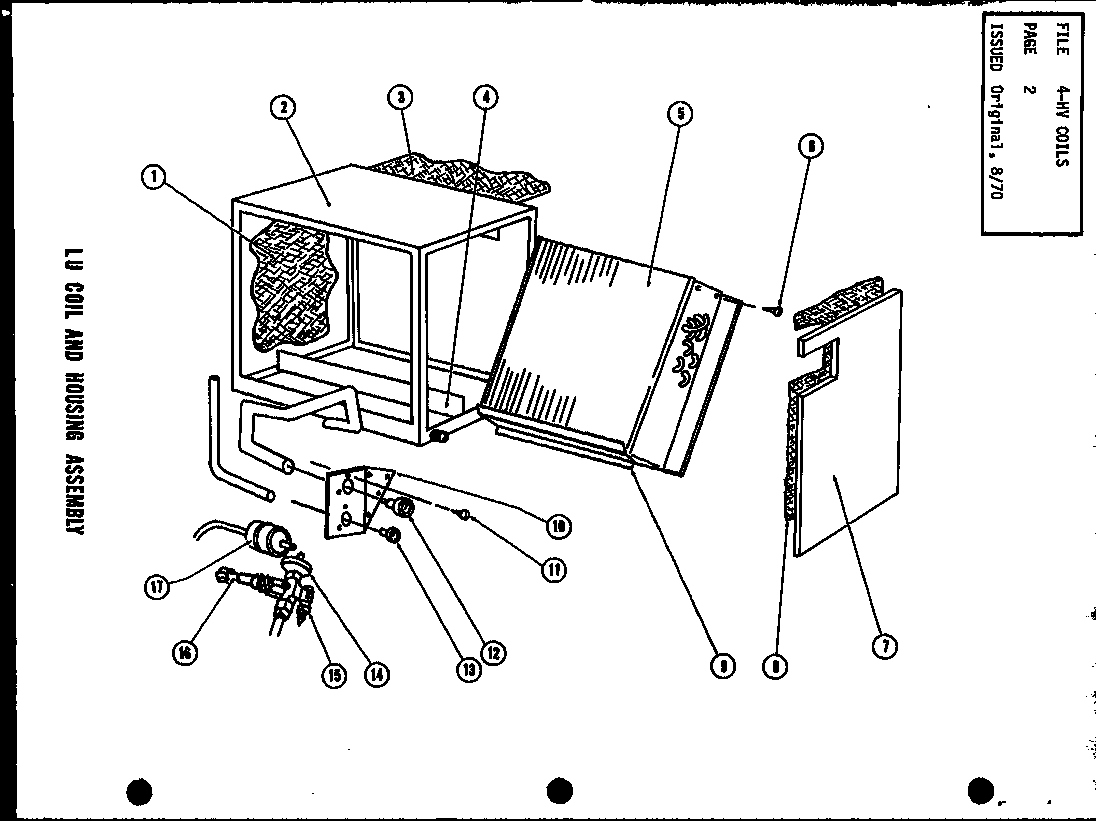

(lu2) (lu3) (lu4) (lu5) (lh2/3u) (lh4/5u) diagram
Evaporator coilPart #D5374201
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Grommet, (blower assembly attach)Part #M0500401
The manufacturer no longer makes this part, and there's no substitute part
