This bump-out mounting kit (part number W11185746) is for microwaves.
Bump-out mounting kit W11185746 lets you install the microwave under a cabinet deeper than 14 inches but less than 15 inches.
Follow the instructions in your installation guide or owner's manual when installing this part.
Frequently Bought Together
We have 15,000+ available parts
Cooktop Scraper
Part #WA906B
In Stock
$6.29
14% OFF Phone Price : $7.29
Qty
Affresh Cooktop Cleaner
Part #W10355051
In Stock
$10.88
16% OFF Phone Price : $12.88
Qty
Affresh Cooktop Cleaning Kit
Part #W11042470
In Stock
$21.89
22% OFF Phone Price : $27.89
Qty
Reviews
0 Reviews
Requirement for Deep Cabinets
June 05, 2021|vhm2003, Peoria, AZ
The cabinet above our microwave extends about 2.5" further than a standard upper cabinet. The builder installed top venting microwave had a second intake vent that opened up from the face front so the top of the microwave was installed flush with this cabinet. The problem we faced in finding a replacement was that all of the current top venting microwaves have a second intake vent over the door, meaning that any new microwave must come forward so as not to cover that intake vent with the deeper cabinet. This bump out was the perfect solution. The hardware store had recommended adding a wood furring strip to the wall to bump out the microwave but this would have to be carefully attached to the wall and then stained so that it did not look so obviously home crafted. We were so happy to find that Whirlpool was smart enough to manufacture this much more elegant mounting kit and that Sears PartsDirect was stocking it! The installation guide is helpful and gives instructions no matter the stud location on your wall, using the hardware that comes with the new microwave. The mount also comes with new templates for two different size microwaves so you can align the vent location and screw holes to accommodate the added distance from the wall. We had a little trouble with the front left screw location on the template not matching to the microwave by ~1/8" but we had already lifted the microwave into place when this was discovered. In our case, one held the microwave from the bottom while the other expanded the hole size from the top, being especially careful not to drill into the new microwave. Long story short, check the hole location with the template before you lift it into place.
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
Was this review helpful?
Perfect for IKEA 15' deep cabinets
April 04, 2021|JStags, San Francisco, CA
This bracket let me mount a Whirlpool/Kitchen-Aid low profile microwave on 15' deep upper cabinets. It was easy to install and worked perfectly.
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
1 person thought this review was helpful.
Just what I needed
January 26, 2021|JohnS, New Mexico
Worked perfectly since my cabinet above extends out further than the other cabinets. Received the part quickly too.
Ease of InstallationDifficult
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
1 person thought this review was helpful.
Easy install
September 24, 2020|Cody L, Atlanta
Make sure to open the correct instruction packet. Give yourself an hour to install just in case.
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
Was this review helpful?
Easy to install. All directions provided.
February 26, 2019|Nicknamehere, Undisclosed
Was exactly what I needed to be able to mount our over the range microwave with deeper cabinets.
Ease of InstallationVery Easy
Duration of Installation30 minutes - 1 hour
verified customer
Was this review helpful?
Worked perfectly for our Whirlpool microwave oven
December 01, 2019|JessandJess, Phoenix, AZ
It was relatively easy; we used the correct template for the back and followed the directions and shown. The mount went in without a hitch!
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
1 person thought this review was helpful.
It's Ok
June 09, 2021|Nada, Waldport Oregon
Bump out kit helped a ton, but you still cannot open the microwave door fully!! Before about 15%, after bump out about 80%! Oy Vay!
Ease of InstallationEasy
Duration of Installation30 minutes - 1 hour
verified customer
Yes, I would recommend this to a friend
Was this review helpful?
Part fine but order elsewhere if want quickly.
June 26, 2019|Gapster, Jacksonville, FL

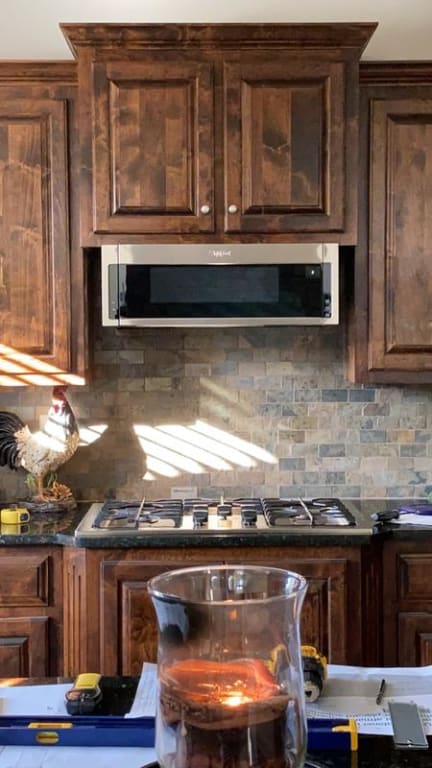

My handyman had never installed this part before but said it was easy with the template provided. Low profile microwave was expensive but looks great and doesn't obscure the pretty backsplash.
