Model # 247203726 Official Craftsman tractor
Here are the diagrams and repair parts for Official Craftsman 247203726 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual

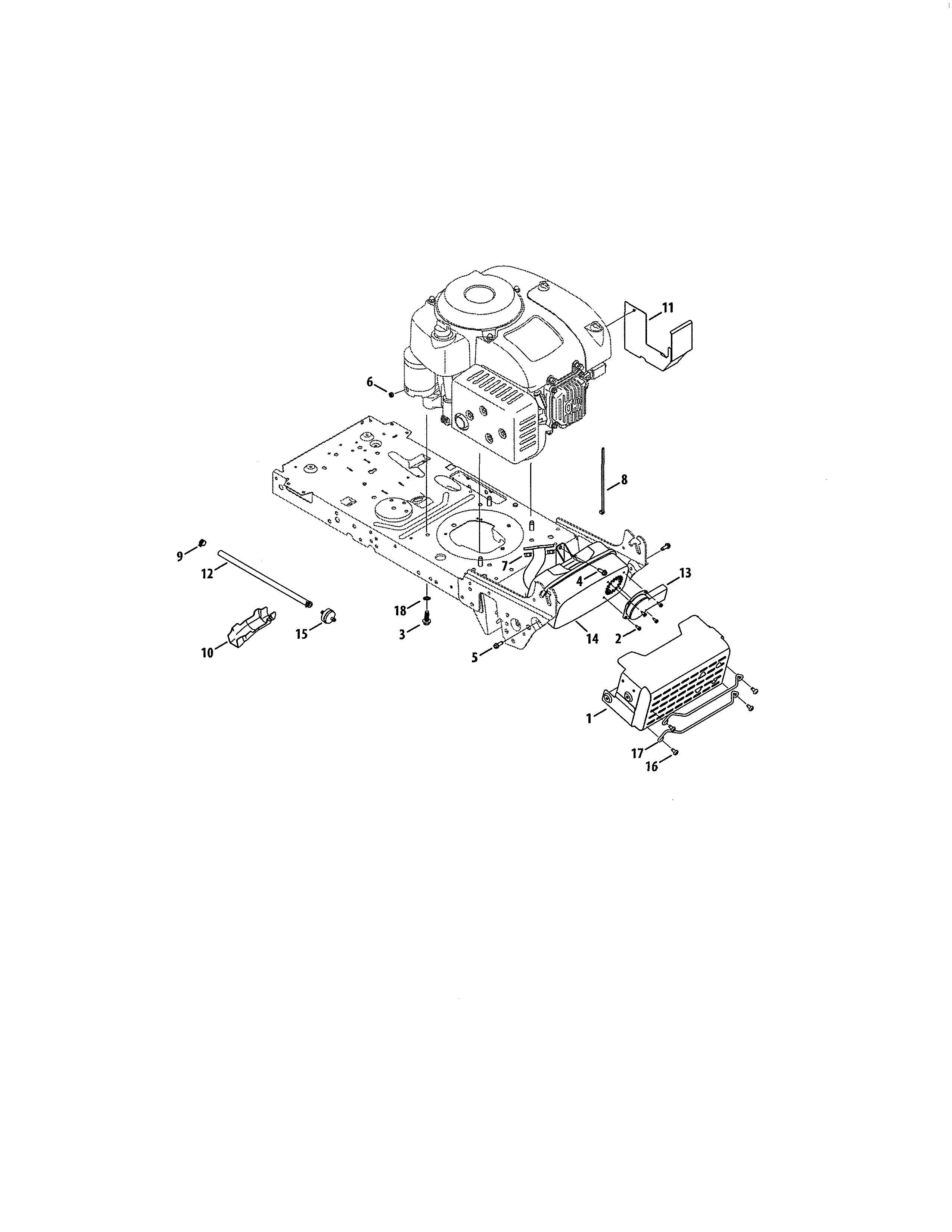

View engineBy Schematic
By Part

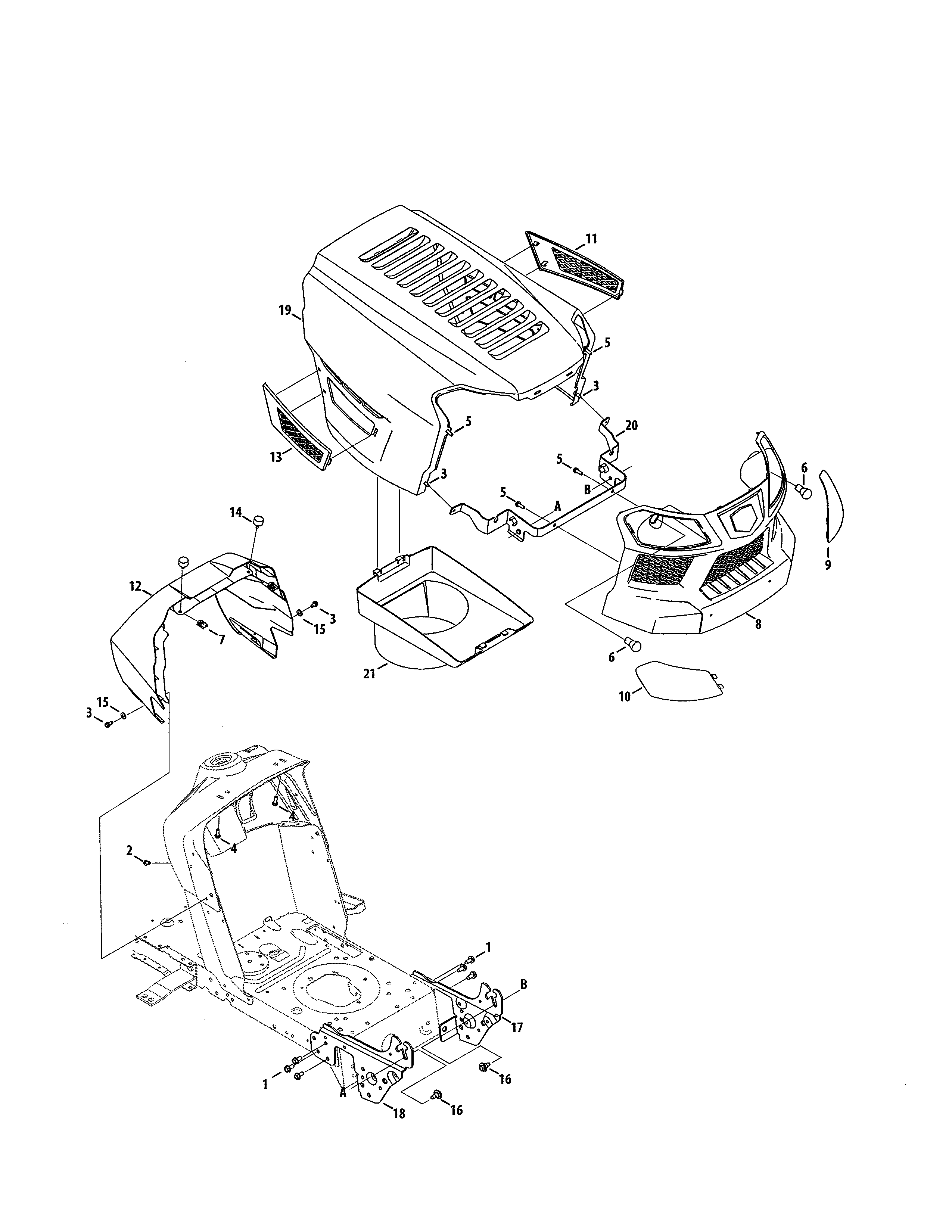

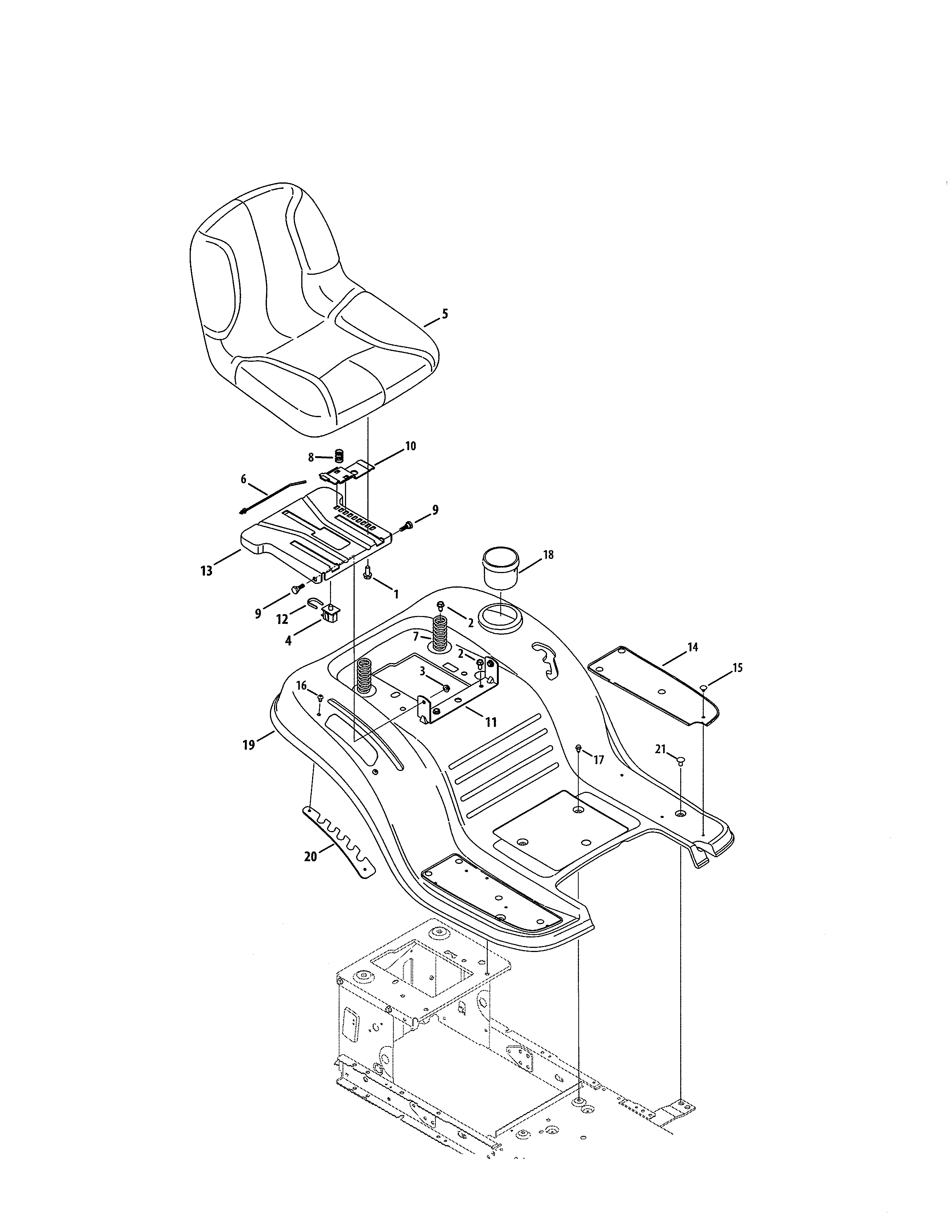

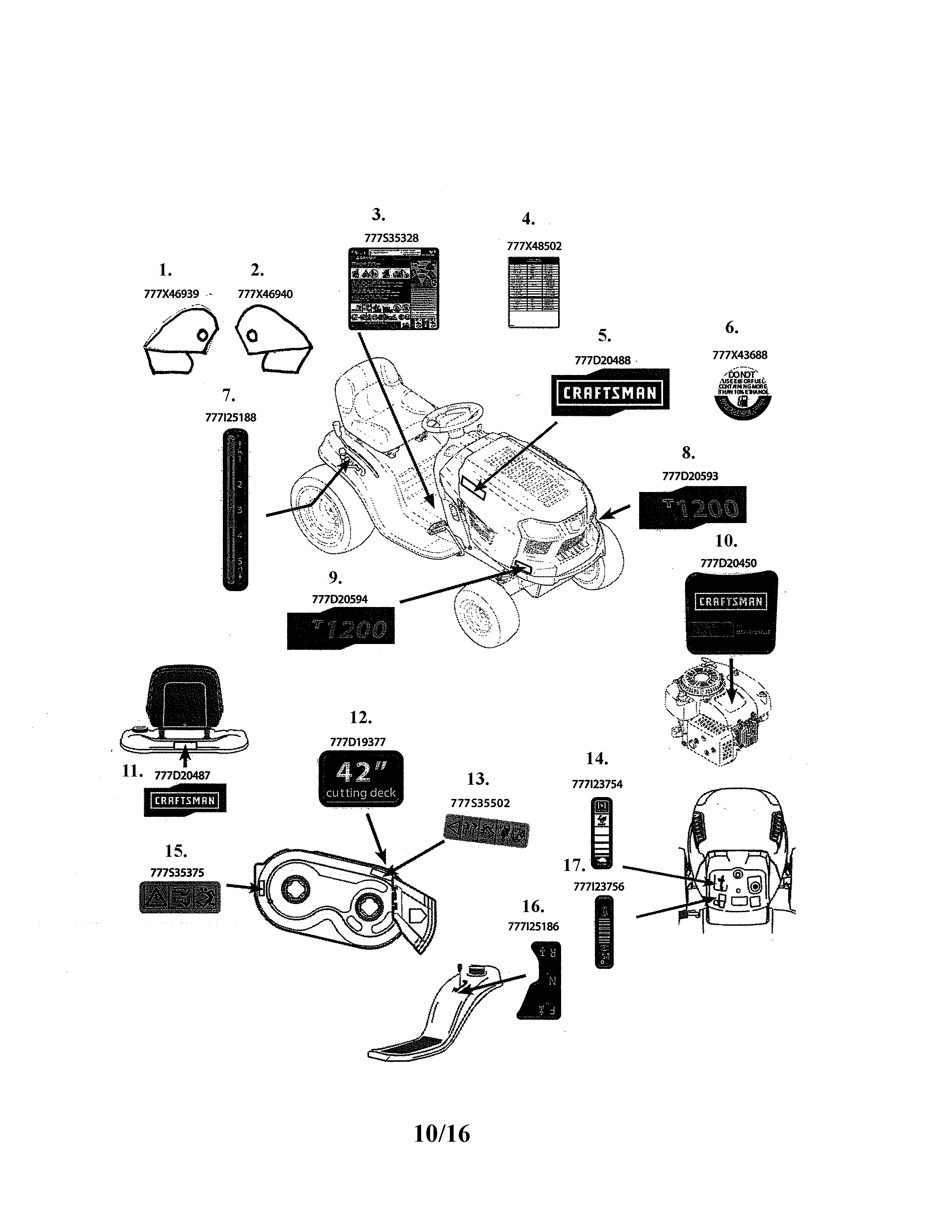

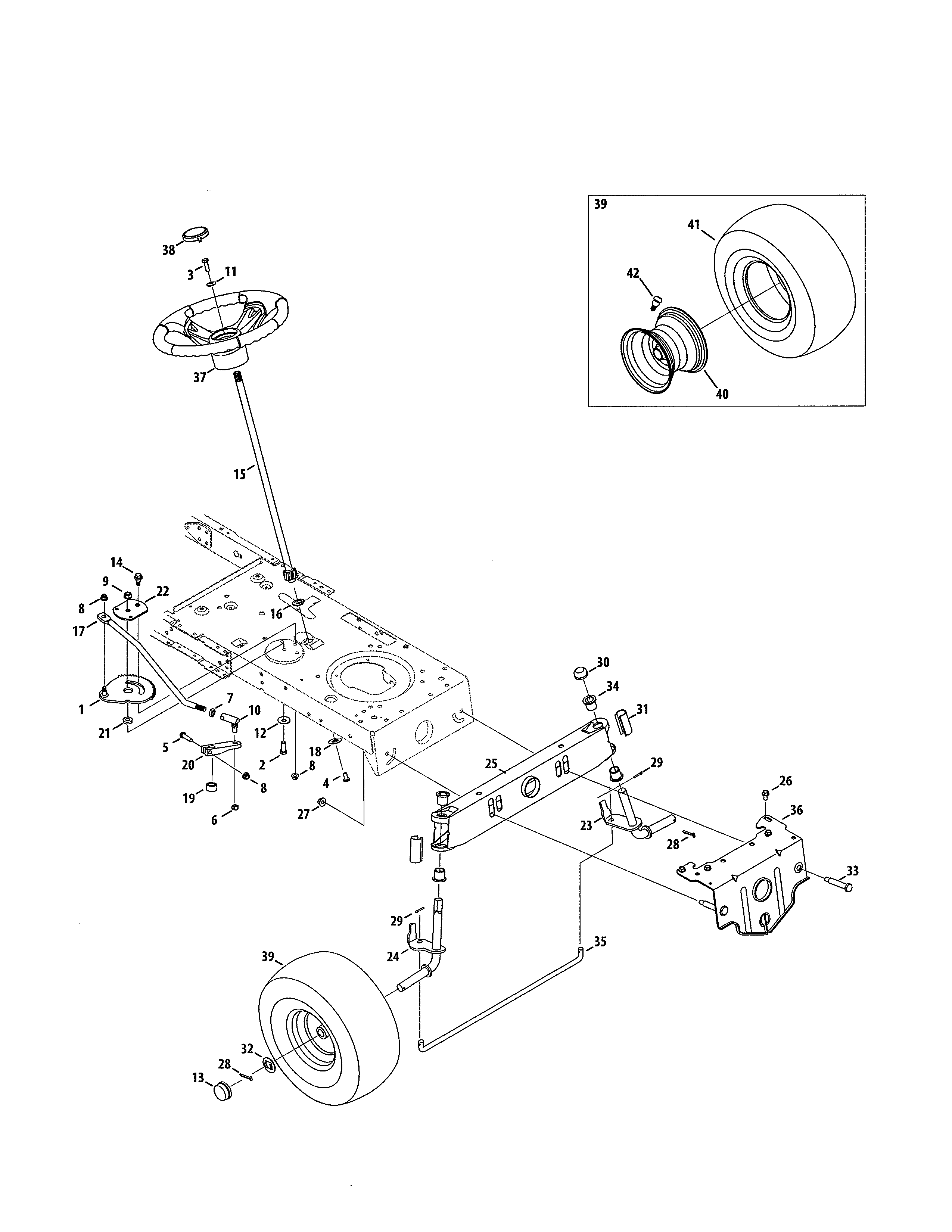

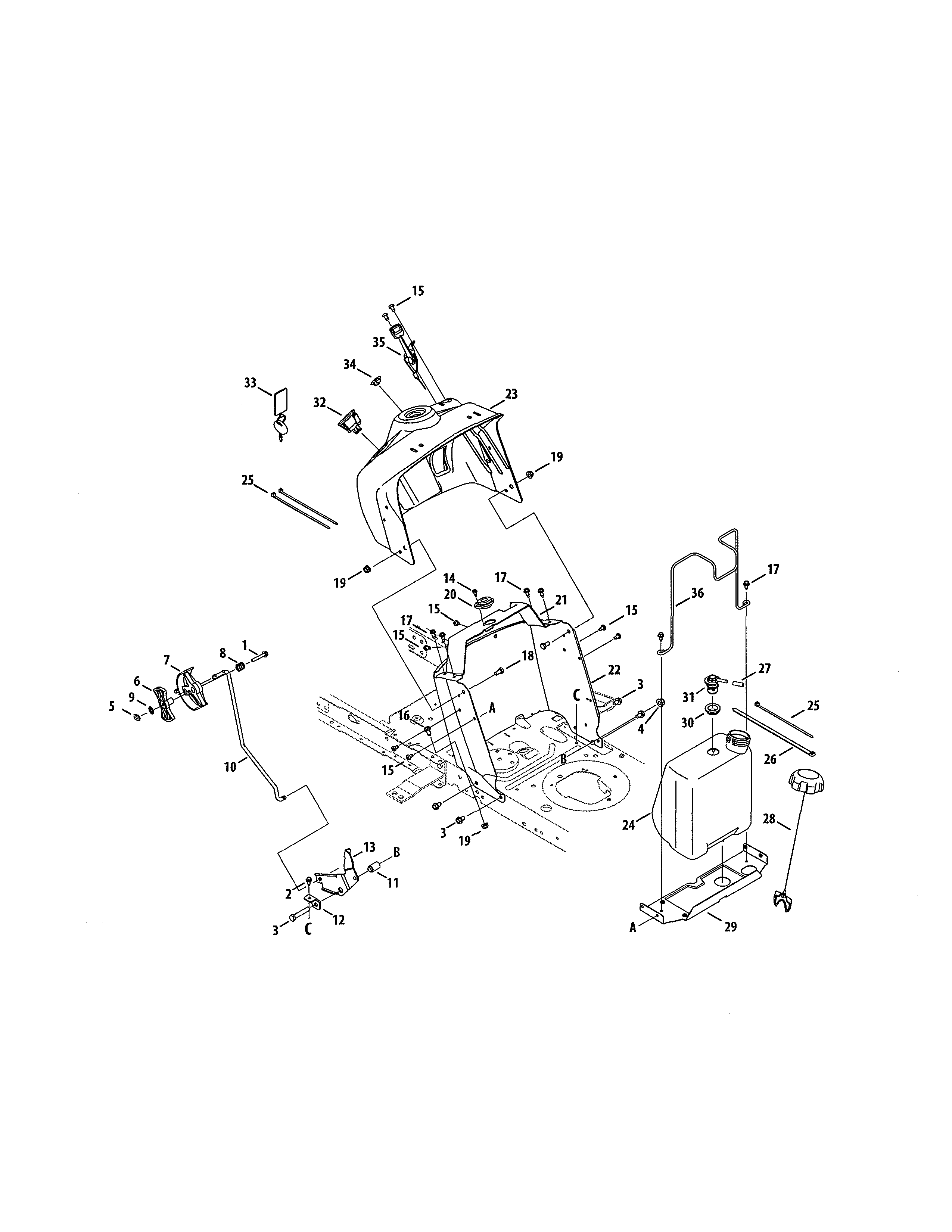

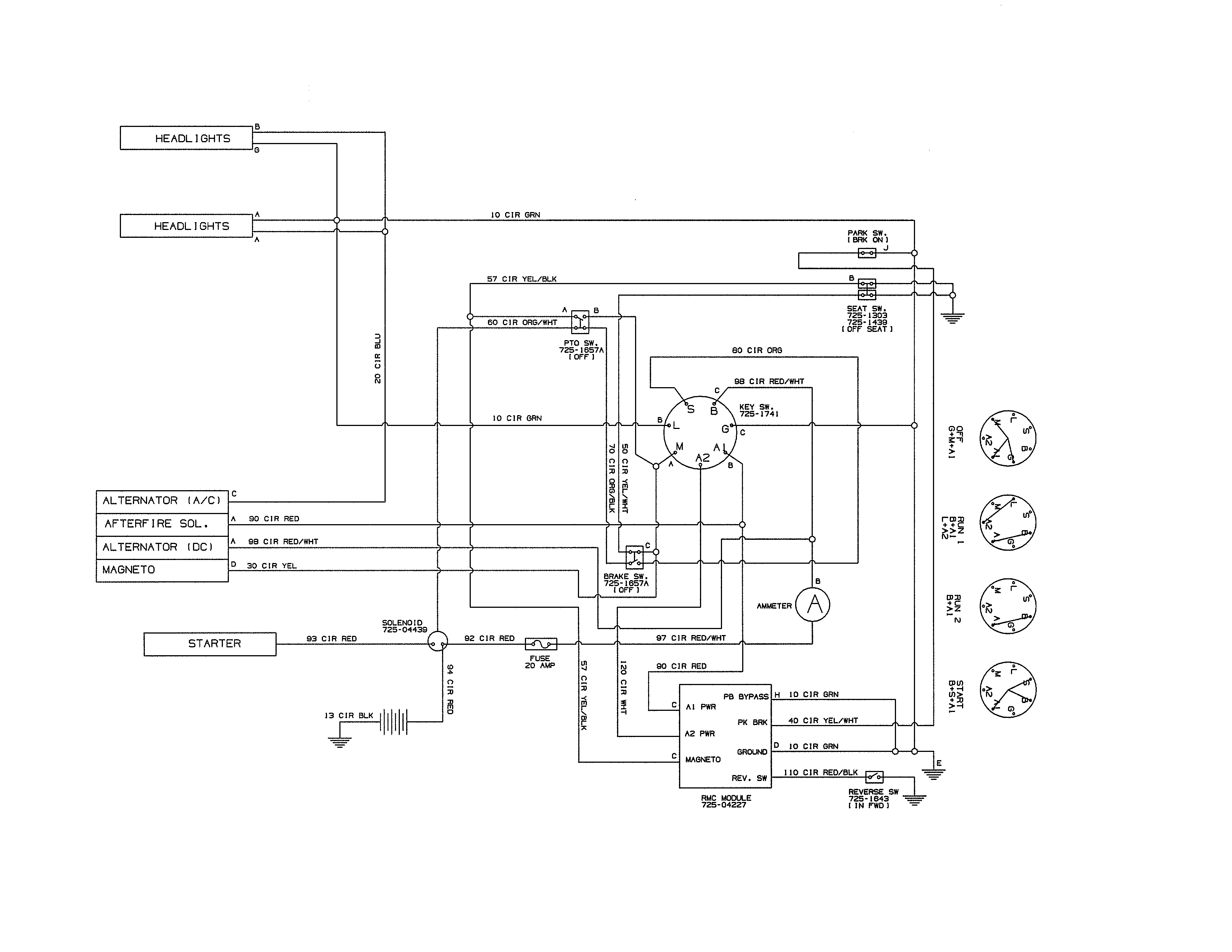

SELECT DIAGRAM
Browse Parts for
247203726 Riding Mowers & Tractors
#22

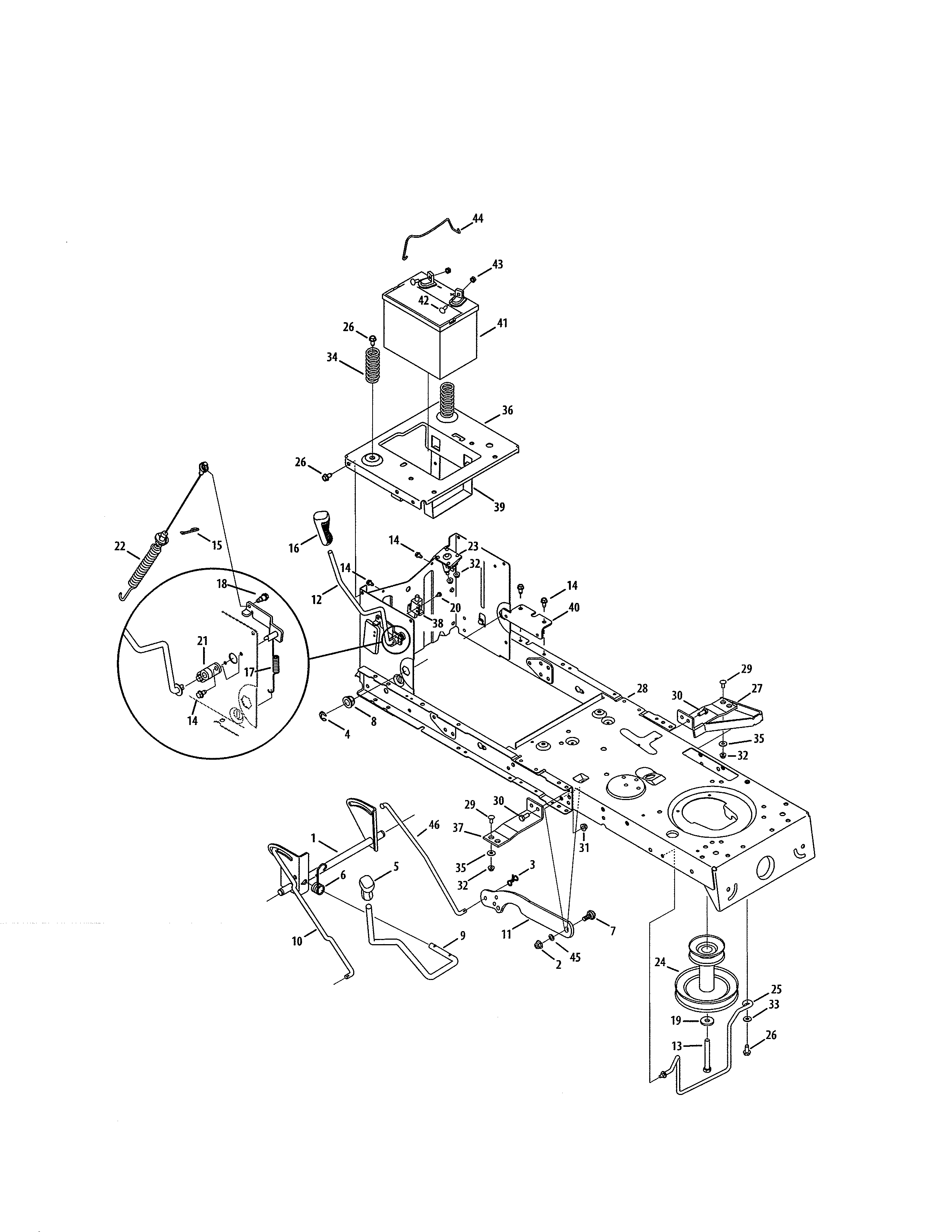

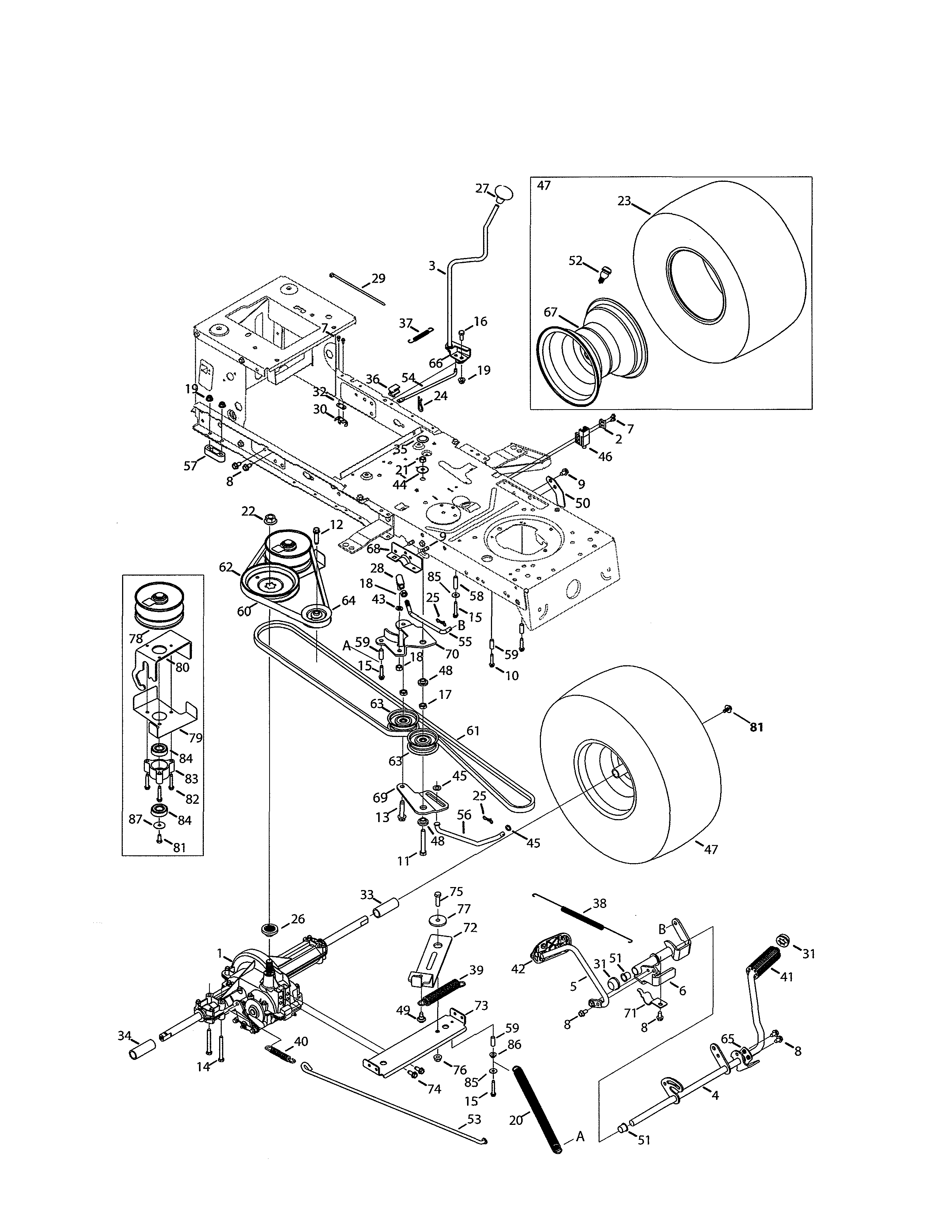

Frame/battery diagram
Craftsman lawn tractor blade engagement cable (replaces 746-05124, 946-05124)
Part #946-05124A
$37.24 |
14% OFF Phone Price : $43.24
In Stock
Mtd lawn tractor ground drive belt, 2/3 x 90-4/5-in
Part #954-0467A
Replaced by #490-501-Y035
?
Manufacturer substitution
This part replaces 954-0467A. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$41.68 |
13% OFF Phone Price : $47.68
Back Order
Mtd lawn & garden equipment cotter pin, 1/4- to 5/16-in
Part #714-04040
This item is not returnable
$2.82 |
26% OFF Phone Price : $3.82
Back Order
Mtd lawn tractor transaxle belt, 47-3/8 x 3/8-in
Part #954-04208A
Replaced by #490-501-Y007
?
Manufacturer substitution
This part replaces 954-04208A. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$33.24 |
15% OFF Phone Price : $39.24
In Stock
#7

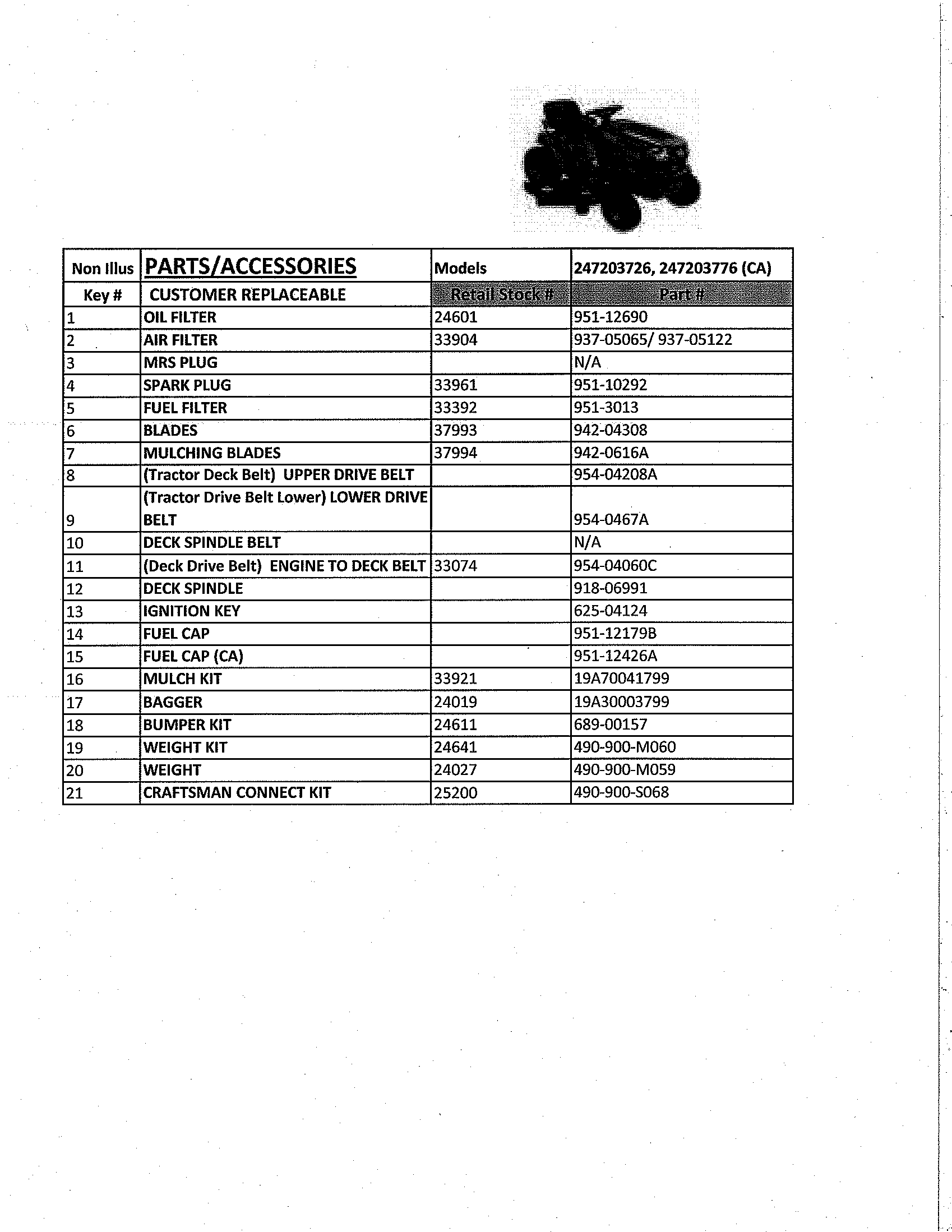

Customer replaceable parts diagram
Mtd lawn tractor 42-in deck 3-in-1 blade
Part #942-0616A
Get free shipping with Automatic Reorder
$31.32 |
16% OFF Phone Price : $37.32
Back Order
#19

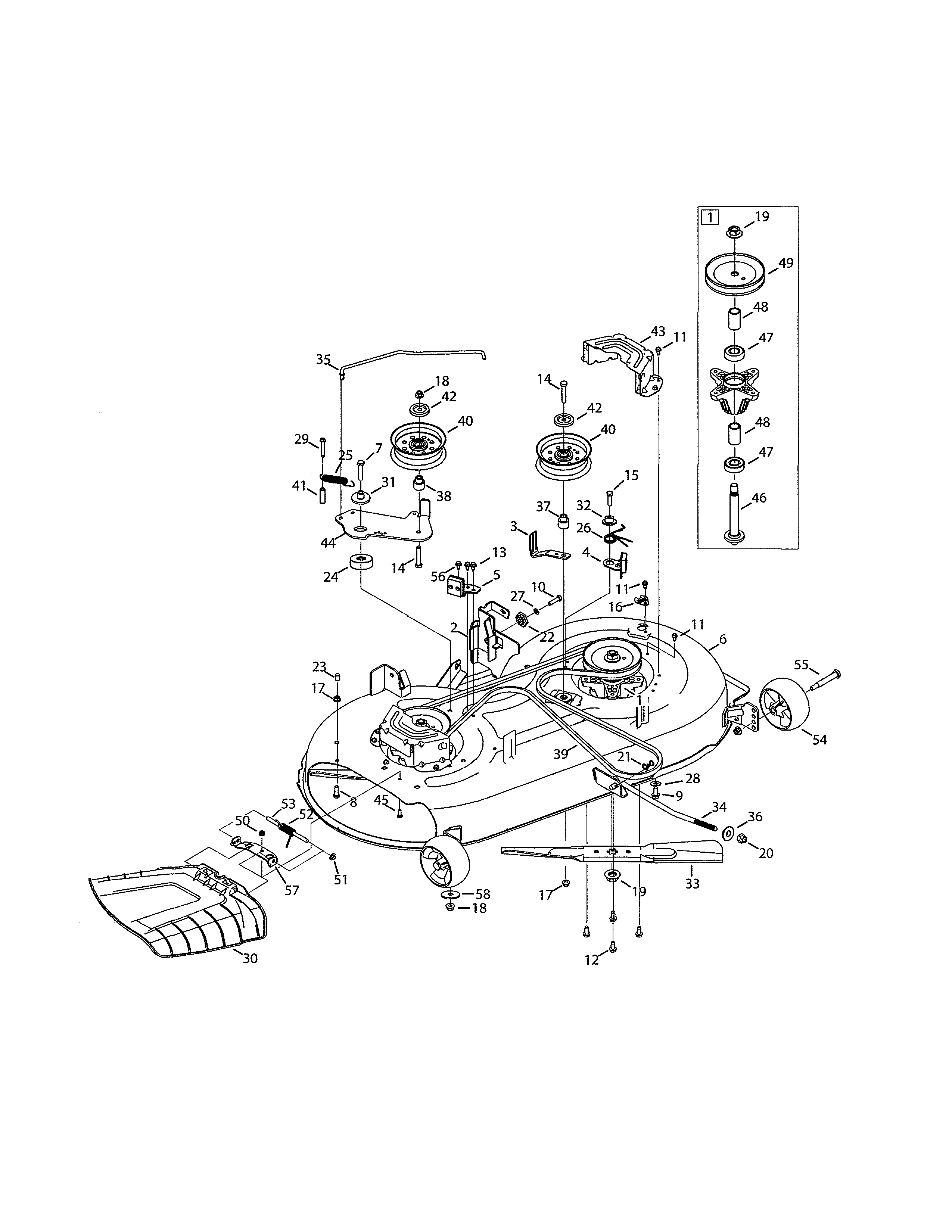

Deck/spindle pulley diagram
Lawn & garden equipment hex flange nut (replaces 753-05549, 912-0417a)
Part #712-0417A
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)
Part #712-04063
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Lawn tractor ignition key
Part #625-04124
Replaced by #925-1745A
?
Manufacturer substitution
This part replaces 625-04124. Substitute parts can look different from the original.
$20.11 |
23% OFF Phone Price : $26.11
Back Order
Mtd lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in
Part #710-1260A
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Mtd lawn and garden equipment nut
Part #712-04064
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $7.58 |12% OFF Phone Price : $8.58
- $8.27 |11% OFF Phone Price : $9.27
- $13.46
- $11.14
- $10.94
- $22.40
- $11.06
- $31.00 |16% OFF Phone Price : $37.00
- $14.51
- $215.74 |5% OFF Phone Price : $227.74
- $81.22 |7% OFF Phone Price : $87.22
- $102.51 |10% OFF Phone Price : $114.51
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: clogged carburetor, damaged flywheel key, dirty spark plug, stale fuel, improper valve lash, engine needs a…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: damaged cutting blade, worn deck pulley, damaged mandrel pulley, loose fasteners on mower deck components…
Main causes: faulty battery, bad alternator…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace a mandrel assembly on a riding lawn mower
Replace the mandrel assembly if the blade shaft vibrates or doesn't spin.…
Repair difficulty
Time required
30 minutes or less
How to replace the flywheel key on a riding lawn mower
If the engine won't restart after hitting a stump or rock, the problem could be a sheared flywheel key. Follow these ste…
Repair difficulty
Time required
60 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair difficulty
Time required
30 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Do you know a lawn tractor from a garden tractor? Take a look at the key differences and discover how each handles your …
Wondering when to mow your lawn for the best results? Timing matters more than you might think. Discover the best time o…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
